Built-in square wave HALL sensor, power supply <+9V, maximum current consumption 12mA
Number of poles
4/8 Pole
Rated voltage
12V/24V/36V/48V
Rated torque
0.04/0.16N.m
Positioning torque
Rated torque *0.2
Peak torque
Rated torque*3.5
Continuous stall torque
Rated torque *1.2
Rated speed
1000Rpm-5000Rpm
No-load speed
Rated speed *1.25
Insulation grade
Class B · Noise: <40 dB
Wiring
300mm rear/side outlet (order specification)
Machine efficiency
Up to 80%
Warm rise
<50K
Installation method
Vertical / round / square
Ambient temperature
-45°C-+65°C
Working humidity
<85% (20+/-5°C)
Product parameters:
Models and Specifications
Rated voltage
Rated current
Rated speed
No-load speed
Rated torque
Torque constant
Total Weight
60LYM3A78-01-24V-1500R-38W
DC24V
1.98A
1500R
1800R
0.25N.m
0.126
0.9 Kg
60LYM3A78-01-24V-3000R-75W
DC24V
3.91A
3000R
3600R
0.25N.m
0.064
0.9 Kg
60LYM3A78-01-24V-4000R-100W
DC24V
5.21A
4000R
4800R
0.25N.m
0.048
0.9 Kg
60LYM3A78-01-48V-1500R-38W
DC48V
0.99A
1500R
1800R
0.25N.m
0.252
0.9 Kg
60LYM3A78-01-48V-3000R-75W
DC48V
1.96A
3000R
3600R
0.25N.m
0.128
0.9 Kg
60LYM3A78-01-48V-4000R-100W
DC48V
2.61A
4000R
4800R
0.25N.m
0.096
0.9 Kg
60LYM3A78-01-310V-1500R-38W
DC310V
0.16A
1500R
1800R
0.25N.m
1.56
0.9 Kg
60LYM3A78-01-310V-3000R-75W
DC310V
0.31A
3000R
3600R
0.25N.m
0.81
0.9 Kg
60LYM3A78-01-310V-4000R-100W
DC310V
0.42A
4000R
4800R
0.25N.m
0.6
0.9 Kg
60LYM3A99-01-24V-1500R-75W
DC24V
3.91A
1500R
1800R
0.50N.m
0.126
1.25 Kg
60LYM3A99-01-24V-3000R-150W
DC24V
7.83A
3000R
3600R
0.50N.m
0.064
1.25 Kg
60LYM3A99-01-24V-4000R-200W
DC24V
10.4A
4000R
4800R
0.50N.m
0.048
1.25 Kg
60LYM3A99-01-48V-1500R-75W
DC48V
1.98A
1500R
1800R
0.50N.m
0.253
1.25 Kg
60LYM3A99-01-48V-3000R-150W
DC48V
3.91A
3000R
3600R
0.50N.m
0.128
1.25 Kg
60LYM3A99-01-48V-4000R-200W
DC48V
5.21A
4000R
4800R
0.50N.m
0.096
1.25 Kg
60LYM3A99-01-310V-1500R-75W
DC310V
0.31A
1500R
1800R
0.50N.m
1.612
1.25 Kg
60LYM3A99-01-310V-3000R-150W
DC310V
0.62A
3000R
3600R
0.50N.m
0.806
1.25 Kg
60LYM3A99-01-310V-4000R-200W
DC310V
0.82A
4000R
4800R
0.50N.m
0.61
1.25 Kg
60LYM3A120-01-24V-1500R-115W
DC24V
5.98A
1500R
1800R
0.75N.m
0.125
1.6 Kg
60LYM3A120-01-24V-3000R-235W
DC24V
11.9A
3000R
3600R
0.75N.m
0.063
1.6 Kg
60LYM3A120-01-24V-4000R-310W
DC24V
16.2A
4000R
4800R
0.75N.m
0.046
1.6 Kg
60LYM3A120-01-48V-1500R-115W
DC48V
2.99A
1500R
1800R
0.75N.m
0.251
1.6 Kg
60LYM3A120-01-48V-3000R-235W
DC48V
5.98A
3000R
3600R
0.75N.m
0.125
1.6 Kg
60LYM3A120-01-48V-4000R-310W
DC48V
8.07A
4000R
4800R
0.75N.m
0.093
1.6 Kg
60LYM3A120-01-310V-1500R-115W
DC310V
0.46A
1500R
1800R
0.75N.m
1.631
1.6 Kg
60LYM3A120-01-310V-3000R-235W
DC310V
0.92A
3000R
3600R
0.75N.m
0.815
1.6 Kg
60LYM3A120-01-310V-4000R-310W
DC310V
1.25A
4000R
4800R
0.75N.m
0.6
1.6 Kg
Note: We are factory direct for sale. OEM/ODM is available. Above are only some typical models. For more information or a customized motor, Please contact us. Customizable accessories: motor length, shaft, voltage, power, rated speed and so on.

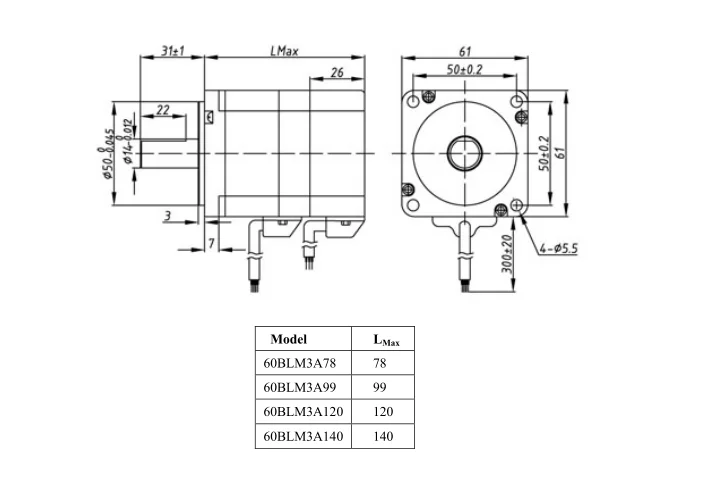

Installation drawing:
Application:
welding machine, electrical household, diamond machinery, office intelligent equipment, hotel leisure, antomated machine and so on.
Motor Voltage: DC12V, 24V,42V,48V,90V,110V ,300V
Motor Rated Power:15W, 25W,30W,45W,65W, 95W,120W,50W,180W
Motor no-load Speed:15RPM, 30RPM,60RPM,80RM,120RPM,150RPM,180RPM,200RPM,220RPM.
