Ribbon blender is widely used in food, medicine, chemical, plastic, material mixing production dyes and cosmetic industries. For solid solid (powder and powder) mixed solid liquid (powder and liquid) mixed. Especially suitable for viscous or agglomerate mixed powder material the material, adding more liquid and powder material (or paste material) mixed. The machine has the advantages of fast mixing speed, high precision, no mixed blind, filling coefficient, smooth operation, sealing operation, no environmental pollution, the material quickly, clean, without leaving the remaining material, use, maintenance, repair convenience etc.
2. Working principle
Driven by a direct reducer, the rotor of the mixer rotates in orientation. In the process of rotation, the screw belt pushes the material along the axis on the one hand and throws the material over the front of the belt on the other. The outer spiral belt makes the material always move to the middle of the cylinder, and the inner spiral belt makes the material move from the middle to the two ends, so the material forms two circulation logistics in the movement, and in the process of repeated circulation flow. The material is fully mixed.
3. structural characteristics

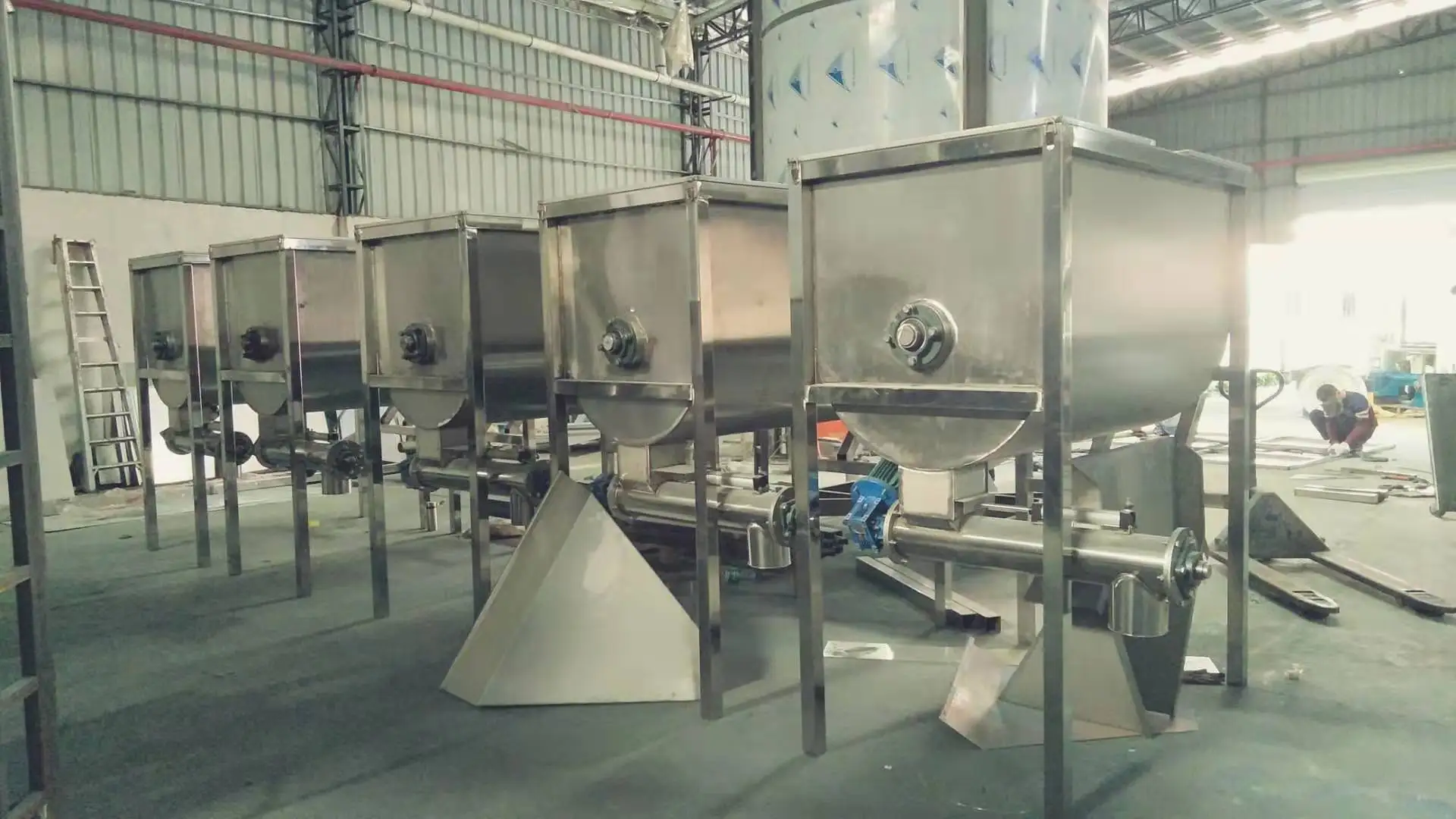

The horizontal screw belt mixer is composed of transmission parts, double layer screw belt agitator and U shaped cylinder. The top cover is provided with a feed port and a repair port, and can also be formulated according to the requirements of the user and sprayed with liquid addition device. Non-standard clamping sleeve. Discharge devices are installed in the center of the bottom of the cylinder (discharge devices are manual and pneumatic, generally standard for manual discharge).
1). It consists of a U-shaped container, a ribbon stirring blade and a transmission component;
2). The U-shaped long body cylinder structure ensures small resistance movement of the mixed material (powder, semi-fluid) in the cylinder.

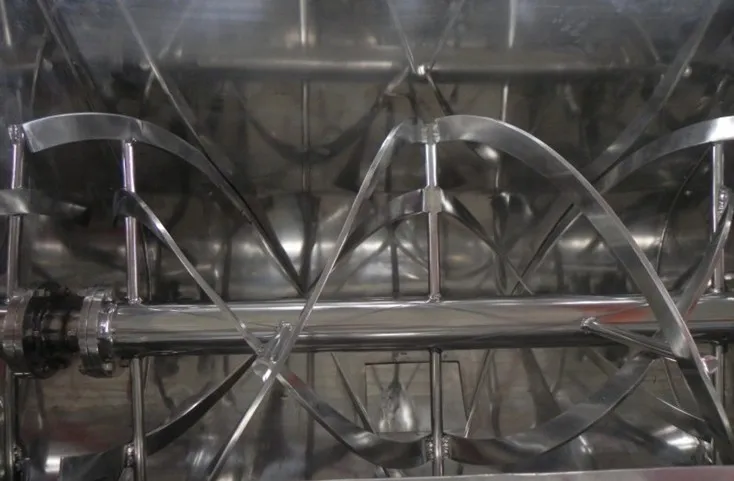

3). The positive and negative rotating screws are installed on the same horizontal axis to form a low-dynamic and high-efficiency mixed environment. The ribbon-shaped blades are generally made of double or triple layers, and the outer spirals gather the materials from the sides to the center. The spiral transports the material from the center to the sides, allowing the material to form more eddy currents in the flow. Speed up mixing and increase mixing uniformity;
4). Horizontal ribbon mixer is a new type of mixing and mixing equipment with high efficiency, high uniformity, high loading factor, low energy consumption, low pollution and low crushing.
5), the product has a wide range of application, can mix and mix powder and powder, powder and liquid, especially can stir paste, viscous or large proportion of materials (such as putty, real stone paint, metal powder, etc. product). It is widely used in pharmaceutical, food, pesticide, dye, chemical, plastic, ceramic, paint, putty, mortar and other fields.
Technical Parameters
Working
Capacity
/Cu.Ft.
Working
Capacity
/Kg
Working
Capacity
/Gallons
Working
Capacity
/Liters
Motor
H.P.
RPMs of
Ribbons
Discharge
Diameter
Number of
Lids& Grates
Overall
Length(L)
Overall
Width(W)
1
14
7.5
28.3
1
60
4"
1
32.8"
16.3"
2.5
35
18.7
71
2
71
4"
1
46.5'
19.3"
5
70
37
142
3
54
4"
1
50"
23.4"
10
140
75
283
4
58
4"
1
64"
28.5"
15
200
112
425
5
58
6"
2
70.5"
31.5"
25
350
187
708
7
46
6"
2
80.5"
36.5"
35
440
262
991
10
45
6"
2
90"
40.5"
36
500
268
1016
10
45
6"
2
91"
42"
50
700
374
1416
12
36
8"
2
104"
45.5"

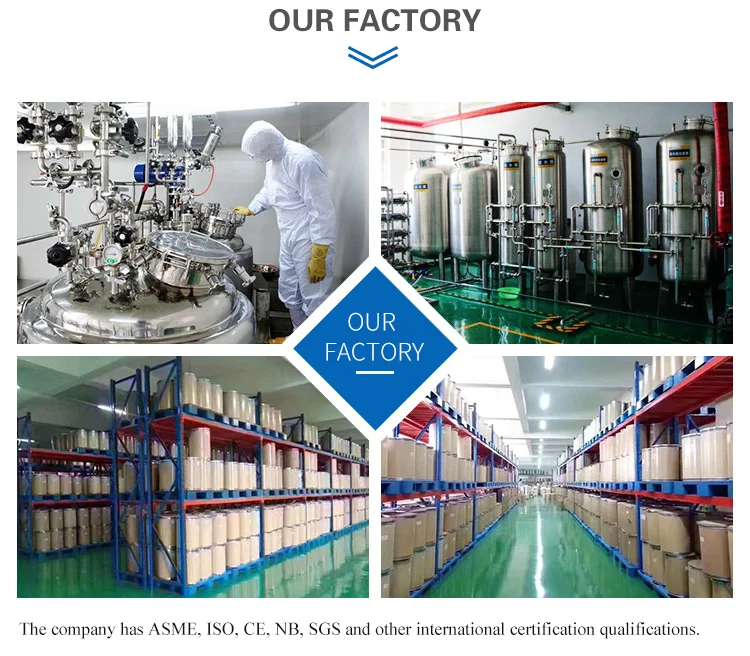

Our company
