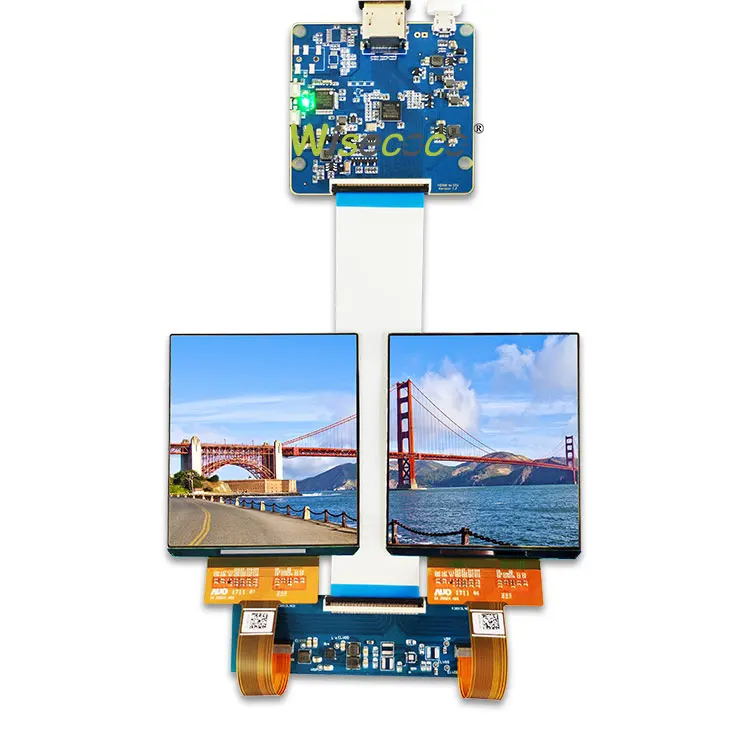

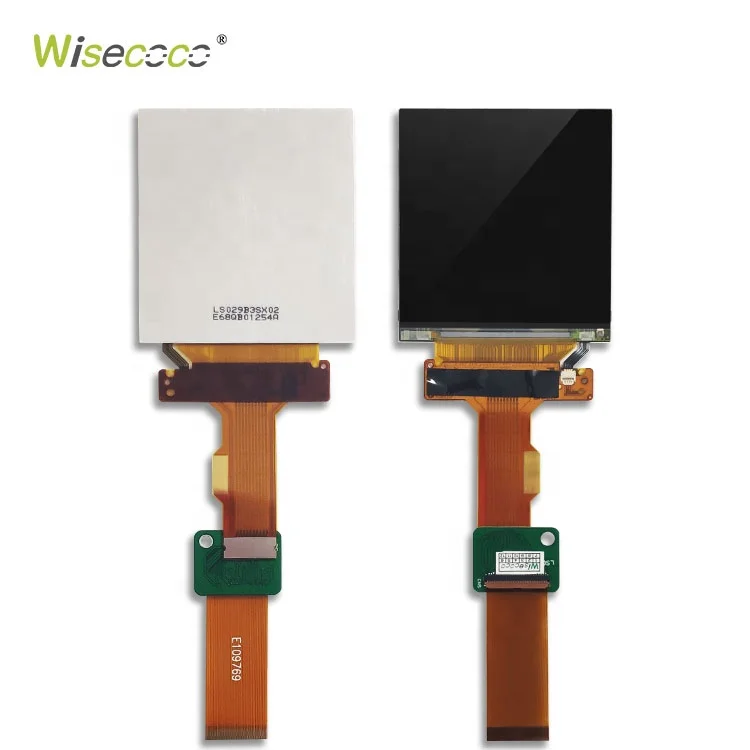

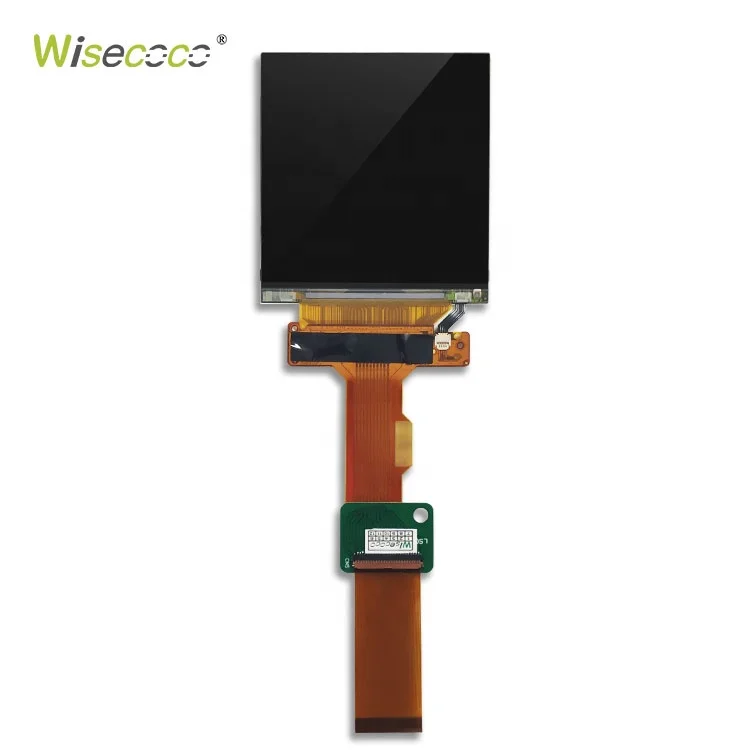

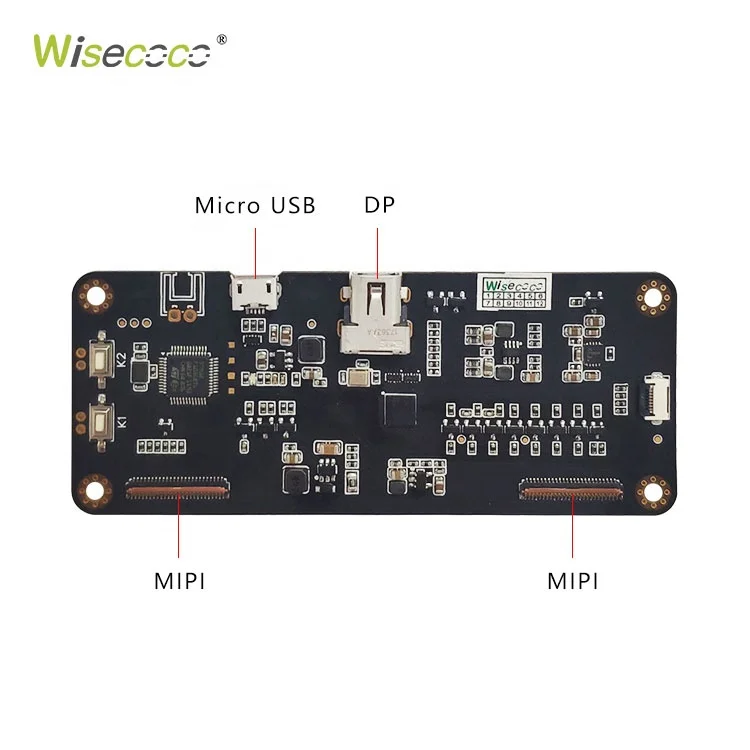

2.9 Inch Tft 1440x1440p LCD Screen LS029B3SX02 DP To Mipi 40pin 120Hz Dp Controller Board For Vr Hmd Headset Display Module

General Features

Diagonal Size

2.9 inch

Type

LCM, CG-Silicon

Pixel Format

1440(RGB)×1440

Configuration

RGB Vertical Stripe

Active Area

51.84 × 51.84 (H×V)

Outline Dim.

54.24 × 59.02 × 1.51 (H×V×D)

Bezel Area

Treatment

Hard coating

Luminance

300 cd/m² (Typ.)

Contrast Ratio

1100:1 (Typ.) (TM)

View Direction

Symmetry

Response Time

10 (Typ.)(Tr+Td)

Viewing Angle

80/80/80/80 (Min.)(CR≥10)

Operating Mode

IPS, Normally Black, Transmissive

Support Color

16.7M   75% (CIE1931)

Light Source

4S2P WLED , No Driver

Weight

Designed For

HMD VR AR

Frame Rate

120Hz

Touch Panel

Without

Interface Type

Operating Temp.: -10 ~ 60 °C ; Storage Temp.: -20 ~ 70 °C

Power Supply

1.8/5.5/-5.5V (Typ.)(VDDI/VSP/VSN)

Environment

Storage Temp.: -30 ~ 70 °C    Operating Temp.: -20 ~ 60 °C
