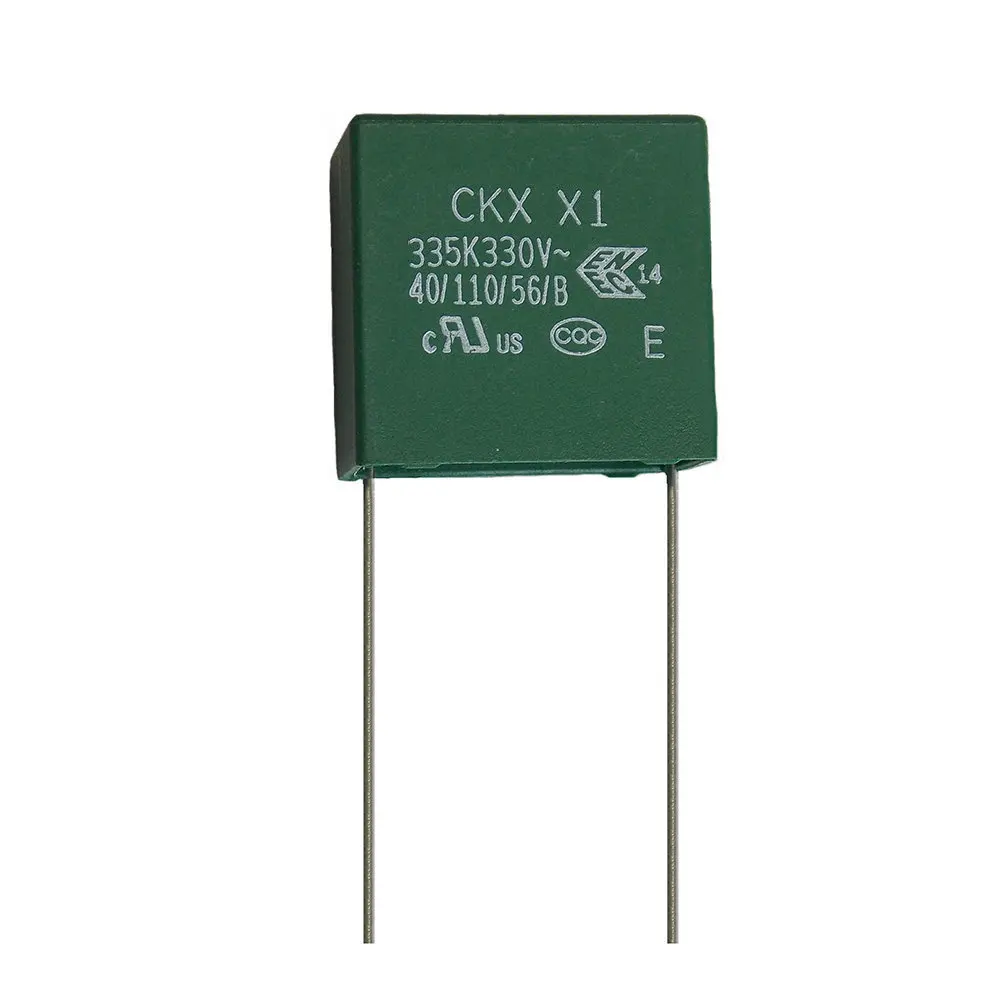

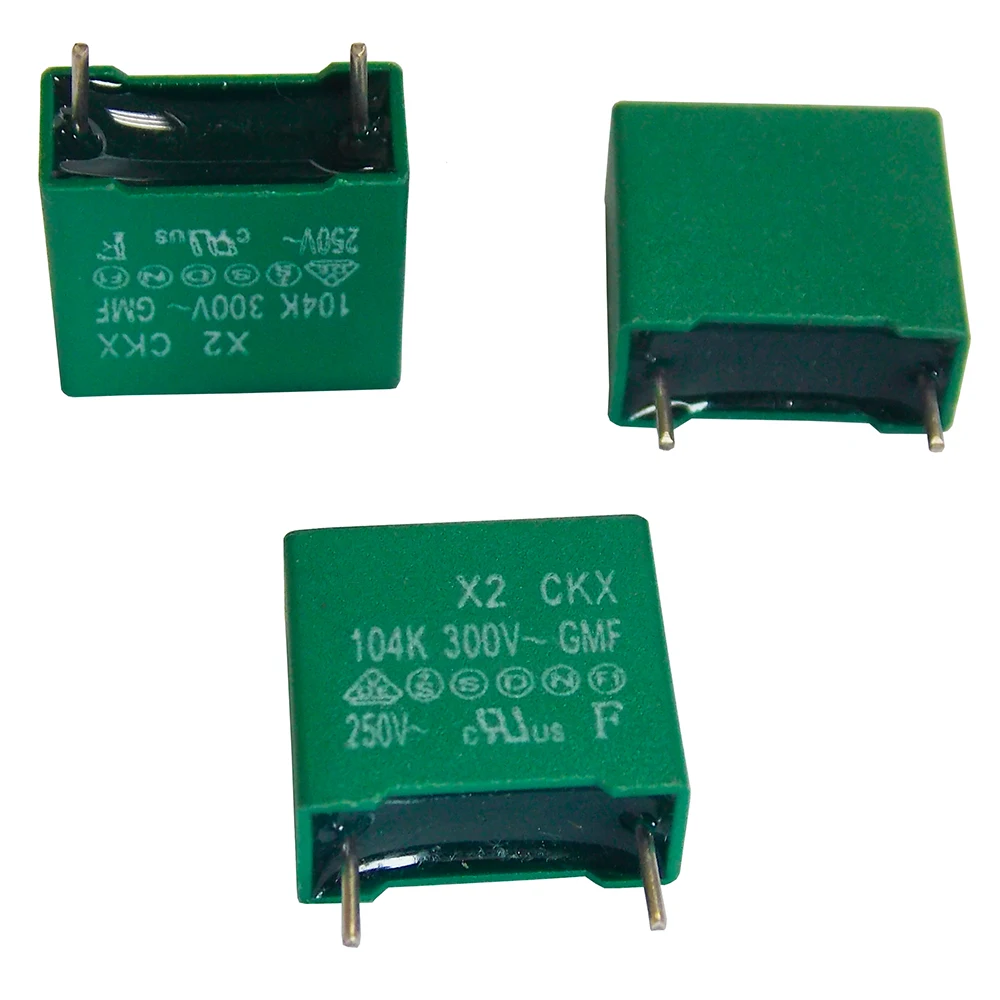

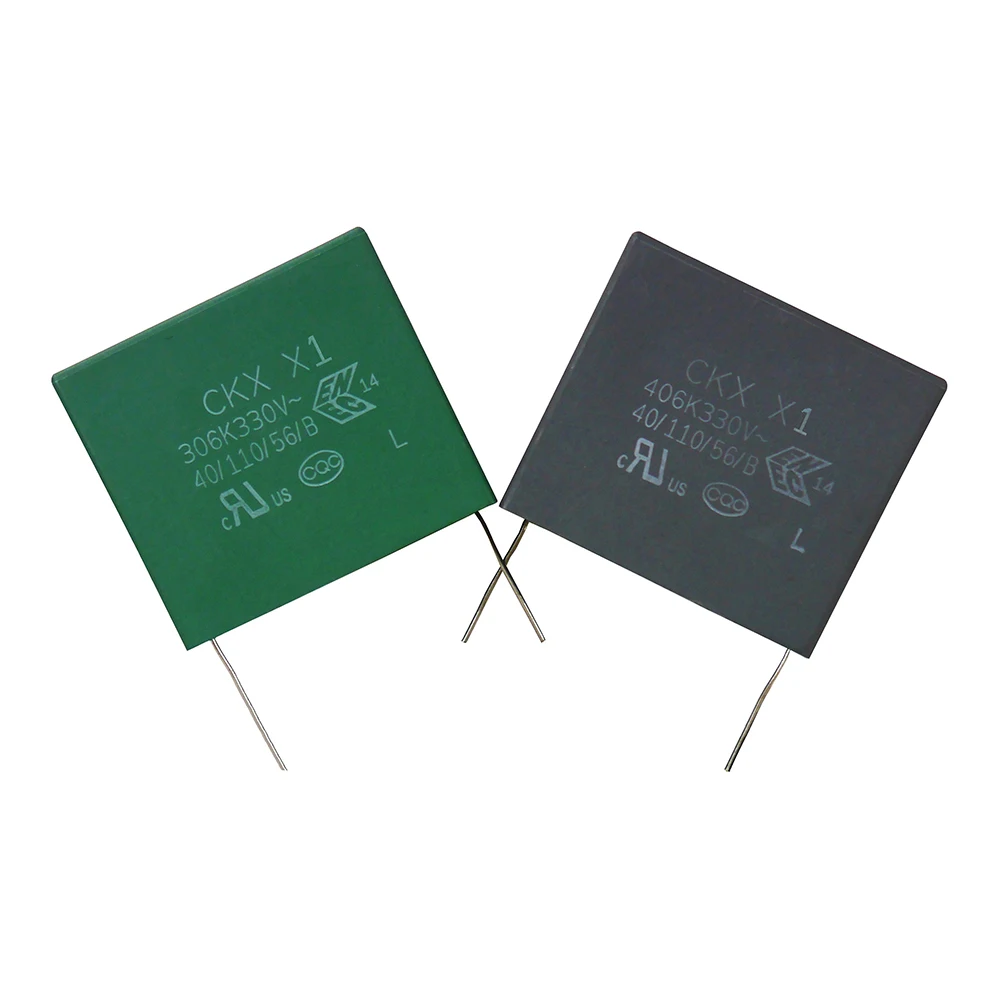

Metallized Polypropylene Film X2 safety capacitor , 0.1UF 300V~440V

Product Overview

Description

Metallized Polypropylene Film X2 safety capacitor , 0.1UF 300V



lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...

FEATURES:
Provides interference suppression, all safety approval.
Overvoltage stress withstanding.
Self-healing properties.
Active and passive flame retardent.

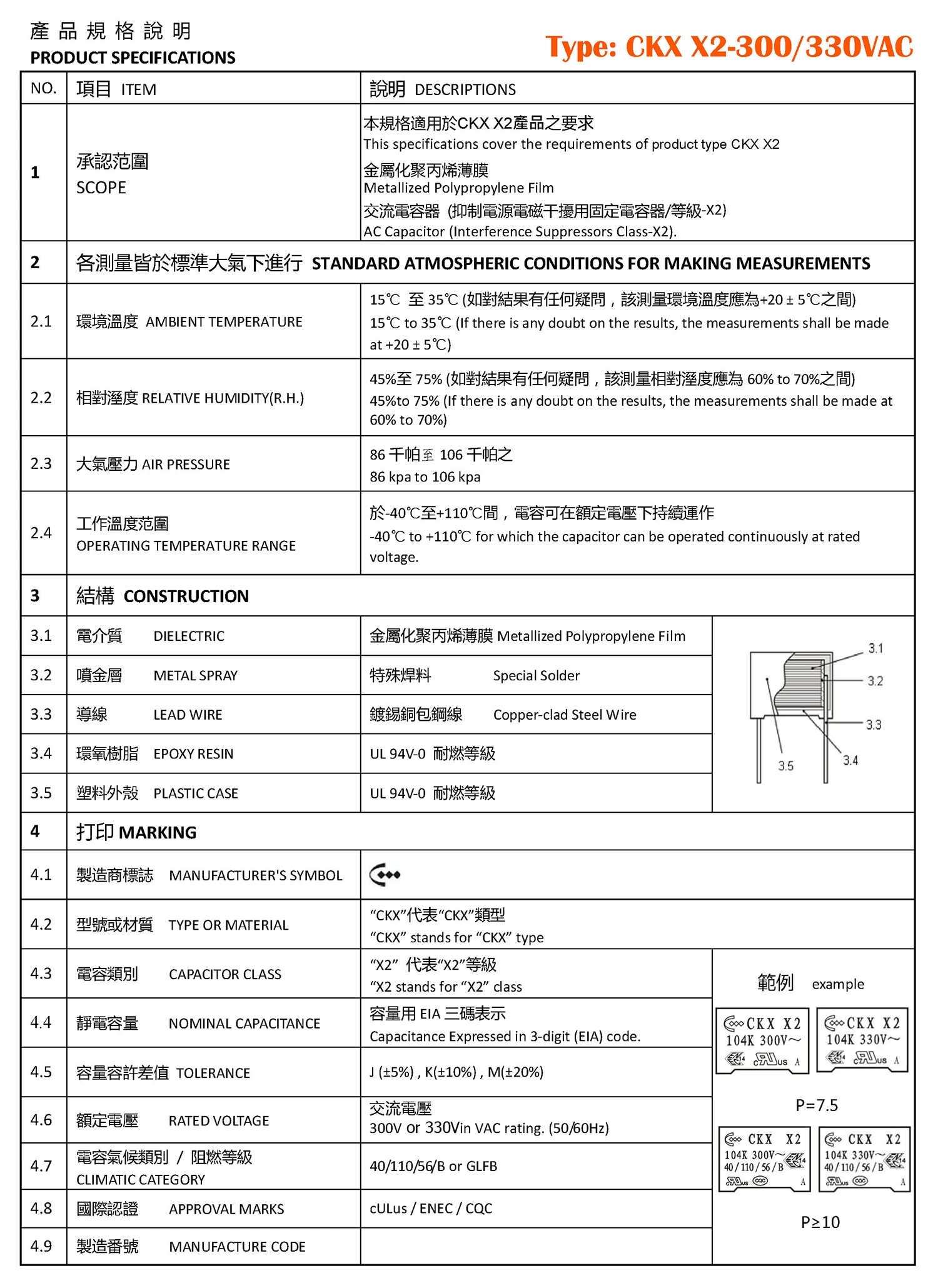

SPECIFICATIONS
Rated Voltage : 300V.AC, 50~60Hz
Capacitance :  0.1UF
Capacitance Tolerance : ±10% (K )
Climatic Category: -40 ℃ ~+110℃ , 40/110/56/B

Climate Category : In accordance with DIN40040 GMF
a) G=Minimum Limit Temperature -40℃
b) M=Maximum Limit Temperature +100c
c) F=Humidity Category Average relative humidity <=75%, 95%
for 30 days per year, continuously: 85% for the remaining days, occasionally.

Withstand Voltage :
a) Between Terminals ... 1200V.AC, 60Hz or 2200V.DC Is.
b) Between Terminals and Case ... 2200V.AC, 60Hz, 60s.

Dissipation Factor :
a)<=0.1% at 1 KHz and 20℃
b)<=0.3% at 10 KHz and 20℃

Insulation Resistance :
a) Between Terminals ...3x104MΩ for C<=0.33μF;
>=1x104MΩ.μF for C>0.33μF
b) Between Terminals and Case ... 3x104MΩ Measured at
100 ±15V.DC, 60s 20℃

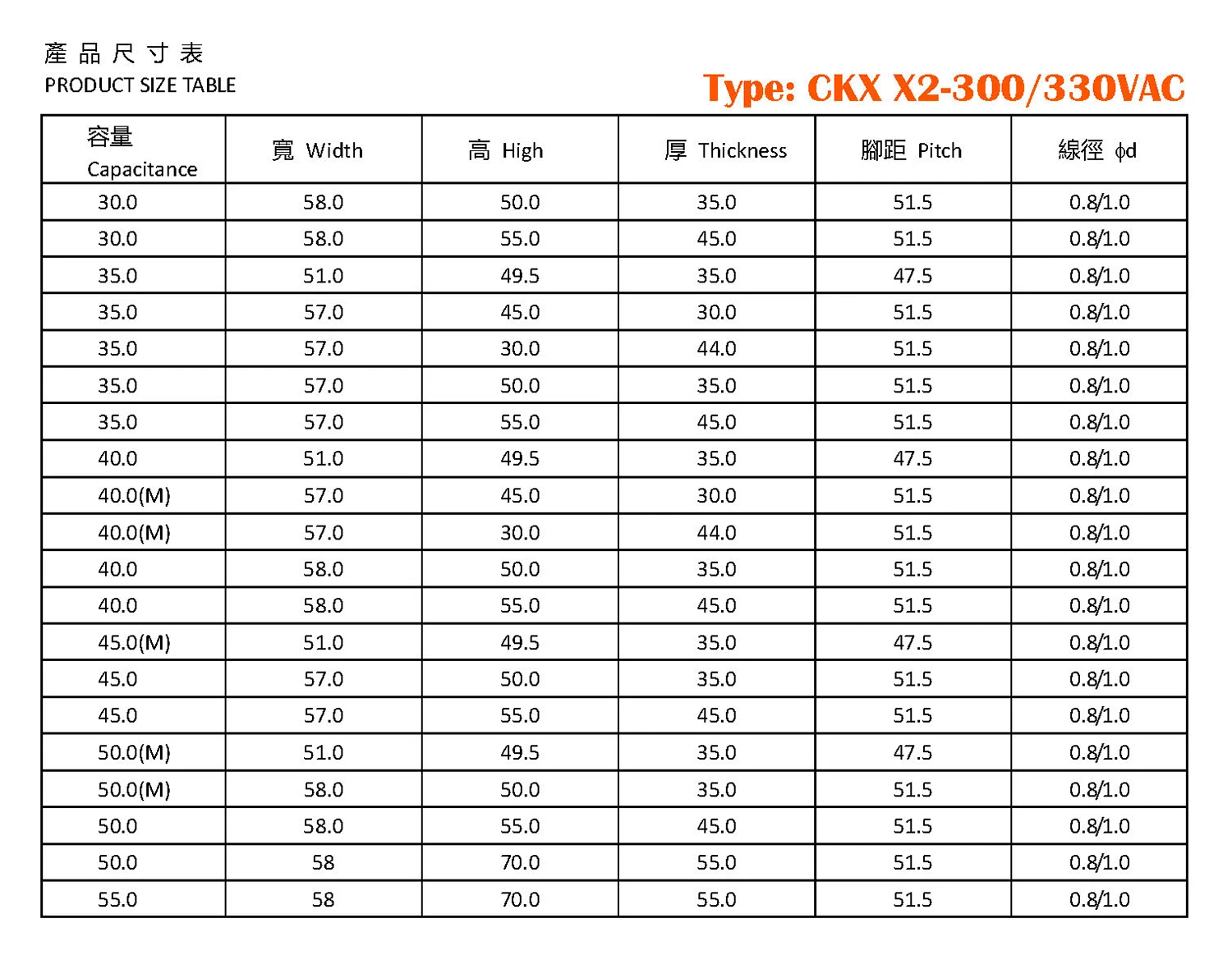

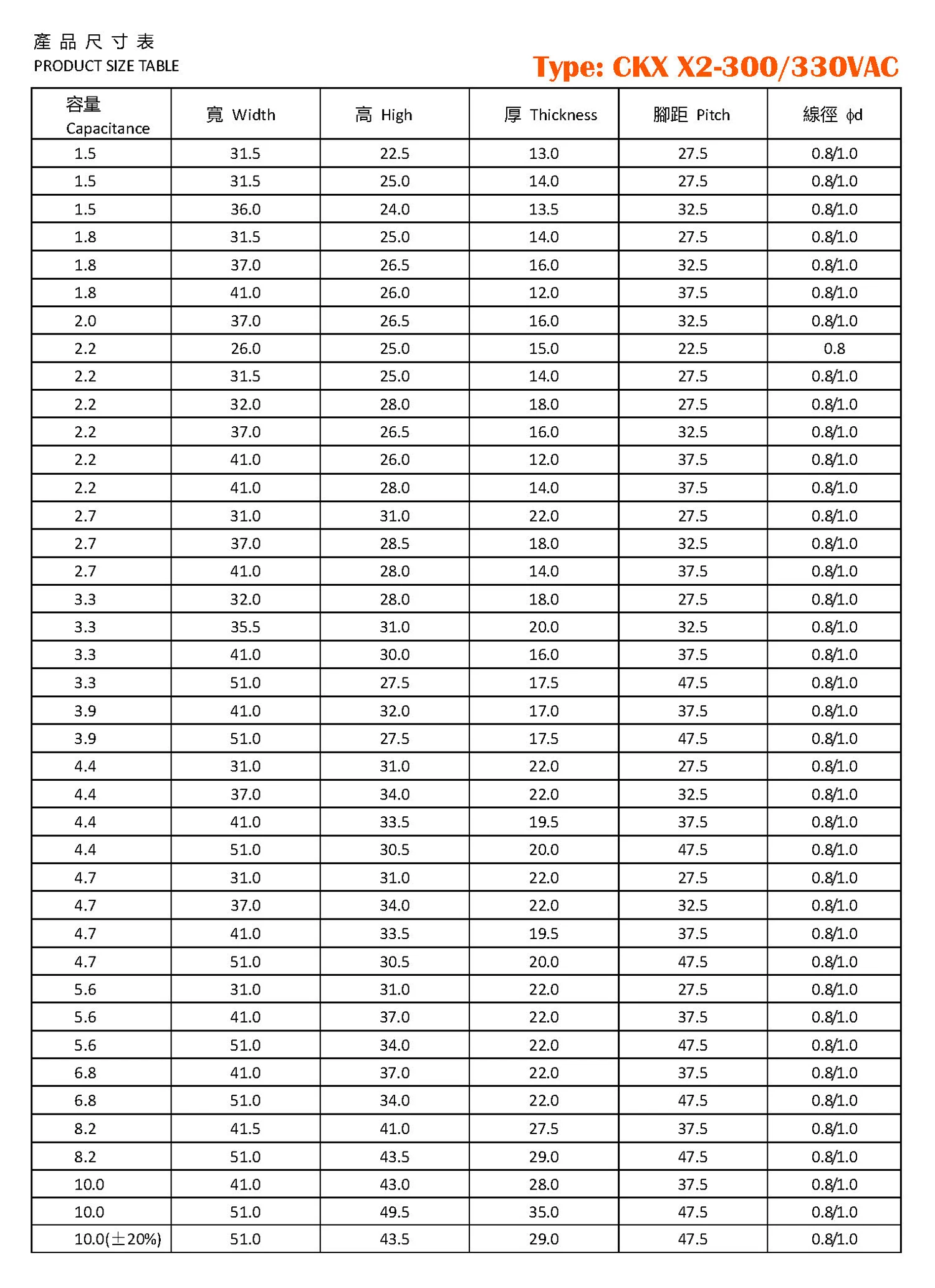

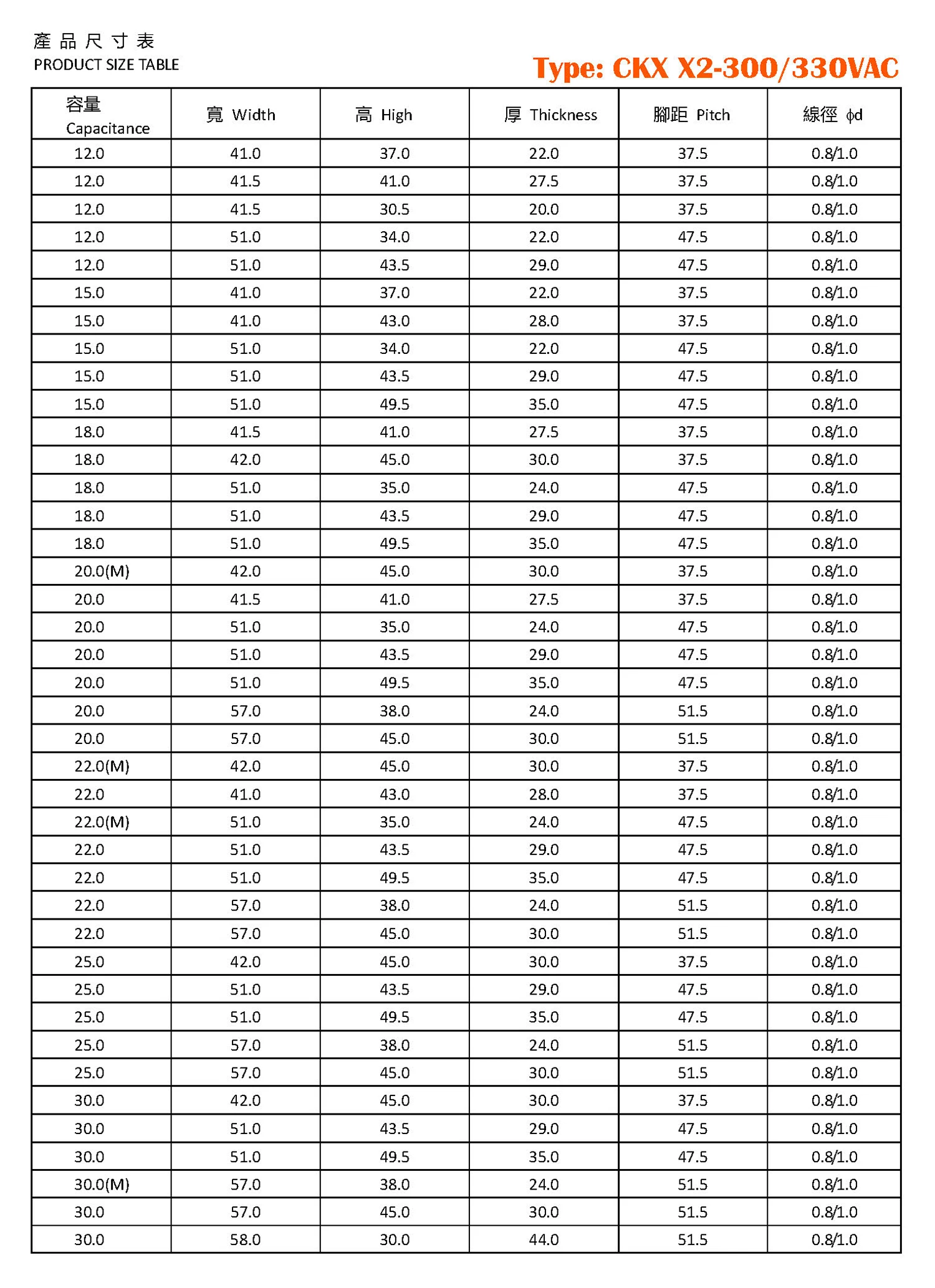

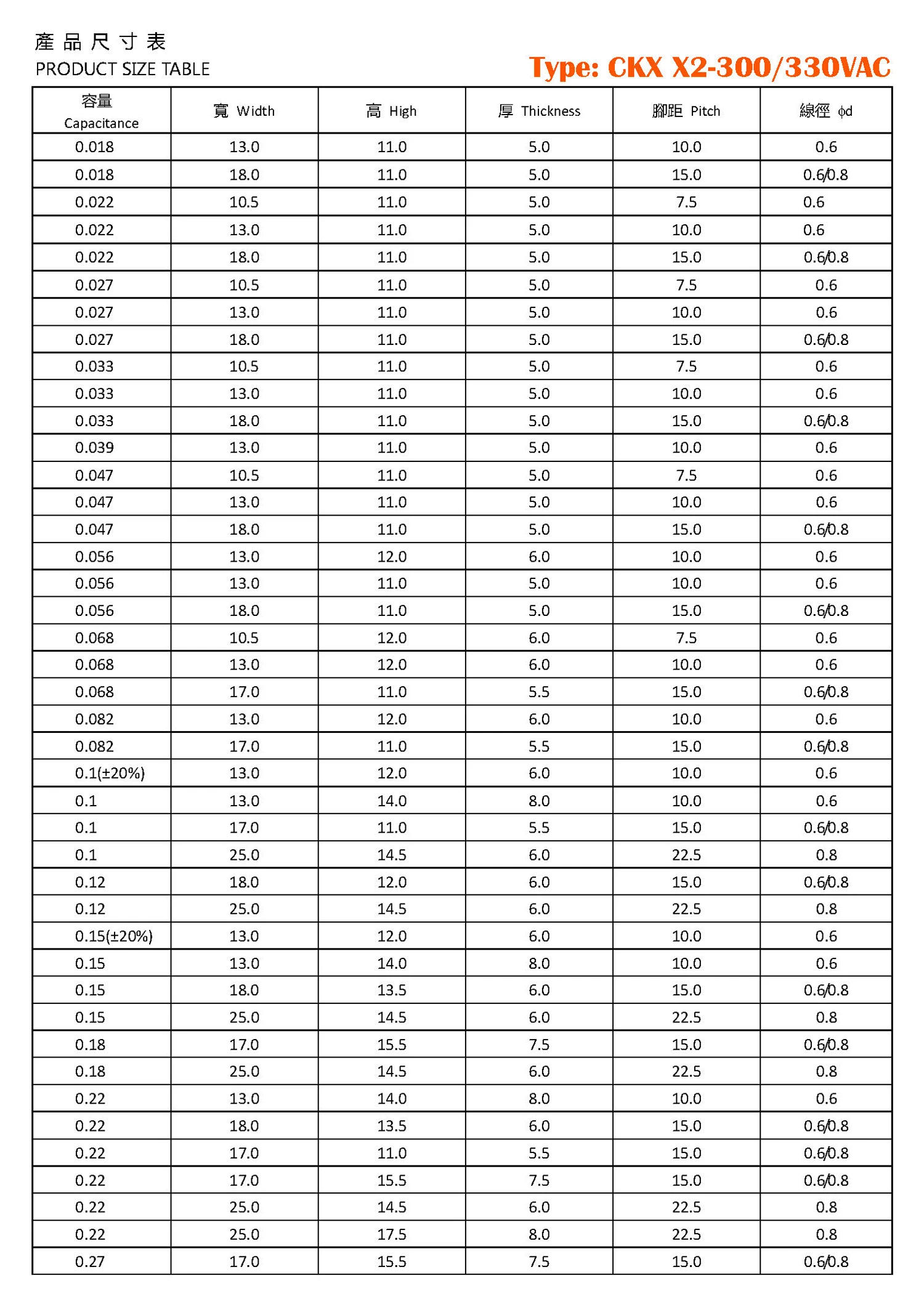

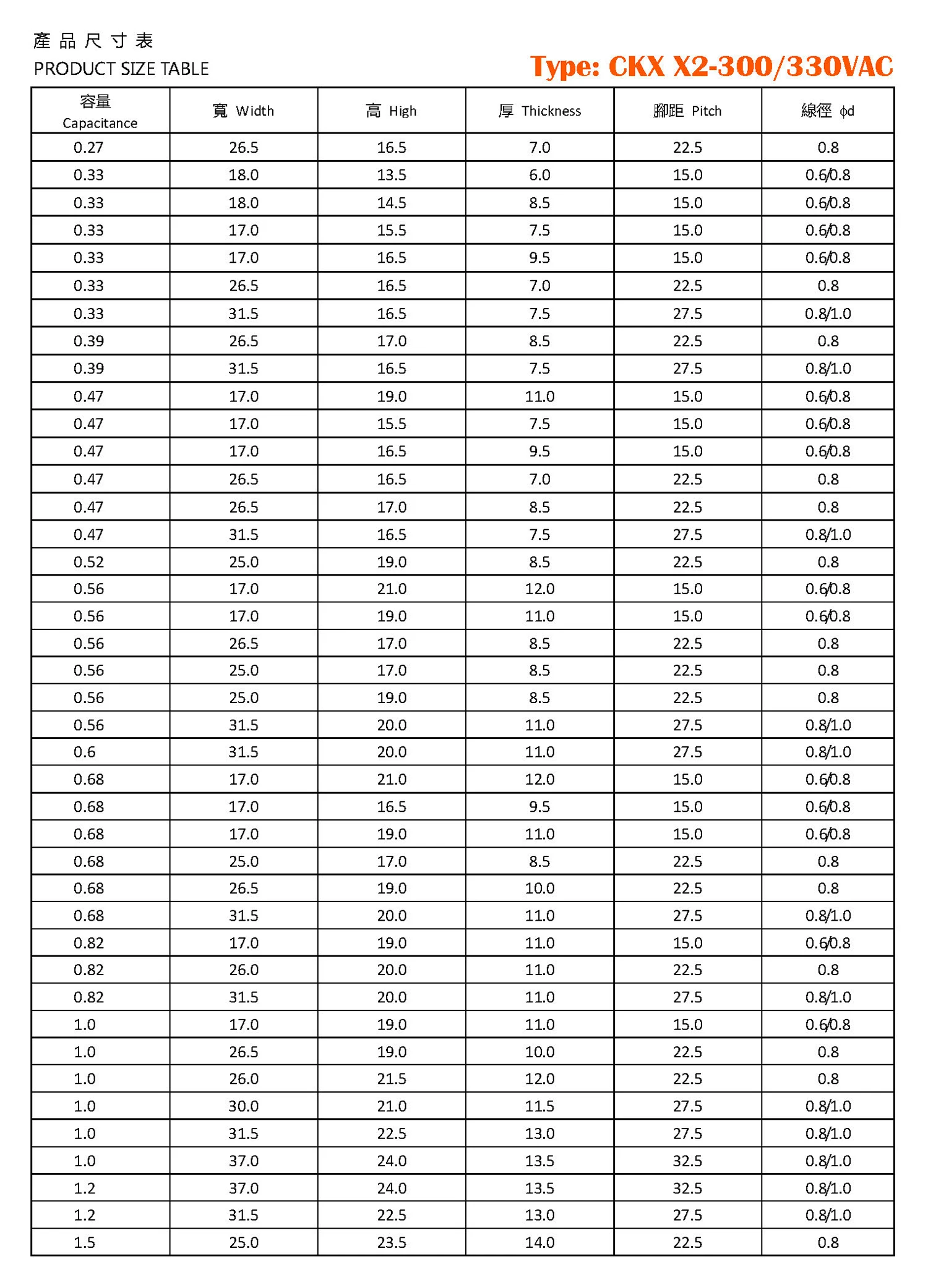

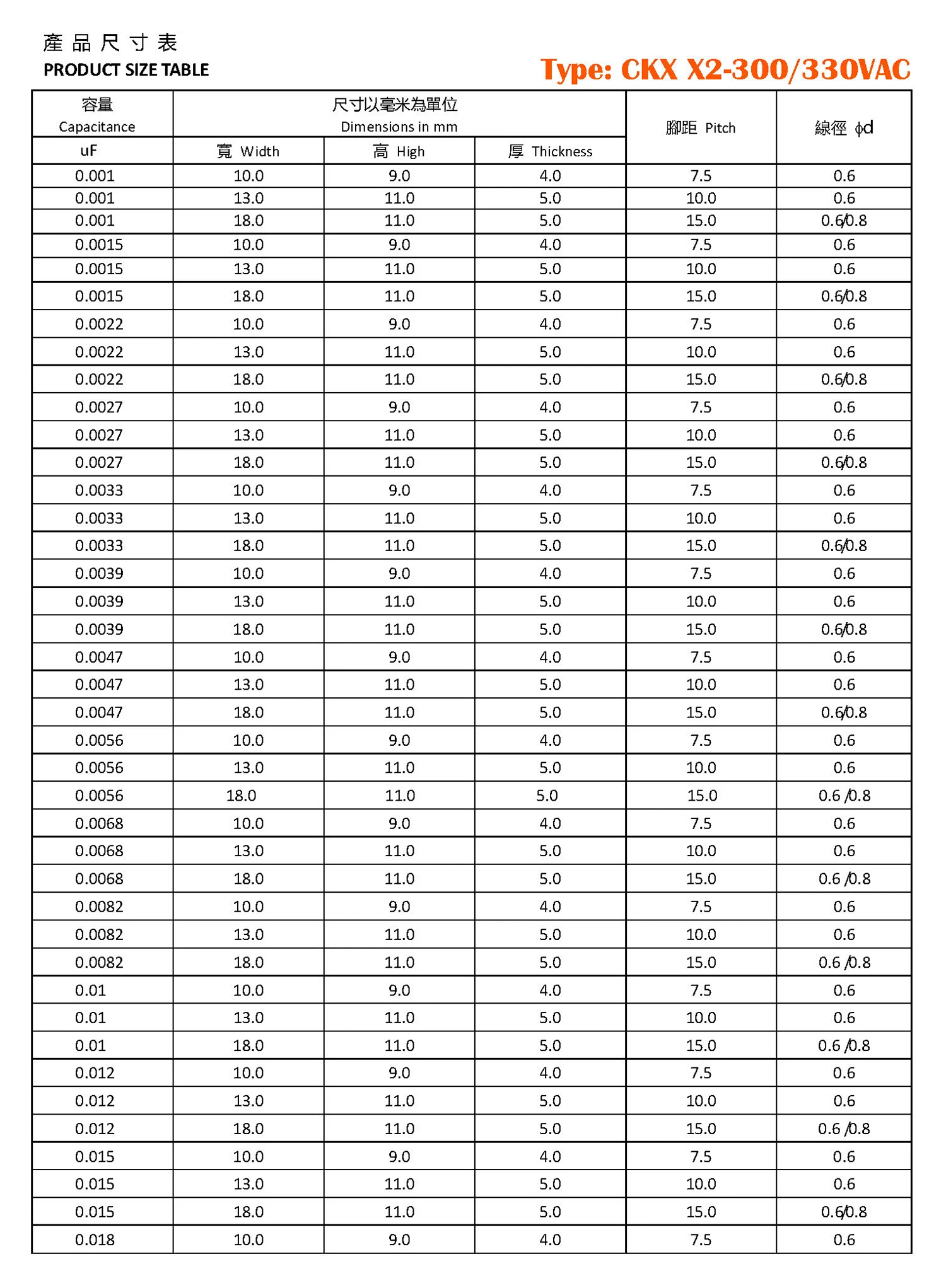

size: W→13mm ; H→12mm ; T→6mm ; PITCH→10mm
