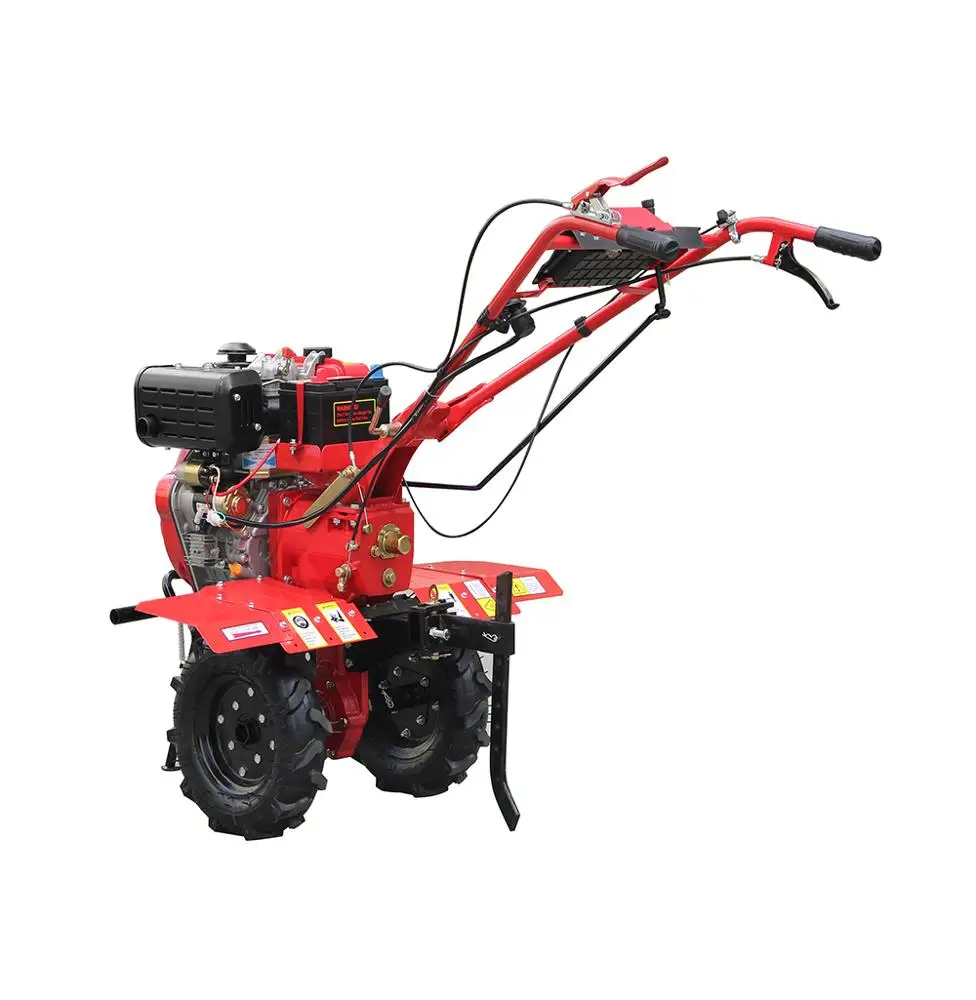

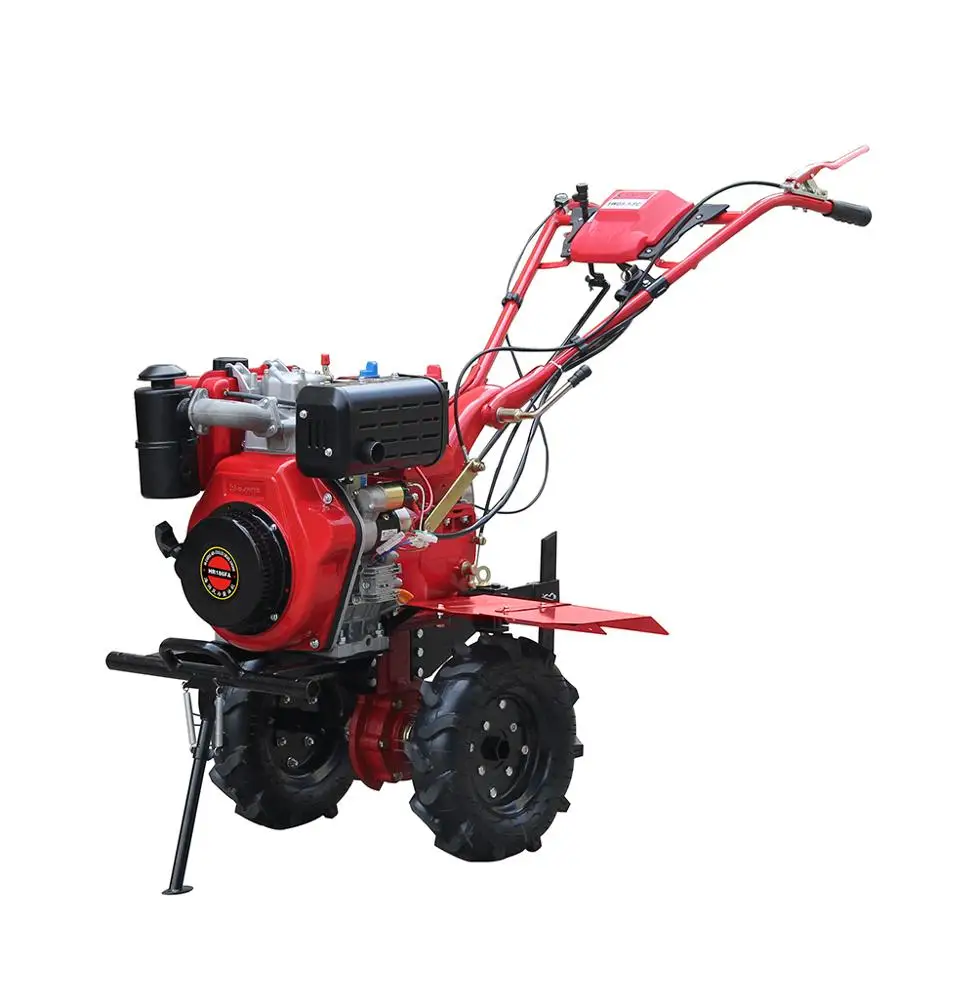

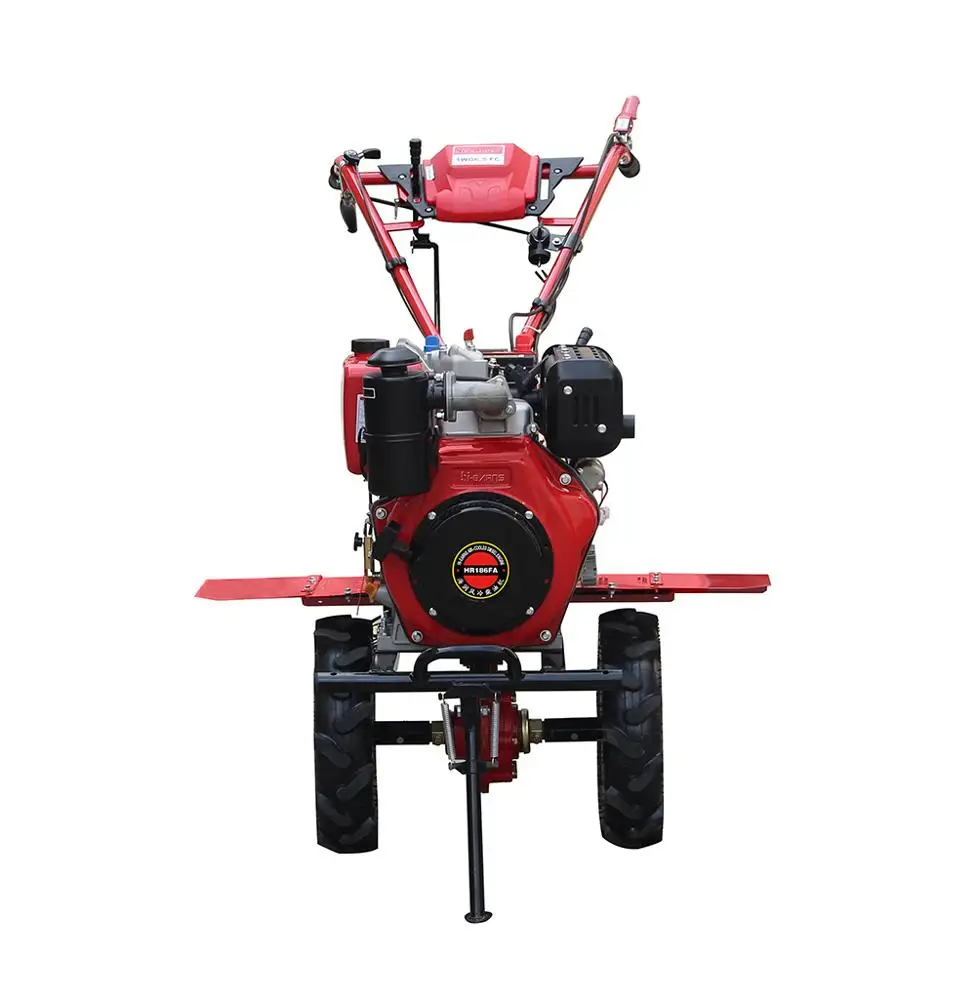

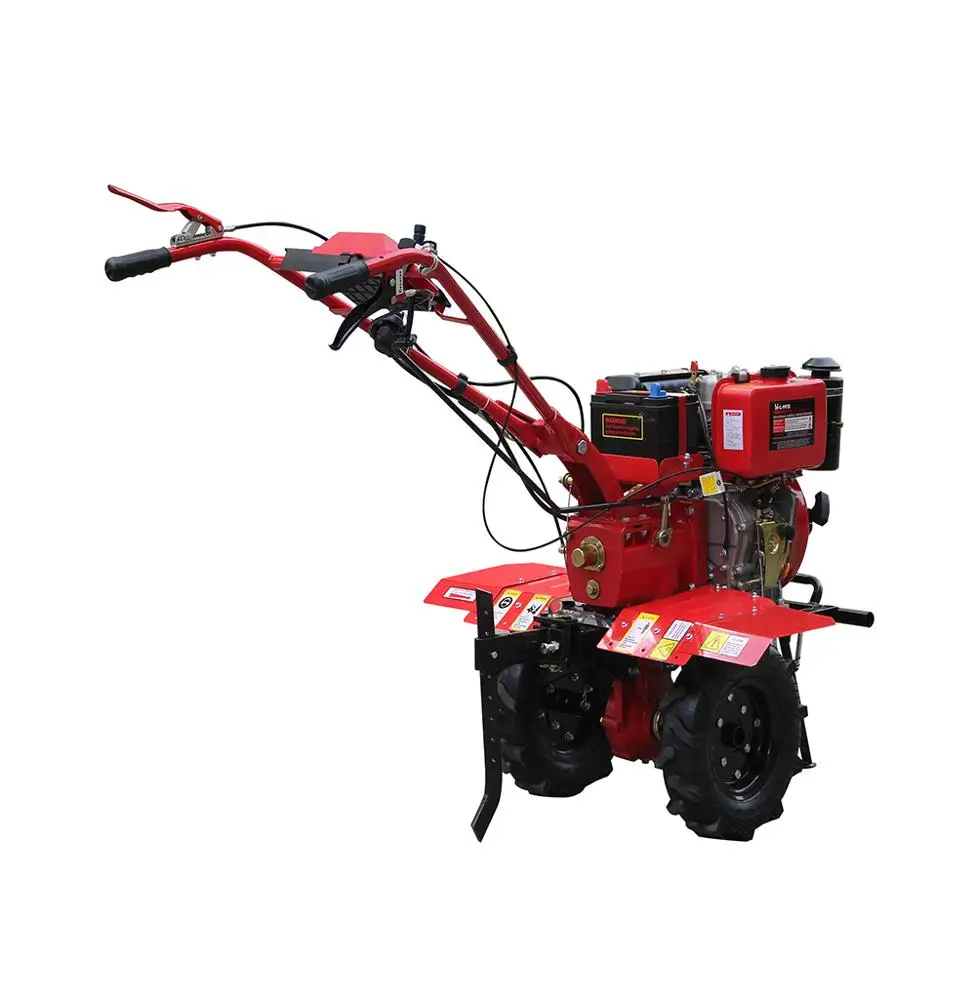

Low price air cooled 186FA engine agricultural machine diesel tiller
- Category: >>>
- Supplier: Changzhou Hi-Earns Mechanical & Electrical Co. Ltd.
Share on (62013172965):
Product Overview
Description
Related Products
1WG6.5-FC 6.5KW air cooled 186FA engine agricultural machine diesel tiller price
| Model | 1WG3.5-FC | 1WG4.0-FC | 1WG6.5-FC | |||
| 1 | Engine | Model | / | 170FB | 178F | 186FA |
| Rated power | kw | 3.5 | 4 | 6.5 | ||
| Engine speed | r/min | 3600 | 3600 | 3600 | ||
| 2 | Power tiller | M.T | mm | 840×600×900 | 1210×690×1030 | 1210×690×1030 |
| Weight | kg | 90 | 115 | 130 | ||
| Working width | cm | 100 | 105 | 135 | ||
| Working depth | cm | ≥10 | ≥10 | ≥10 | ||
| Working speed | m/s | 0.1-0.3 | 0.1-0.3 | 0.1-0.3 | ||
| Hour production | hm²/h·m | ≥0.04 | ≥0.04 | ≥0.04 | ||
| Fuel consumption | kg/hm² | ≤30 | ≤25.0 | ≤20 | ||
| Drive way | / | Gear | ||||
| Connection method | / | Direct coupled gearbox | ||||
| 3 | Roll turing | Designed speed | r/min | First Gear:115; Second Gear:137 | ||
| Blade diameter | mm | 180 | 180 | 180 | ||
| 20FT qty | Piece | 24 | 24 | 30 | ||
Automatic Workshop
♦ Modern workshops have advanced production lines and professional knowledge of assembly.
♦ Flow card to record each details carefully.
Packaging & Shipping
♦ Strong packaging to ensure safty during transportation.
♦ 7 layer corrugated carton or wooden box packaging for products.
Company Information
IQC
♦ Strict spare parts IQC system, to ensure every spare parts are qualified.
♦ Technical support in every step to eliminate all detailed questions.
Our Services
Warranty
Guarantee for one year or 500 hours whichever reach first from ex-factory date. If the quality problem arise during the warranty period, and verified the problem is caused by our genset body instead of external or natural reasons (refer to all kinds of natural disaster, shipping, loading, unloading, wrong operation etc), we will supply the relevant spare parts free of charge for maintenance; After expiration, Hi-earns provides cost spare parts maintenance of products.
