Veinasa FS Crane Anemometer Carbon Fiber Material High Accuracy Wind Speed Sensor
- Category: >>>
- Supplier: Sichuan Weinasa Technology Co. Ltd.
Share on (62013199266):
Product Overview
Description

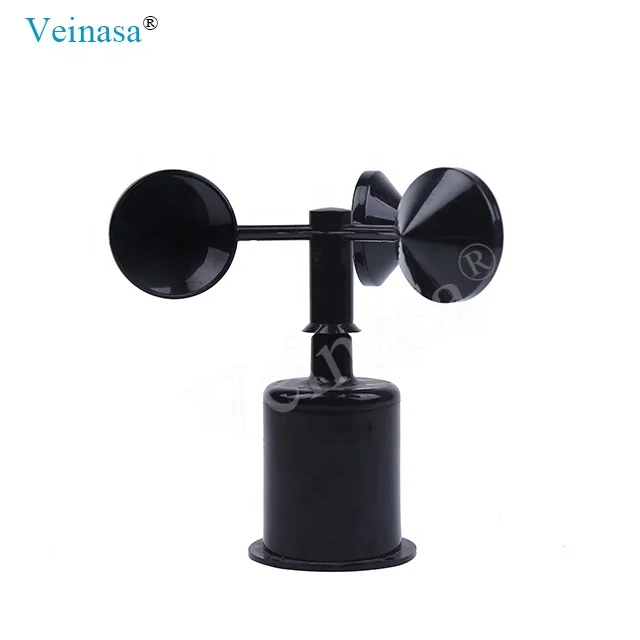

Veinasa-FS Crane Anemometer Carbon Fiber Material High Accuracy Wind Speed Sensor
Products Description
Veinasa-FXS Factory Price Laboratory Industrial Agro Intelligent Anemometer Speed Sensor Turbine Speed Sensor Outdoor Anemometer (also called crane anemometer), it using three cup wind speed sensor structure, and choose carbon fiber material. It can be widely used in meteorological, marine, environmental, airport, port, laboratory, industrial and agricultural areas of the field of temperature measurement.
Product Paramenters
Product name | Wind speed sensor |
Item | Parameters |
Measurement range | 0~45m/s; 0~70m/s |
start-up wind speed | ≤0.5m/s |
Accuracy | ±(0.3+0.03V)m/s (V-wind speed) |
Resolution | 0.1m/s |
Power supply | DC5V, DC 12V, DC24V, Other |
Signal output | 4-20mA, 0~5V, RS485, RS232 |
Length | Standard:2.5m, Other |
Load resistance | Voltage type: RL≥1KΩ |
Current mode: RL≤ 600Ω | |
Working temperature | -40℃~50℃ |
Relative humidity | 0~100%RH |
Product weight | 130 g |
Protection grade | IP45 |
Power consumption | 50 mW |
Product Features
Veinasa-FS Crane Anemometer Carbon Fiber Material High Accuracy Wind Speed Sensor adopts traditional 3 cup wind speed sensor structure. Carbon fiber material is light, so that measured start-up speed of the wind speed sensor is low. The measured pricision is high.
The wind speed sensors belongs to precision devices, please do not disassemble it by yourself, or touch on the its surface using sharp objects or corrosive liquid, so as not to destroy the product.
The wind speed sensors belongs to precision devices, please do not disassemble it by yourself, or touch on the its surface using sharp objects or corrosive liquid, so as not to destroy the product.
1. If use our weather station, the sensor can be connected to the corresponding interface of weather stations directly through line.
2. If buy separate transducer, transmitter supporting lines sequence respectively to:
2. If buy separate transducer, transmitter supporting lines sequence respectively to:
Color | Output signal | ||||
0~5V | 4~20mA | RS485 | |||
Red | + | + | + | ||
Black(green) | - | - | - | ||
Yellow | Voltage signal | Current signal | 485+ | ||
Blue | 485- | ||||

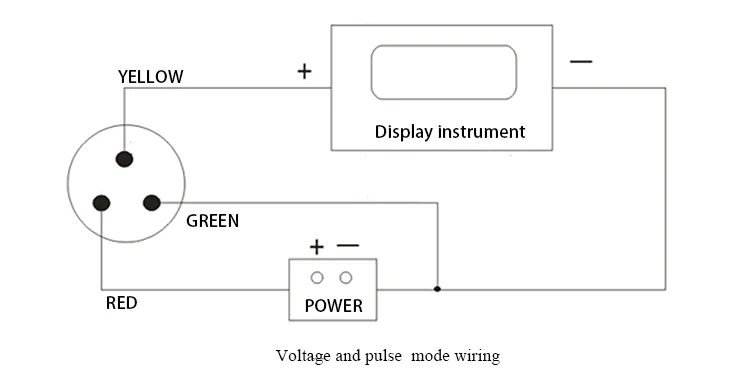

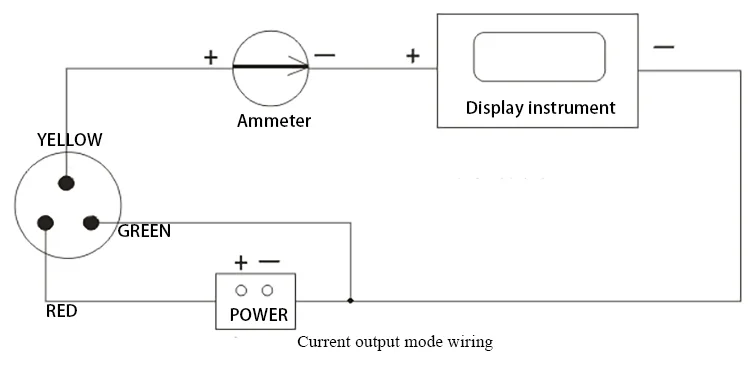

3.Pulse voltage and current output connection mode:
Application Field
Veinasa-FS Crane Anemometer Carbon Fiber Material High Accurancy Wind Speed Sensor application: To monitor wind speed, warn typhone. Other fields application: By observing wind speed, in study, precise data help scitensist better know of our earth. For wind power station location, pre-assessment is very helpful. Besides, monitoring wind speed is necessary for constuction and people's life.
Related Products
Company Introduction
FAQ
Q: Are you a factory/manufacturer?
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used wind speed and direction sensor Veinsa-FXS
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Integrated wind speed sensor (Crane Anemometer)?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q: What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
A: Yes, we are professional factory/manufacturer of weather station and relative weather sensors. We also have hot sale and widely used wind speed and direction sensor Veinsa-FXS
Q: How can I collect data?
A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol.
If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this Integrated wind speed sensor (Crane Anemometer)?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q: What’s the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
With rich experiences in tackling problems, Veinasa aims to provide a package of meteorological solutions to your needs, whatever problems you encounters, Veinasa team always stand by your side.
Just click the below picture to send us inquiry, to know more, or get the latest catalogue and competitive quotation. Do not hesitate!
