Lower Cost 0.5PPM TTL level GLONASS GPS Module G-Mouse
Description
The HT2828Z3G5L is a high-performance positioning vehicle-oriented integrated navigation G-MOUSE. The system includes a high-performance satellite receiver chip that supports both BeiDou and GPS. The HT2828Z3G5L is a complete satellite positioning receiver with full range of functions. Can meet the strict requirements of professional positioning. It is compact and can be installed anywhere in the car, with low power consumption and can be adapted to the needs of individual users.
The product uses a new generation of AT6558D low-power chips, high sensitivity, fast and accurate positioning in areas with weak signals such as urban canyons and overheads. Can be widely used to develop a variety of GPS terminal products, such as: car navigation car security system, vehicle monitoring and other satellite positioning applications.
The product uses a new generation of AT6558D low-power chips, high sensitivity, fast and accurate positioning in areas with weak signals such as urban canyons and overheads. Can be widely used to develop a variety of GPS terminal products, such as: car navigation car security system, vehicle monitoring and other satellite positioning applications.
Product highlights

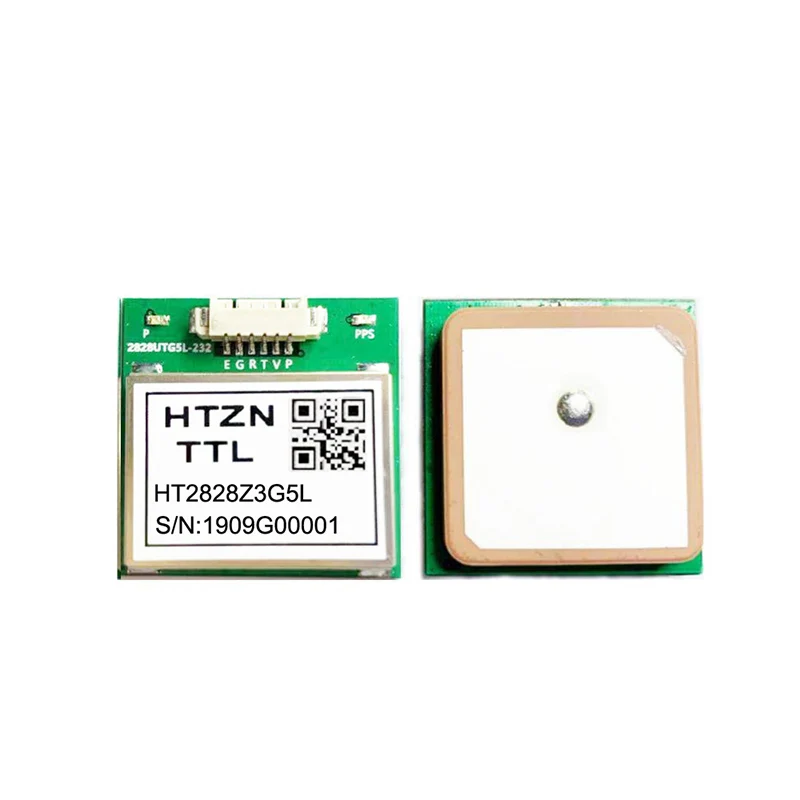

Industry standard 25*25*4MM high sensitivity GPS antenna
0.5PPM high precision TCXO
Built-in RTC crystal and skin-based capacitor for faster hot start
Built-in LNA, low noise signal amplifier
Adopt 6558D chip, built-in FLASH, support warm start
1-10Hz positioning update rate
Support A-GPS services such as AssistNow Online and AssistNow Offline
0.5PPM high precision TCXO
Built-in RTC crystal and skin-based capacitor for faster hot start
Built-in LNA, low noise signal amplifier
Adopt 6558D chip, built-in FLASH, support warm start
1-10Hz positioning update rate
Support A-GPS services such as AssistNow Online and AssistNow Offline
Chip | AT6558D（Built-in FLASH ，support warm start） | |
Frequency | BDS/GPS/1.5611-1.57542GHz | |
C/A code | 1.023 MHz code stream | |
Agreement | NMEA 0183 | |
Available baud rate | 4800，19200，38400，57600，115200bps（Default 9600 baud rate） | |
Channel | Three-channel radio frequency, support GPS + BDS (default), BDS + GLONASS, GPS + GLONASS output | |
SWR | S11≤1.3 | |
SWR | S22≤1.3 | |
Log Mag | S21≥ 20.0dB | |
Smith | S11 :50Ω±5% | |
Sensitivity | Tracking: - 162dBm capture: - 148dBm | |
Cold boot | Average 35 seconds | |
Cold boot Sensitivity | -148 dBm | |
Warm boot | Average 10 seconds | |
Hot boot | Average 1 seconds | |
Hot boot Sensitivity | -156 dBm | |
AGPS | 3 s(Average) | |
Positioning accuracy | < 5m | |
(CEP, 50%, 24:00 static, signal strength - 130 dBm, about 6 available satellites) | ||
Timing accuracy | 30 ns | |
Direction | < 0 . 5Degrees | |
Reference coordinate system | W G S - 84 | |
Rate | < 0 . 1 m / s | |
Maximum altitude | 50000 m | |
Standard clock pulse | 0 . 2 5 H z ~ 1 K H z | |
Maximum speed | 15 m/s | |
Maximum acceleration | ≦ 4G | |
Update Frequency | 1-10 Hz(Default 1Hz) | |
Port interface | U A RT： 232/TTL （Default ） | |
Output statement | NMEA 0183 V3.0(GGA, GSA, GSV, RMC, VTG, GLL)Protocol data | |
Physical characteristics | ||
Size | 28.0mm * 28.0mm * 8.6mm | |
Interface | 4Pin interface default (VCC/TX/RX/GND) (6pin compatible PPS output, EN control) | |
Power | ||
Input voltage | Wide Voltage Range: Main Power Supply is + 3.3 V ~ + 5.5 V | |
Operating current | 30Ma | |
Standby voltage | 1.8~3.6VDC | |
work environment | ||
Humidity range | 5% to 95% non-condensing | |
Operating temperature | -40 to +100 ℃ | |
Storge temperature | -55 to +100 ℃ | |

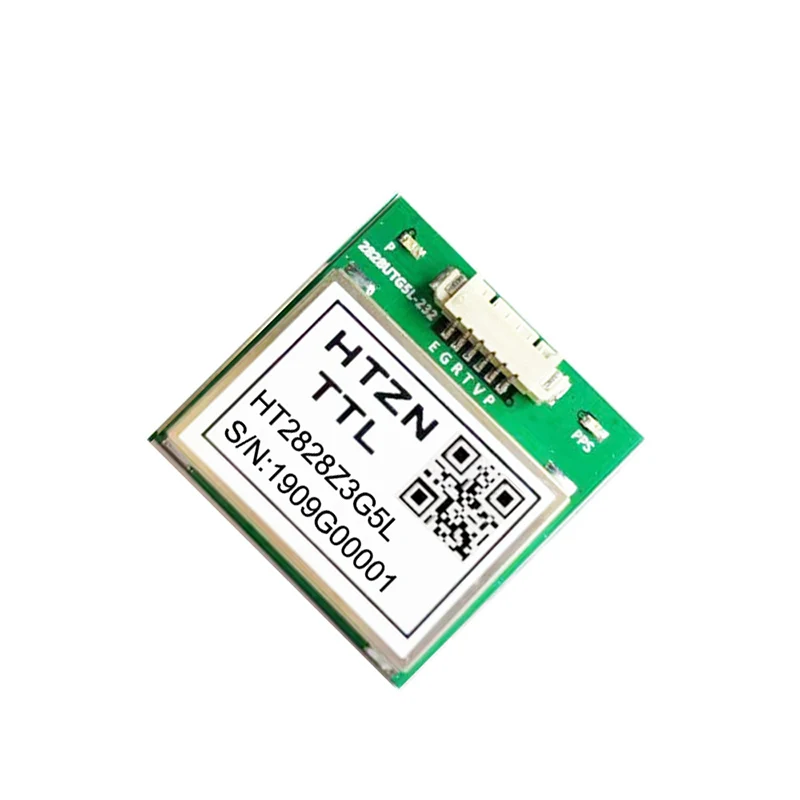

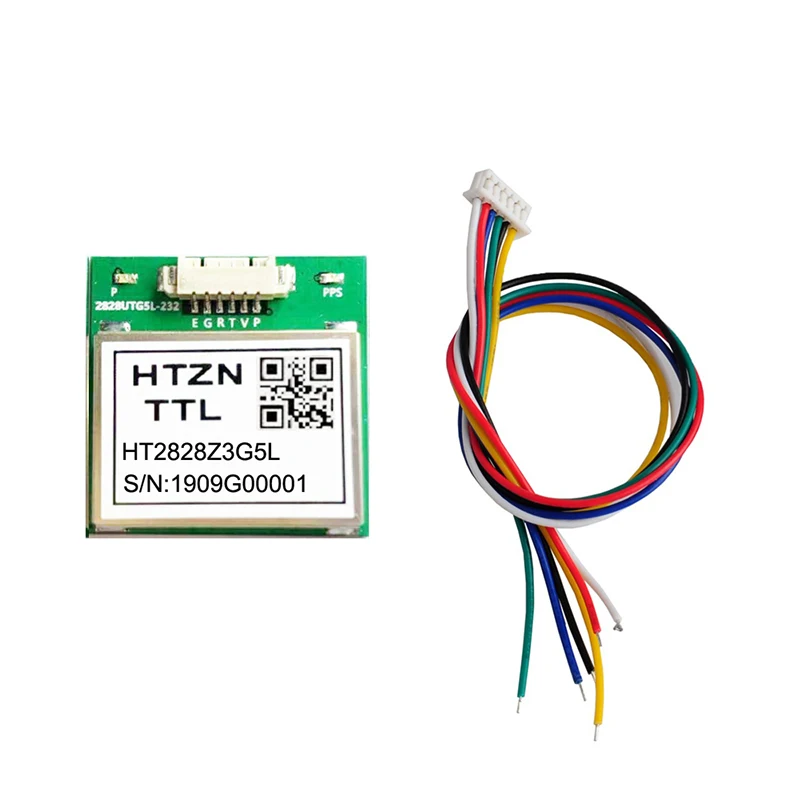

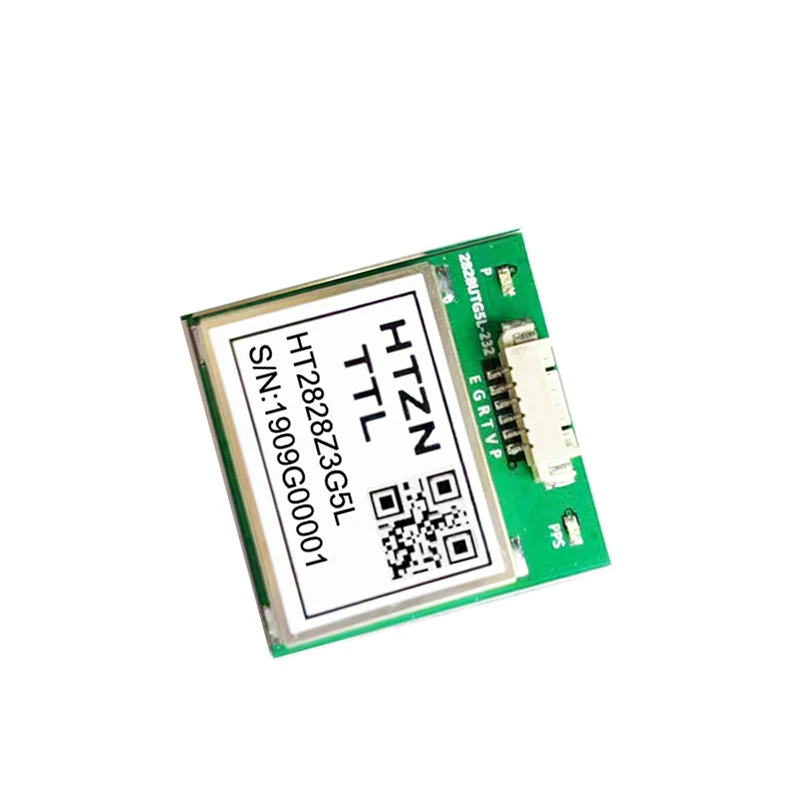

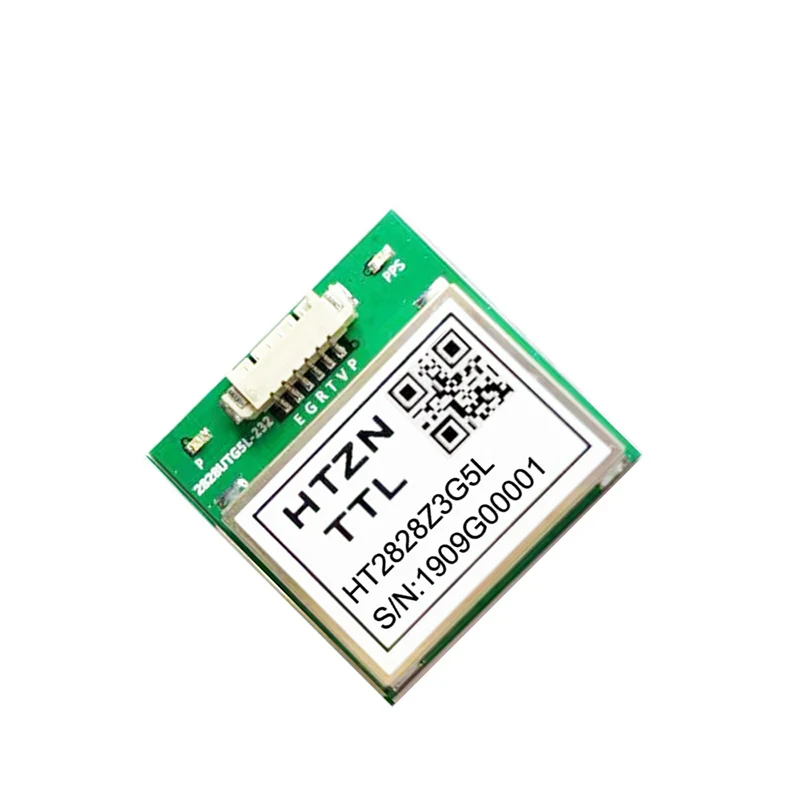

Product Picture
