double rotary double router spindle four turning blade cnc wood copying turning carving lathe machine
- Category: >>>
- Supplier: Jinan Routerstar CNC Machinery Co. Ltd.
Share on (62013264159):
Product Overview
Description
double rotary double router spindle four turning blade cnc wood copying turning carving lathe machine
Product Description

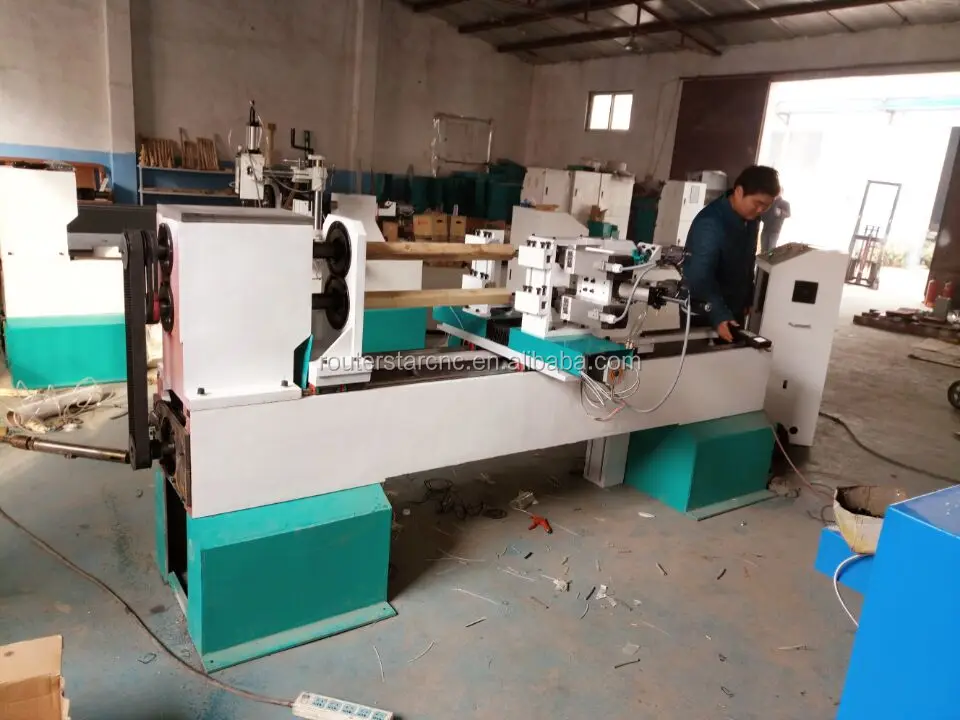

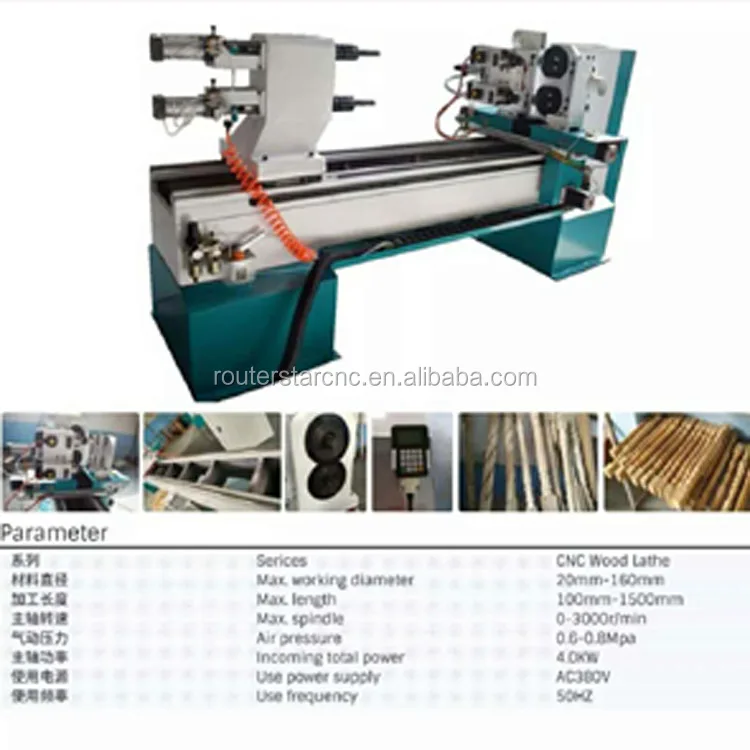

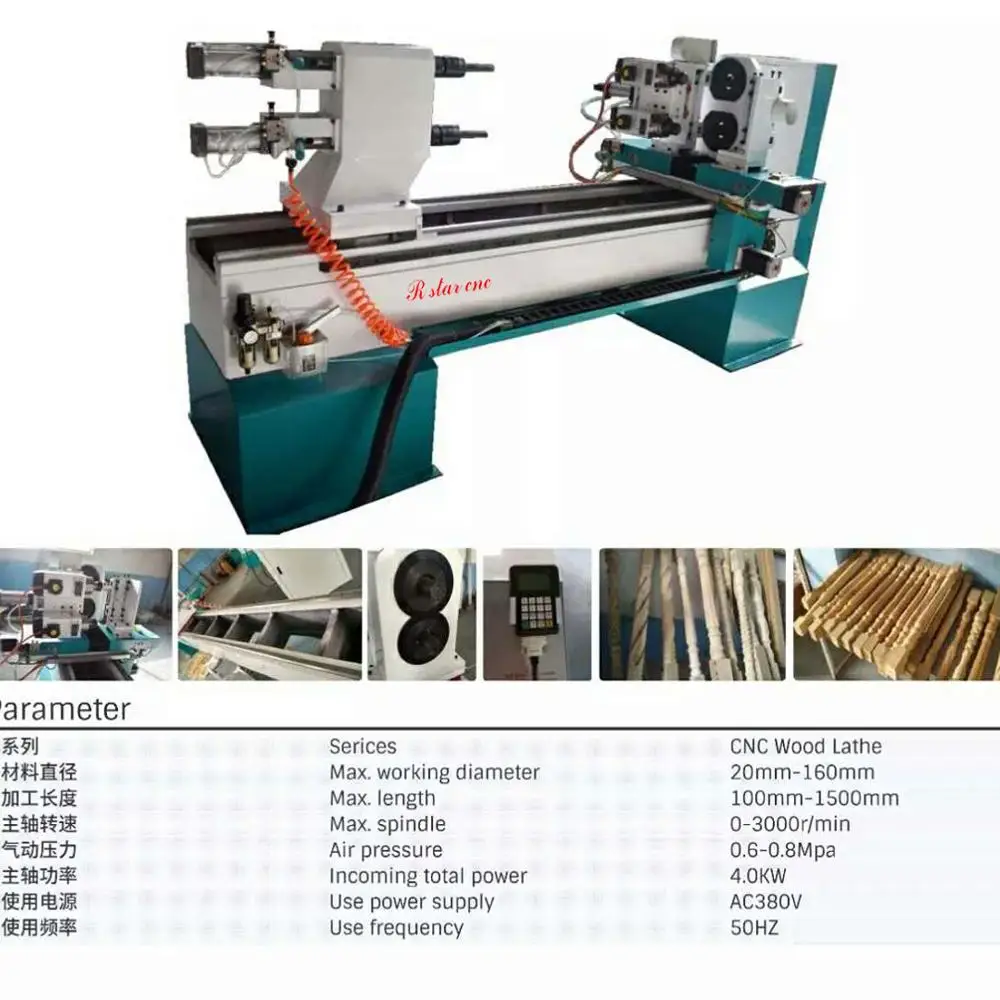

1. machine pictures:
Double axis wood turning cutting
double carving spindle for grooving/carving, but it only can make 3 axis cyllinder carving
double axis four lathe cutter double carving router spindle
2.Application:
Pine wood,Beech wood, Oak wood, Mahogany wood, Camphor wood, birch wood, Rosewood, Lime wood,Teak wood, Artificial Marble, crystal,Resin glass Etc...
Application area:
wooden staircase handrail, table legs, sofa legs, bed legs, chair legs, baseball bat, billiard cues, poles, rolling pin, wooden brush handle,wooden columns, Pacilion spire etc.
3.Parameters:
Model number | RS-1516S | RS-2016S | RS-2516S | RS-3016S | |
Size | Processing length | 1500mm | 2000mm | 2500mm | 3000mm |
Processing diameter | When double rotary working, max diameter 160mm, single rotary work max 300mm | ||||
Machine size | 3*1.1*1.5m | 3.5*1.1*1.5 | 4.1*1.1*1.5 | 4.6*1.1*1.5 | |
Package size | 3.1*1.2*1.7m | 3.6*1.2*1.7m | 4.2*1.2*1.7m | 4.7*1.2*1.7m | |
N. weight | 1600kg | 1700kgs | 1800kgs | 1900kgs | |
G. Weight | 1700kg | 1800kgs | 1900kgs | 2000kgs | |
configuration | Machine body | Cast Iron machine body | |||
Driving Motor | Step motor 450B+450C | ||||
Driver | Step driver Yako 2811 | ||||
Rotary motor | 4kw servo motor | 5.5kw servo motor | 5.5kw servo motor | 5.5kw servo motor | |
Rotary inverter | 4.5kw | 7.5kw | 7.5kw | 7.5kw | |
Transmission way | Y axis helical gear, XZ axis adopt Taiwan TBI ballscrew | ||||
Orbit | Original Taiwan square orbit M25 | ||||
Center sheath size | Inner Diameter 68mm | ||||
Thimble size | 25mm diameter | ||||
Control system | 3 axis DSP A132S | ||||
Carving spindle | with | ||||
Dust collector | Without (if add need extra charge $160) | ||||
Parameter | Max feed rate | 200cm/min | |||
Max carving speed | 5000mm/min | ||||
Max moving speed | 3000mm/min | ||||
Rotary rotating speed | 8000rpm/min | ||||
Precision | 0.02mm | ||||
Control box | Wood lathe cutter | hard alloy cutter*2 pcs+ triple cutter*2 pcs | |||
Broaching cutter | Nail cutter*1 pcs | ||||
Carving cutter | Sharp cutter*1 pcs | ||||

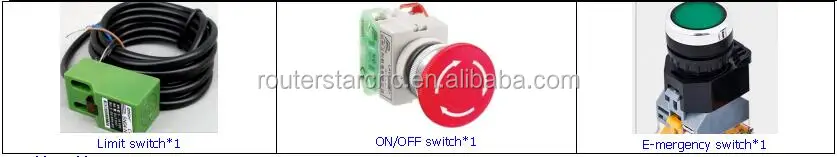

Switch | Limit switch*1 pcs+ Emergency switch*1pcs+Button switch*1 pcs | ||||
Spanner | 2 pcs | ||||
Collect | ER25*2 pcs | ||||
CD | Artcam software | ||||

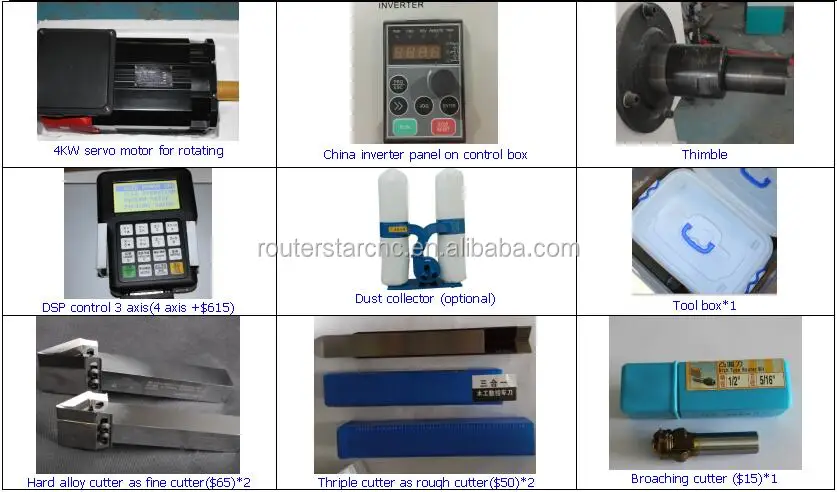

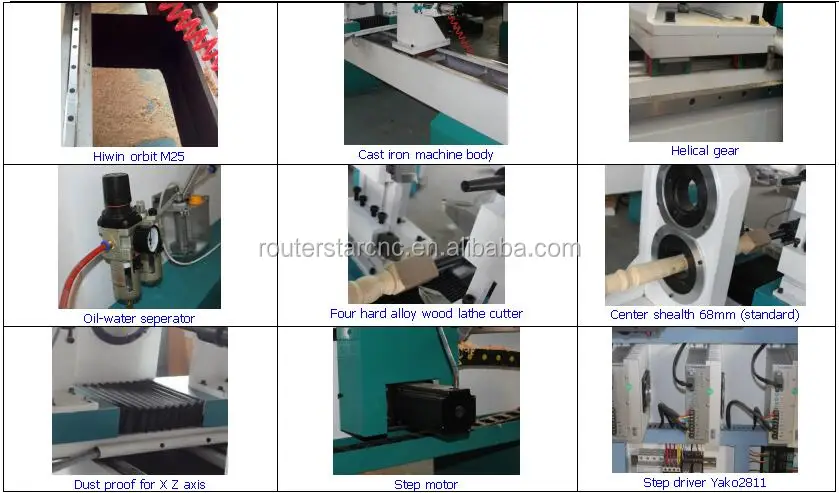

4.Machine parts:

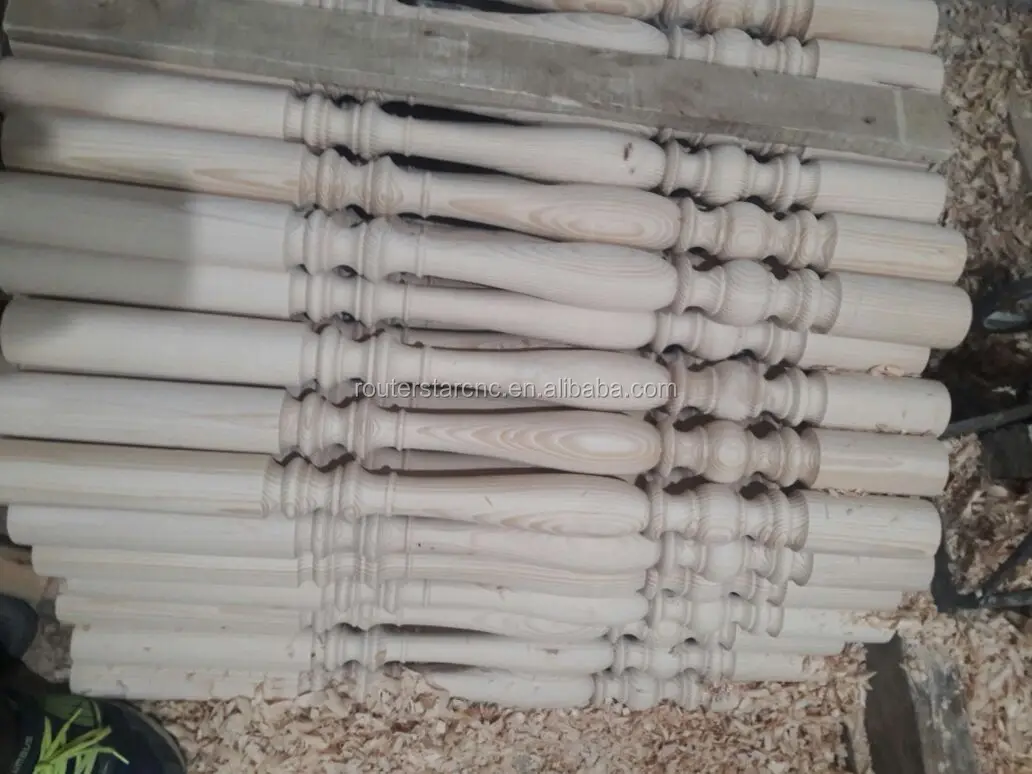

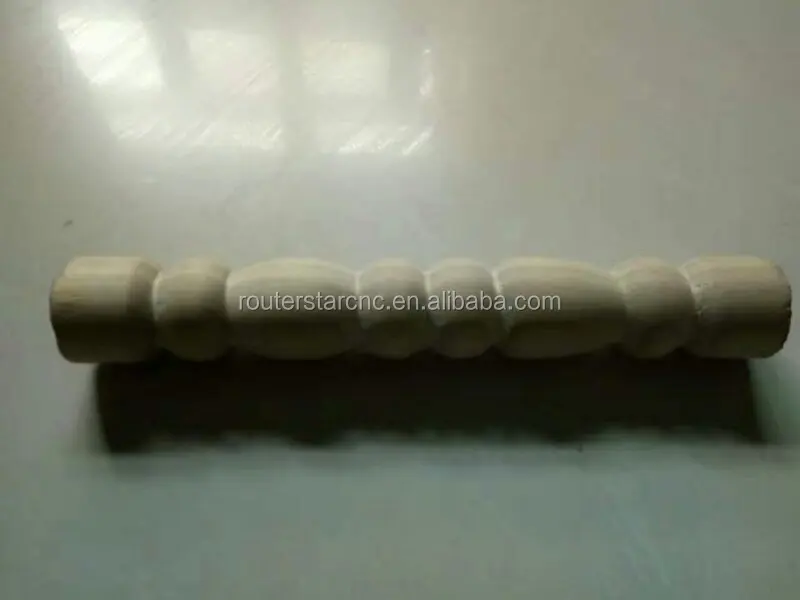

5.working samples:
6. working video:
https://youtu.be/wbEzPxXPz0o
https://youtu.be/Yg-qBOdZl5M (broaching)
https://www.youtube.com/watch?v=ceqv21-YSJg(3 axis carving)
https://youtu.be/AQ5IRvt7fFE (4 axis carving)
