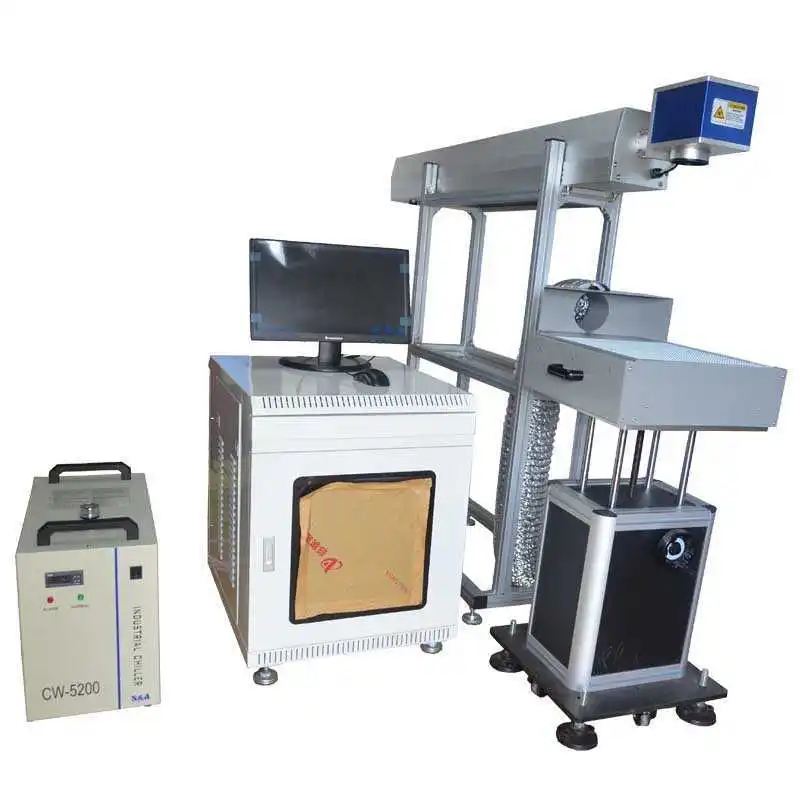

Reci 80w 100w co2 glass tube laser marking machine for jeans denim

Product Overview

Description

Reci 80w 100w co2 glass tube laser marking machine for jeans denim



Applicable materials and industry

    Markings on the non- metal materials and surface of their products, such asplexiglass, ceramic, plastics, synthetic material, timber, rubber, leather, paper products ,Electronics industry

    Laser markings on capacitance, inductance, printed-circuit board, integrated circuit, instrument and control panel Daily supplies and clothing industry: button, cosmetics package, food package, tobacco and alcohol, stationery, artwork PVC, ABS material, acrylic, epoxy resin EP, leather, unsaturated poyester etc.



1. Our medicine, personal care products, tobacco, food and beverage packaging, alcohol, dairy products, clothing accessories, leather, electronic components, chemical building materials and other industries.



2. Inserts can carve nonmetals and parts of metals. Widely used in food packaging, beverage packaging, pharmaceutical packaging, building ceramics, clothing accessories, leather, fabric cutting, technological gifts, rubber products, electronic components packaging, shell nameplates and so on.



3. Apply to all kinds of non-metallic materials and products, such as medical, cosmetic, plexiglass, ceramics, plastics, wood, rubber leather, paper, electronic industry, various instruments and control panel laser marking.



Sitting CO2 laser marking machine is suitable for most non-metal materials and some metal materials, such as paper packaging, plastic products, label paper, leather cloth, ceramic glass, resin plastic, bamboo and wood products, PCB board, etc.

Applicable to paper, wood, glass, leather and other materials.



Parameter



Items	Parameter
Power	80w	100w
Model number	GC-CO80	GC-CO10
Brand	GoodCut
Working accuracy	0.01mm
Supported format	AI,BMP,DST,DWG,DXF,DXP,LAS,PLT
Control software	EZCAD
Cooling method	Water cooling
CNC or not	Yes
Laser type	Co2 glass tube
Max. Marking Speed	7000mm/s
Marking scope	70mm*70mm, 110mm*110mm 220mm*220mm, 300mm*300mm
Laser source brand	Reci Brand
Repetition accuracy	±0.001mm
Marking depth	0.001-3mm (depends on material)
Working voltage	AC110V-230V 50/60HZ
Beam quality	M²<1.2~1.8
Min. Line width	0.01mm
Min. Character	0.15mm
Power consumption	<1.5kw
Laser wavelength	10.6 um
Operation system	Windows XP, Win 7, Win 8
Workable environment	15℃-45℃
Communication interface	USB
Optional devices	Rotary Device, Moving Table, other customized automation



Features:



Fast speed marking on non-metal materials, marking speed may achieve 230 characters per second.



Mark the small area leather or textile material cutting, with maximum marking area 150mm*150mm.



Mechanism as well as the control system can be custom-made according to customer special requirements.



1. Galvanometer scanner:

It is equipped with automatic scanning system, output stability, fast speed, high precision marking., ..



2, Focus lens

Accurate focusing function, with clear and complete printing. The standard field lens size is 200*200mm.



3,Inner red dot pointer

Red dot point can indicate the real position of the leaser beam, make marking more accurate.



4.Worktable:

Standard Honeycomb plate table can meet the cutting needs of all materials include soft material such as leather, fabric, paper, etc.



5. Glass tube laser source:

China top brand RECI laser tube, 100,000 hours life time, 300 days warranty, with high reliability, long continuous operation time, can be applied in production linework.

Optional power: 60W/ 80W/ 100W/ 120W/ 150W. We will test every one of laser machine together with the laser tube, we can 100% make sure all our customer can get good machine from us



6. Manual lifter

The worktable can be manually move up and down, laser focus distance can be accurate adjusted.



7. Laser holder

Stable aluminum alloy frame can be easy move and position.



8. Host computer cabinet

PC and software already installed, host install in cabinet with USB interface, control buttons safely hide in cabinet, dust proof, free maintenance.



9. PC Screen, keyboard, mouse already include



10. Water chiller:

CW3000/CW5200 water chiller with water temperature display and alarm system can avoid over burning, protect the water circulation successful. In the waterless state, the equipment will stop working, which can effectively protect the machine.



11, Exhaust Fan

Heat dissipation is fast, can extend the life of machine.



12 Full-direction Wheel and position leg

can help move and fix the laser machine easily.
