Our company research and development production gasoline diesel fuel storage tank with reasonble price.S/F storage gasoline diesel fuel storage tank,S/S storage tank and Carbon steel tank.Gasoline diesel storage steel tank is used to store crude oil, vegetable oils, chemical solvents, water or other petroleum products.There are steel fixed support between the inner shell, which can prevent the tank from cracking and deformation, equipped with advanced leak detector, and timely sensing the leakage flow and alarm.
REGULAR STORAGE TANK

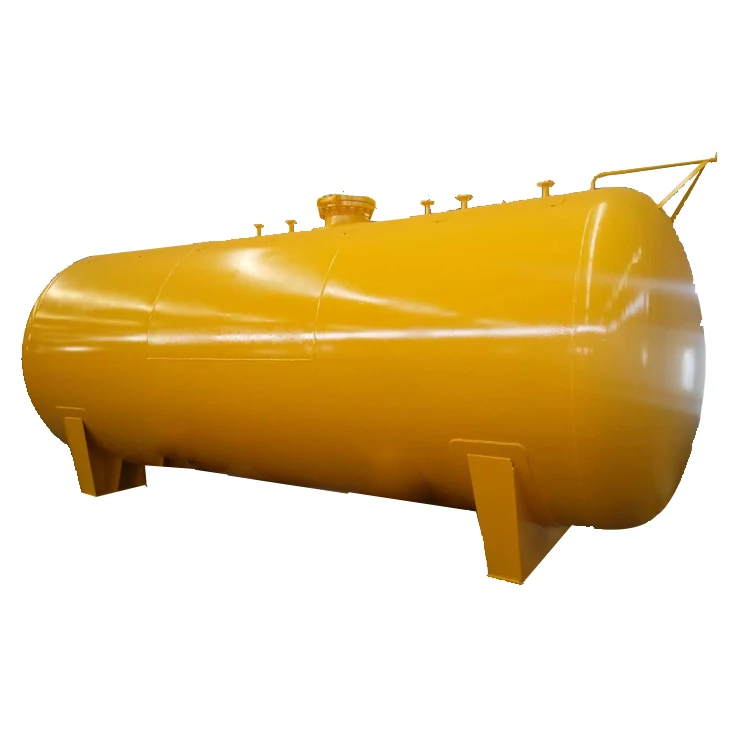

Above Ground Oil Storage Tank

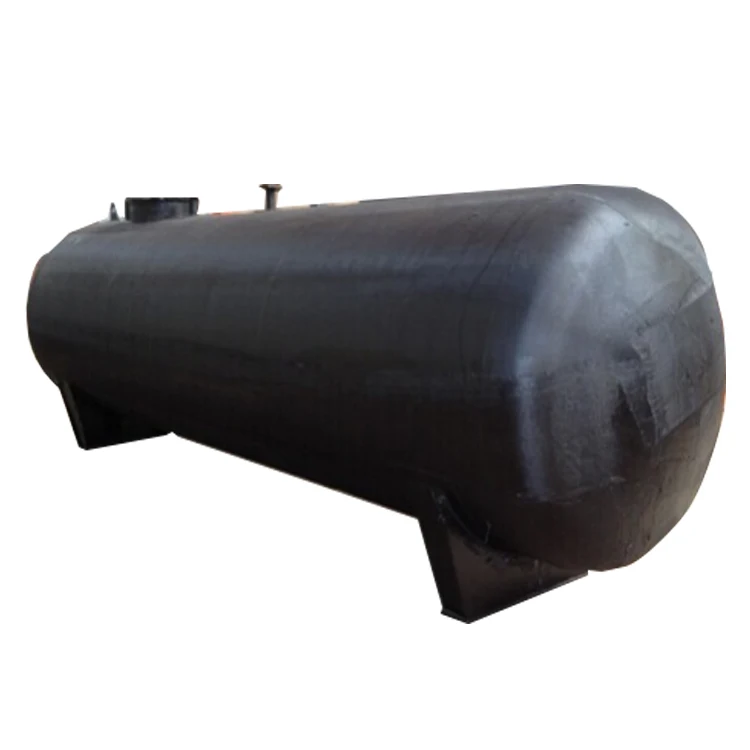

Under Ground Oil Storage Tank
Horizontal oil tanks are also widely used. Because it has the ability to withstand higher positive pressure and negative pressure, it is helpful to reduce the evaporation loss of oil products, and also reduces the risk of fire. It can be manufactured in batches in machinery and then shipped to the construction site for installation, easy handling and demolition, and good mobility.
DOUBLE WALL STORAGE TANK

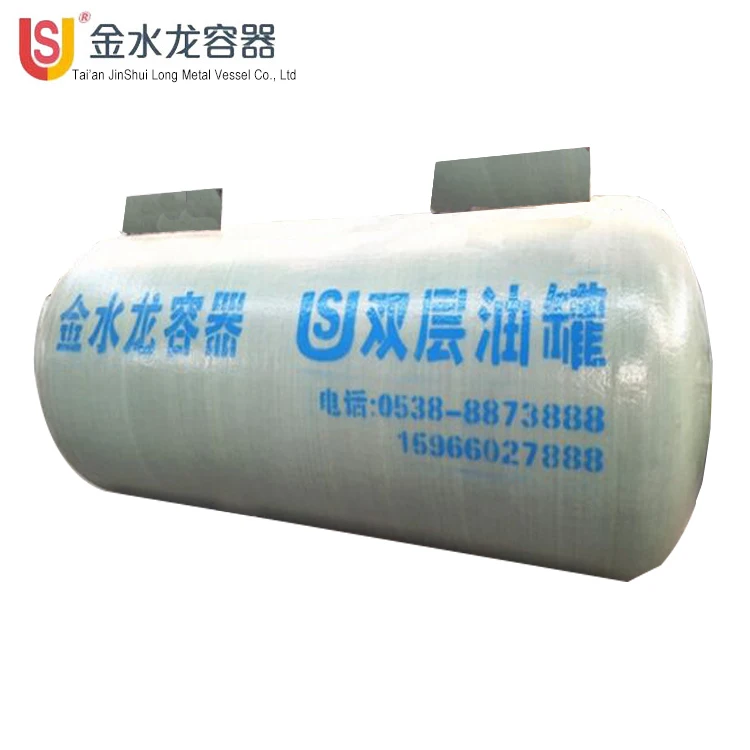

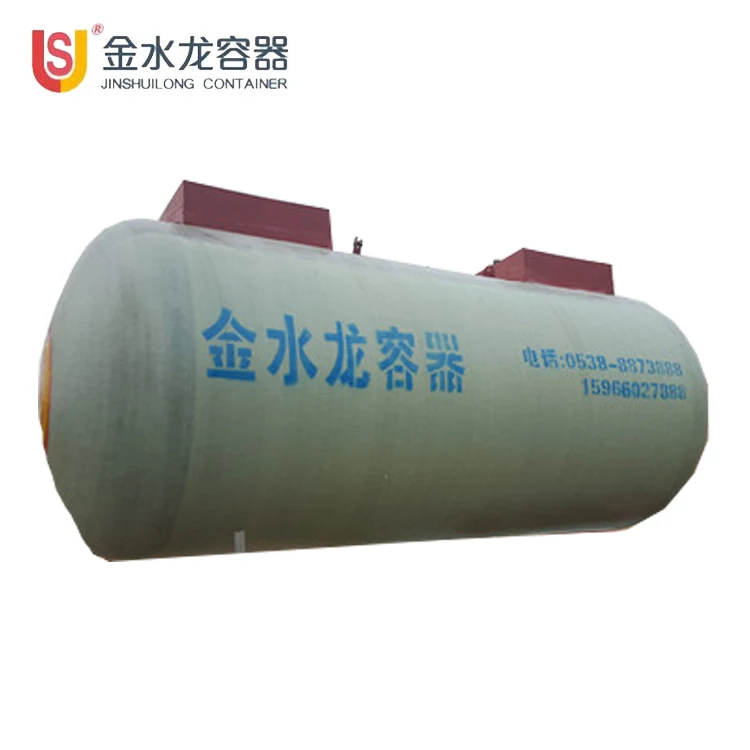

S&F double-wall storage tank
S&S double-wall storage tank
1. Safety characteristics: The double-layer structure has strong corrosion resistance and electric corrosion resistance; patented technology is adopted between the double layers to achieve a gap of 3.5mm, to prevent the existence of hidden dangers from the root cause; 2. Environmental protection characteristics: ordinary single-layer steel storage tanks will be eroded by groundwater and electrolytically corroded because they are buried underground all the year-round; (1) Double-layer structure with a 3.5mm gap in it, and the outer FRP ensures that the leaked material will not directly leak the polluted soil and water source; (2) The outer FRP will not cause electrolytic corrosion with groundwater, brine, etc .; (3) The leak detector can be monitored 24 hours a day to eliminate potential pollution hazards; (4) The outer FRP will not corrode with gasoline, diesel, and leaded gasoline;
STAINLESS STEEL STORAGE TANK
Stainless steel tank Horizontal
Stainless steel tank Vertical
Stainless steel tank has strong corrosion resistance, it is not corroded by residual chlorine in the outside air and water. Each spherical tank is subjected to super-strong pressure testing and inspection before leaving the factory, and its service life can reach more than 100 years under normal pressure.
TANK CONTAINER
ISO TANK CONTAINER
Compared with railway tank truck and barrel transportation, tank container has the following advantages: 1. It can be used as a transportation tool, and can also be used as a storage container in the production and use site; 2. Door-to-door transportation can be realized, making transportation safer and more reliable; 3. It can realize highway, railway, inland river, and ocean transportation, greatly reducing the loading and unloading time of the station and terminal. The boxes can be stacked from 6 to 9 layers, and the occupied space is small; 4. Since tank containers can realize the separation of boxes and vehicles, enterprises with tank containers may not need to have their own vehicles or their own vehicles to achieve one vehicle for multiple purposes 5. Saving packaging cost for barreled products. We absorb the advantages of similar tank bodies both at home and abroad using advanced technology and strict production technology. Various performance indicators are in compliance with relevant national requirements. The produced container tank has the advantages of reasonable structure, reliable performance, beautiful appearance and easy operation.
Specification
Capacity (M3)
20
30
40
50
60
70
internal diameter(mm)
2200
2400
2600
2800
2800
2800
Tank of the length (mm)
4500
5820
6700
7200
8800
10400
Gap between two layer(mm)
0.1-3.5
0.1-3.5
0.1-3.5
0.1-3.5
0.1-3.5
0.1-3.5
Inner steel tank thickness(mm)
≥6
≥6
≥6
≥6
≥6
≥6
Head thickness (mm)
≥8
≥8
≥8
≥8
≥8
≥8
External tank thickness(mm)
≥4
≥4
≥4
≥4
≥4
≥4
Manhole quantity
2
2
2
2
2
2
Manhole diameter(mm)
600
600
600
600
600
600
Delivery/shipping
Competitive products
Company Profie
Tai’an JinShui Long Metal Vessel Co., Ltd founded in 2009 and located in Tai’an City, Shandong province. It is a production company integrating research, development, assembly, production and sales. The company is committed to the production of mobile portable gas stations, Skid-mounted gas station and other mobile container gas stations. We can also provide special capacity according to the special requirements of customers. The company adheres to the concept of bringing convenience to customers and doing the best quality products. We are willing to win with people of insight from all walks of life.
