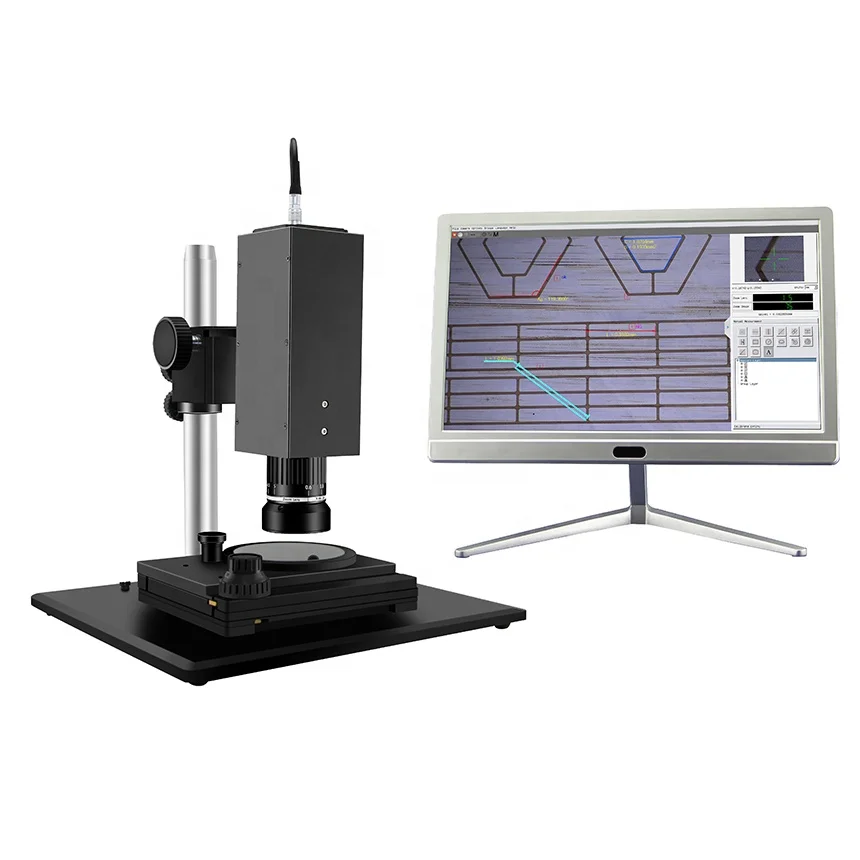

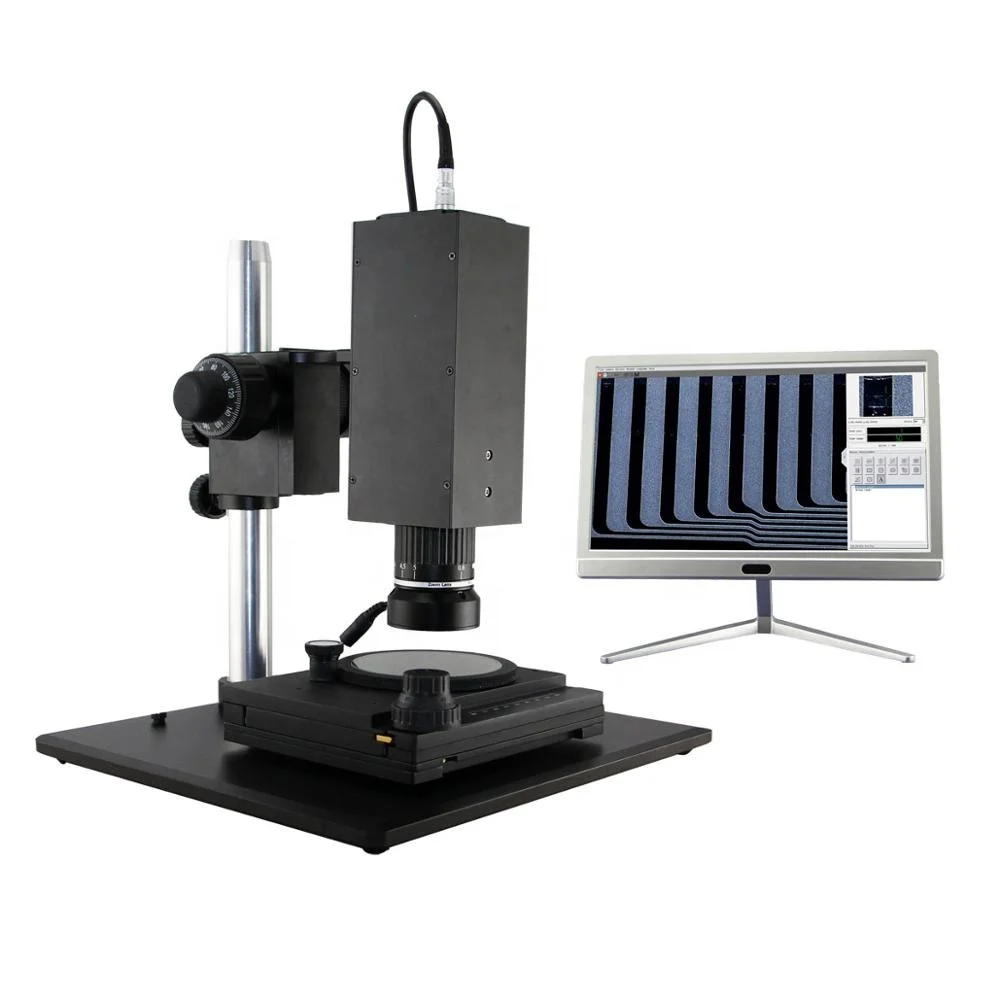

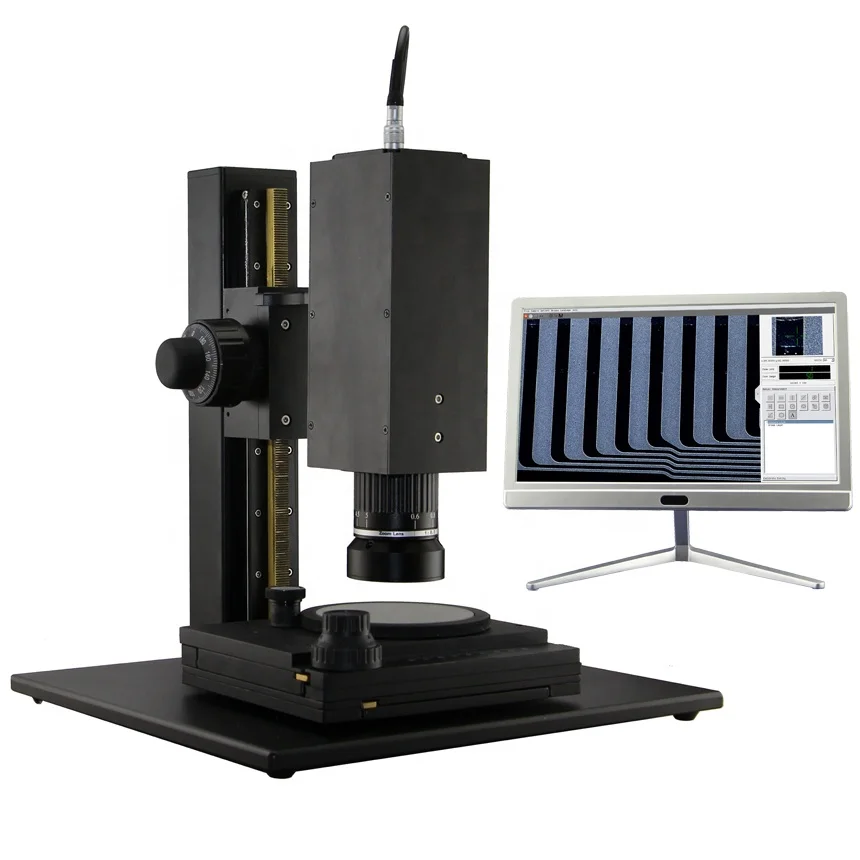

FM325MP 15 240X High Precision Monocular Smart Measuring Video Microscope
- Category: >>>
- Supplier: Guilin FT-Opto Co. Ltd.
Share on (62013292860):
Product Overview
Description
FM325MP 15-240X high precision monocular smart measuring video microscope
Product Description
1. 60fps, Full HDMI display,1920*1080 high resolution. Real time Display optical magnification and total magnification.
2.PC-Free.Smart calibration. Calibration Free. After factory setting. User don't need to calibration again.
3.For Special irregular parts, can draw the part drawing , then save the drawing with screen printing, we can measure or compare part size by the drawing. We can draw any drawing by your design data too. software have protractor screen printing menu, can measure or compare line and angle data.
4.Auto Edge Function Improve Measurement Precision
5.Measuring Function: support line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon
measuring , etc. Measurement data can be saved ,can also be generated by EXCEL, you can import or export. Numerical units are free
to select (mm, um), *can select size and color of the Mark data.
6.BMP or GPJ format image storage, look through images
7.Windows software interface, the mouse complete the menu icon, it is very simple
2.PC-Free.Smart calibration. Calibration Free. After factory setting. User don't need to calibration again.
3.For Special irregular parts, can draw the part drawing , then save the drawing with screen printing, we can measure or compare part size by the drawing. We can draw any drawing by your design data too. software have protractor screen printing menu, can measure or compare line and angle data.
4.Auto Edge Function Improve Measurement Precision
5.Measuring Function: support line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon
measuring , etc. Measurement data can be saved ,can also be generated by EXCEL, you can import or export. Numerical units are free
to select (mm, um), *can select size and color of the Mark data.
6.BMP or GPJ format image storage, look through images
7.Windows software interface, the mouse complete the menu icon, it is very simple
Specification
Model | FM325MP | FM650MP | |
Zoom Body | B325 0.3-2.5X zoom body (standard) | B650 0.6-5.0X zoom body optional | |
FOV (mm) | 24mmx13.7mm ~ 2.88mmx1.64mm | 12mmx6.8mm ~ 2.88mmx1.64mm | |
Zoom ratio | 1:8.3 | ||
Total magnification | 15-125X | 30-250X | |
Working distance | 86mm | ||
Smart platform | EPGA+ARM architecture embedded System, Dual-core A9 Precessor | ||
Resolution | 1920*1080 | ||
Output format | Full HDMI | ||
Sensor | 1/2"SONY CMOS | ||
Pixel size | 3.75um*3.75um | ||
Frame | 60fps | ||
Light Sourse | 12V 5W ring LED light source,0-100% brightness control | ||
Stand | 330*300mm base size coarse stand | ||
Calibrate-Free | Softwre already set the calibration, So customers no need calibration again.Can directly use and measure data. | ||
Measurement function | Can measure lines, parallel lines, circles, arcs, angles, concentric circles, center distance of circles, rectangles, polygons and other plane graphics (support customized measurement mode) | ||
Storage | Photo storage (with measurement data or pure photo storage) , excel data storage to U disk | ||

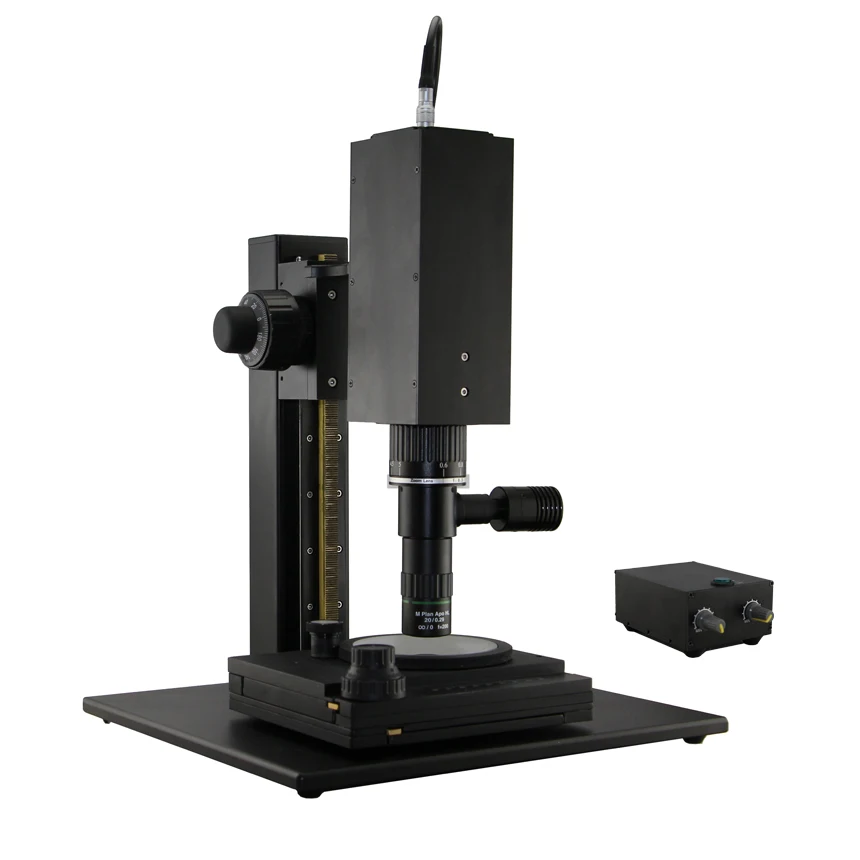

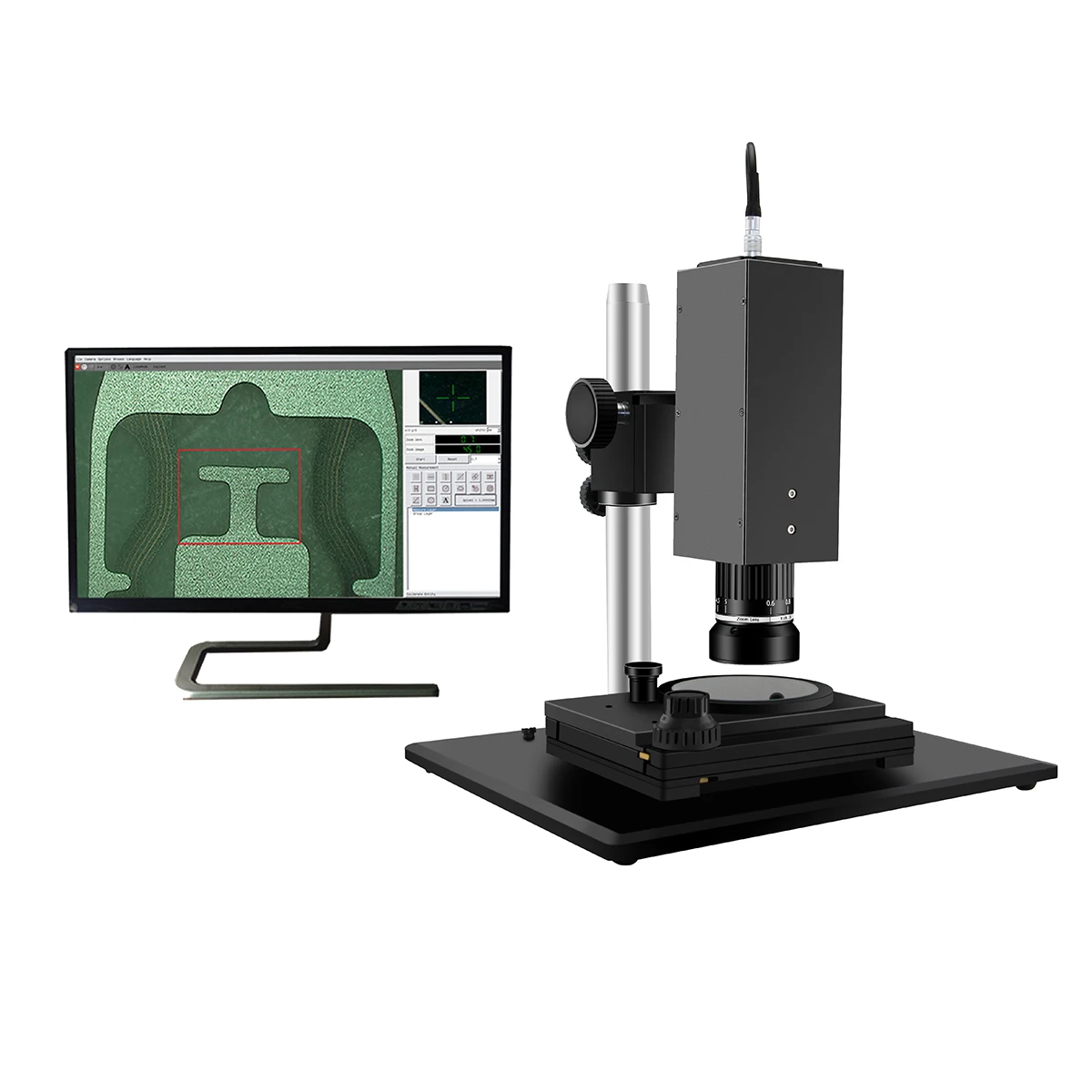

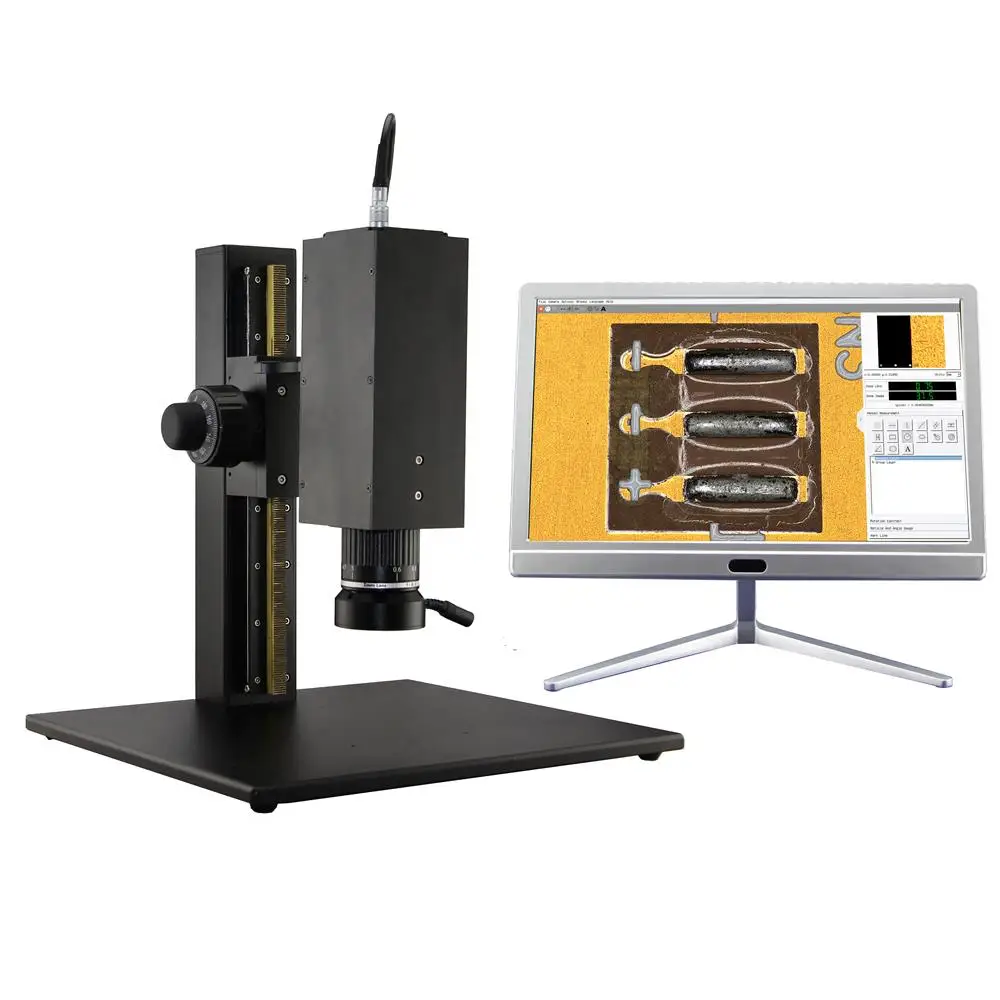

Product Pictures

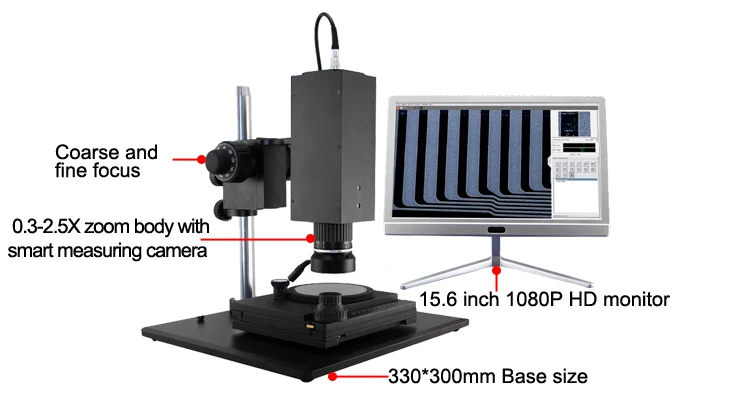

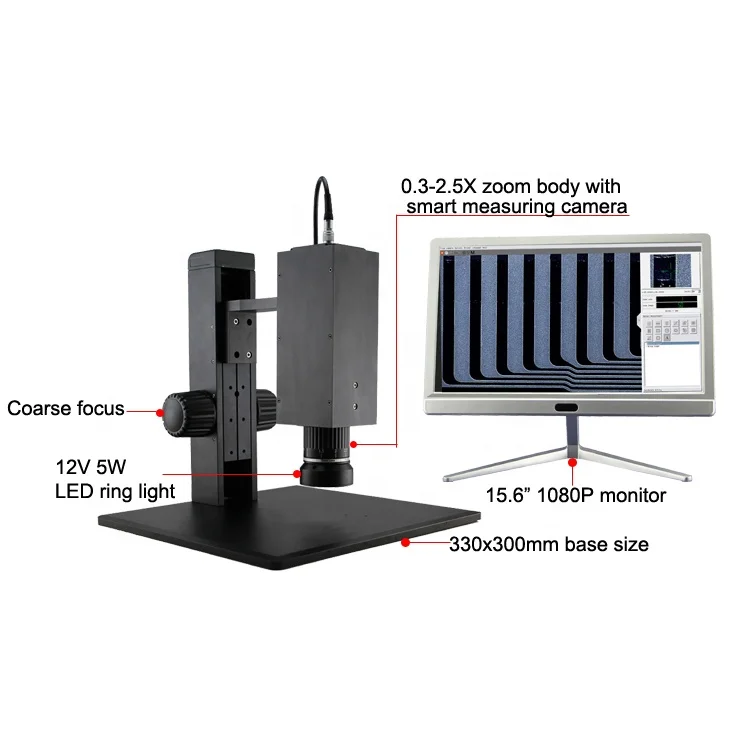

Main Feature
No need computer.No need calibration.Smart measuring.Measuring accuracy can reach 3 μm
No need computer.No need calibration.Smart measuring.Support point, line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon.ect measuring .Measurement data can be saved with picture or Excel.
No need computer.No need calibration.Smart measuring.Support point, line, circle, fan-shaped, concentric circles, center distance of circle, Angle, arbitrary polygon.ect measuring .Measurement data can be saved with picture or Excel.
Angle Guage and crosshair
measurement software built in an angle ruler and crosshair that allows for quick angle gauge measurements. There is also specific feature that allows for arc-related measurements (radius, circumference, angle, etc.).
Adjust Angle freely.Can Move the center of angle gauge.
measurement software built in an angle ruler and crosshair that allows for quick angle gauge measurements. There is also specific feature that allows for arc-related measurements (radius, circumference, angle, etc.).
Adjust Angle freely.Can Move the center of angle gauge.
Screenprint Drawings for Irregular Parts
For Special irregular parts. Support draw according the shape of sample. Support to save the drawing image and data to be Screen printing. We can measure or compare part size by the drawing.
Like put an real ruler on display.Can Move the center of angle gauge.
Packing & Delivery
Packing size | 39*36*47mm |
Gross weight | 16.5kgs |
Packing style | The standard package is polyfoam protection and strong cartonOptional package is aluminum box with polyfoam protection and strong carton |
Delivery time | Sample order within 7 days |
