2017 hot sale OEM patient monitor main board with module

Product Overview

Description

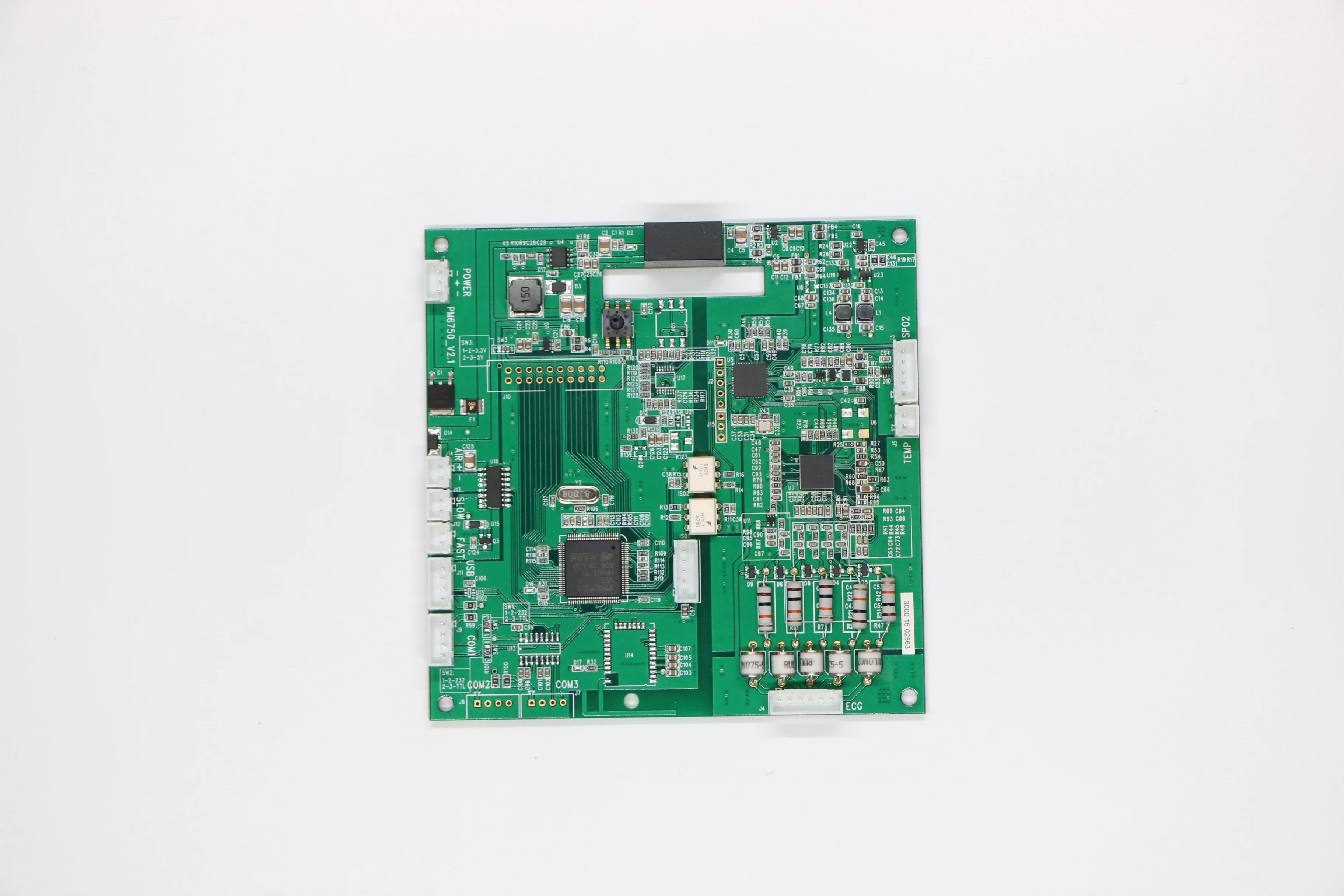

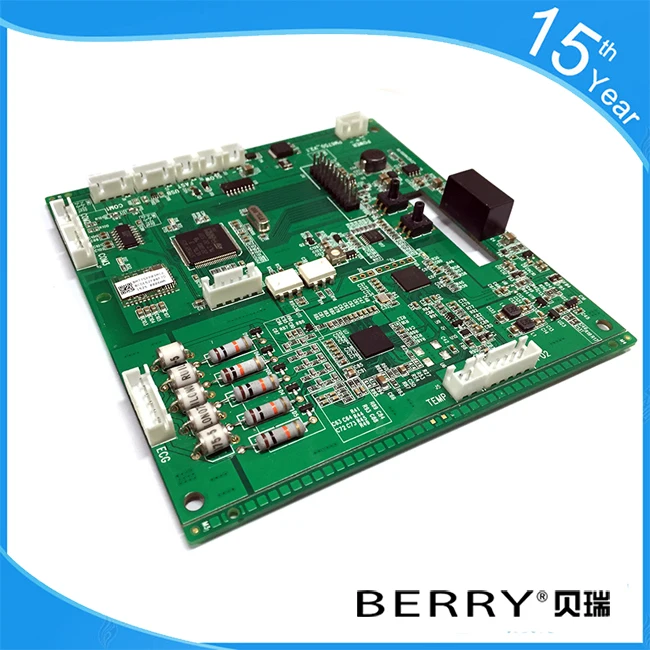

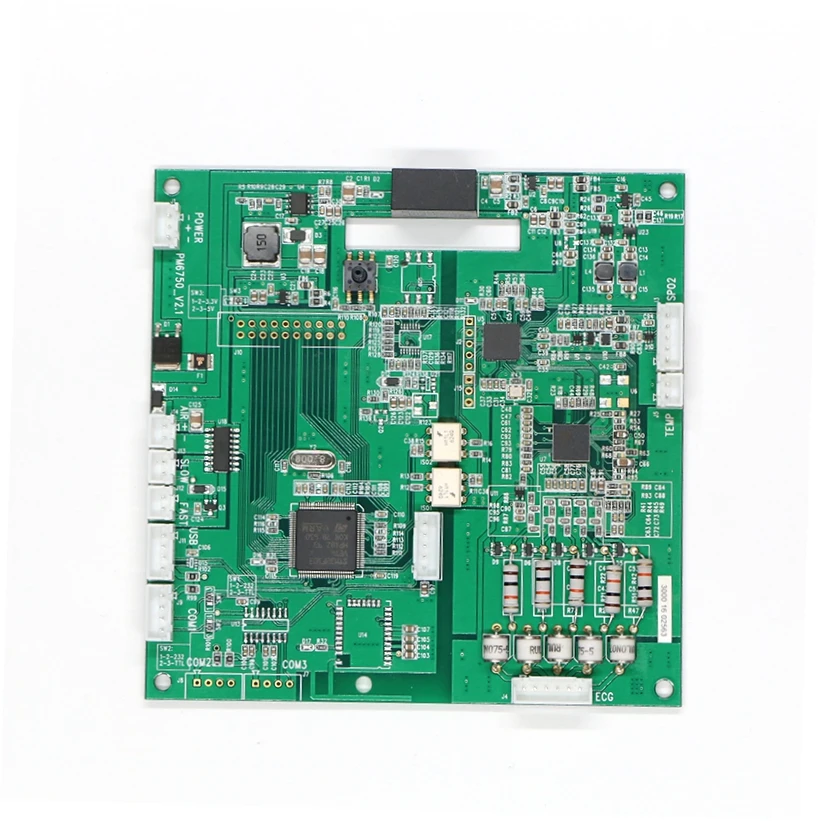

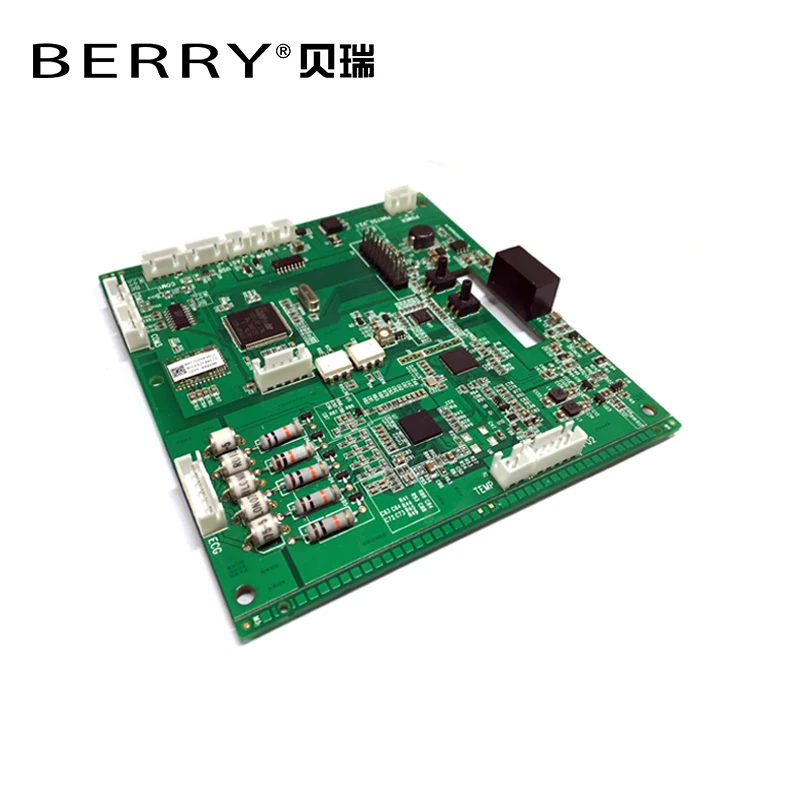

PM6750 Module

Overview







Introduction



PM6750 Patient monitor module was made by Shanghai Berry Electronic Tech Co., Ltd. Portable design, flexible installation and easy operation make it be able to meet a variety of requirements.
PM6750 monitors multiple vital signs, including SpO2, Pulse Rate, 5-Lead ECG, Heart Rate, Respiration, Body Temperature and NIBP.
Through Serial Port, USB or Bluetooth, the monitor transfers the data to PC or other smart terminals for secondary development. Also you can obtain technical support from our R&D team.

ParameterSpecifications

SpO2	Measurement Range: 35~100%. Accuracy: ±2% (80%~100%), ±3% (70%~79%), Not specified (35% to 69%).
Pulse Rate	Measurement range: 25~250bpm. Accuracy: ±2bpm or 2%, whichever is greater.
ECG	5-leads ECG, output 7 channels (I II III aVL aVR aVF V) waveform, support diagnostic, monitor and surgical mode, 4 levels programmable gain.
Heart Rate	Measurement range: 25~250bpm. Accuracy: ±2bpm or 2%, whichever is greater .
Resp Rate	Measurement range: 5~100bpm. Accuracy: ±2bpm.
TEMP	Measurement range: 25~45℃. Accuracy: ±0.2℃.
NIBP	Measurement range: Systolic blood pressure: 60~250mmHg. Diastolic blood pressure: 30~180mmHg. Static Pressure Accuracy: ±3mmHg or 2 %, whichever is greater .

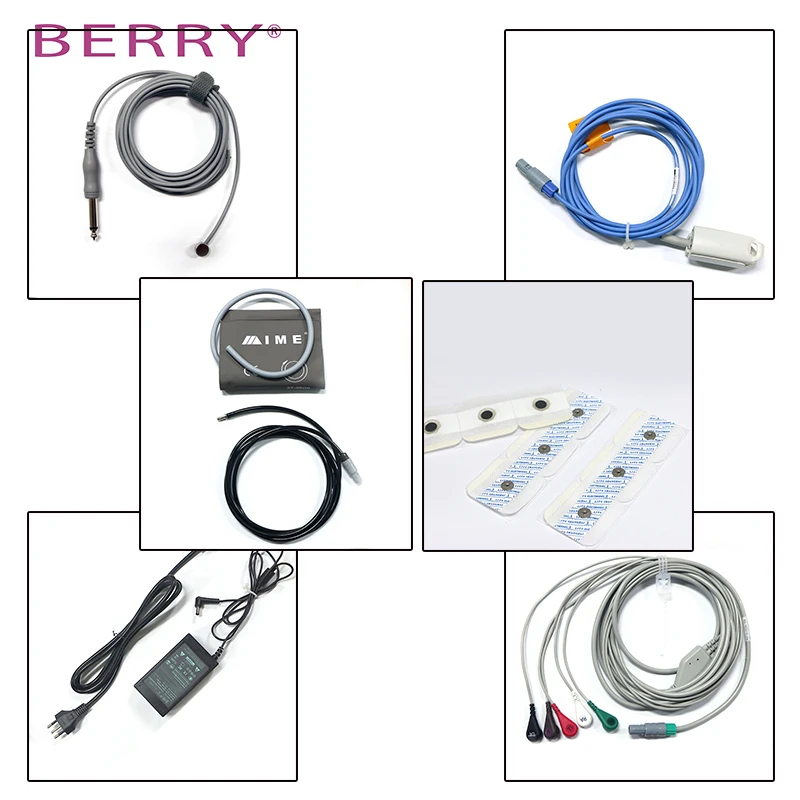

Accessories

Workshop

Payment



1. All price is not included import duties, taxes and charges.

 (Pls check the additional custom fee with your local custom before bid. We do not accept under-value purchase.)

2. We accept payment by T/T, Western Union, Money Gram, Paypal, L/C



FAQ



M.O.Q                 1pc

Packing               1pcs in box, 10pcs in a middle box, 50pcs into one standard export carton

Port                     Shanghai

Term                    (T/T: 30% in advance, 70% before shipment)

OEM/ODM           Available

Sample policy      Sample and shipping fee are charged, but it will be refunded after bulk order



Company History

Shanghai BERRY was founded in 2003 and the quarter is located in Shanghai City. We maily concentrates on developing and manufacturing products of patient monitor aspects, which include patient monitor accessories, OEM modules, pulse oximeter and IBP products, etc.
