PA system IP Network Broadcasting System, Background Music System Amplifier speaker microphone Manufacturer

 Dear:Sir/Madam
We specialize in R&D, production and sales of public broadcasting system (PA system), background music system, speaker system, audio power amplifier system, IP network intercom system.

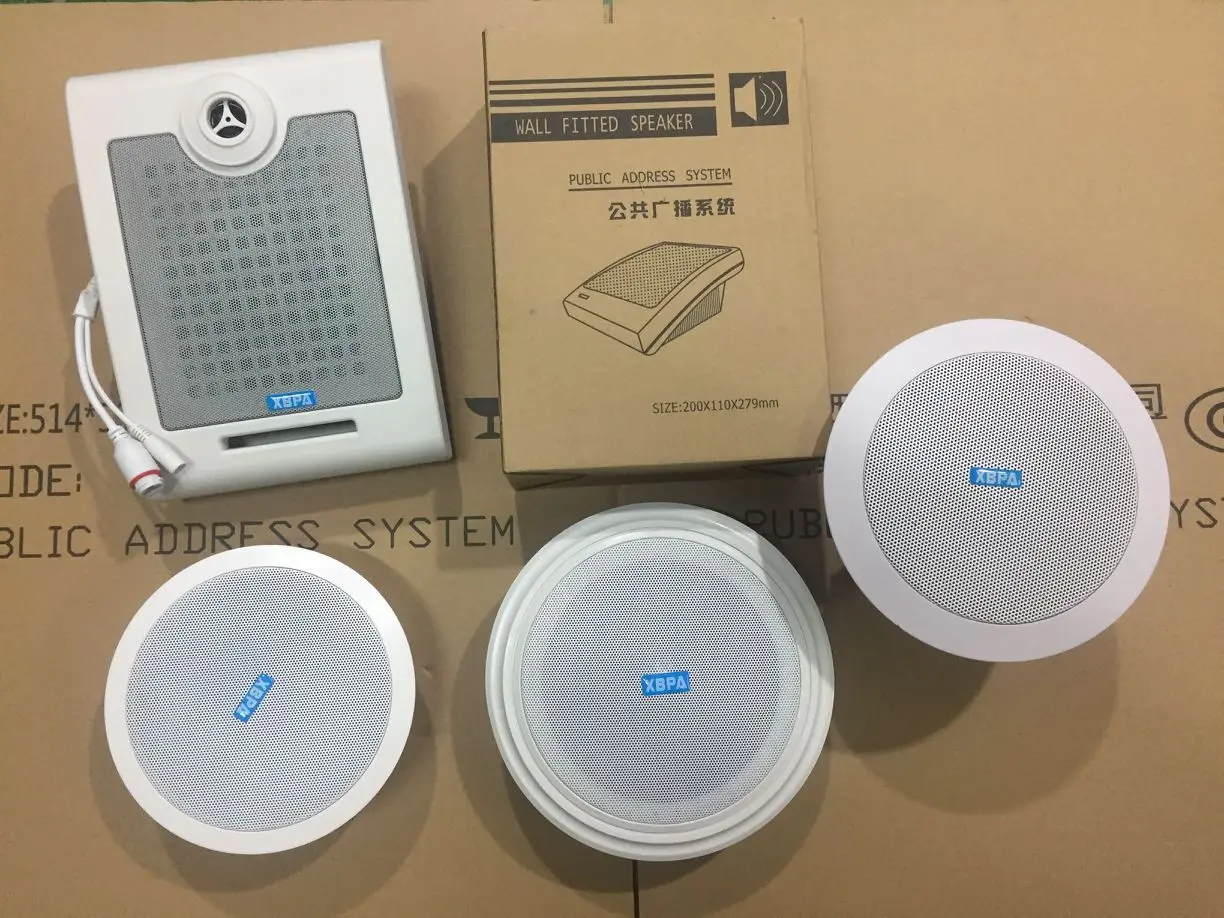

Products include power amplifiers, IP speakers, WiFi speakers, speakers, power amplifiers, walkie-talkie terminals, etc.
Hope to establish business relationship with you! If you want to know more about our company, please leave us a message. We would appreciate any comments. Thank you very much.
Alibaba Store Address: https://xbpa.en.alibaba.com/
Cordial greetings
Shenzhen Xibangyuan Technology Co., Ltd.

PA system Wall Power Amplifier  XBPA-7100

PA system  Product Introduction

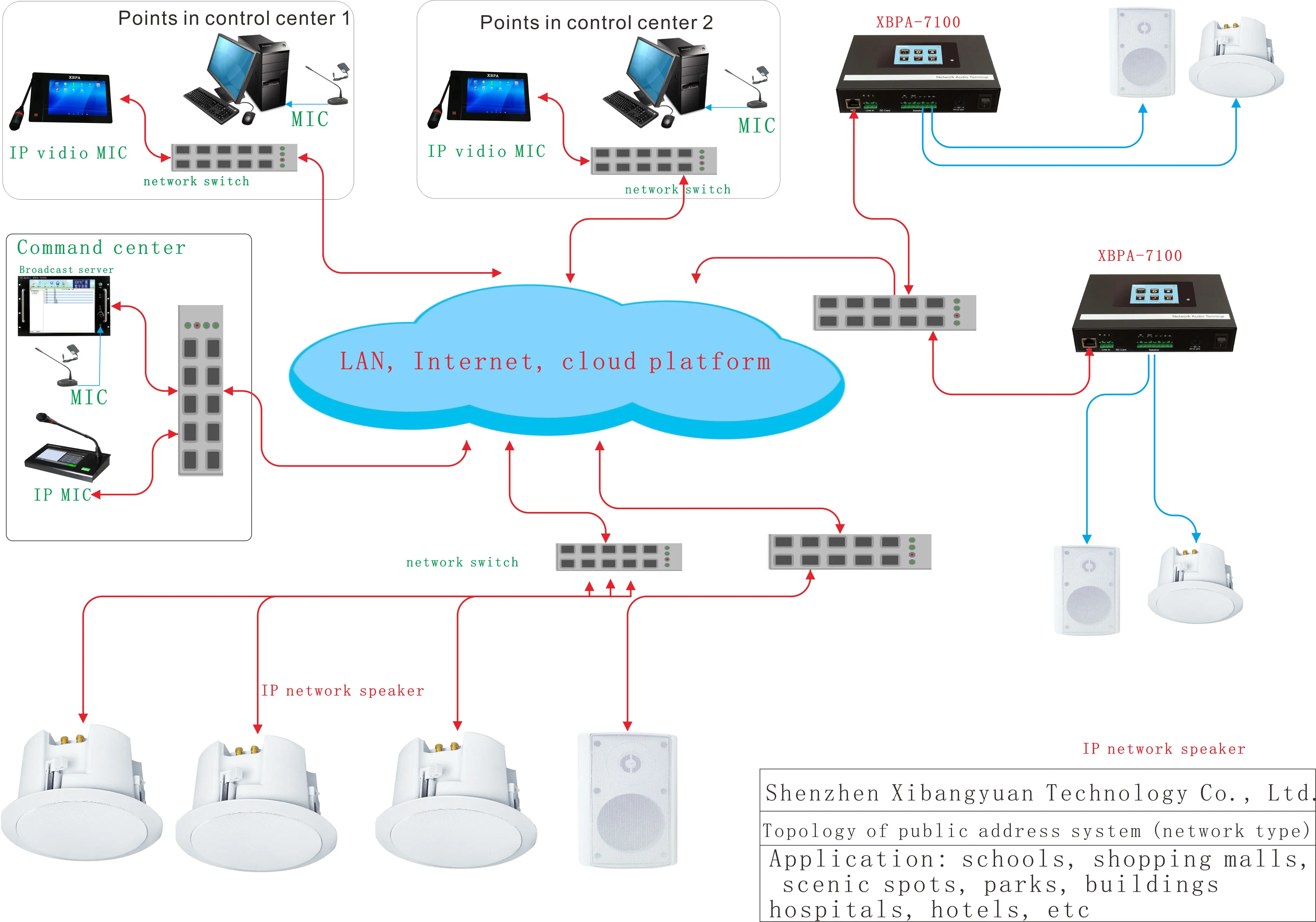

XBPA-7100 is an IP network broadcasting wall-mounted power amplifier with 10/100M Ethernet interface. It receives network audio data or provides a stereo output after receiving external audio input.
The broadcasting terminal is equipped with one I/O input and one relay output. At the same time, the volume of power amplifier can be adjusted by remote control and on demand. TFT true color LCD display is also configured to display playback content, infrared remote controller and audio files in the on demand server.
This broadcasting terminal is mainly used as a network player. Connecting the equipment to the network and using it with PC software and speakers can realize VOD function.
Product characteristics
The standard RJ45 network interface can be placed anywhere in the network system.
Provide MP3, WMA, WAV and other decoding methods, and have ADPCM, PCM coding;
One-way stereo power amplifier output (mono-channel output can be bridged);
Built-in microphone can be used as monitor.
With built-in switching power supply, POE power supply mode can be selected.
Line input can be used as local amplifier
One I/O input and one relay output;
It has 320*240TFT display screen and on-demand function, and can be on-demand with infrared remote controller.
PA system  Specification parameter
Network Interface RJ45 Input Standard
Network features support TCP, UDP
Transmission speed 10/100 Mbps
Power Amplifier Output 2*20W Stereo
Display screen TFT true color liquid crystal display

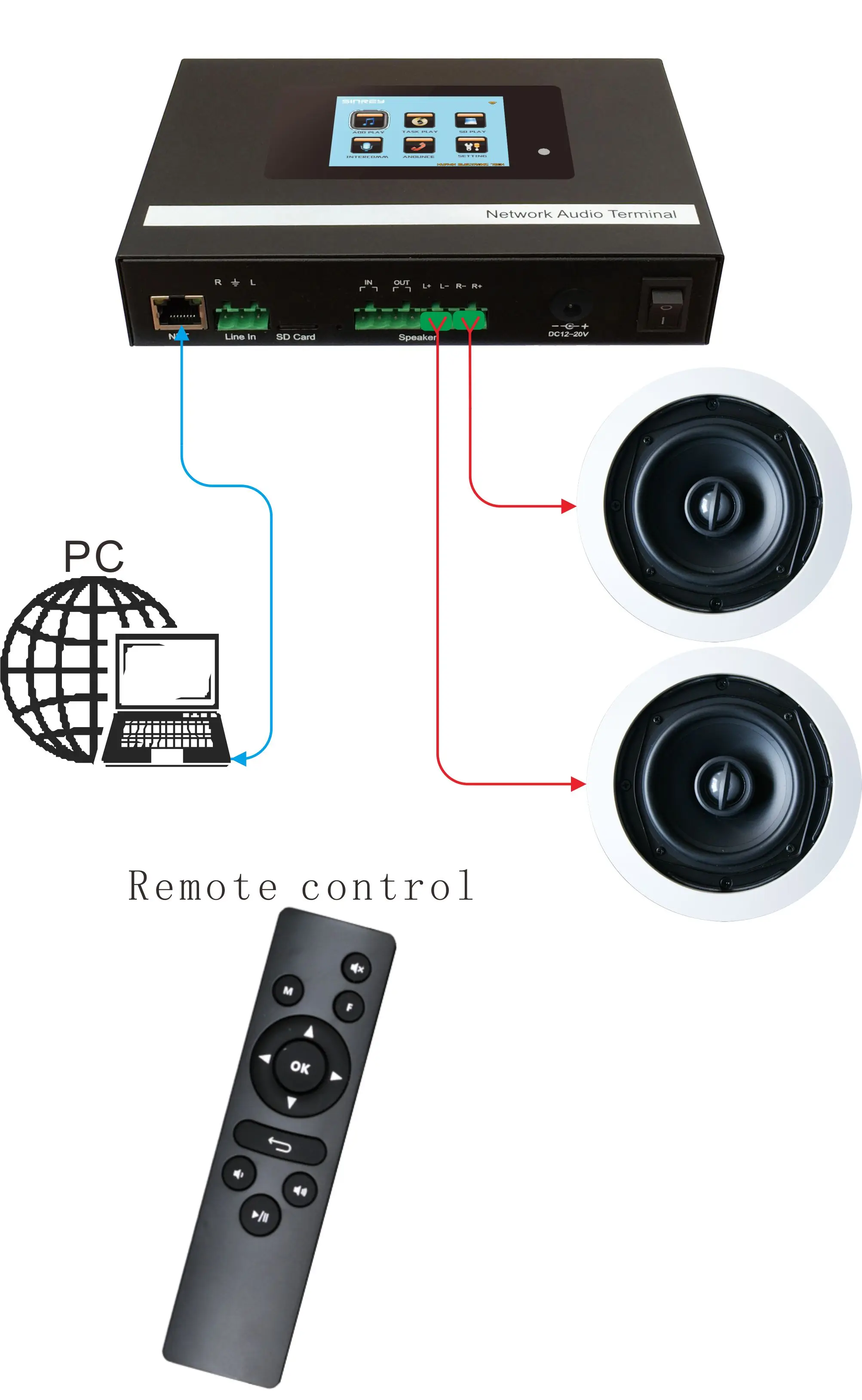

Hardware Installation
Fixed the XBPA-7100 bottom box on the wall or firmly immovable objects;
(2) Connect XBPA-7100 with switch using standard Ethernet line;
(3) Connect XBPA-7100 to the power supply by using power cord accessories. If you use another power supply, please check the power supply voltage for AC100-240V. If you turn on the power supply, you will find that the Keyring on the panel will flicker at intervals.
(4) Connect the external speaker to the audio output terminal of XBPA-7100;
· Parameter Settings
Before formal use, XBPA-7100 parameters need to be set, including IP address, subnet mask, gateway address, port, input sound source and gain, etc. Please use special configuration software to set these parameters, refer to the relevant software usage instructions specifically.

 Company profile
XBBA is one of the earliest manufacturers of public broadcasting system, digital conference system, professional sound reinforcement system, central control system, remote video conference system, HD recording and broadcasting system, family background music system and remote interactive teaching system in China.
scale
Supporting production includes: electronic workshop, high-tech product workshop, all-digital conference system workshop, wireless wheat workshop, speaker workshop, professional audio workshop, hardware workshop, woodworking workshop, spraying workshop, FRP workshop, surface treatment oxidation workshop.
research and development
High-tech Development Department/Conventional Product Development Department/Personalized Product Customization Development Department
system
Six core systems:
1. HD remote video conferencing system.
2. Full digital conference system + paperless multimedia conference system + conference sound reinforcement system.
Three. Full Digital Public Broadcasting System + Full Digital Fire Broadcasting System.
4. Distributed mosaic processing system.
5. Central control matrix system.
6. Full HD Recording and Broadcasting System + Educational Cloud Platform.
application
Each system focuses on different professional industries, including schools, gymnasiums, buildings, intelligent buildings, hotels, banks, prisons, real estate, commercial real estate, Park Square pedestrian street, companies, factories, enterprises and institutions, hospital supermarkets, terminal airports, entertainment and leisure, etc. E venue, exhibition hall, government units, etc.
prerequisites
The company has passed ISO 9001 quality certification, 14001 environmental certification, 18001 occupational health certification, 27001 Information Technology Security certification, CCCF fire protection certification, 3C certification and other certification, and constantly meet the global certification requirements.
Price
"High cost performance" is our consistent pursuit.
logistics
The year-round inventory of finished products is 45 days. We guarantee delivery within 10 days of normal system.
