Новый фильтр для воды, автоматический дисковый фильтр для самоочистки воды

The AIGER Disc filter has a highly efficient backwash, automatic continuous production. Low water consumption and a compact design, the system alters its backwash cycle automatically between units to ensure constant output and minimal pressure loss.

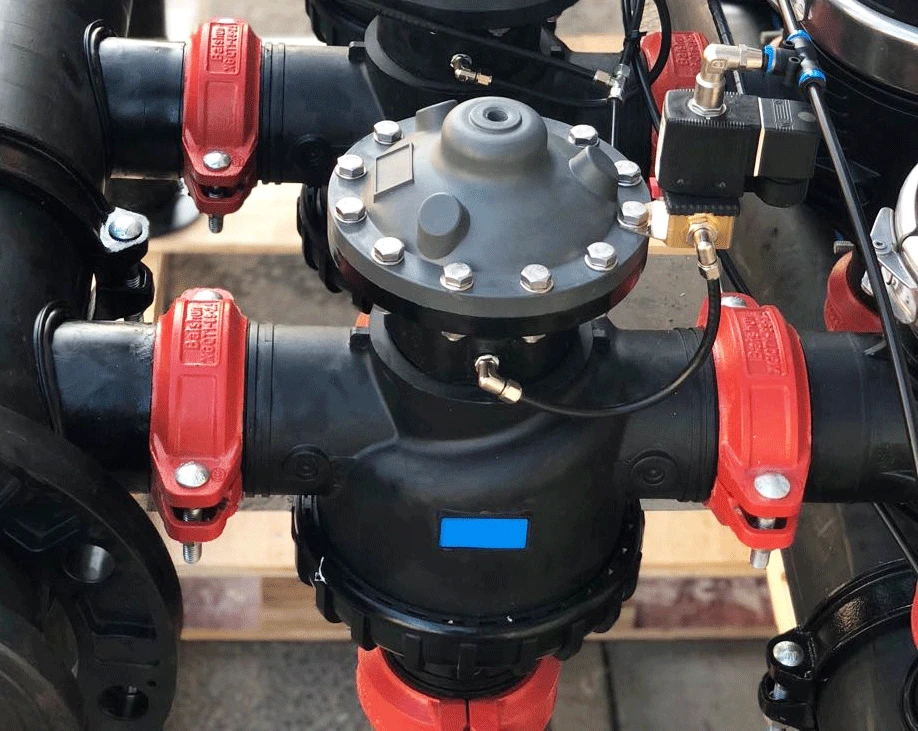

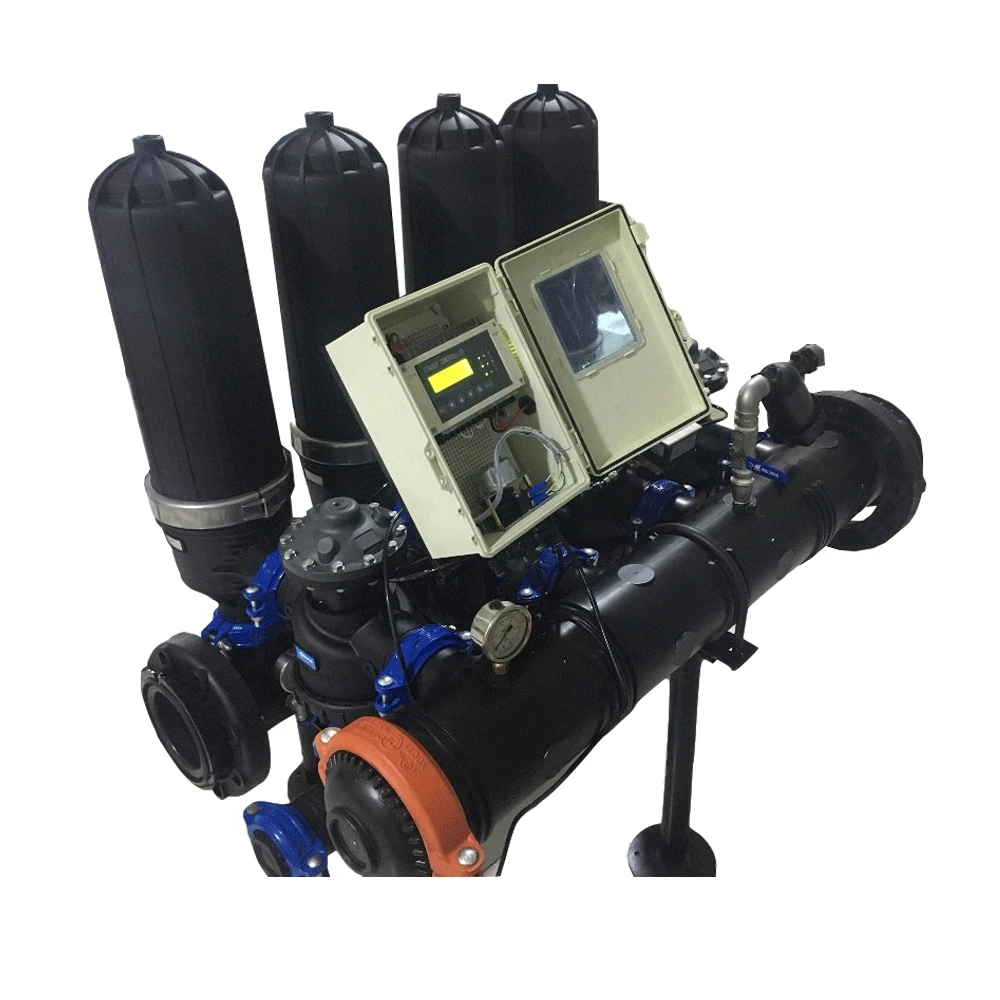

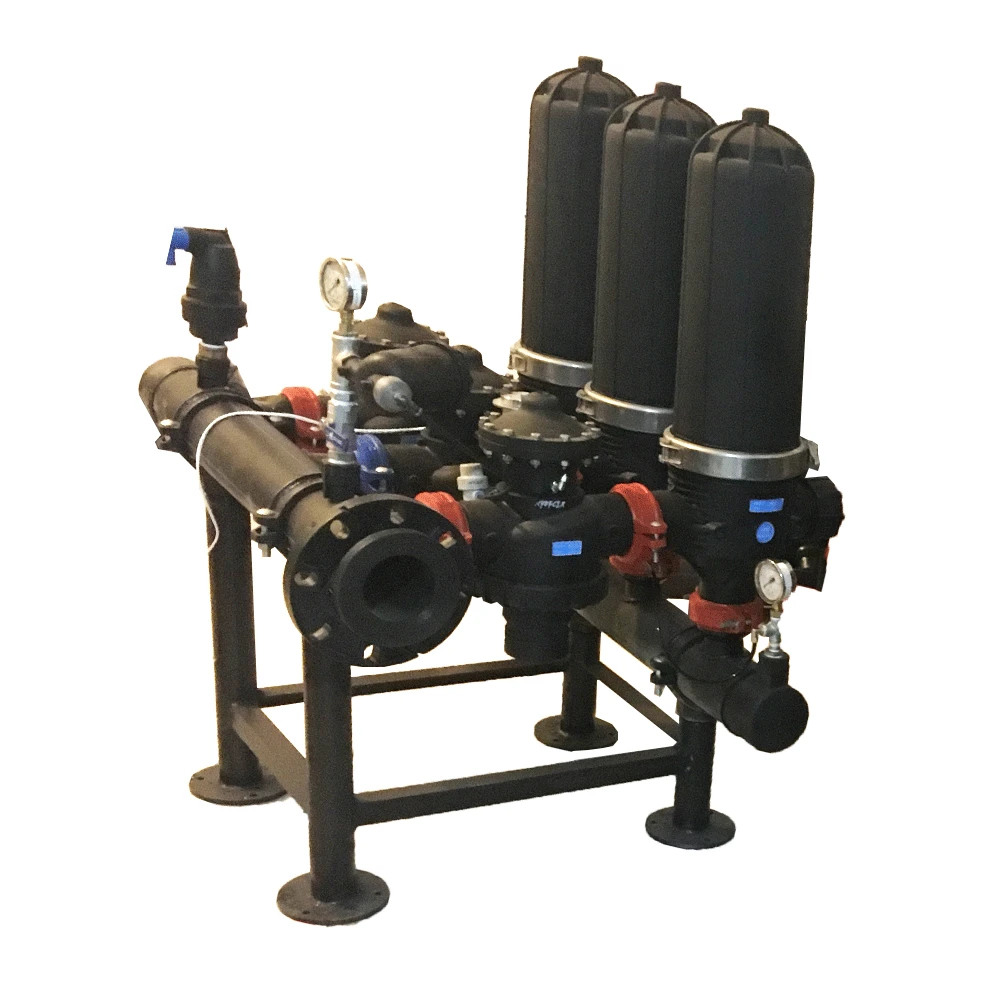

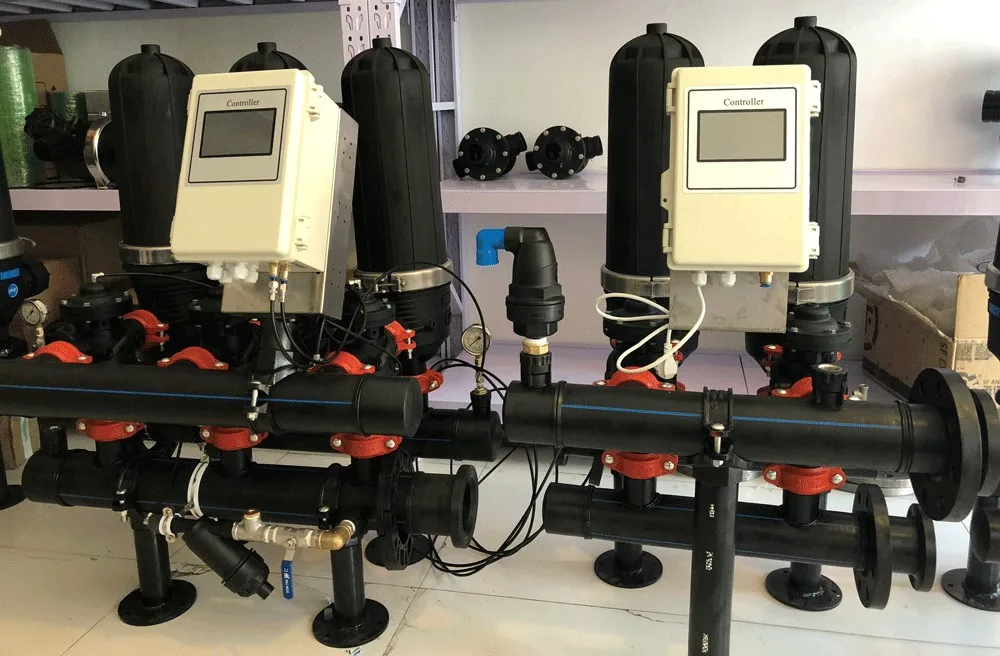

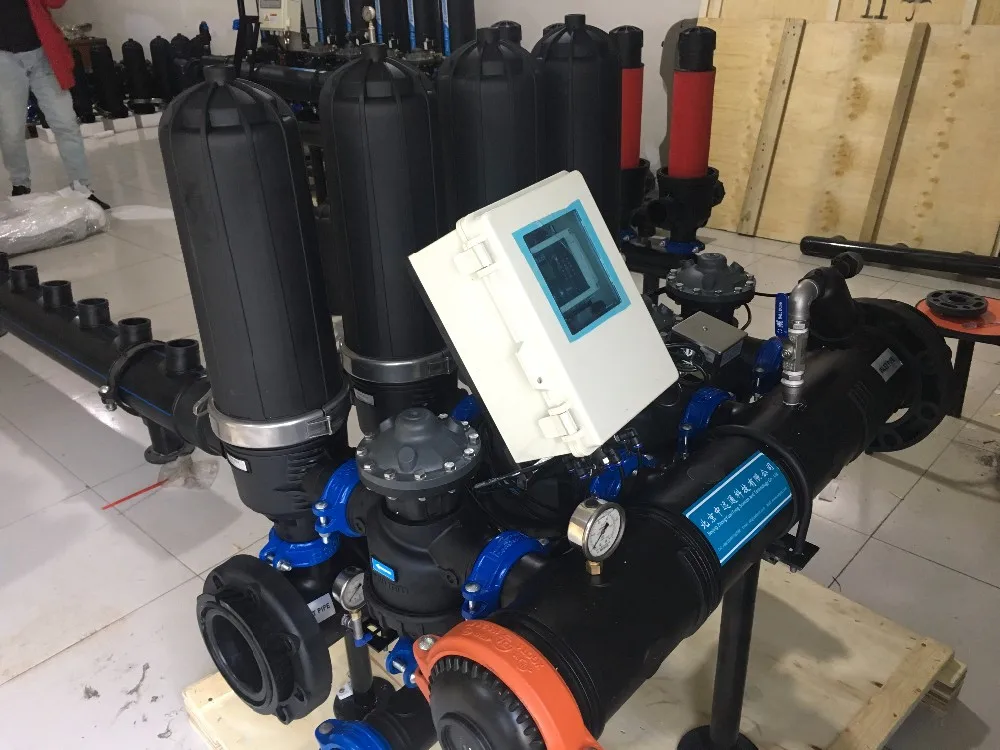

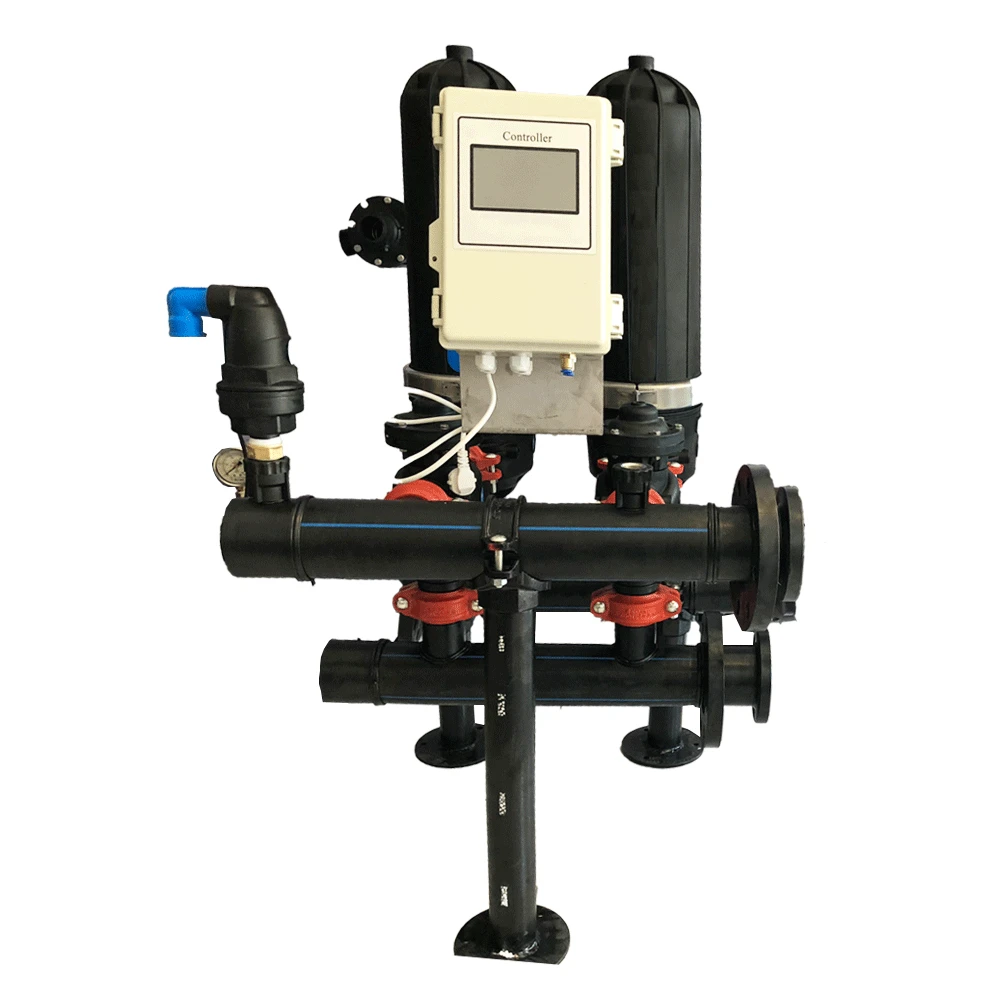

Automatic disc filter system with disc filtering element with 2"/3"/4" backwash valve,manifolds,controller.Easy to install.Automation available in 220V.

1,Better filtration reliability--Disc type filtration
       Elaborate design of inner construction&disc cartridge,ensured the impurities that might plug the system to be stopped.
2,Better water saving and reduce system maintenance cost--Centrifugal filtration
       The ZYT create centrifugal action,big impurities flow away cartridge,optimize the filtration performance and reduce back wash frequency and maintenance and water lose,get the best filtration result;
3,Better automatic self-cleaning result--accurate small nozzle design.
       Numerous small nozzle in cartridge,create spiral high speed water stream,which get efficient cleaning of discs;Low flow demanding,ensure the flow rate of whole system more stable,and get efficient self-cleaning;
4,Multiple precision of disc available--Good for different working conditions
       Color coded disc precision in 200micron,130micron,50micron.
5,Molding products,with very little dimension difference
       Different connection available for fast assembling,easy for installation and change;

There are thin grooves on the surface of the discs; the grooves in opposite direction between vicinity discs then make many crossed points. The numbers of crossed points are different along with different disc precision. The crossed points form many chamber and irregular channels will intercept suspending particles better by the next crossed point after they are skipped from the previous crossed points.

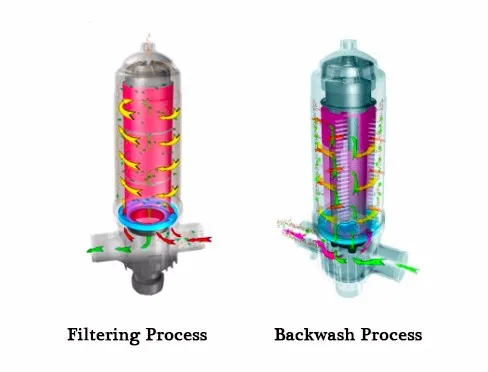

When there are many impurities accumulated in the grooves between discs, the disc filter will change water direction of inlet and outlet, compressed discs will open automatically and compressed water will inject to discs and rotate the discs quickly. The discs will be cleaned through injecting water and fast rotating. Then the filter will change water direction again to renew filtration status.

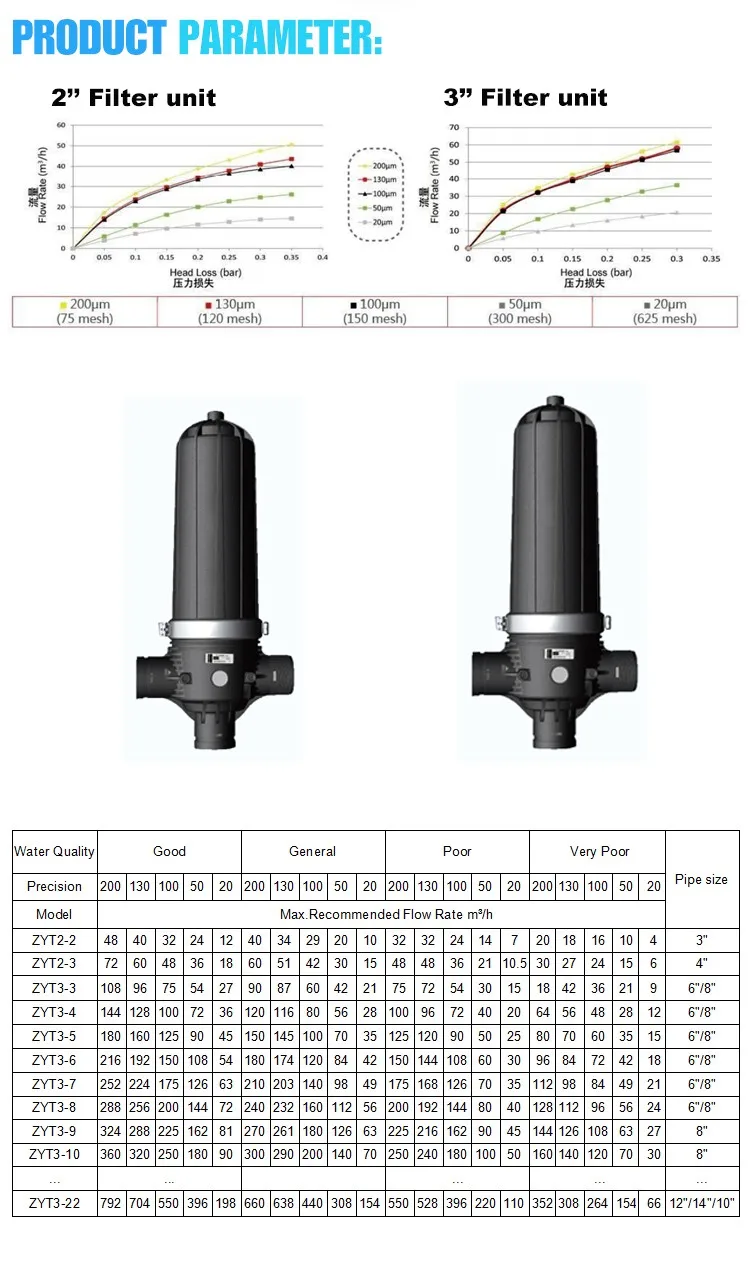

Technical parameters
