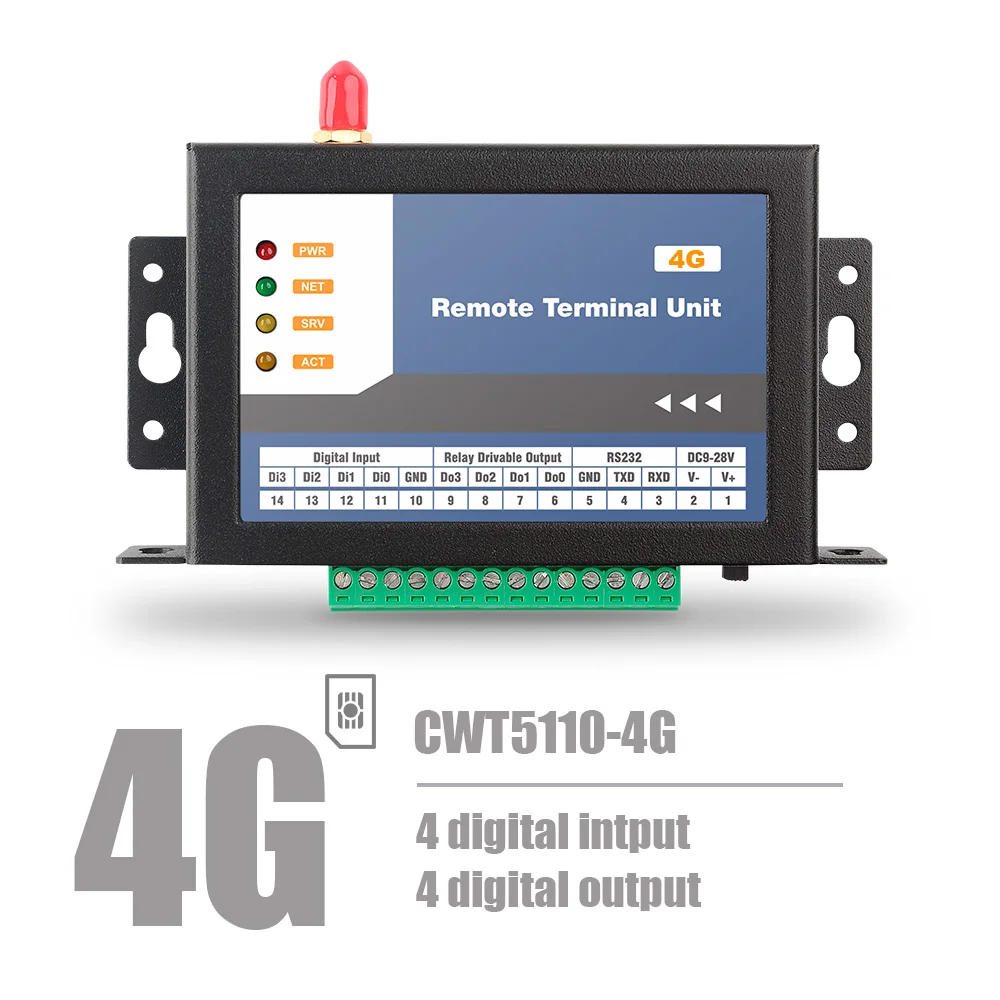

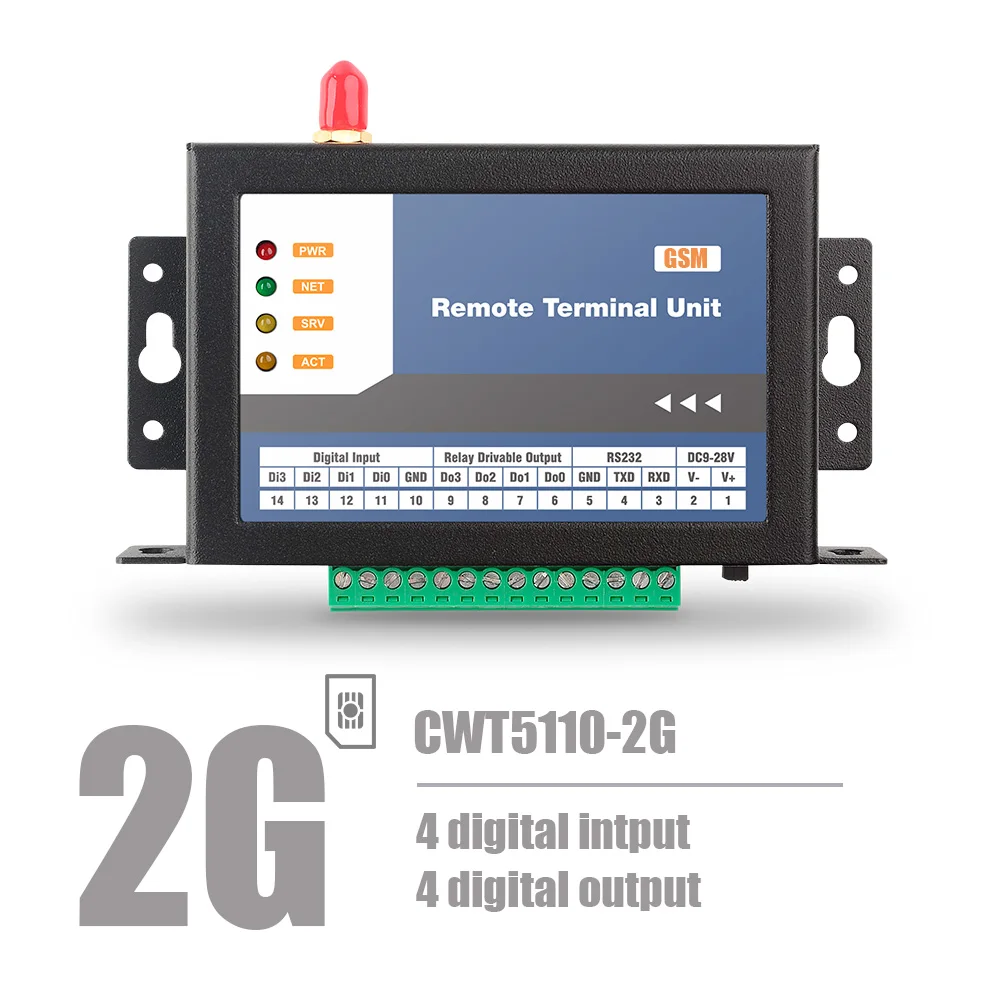

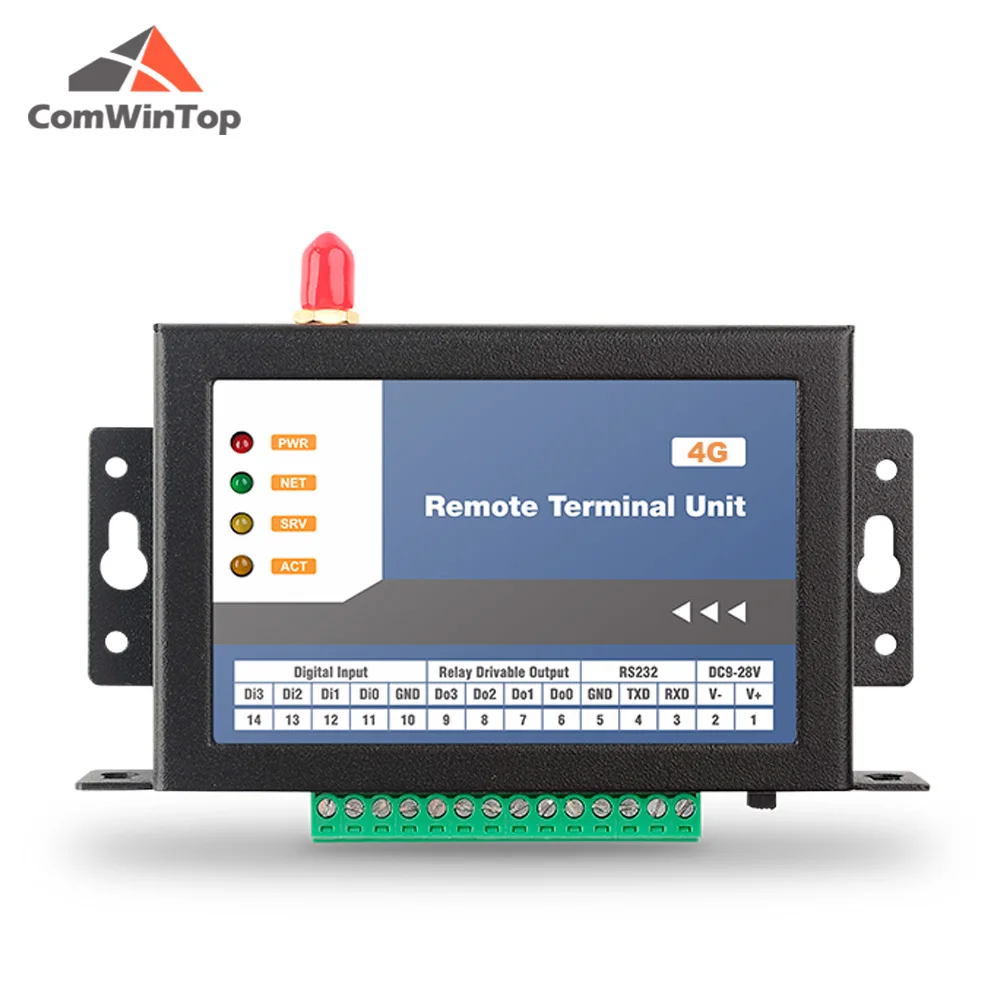

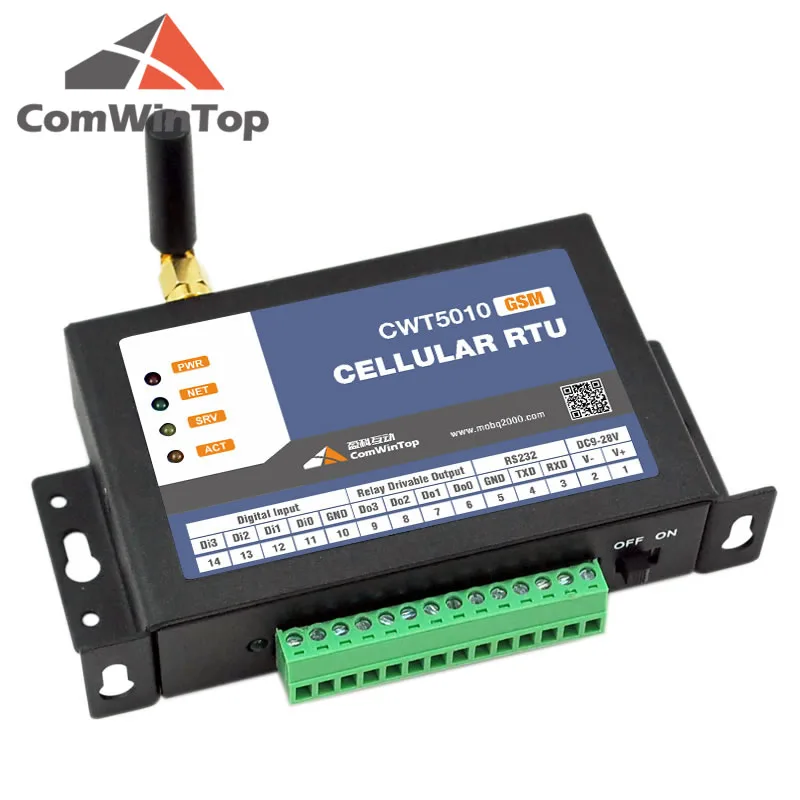

CWT5010 4DI 4DO GSM 3g 4g SMS Wireless Remote APP Switch Controller Pulse counting Dry Contact Input
- Category: >>>
- Supplier: CWT CO. LIMITED
Share on (62013393606):
Product Overview
Description
Product profile

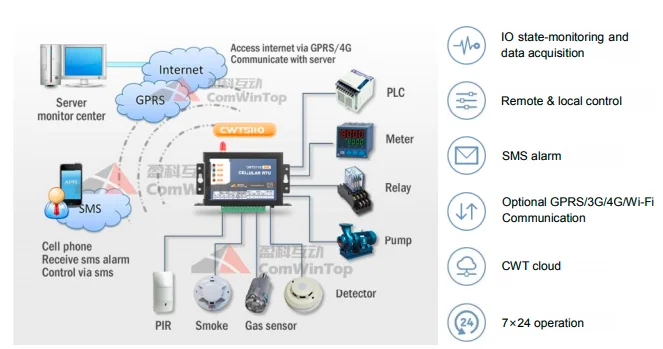

CWT5010 RTU with 4 DI, 4 DO, RS232 standard electrical interface can connect various industrial equipment, such as PLC, meters, sensors, electrical switches. It monitors the industrial system real-time running status and data, as well as constructs the remote device to a proprietary central computer and mobile phones through the sms communication. It efficiently acquires the remote equipment operating parameters and process management, can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.
CWT5110 Model List
Model No. | Port | Network | Simcard needed | MQTT | Remark |
CWT5010-2G | 4DI (digital input) 4DO (digital output) 1 RS232 | 2G(GSM) | √ | × | 4G include 3G and 2G , if 2G has been shut down in your area, please choose 4G; |
CWT5010-4G | 4G | √ | √ |
Port Features
Port | Qty | Features |
DI (digital input) | 4 | ● Accept dry contact ●Can be configured as pulse counter input (counting frequency: 10Hz) |
DO (digital output) | 4 | ● Transistor output (drive voltage=power supply voltage, Drive current≤500mA ● Remote or local event activate DO on/off/pulse ● Remember status when power lost |
RS232 | 1 | ● Configuration port (baud rate: 1200~115200dps, default 9600,n,8,1) |
Communication Features
SMS Communication(only available for cellular version) | ● Preset 10 phone numbers (support distribute authority to receive sms) ● Sms alarm when any IO channel triggered or out of preset normal range ● Editable alarm and recover sms with time stamp ● Query any IO channel’s status or value via sms command ● Control output via sms command ● Sms report any IO channel’s status or value on schedule ● Remote setting via sms commands ● Can query SIM card balance, sms forward ● Support power lost sms alarm and recover sms(works with inside battery) |
System Features
● Adopted highly integrated industrial 32-bit ARM MCU
● Reliable performance with built-in double watchdog, 24×7 operation
● With signal filtering mechanisms
● Network-reconnect and retransmission to ensure data accurately transmit
● Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
● Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
● Event-based linkage programming, e.g. alarm linkage output
● Provide configure software, visual programming, over 100 parameters can be set
● Inside temperature optional, can set high or low to alarm
● Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost
● Reliable performance with built-in double watchdog, 24×7 operation
● With signal filtering mechanisms
● Network-reconnect and retransmission to ensure data accurately transmit
● Update RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
● Can set multiple timers(second, minute, day, week, month) to execute actions, e.g. output, upload data, change setting
● Event-based linkage programming, e.g. alarm linkage output
● Provide configure software, visual programming, over 100 parameters can be set
● Inside temperature optional, can set high or low to alarm
● Optional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost

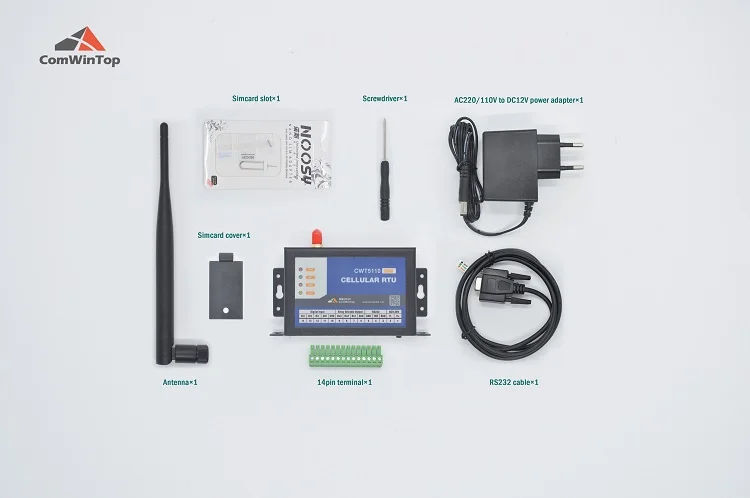

Product packaging

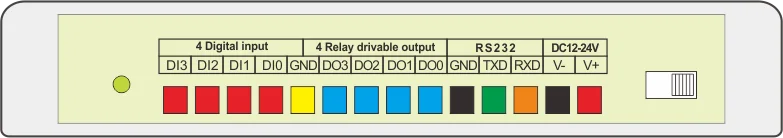

Terminals
Free Configure Software
● No programming! set parameter by visual interface
● Can save config file, one click finish config
● Over 100 parameters can be set, flexible! Meeting various industrial requirements
● No programming! set parameter by visual interface
● Can save config file, one click finish config
● Over 100 parameters can be set, flexible! Meeting various industrial requirements
