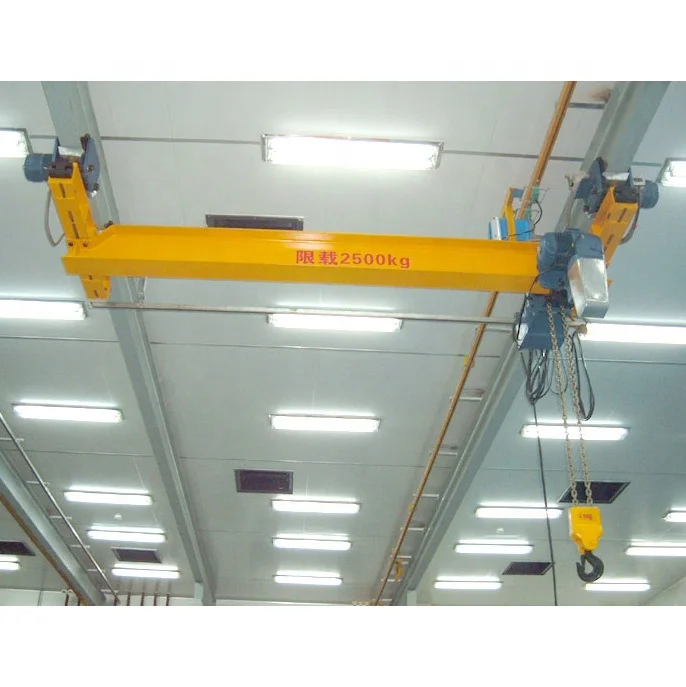

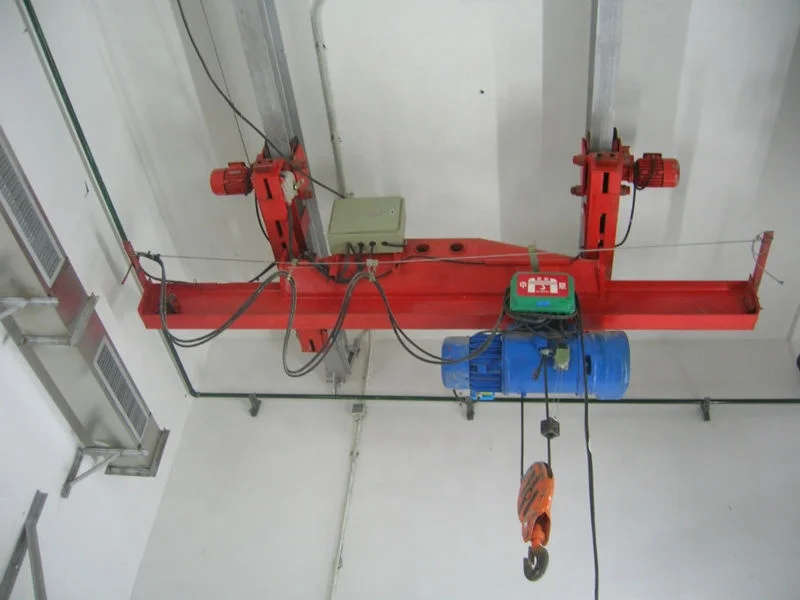

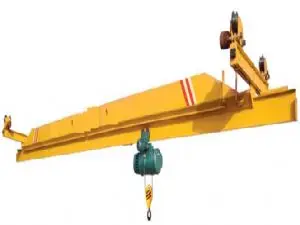

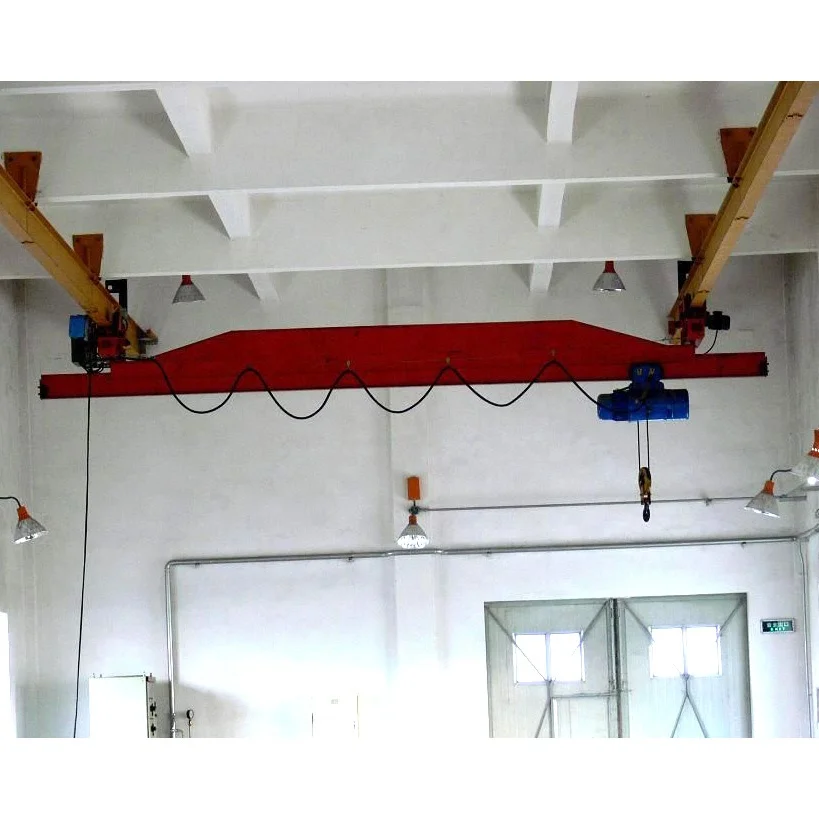

Workshop use 0.5t 1 2 5 ton lx type under hung single girder overhead crane for sale

Workshop use 0.5t 1 2 5 ton lx type under hung single girder overhead crane for sale

Technical characteristics:

LX type suspension overhead crane is a light duty overhead crane. It can be suspened on the girder of steel structure.

Relatively, they are designed for light loads (up to 5000kg). Parts assembly, manufacturing and processing industry, pallet shipping, injection molding, warehousing loading and unloading, equipment maintenance, etc.

In order not to affect the operation, when a working area is not allowed to have any support structure, flexible light composite beam suspension crane is a perfect choice. This crane system requires a roof structure strong enough to support the crane load safely. Customers can install multiple main girders on a set of fixed rails, greatly improving production efficiency. This kind of product is steel structure, the lifting weight is 250-5000kg, the total length of the main beam can reach 10m. Compared with the traditional beam crane, the design and handling force of the closed rail is only one third of that. The truss rail design makes the span larger and the installation layout more flexible.

Points to attention:

1. Users should lock the crane in time, when the crane stops operating on operating spot.

2. There is no electric wire above the total switch of the crane. Strictly forbid to use in such dangerous operating as easily combustible, explosive, corrosive, overloading, dust, etc.

1. Lifting weight up to 2000kg, a variety of track models and span;




3. Rigid fixed rails are better for load positioning;


4.  high strength of a cold rolling forming rail light weight precision, rolling surface smooth, reduce the car roller resistance;


5. wide applicability, can be used in many materials handling environment;


6. Very economical for individual units of work;


7. Easy installation, reducing installation time and cost;


8. It can increase the satisfaction of operators;


9. to achieve a safe operating environment;


10. Rapid return on investment can be achieved by improving productivity.

 Technical parameters

Single girder, welded box beams, the camber line is according to national standard.

High safety, high steel degree.

Adopts high quality carbon steel, Q235B or Q345B.

The main weld is by submerged arc welding automatic welding, nondestructive flaw detection.

The end truck adopts 10.9 high strength bolt connection.

The crane traveling mechanism adopts separated driving, and it can use trinity drive too, safe and reliable.

End beam equipped with buffer block, orbital cleaning device.

It includes motor, speed reducer, brake, coupling, wheels, coiling blocks.

No asbestos brake pad and brake block insert use card outfit, safe and reliable;

The speed reducer use hard-toothed surface reducer, compact structure, durable;

Trolley travelling use seperate drive;

Have high loading ability, long service life moving stable;

Equipped with the derailment prevention board;

Used for Angle round box, equipped with buffer device;

Modular design, meet customer needs.

Module control speed, micro-speed and double speed;

Traveling and lifting smoothly;

The power for trolley moving adopts flat cable, sliding smoothly;

Control box layout is reasonable, easy to repair;

Protection class IP55;

Optional main power source ;

All external cable line number with mark;

Safety smooth touch line, high conductivity, small pressure drop;

Light weight, installation convenience;

Set electric taxi speed is high, ensure continuing power supply;

Optional speed control module, and can realize the micro speed and double speed.

Preventing hook clashing the top, set shields and barriers.

Circuit self-test protection device,Running the travel limit.

Protecting the current lacking of any phase.

Outdoor cranes are equipped with lifting mechanism, electrical control box and rainproof devices.

Anti-collision, sound and light alarm devices.

Equipped with rail clamp.

Lifting weight limitation, height limitating, rail clamping device.

Speeding protection, zero pressure protection, the lightning protection.

Capsule driver room, eye shot is open,Linkage machine control, easy to operate.

Double block button or lever type lever,Smooth operation and accurate.

Remote control, no need of professional driver.

Following type or slide-independent, non-following suspension.

Protection class IP65.

Life of 500000 times; remote control, very easy;

With strong waterproof, fight broke performance.

1. Electric parts are packed by high quality plywood crate, to reduce distortion in conveying;

2. Main beams, end beams and electric hoist are packed by plastic woven cloth. It can reduce abrasion when transport.

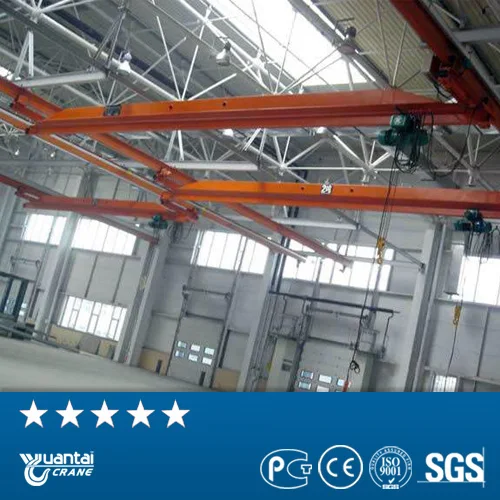

Yuantai Crane Machinery is professional logistics handling products exporter, with long history trading time having rich technical experience. We are located in Changyuan--- the crane's hometown, have passed the ISO9001 quality system certification, ISO14001 environmental management system certification and OHSAS18001 occupational health and safety management system certification of enterprise, and CE certification. our products are recommend by WTO. Yuantai always adhere to customers first,holding positive attitude to satisfy the customers' the demand.

We have past CE, ISO, SGS, GOST and so on

1.Is your products cuztomized?

Thanks for your question, yes.because the working condition is different, all our products are cuztomized, depending on the detail require, so if you give us more information, the accurate solution we can prepare for you.

2.What the information should i provide when i am inquiry?

Thanks for your question, the more information you provide, the accurate solution prepare for you! The information such as lifting height, lifting capacity, span, power source or other specials you provide will be much apprciated.

3.How many operation methods for my selction?

Thanks for question. The standard operation methods we provide is pendent controller with push buttons, meanwhile,we also can provide remote control with push buttons or the cabin.

4.The space of my workshop is limited, can the crane ok for me?

Thanks for your question. For low headroom workshop, we have special products. The details demension our engineer will be design for you.

5.Do your side can provide lifting tools?

Thanks for your question. Yes, we can provide any kind of lifting tools such as hook, electricmagnetic, grab...

NOTICE:

As this kind of crane is customized, in order to offer you most suitable design and best solution, please confirm following information when you send inquiry.

1. Lifting capacity.

2. Span length.(rail center to rail center)

3. Lifting height.(hook center to ground)

4. Have you installed the rails? Do you need us supply the rails? How long is it?

5. Power supply: Voltage.

6. Working condition: which material to lift? temprature?

7. Would be better if you have drawings of your plant.

 Come to us! The best installation team is ready for you!
