Selling Trolley Electric Locomotive CJY14/6GP 14T Underground Trolley Overhead Line

Product Overview

Description



Introduction of Trolley Overhead Line Electric Mining Locomotive

14T locomotive is a new product specially designed for large mine, it has the properties of small overall dimension, short wheelbase, small turning radius, fast speed, and big traction etc. The electric locomotive adopts V type rubber spring, can withstand vibration and impact from longitudinal, transverse and vertical direction, the wing is made of rubble elastic wing plate to ensure the product has small impact when pass unloading hole.
Features
Great tractive effort
Heavy duty loading capacity
Smoothly climbing and moving
Safe braking control system
Reliable and easy operation
Simple maintenance 25-30%energy saving compared to DC driving type Less emission
Eco-Friendly

Parameter of Trolley Overhead Line Electric Mining Locomotive

Model		CJY14/6,7,9G(B)(P)
Adhesive Weight		14t
Track Gauge		600,762 or 900mm
Traction		26.68kN
Max. Traction		34.3kN
Speed		12.87km/h
DC voltage		250V	550V
Power		52kW×2
Size	Length	4800mm
	Width	1060,1222  or 1360mm
	Height	1700mm
	Wheelbase	1700mm
	Wheel Diameter	Φ760mm
	Receptive working height	2000~3200mm
Min. Turning Radius		12m
Electromechanical Controller		Resistance, chopping or frequency control
Brake Mode		Mechanical, air or electric brake

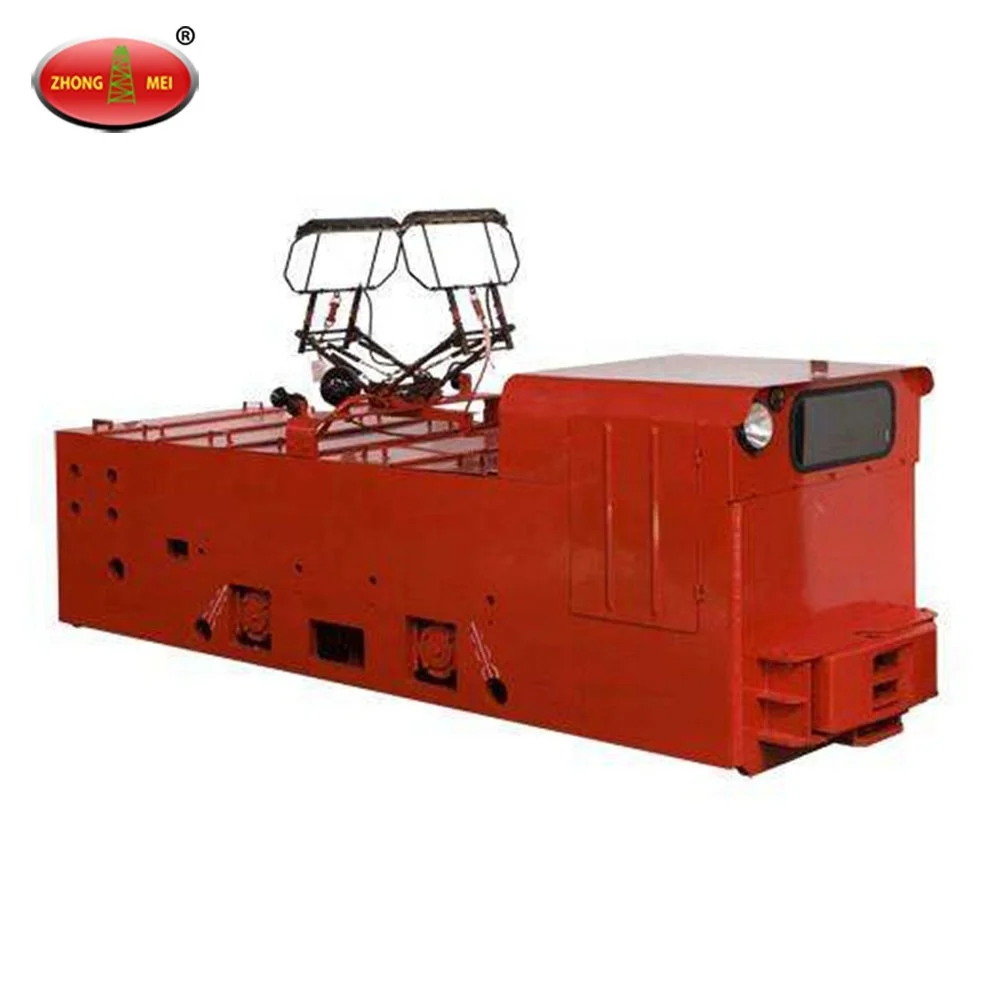

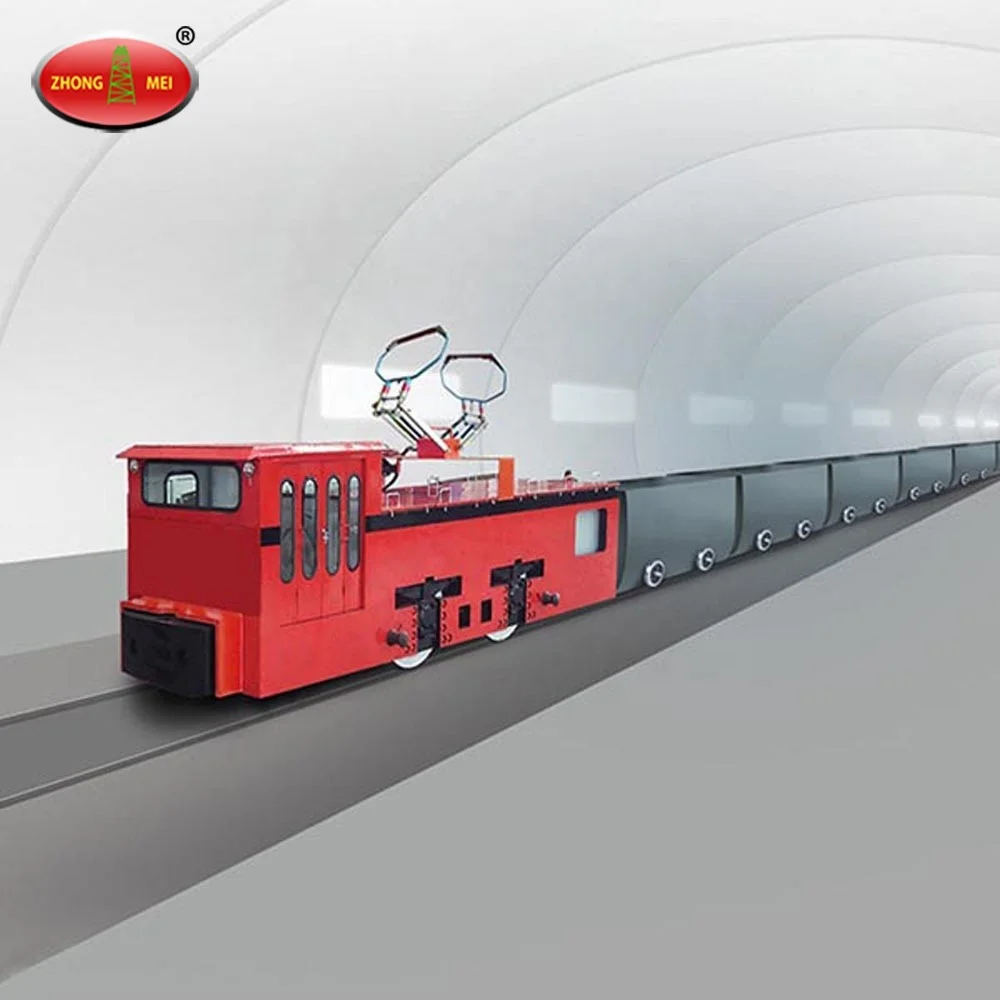

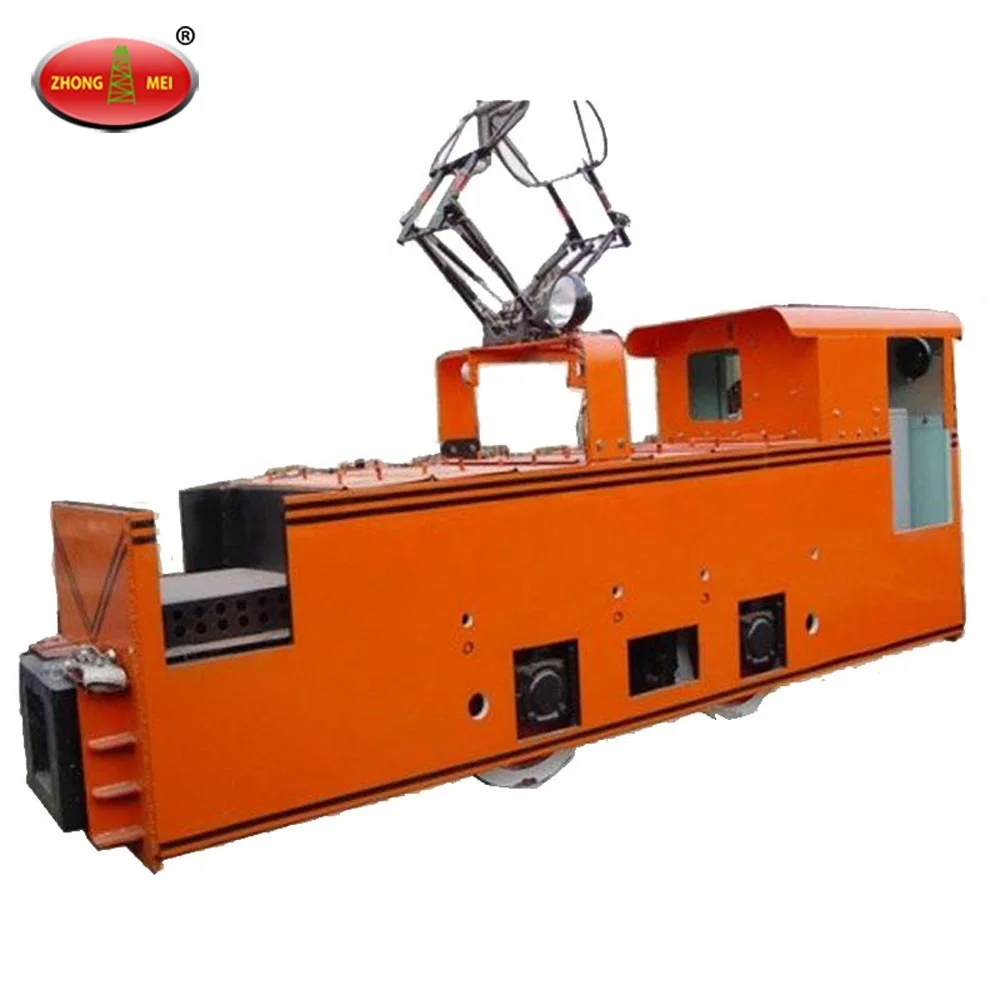

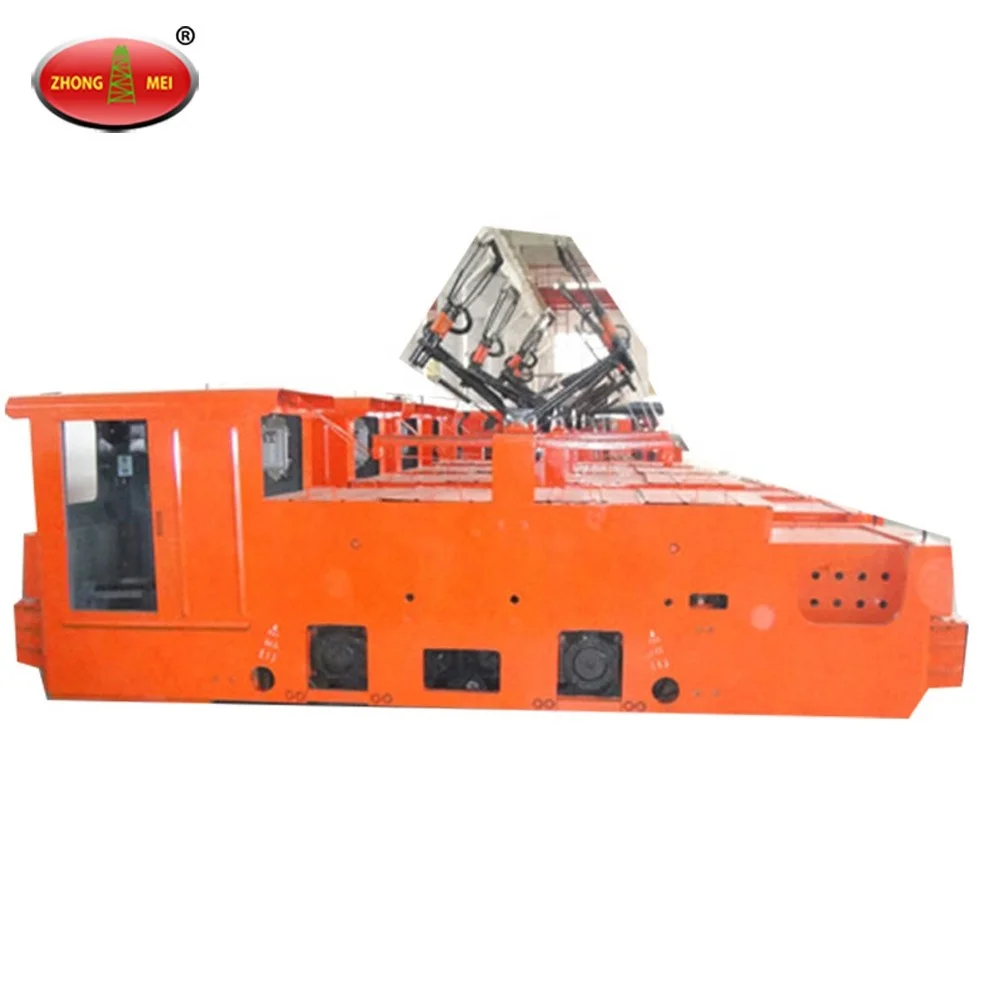

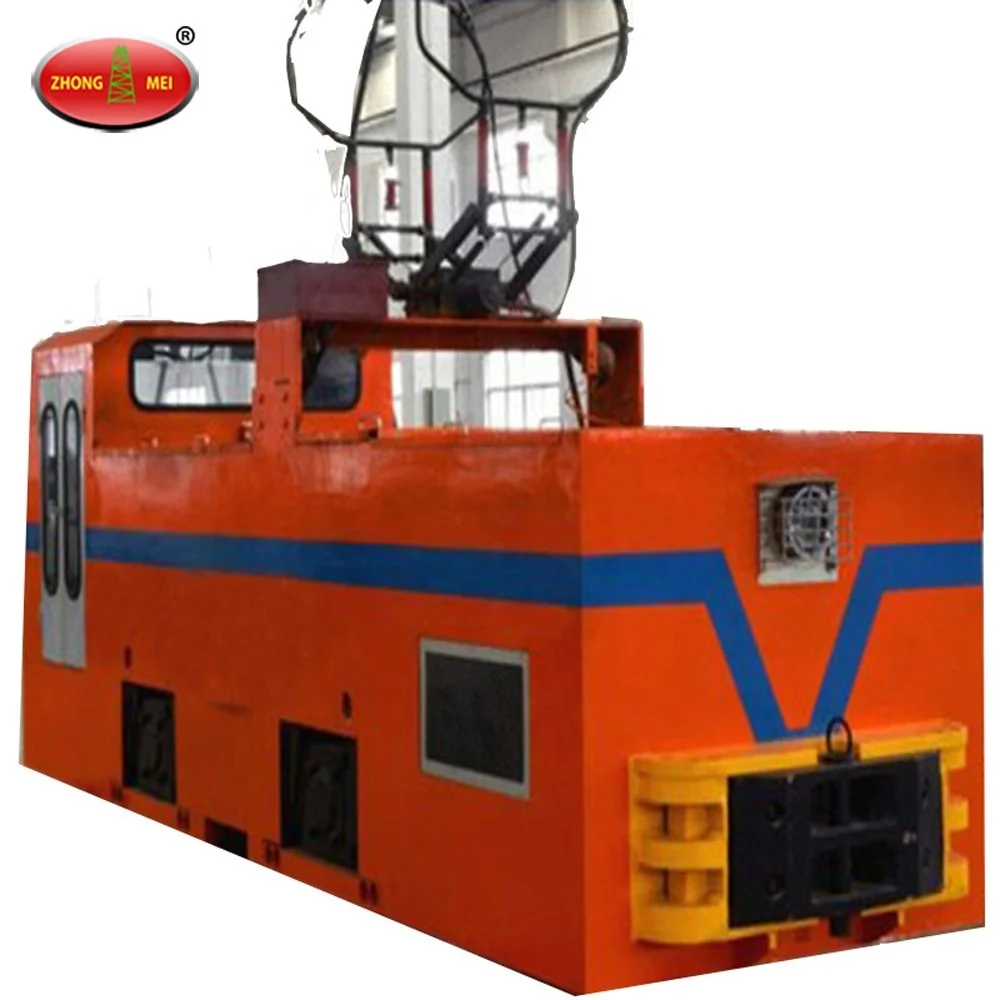

Photos of Trolley Overhead Line Electric Mining Locomotive
