Freezer Cold Plate Blast Freezer Iqf Freezing Equipment For Durian Production Line
- Category: >>>
- Supplier: Chengdu Cryostech Equipment Co. Ltd.
Share on (62013440553):
Product Overview
Description
Freezer Cold Plate Blast Freezer Iqf Freezing Equipment For Durian Production Line
Product Description
Advantage
1:The cabinet quick freezing equipment /iqf cabinet freezer use liquid nitrogen(LN2) for refrigeration.
2:Lowest temperature inside cabinet could reach: -190°C.
3:Very effective for quick freezing.
4:peration is simple.
5:Only need small space for installation.
6:First time inverstment is very low.
Product Application
Product Information

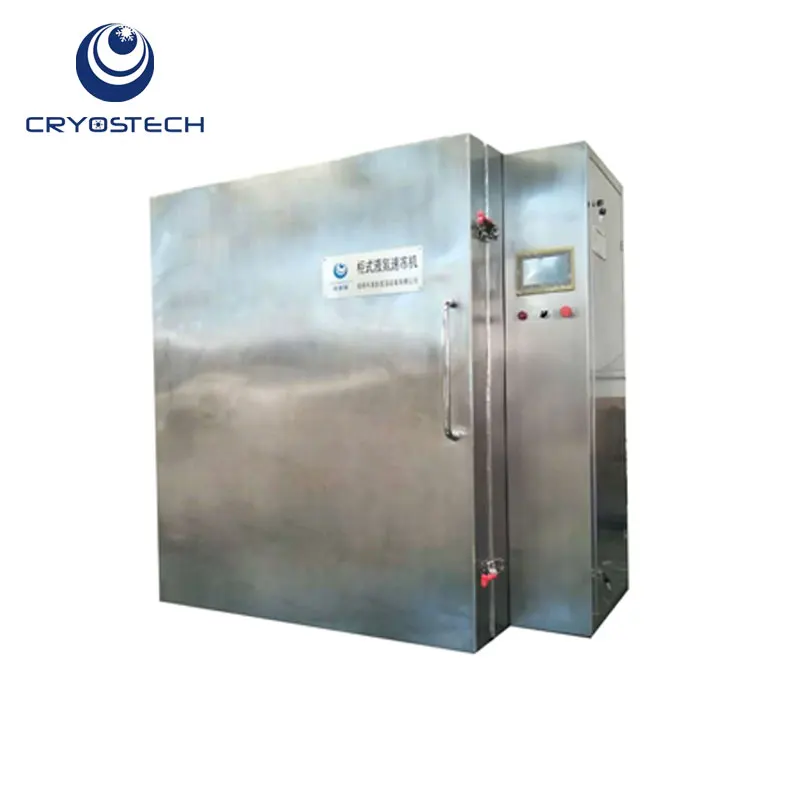

Cabinet Freezer
The cabinet freezer is suitable for small batch operations where food trolleys are manually loaded. It provides great flexibility for a variety of food products as well as short and long retention times.
1:Equipment: inside and outside body are made of SUS 304 stainless steel
2:Working temperature: RT ~ - 190 ℃ can be set arbitrary;
3:The maximum cooling speed: p 30 ℃ / min;
4:Maximum warming speed: 5 ℃ / min or higher;
5:Temperature control precision: heating, cooling, constant temperature plus or minus 2 ℃;
6:Air circulation system: including motor, fan, air distribution device;
7:Power: 380 v, 220 v (optional);
8:Overall dimension: W120 * D80cm H100 (can be customized);
9:Control mode: temperature control intelligent instrument, PID regulation.

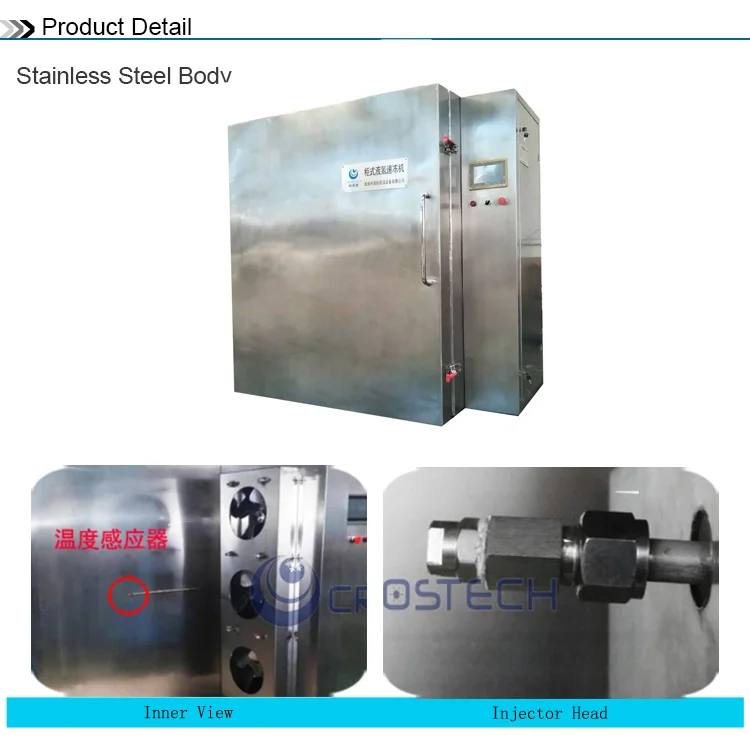

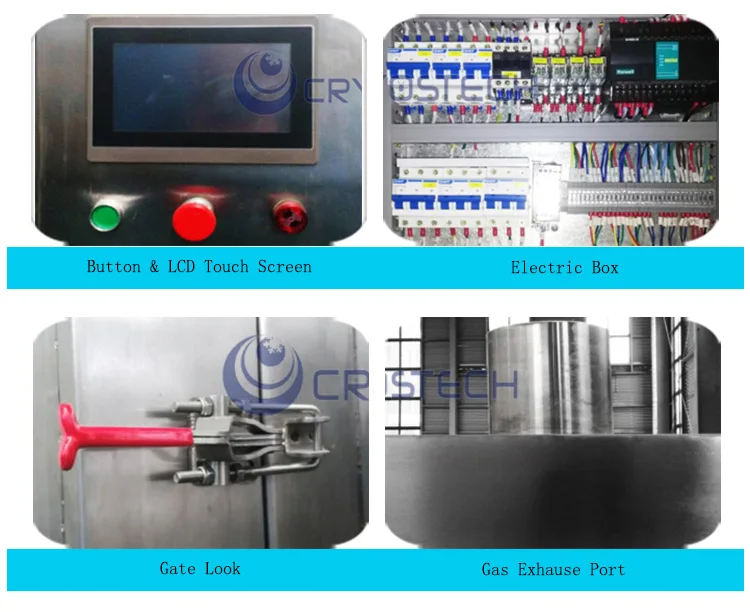

Product Detail
Packaging & Shipping
Company Information
FAQ
1)What is the working theory?
Liquid nitrogen box quick freezing machine is consisted of insulation layer, fans, controller, solenoid valve, LN2 injectors and pipelines. It need to be connected to liquid nitrogen storage tank or liquid nitrogen supply pipe through pipeline for using. After start-up, liquid nitrogen go through the solenoid valve, sent to several injectors inside, for direct injection towards the food. At the same time, several fans start to work, to let the nitrogen gas-liquid mixture flow through every inner space of cabinet. The temperature inside could reach as low as -190℃.
The nitrogen gas-liquid mixture inside cabinet ensure full heat exchange with the food on the shelf, food temperature decreased by 30 degrees per minute.The freezing could be finished after just a few minutes.
Our Services
Chengdu Cryostech Equipment Co., LTD
Address: No 61,Area D,Innovation Road, Chongzhou Economic Development Zone,
Chengdu, Sichuan Province,China
Tel: 028-82231367 Fax:028-82259688
