3. Advanced compatible human-machine interface system, simple and intuitive, full of functions, with rich online help functions.

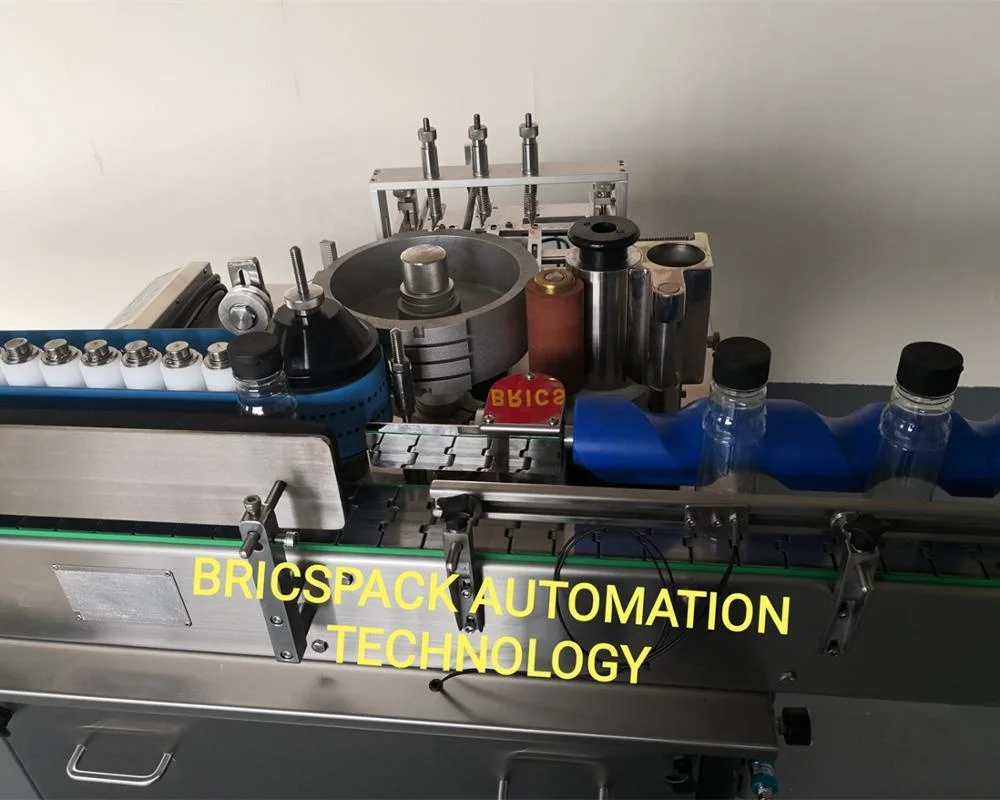

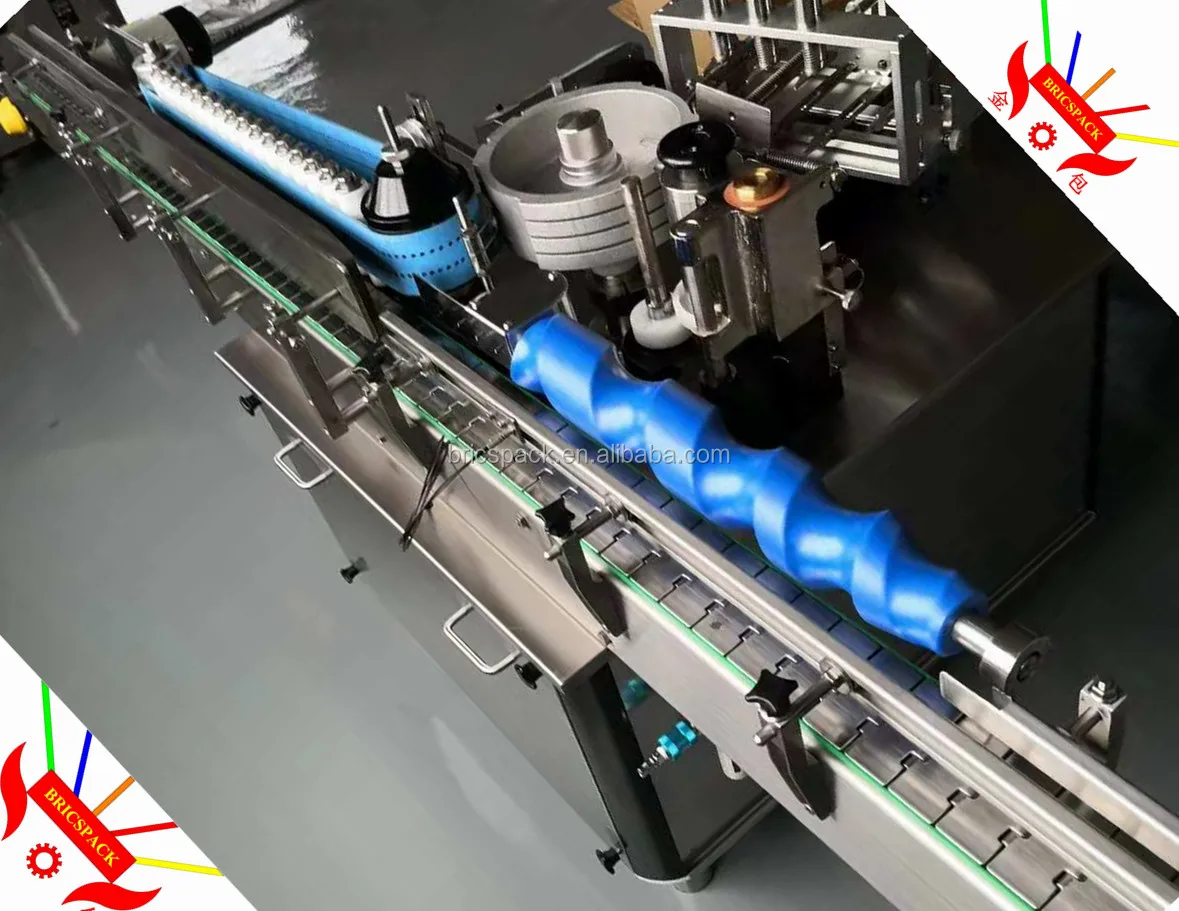

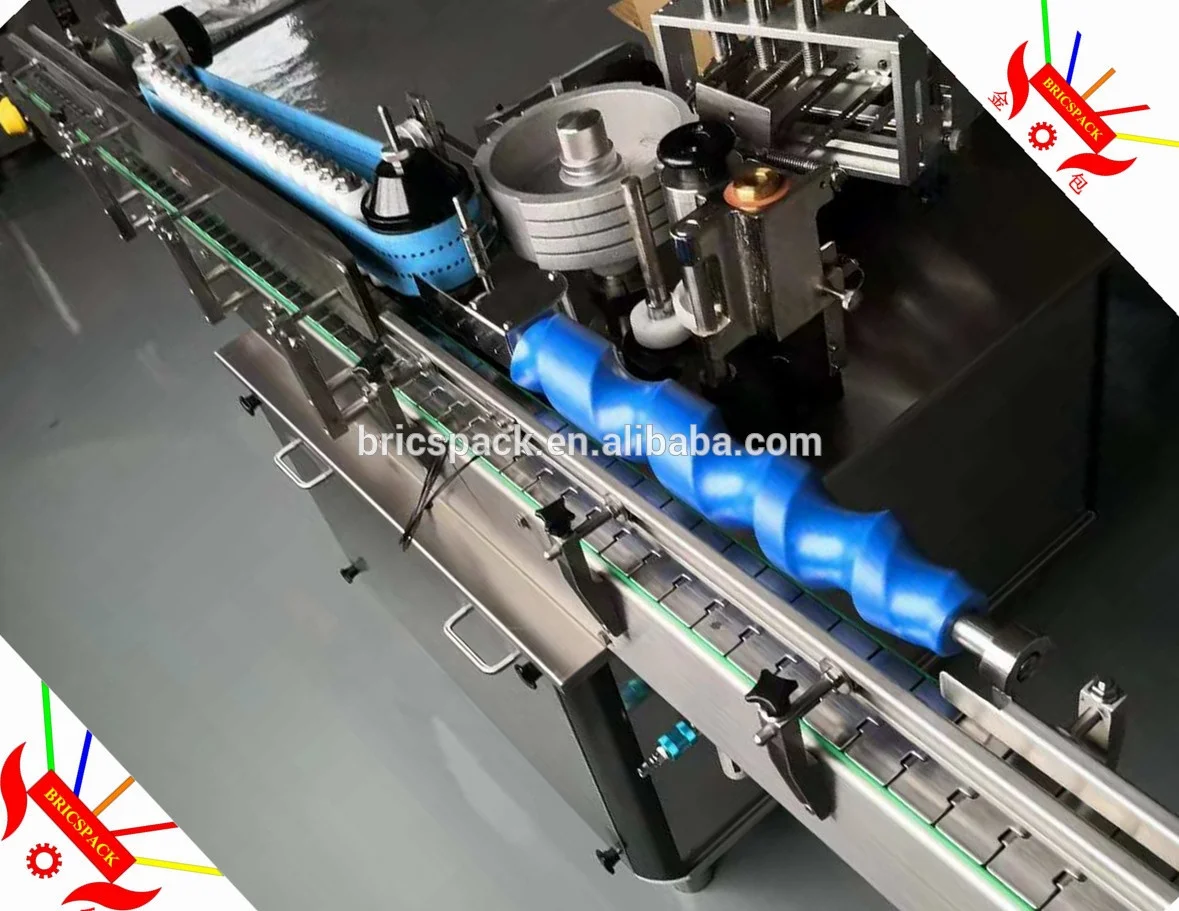

4. Using rotary-screw guide the bottles on conveyor, the bottle runs smoothly and the positioning is reliable. Using the rolling mechanism, the label pasting is good, the reliability of the labeling is enhanced, the protection device is equipped with no bottle sent, no label out, no paste, no labeling and so on.
5. The high purity copper glue box is matched with the stainless steel roller to make the process precise. The glue thickness can be adjusted according to the need, and the glue is equal, so as to eliminate the waste of glue and the phenomenon of glue leakage.
6. The special rubber roller is treated by several processes without deformation and wear resistance. The glue is uniform and light, and the amount of glue is saved.
7. Intelligent control, automatic photoelectric tracking, when no object and no labeling, no label automatic correction and automatic label detection function, to prevent glue leakage and label waste.
8. With the vacuum suction system and the belt cooperation, the label can paste on bottle smoothly .
9. Using the frequency converter, the speed of the motor can be adjusted freely and the labeling capacity is controlled freely.
10. It can work alone, and also can connect the production line.
11. The separation design of glue box, coated rubber wheel and rotating tower, make simple and quick cleaning.
12. The whole machine is selected by the world famous electric configuration to ensure the quality, make it more stable, longer use and less maintenance.
13. The speed of labeling, transport and bottle separating can realize stepless speed regulation, and adjust according to the need.
14. The adjustment is simple, the replacement of a small number of parts such as the turret, the vacuum belt and so on, can be quickly adjusted and satisfied with various specifications of the bottle. And the adjustment factors can be excluded to the maximum.
Technology parameter:
Precision
±1mm (not include the error of products and label)
Speed
40-100 pcs/min (it relates to the product dimension)
Suitable bottle size
30≤diameter≤100mm (the common situation is according to the bottle size)
Suitable label size
Width 25-150mm, length 20-300mm (the common situation is according to the bottle size)
Suitable bottle shape
for round bottles
Suitable air source
4-6kgs×18 liter
Glue
Water solubility resin glue
Power
220V/380V , 50/60HZ
Machine size
2400*825*1100mm
Whole machine weight
600KG
Packaging & Shipping
Company Information
We, Shanghai Bricspack Automation Technology Co., Ltd is a professional manufacturer of LABELING MACHINE for bottles
Our mainly products are following:
1.PVC shrink sleeve labeling machine; 2. OPP hot melt glue labeling mahcine; 3. Wet glue paper labeling machine; 4. Self-Adhesive labeling machine;
Our machine widly used in such industries as foodstuff, beverage and cosmetics, (fruit juice, tea drinks, dairy product, purified water, condiments, beer, sport drinks and cosmetics etc of various bottle types.)
Looking forward to your kindly reply so that We can provide you the suitable solution with right labeling machine.
Hope we have an opportunity to cooperate with you and provide you our best service with high quality labeling machinery.
Our Services
1. Specialized department and management personnel responsible for after services, large amounts of parts and fittings are available;
2. Senior after-service engineers of our company will offer you regular technical services;
3. Complete after-service system and outstanding quality assure you of satisfaction and easement.
FAQ
1.Question: What's your main products?
Reply: we produce Sleeve labeling machine, Adhesive sticker labeling machine, OPP Hot melt glue labeling machine etc.
2.Question: Are you factory?
Reply: Yes, Our factory located in No.5 huasheng east road, zhoushi town, kushan city, Jiangsu province, China.
3.Question:If I have special needs about design about the bottle label and machine,can you do that for me?
Reply: We have the professional designers, can design under your needs, based on the bottle/label sample, we also can supply plant engineering service for you;
4.Question:How about your after-sale service?
Reply: we have professional technical department to ensure the machine functioning well, both hardware and software technology;
5.Question: How long about the delivery time?
Reply: When we get your advance deposit, and your bottle&label samples, it about 20 days.
