Die Casting Deburring Media Tumbled Vibro Polish Trough Vibrator Machine
- Category: >>>
- Supplier: Huzhou Inovatec Machinery Co. Ltd.
Share on (62013478629):
Product Overview
Description
Product Details & Optionals
Vibratory Tub Tumbler Product Description:
Vibratory Tub Tumbler Product Description:

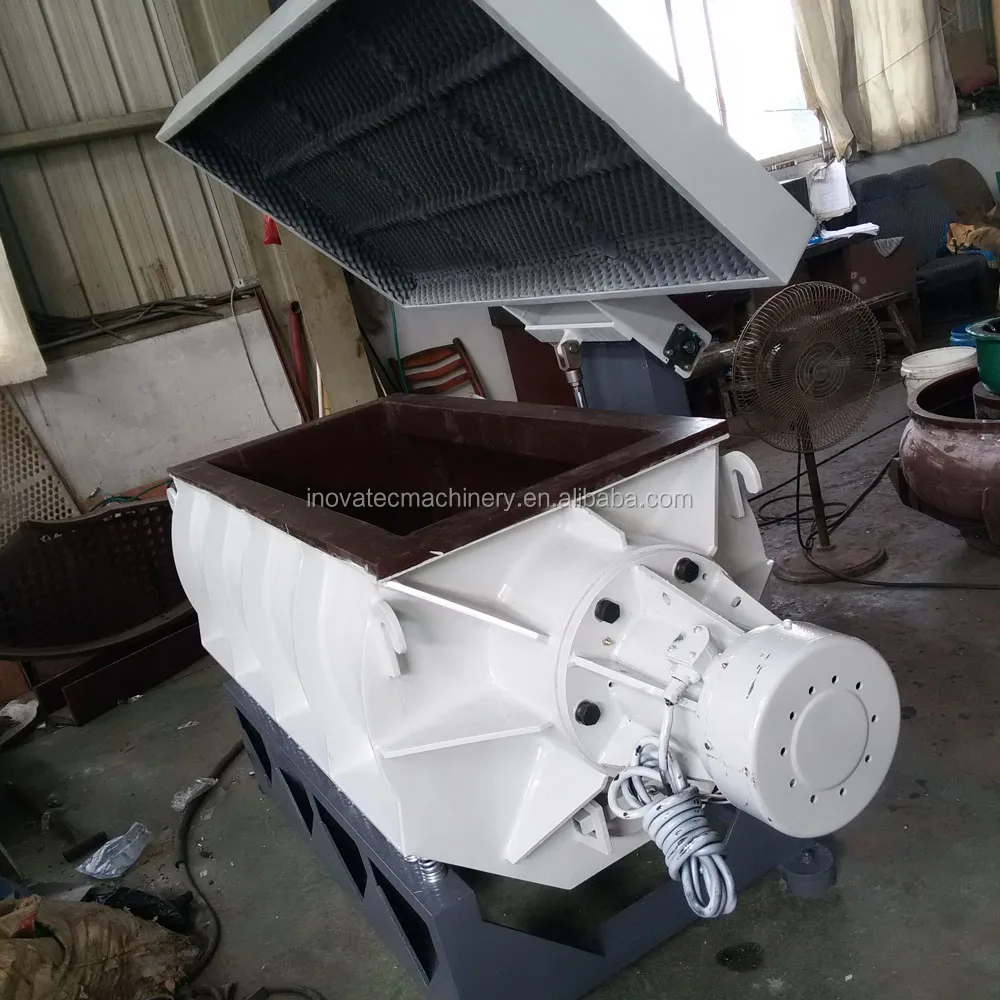

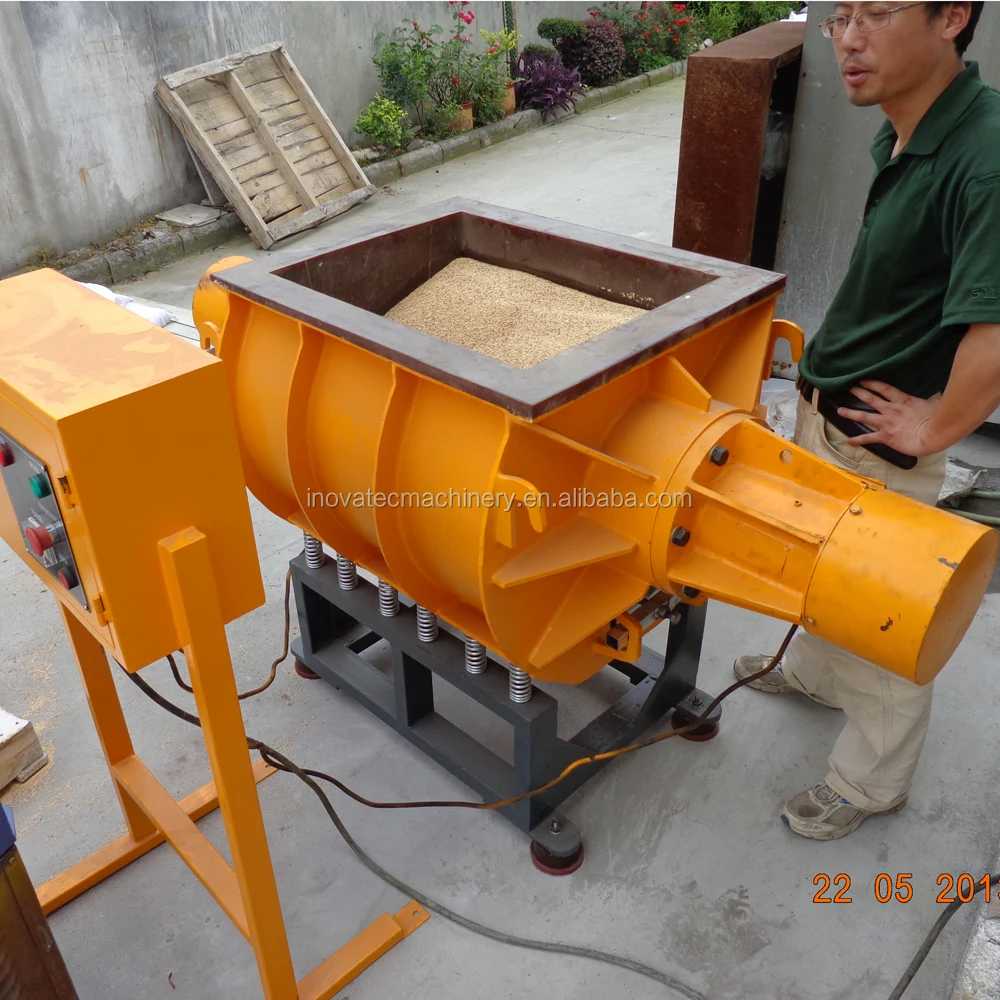

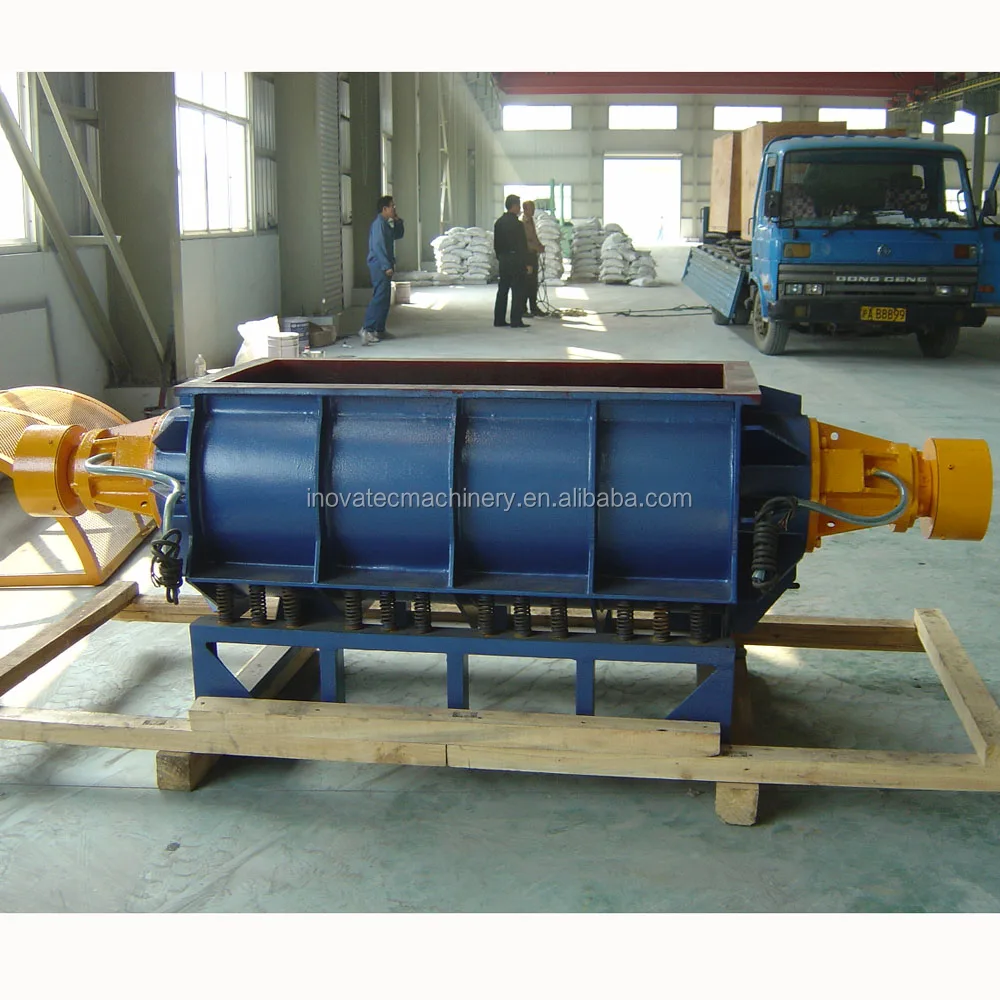

Vibratory tub tumbler also called as rectangular vibratory finishing machines. TVB(A) series vibratory tubs are perfect for large
and heavy parts vibratory tumbling, for example, ceramic coated headers, exhaust pipes, engine housing. In some applications, it
also called Ceramic Polishing Machine.
This curved wall offers strengthened tumbling performance and reduces process time. In addition, the featured lining well suited
for ball burnishing process. TVB(A) model features heavy gauge all welded steel construction.
Application includes: tumble deburring plastic , tumble finishing , barrel finishing
Vibratory Tub Tumbler Feature:
Digital process timer
Low profile design
Wide opening for big size parts
Stress relieved and enhanced with blasting
Default manual parts media separation
Extended separation deck
Wear resistant PU lining from Dow Chemicals

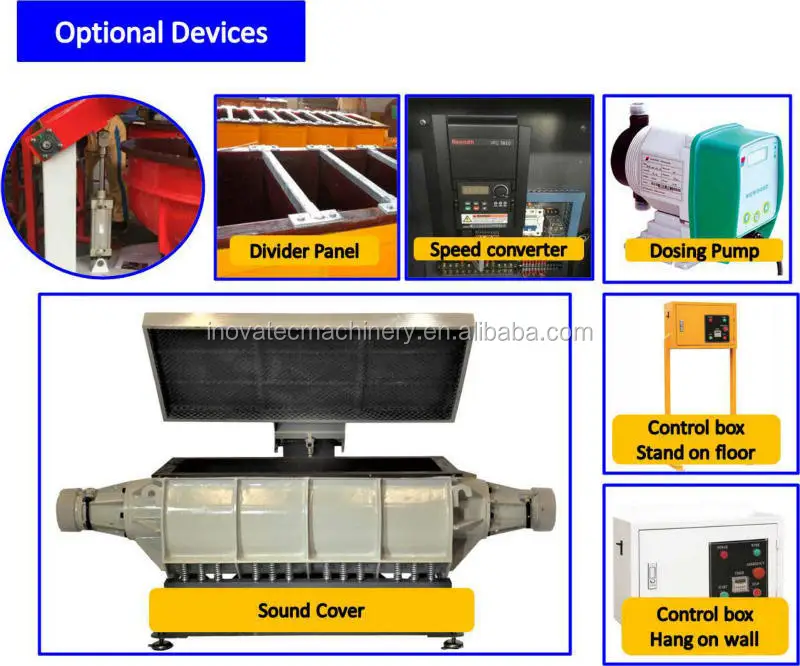

Vibratory Tub Tumbler Optional setting:
Optional Items
Sound Cover
Compound Dosing Pump
Pneumatic flap control
Variable Frequency Drives
Control box standing on the floor or hang on the wall
Vibratory tub tumbler also called as rectangular vibratory finishing machines. TVB(A) series vibratory tubs are perfect for large
and heavy parts vibratory tumbling, for example, ceramic coated headers, exhaust pipes, engine housing. In some applications, it
also called Ceramic Polishing Machine.
This curved wall offers strengthened tumbling performance and reduces process time. In addition, the featured lining well suited
for ball burnishing process. TVB(A) model features heavy gauge all welded steel construction.
Application includes: tumble deburring plastic , tumble finishing , barrel finishing
Vibratory Tub Tumbler Feature:
Digital process timer
Low profile design
Wide opening for big size parts
Stress relieved and enhanced with blasting
Default manual parts media separation
Extended separation deck
Wear resistant PU lining from Dow Chemicals
Vibratory Tub Tumbler Optional setting:
Optional Items
Sound Cover
Compound Dosing Pump
Pneumatic flap control
Variable Frequency Drives
Control box standing on the floor or hang on the wall

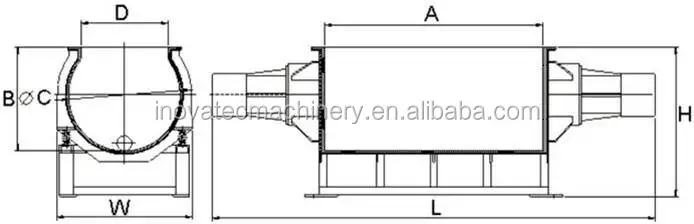

Model | TVB(A)240 | TVB(A)500 | TVB(A)750 |
Total volume(L) | 240 | 500 | 750 |
Max overall dimension LXWXH (mm) | 1880×880×920 | 2870×880×920 | 3354×880×920 |
Chamber length C (mm) | 690 | 1310 | 2000 |
Chamber height B (mm) | 625 | 625 | 625 |
Chamber diameter A (mm) | 670 | 670 | 670 |
Feeding entry width W (mm) | 524 | 524 | 524 |
PU Lining thickness(mm) | 16 | 16 | 16 |
Power(km) | 1.1×2 | 2.2×2 | 2.2×2 |
Weight(kg) | 450 | 1000 | 1600 |

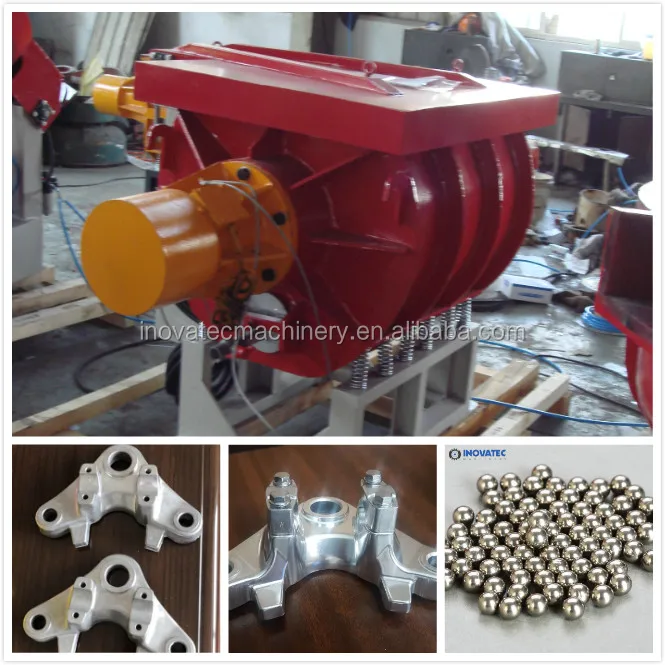

Product Application
Aluminum machining parts before after deburring
aluminum parts before and after smoothing
automotive parts before and after deburring
bearing parts before and after polishing-min
brass precision parts before and after polishing-min
brass punched parts before and after polishing-min
brass retainer before and after polishing-min
carbon steel parts before and after deburring-min
Epoxy plastic parts before and after cleaning-min
service team & exhibition
Production process
Certifications
Cooperation partner
Payment and Shipment
FAQ
Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.
Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.
Lifetime maintenance will be provided after the 2 year warranty period expires.
Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).
Accept L/C at sight (bulk order).
Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
