5000w water immersion tubular heating element

Product Overview

Description

1. 5000w water immersion tubular heating element

Xuanyuan flange immersion heating tubular are used by the process heat industry for a wide range of applications. This type features a broad selection of screw plug sizes, wattage, materials and junction box types. Screw plug heaters may be threaded directly into a sufficient tank wall or used with a companion coupling

Specifications for 5000w water immersion tubular heating element

Tube Material: SS 304,310S,316,800,840,Copper

Voltage:customized

Power:customized( (1500W-2500W)

Power tolerance:-5%-0%

Resistance wire: Ni80Cr20 or Ocr25AI5

Tube diameter:7mm-9mm

Shape&Diamension:Customized

Leakage current is less than 0.5mA

Hi-pot (AC)test:1500V/min,2mA

Leakproofness:afford air pressure 1.5 MPa

Surface treatment:scale-proof or corrosion-proof



Material analysis for 5000w water immersion tubular heating element

C = Copper Sheath

Hot Water Storage for washrooms, showers, part washing or rinsing, freeze protection of sprinkler systems and cooling towers.

SA = 304 Stainless Steel

Tanks or processes with tar, asphalt, wax, heat transfer fluids, oil and other petroleum products, fuel oil, alcohol, caustic, and other "heavy" mediums.

SB = 316 Stainless Steel

Detergent based cleaning solutions, liquid ammonia, vegetable oil, Deionized water, electroless nickel and other alkaline plating solutions.

T = Titanium

Seawater, brine, chromic acid, Deionized water.

N = Incoloy

Air and many gases, Deionized water and other high temperature processes.

TF = Teflon

Hydrofluoric acid,ammonia bi-fluoride, Deionized water.

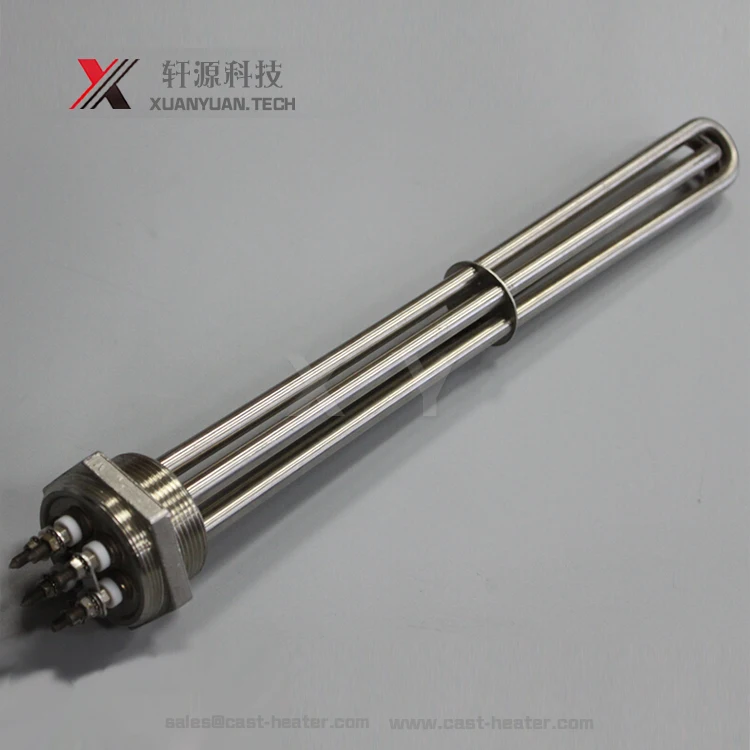

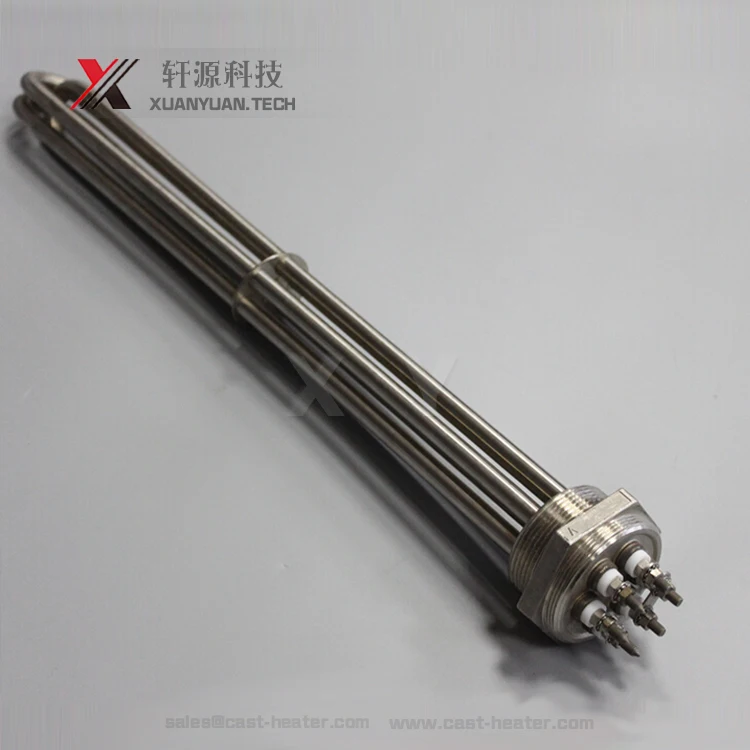

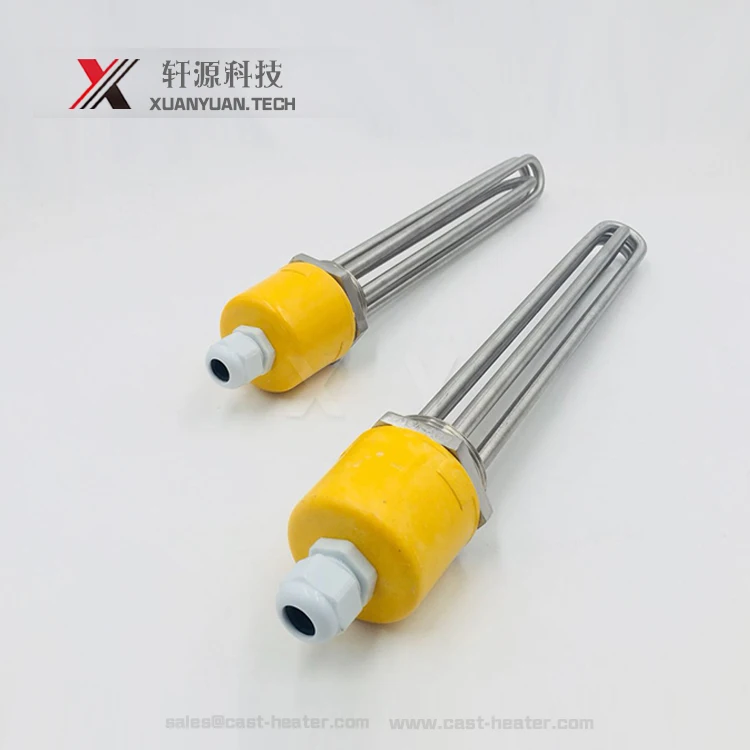

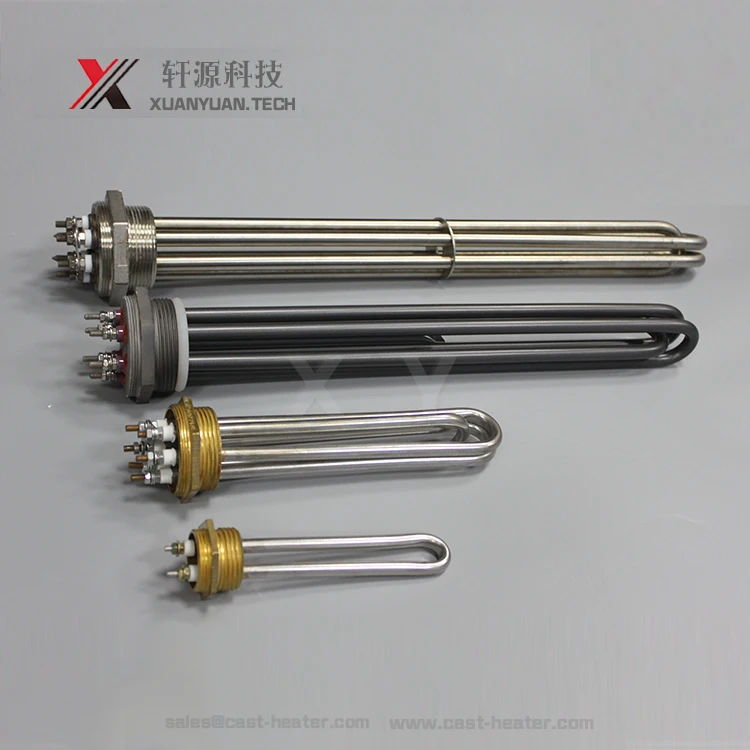

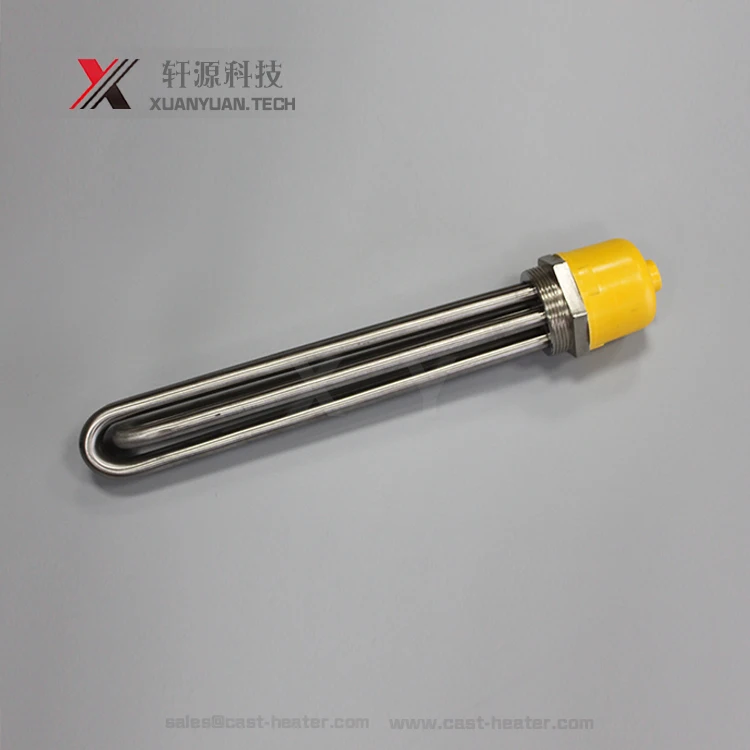

Product Photos of 5000w water immersion tubular heating element

Packaging & Shipping

Packaging: carton box, wooden case for 5000w water immersion tubular heating element

Delivery Detail:3-7 days for sample order ,7-15 working days for offical order

Comopany Information

Yancheng Xuanyuan Heating Equipment Technology Co.,ltd are the direct supplier with more than 20 years of manufacturing Cast heaters , 3D pritner cartridge heaters , Mould heater rod ,Flange Heater,tubular heater,stainless steel heater, and so on .

   Our company has a modern standard working area of 10000 m2, There are 80 sets of various precision machining and checking facilities. It also has technical talented people over 30%. Our company has an abundant ability to develop new products and perfect checking means.

   The company has obtained CE mark and ISO 9001 international quality system certificate. Product coverage nationwide and has entered Western Europe,North Africa, South America and Southeast Asia market.Chat on line or more question about 5000w water immersion tubular heating element,please contact us any time
