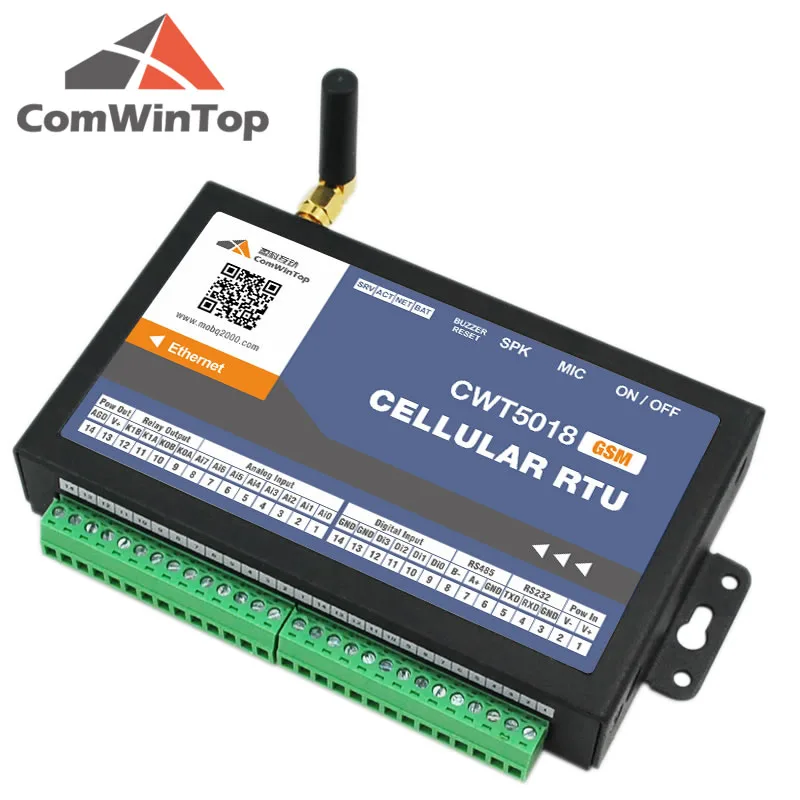

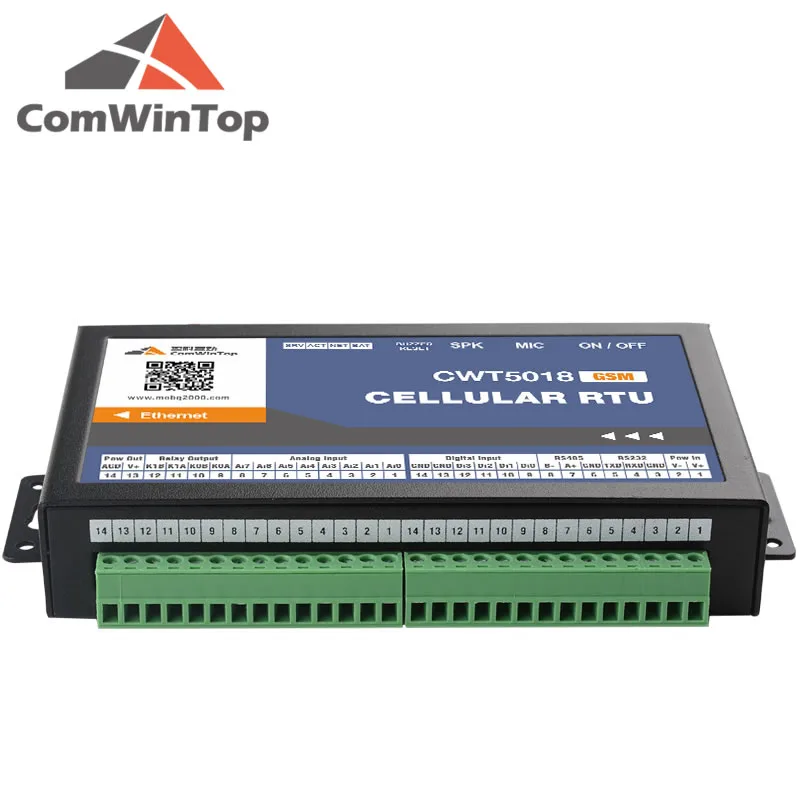

CWT5018 Feature

Interface

•   64 channels modbus registers on RS485

•   2 outputs, can linkage with temperature alarm (e.g. siren, relay, switch)

•   4 digital inputs to receive alarm signal

•   8 analog inputs, read sensors (e.g. voltage, current, level )

•   1 RS232 for configuration

Data logger

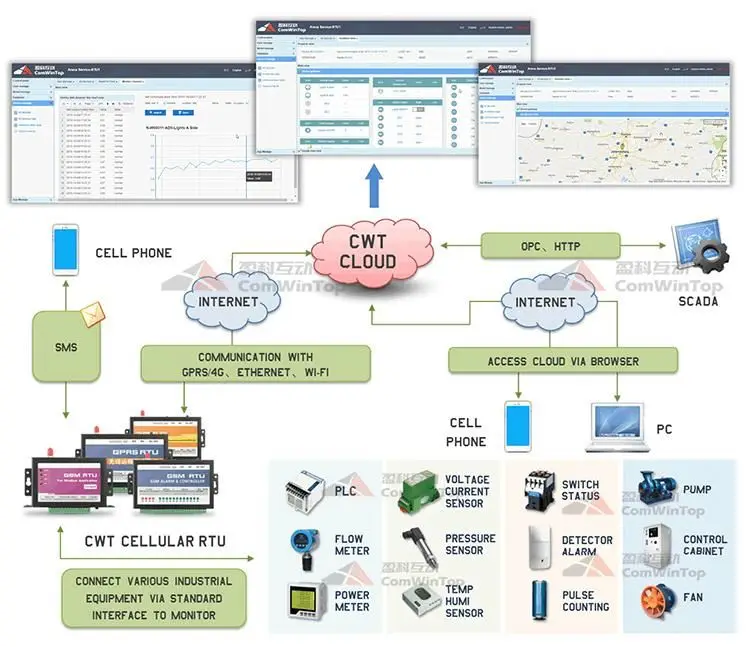

•   Cloud Data logger

•   Customized logger interval

•   Support connect Max 4 cloud or local servers

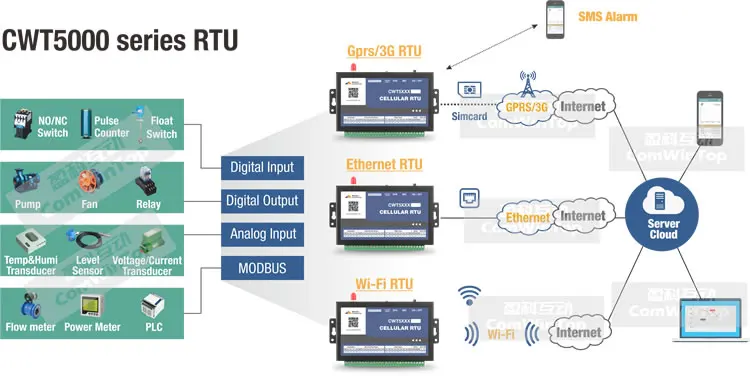

Wireless Network

•   Either GPRS(option: 3G/4G, need Simcard) or Wi-Fi(Not need simcard)

•   To communicate with server with CWT_IO or Modbus TCP protocol

Ethernet

•   Support ARP, DHCP, TCP, UDP protocol

•   To communicate with server with CWT_IO or Modbus TCP protocol

SMS

(available for gsm/3g version)

•   SMS alarm when high and low

•   Editable SMS alarm texts

•   Query current value via SMS command

•   SMS report on schedule

•   Power failure SMS alarm (need add inside battery)

•   Can preset 10 cell phone numbers

•   Can query SIM card balance, SMS forward

•   Remote config via SMS

Technical Feature

•   Network-reconnect and retransmission to ensure sms and data accurately transmit

•   Inside watch dag to assures 7*24 hours working

•   Optional inside 1000mA battery, life 8-20 hours

•   With immediacy and reliability of the system

•   GPS module optional

•   Free configure software
