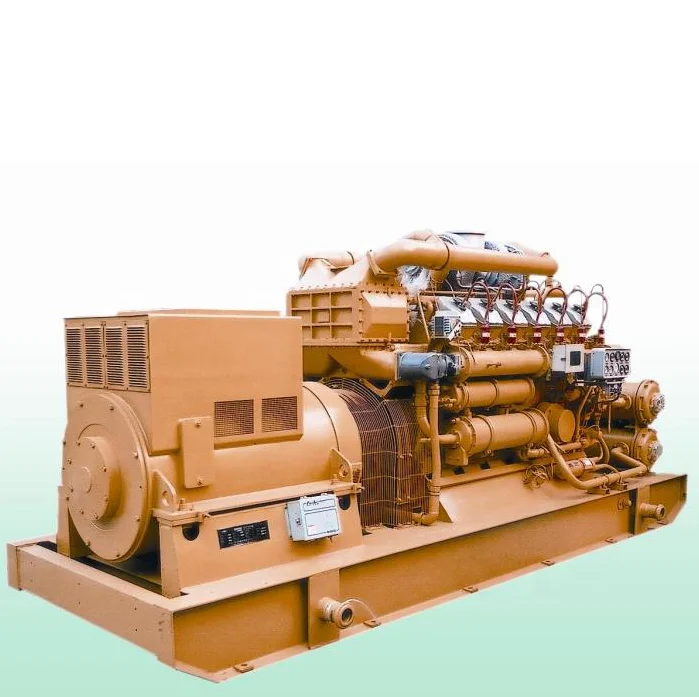

600kw &1100kw coal mine gas generator,specially designed for coal mine gas

Product Overview

Description

Company brief introduction:

Tianjin Sinogas Repower Energy Co, .Ltd, is not only a Natural Gas Equipment supplier, but also a relevant natural gas project designer and executor. We have been into the business from 2008. We could provide high quality genset with a wide power range from 60KW to 6000KW.

Our products have exported to Middle East, South America, Africa and South-East Asia. We wish to cooperate with you and offer you best service.

Coal mine gas:

Coal mine gas is a mixture of methane, carbon dioxide, and nitrogen that escape from coal nd the surrounding rock.gas is the harmful factors in the production of coal mine.It is not only cause the air pollution, but also the explosion when the gas  content is 5%-16%.Coal mine gas is also a kind of high-quality energy,which is clean and high in thermal efficiency.so,it is a really good ideal to generate with coal mine gas.

this series is developed for coal mine gas and put in the market since 2002,and get good evalution from our customer.



Technical data

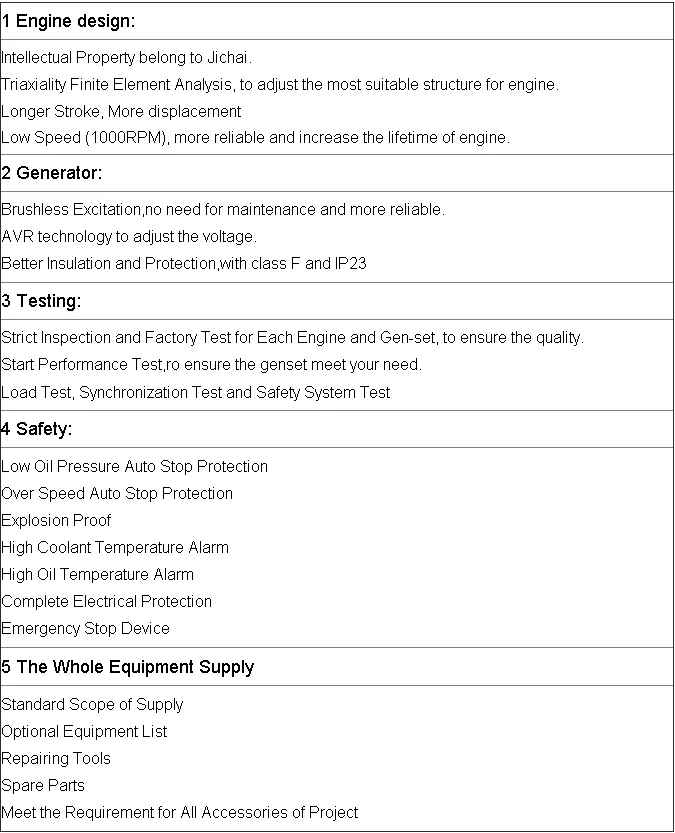

Main Features:



 STANDARD SCOPE OF SUPPLY

Gas engine	Alternator
-Closed-loop electronic control -Gas control valve -Gas control system of EGS type from American WOODWARD.	- Brushless excitation -3 phases 4 lines - Auto Voltage Regulation
Air inlet system	Exhaust system
-Air filter -Air cooler -Bracket	-Exhaust gas turbocharger. -Exhaust manifold -Corrugated pipe -Exhaust pipe -Exhaust elbow -Exhaust silencer (Optional)
Control system	Gas supply system
-WOODWARD EGS -Control Panel	-Gas filter -Pressure regulating valve -Solenoid valve -Gas control valve -Gas pressure gage
Lubricating System	Cooling System
-Main oil pump -Pre-supplying oil pump -Oil filter -Oil cooler -Centrifugal filter -Oil pipe and valve	-Water pump -Intercooler -Cooling pipe -Heat exchanger -Cooling tower
Spares	Starting System
- Standard repair tools - Standard spare parts - Technical documents	-24V DC starting motor with 4pcs batteries.
Instrument	Others
-Instrument panel -Auto shutdown device for over-speed -Auto shutdown device for low oil pressure. - Explosion-proof device - Commodity inspection	-Common base -Color of engine– Jichai silver

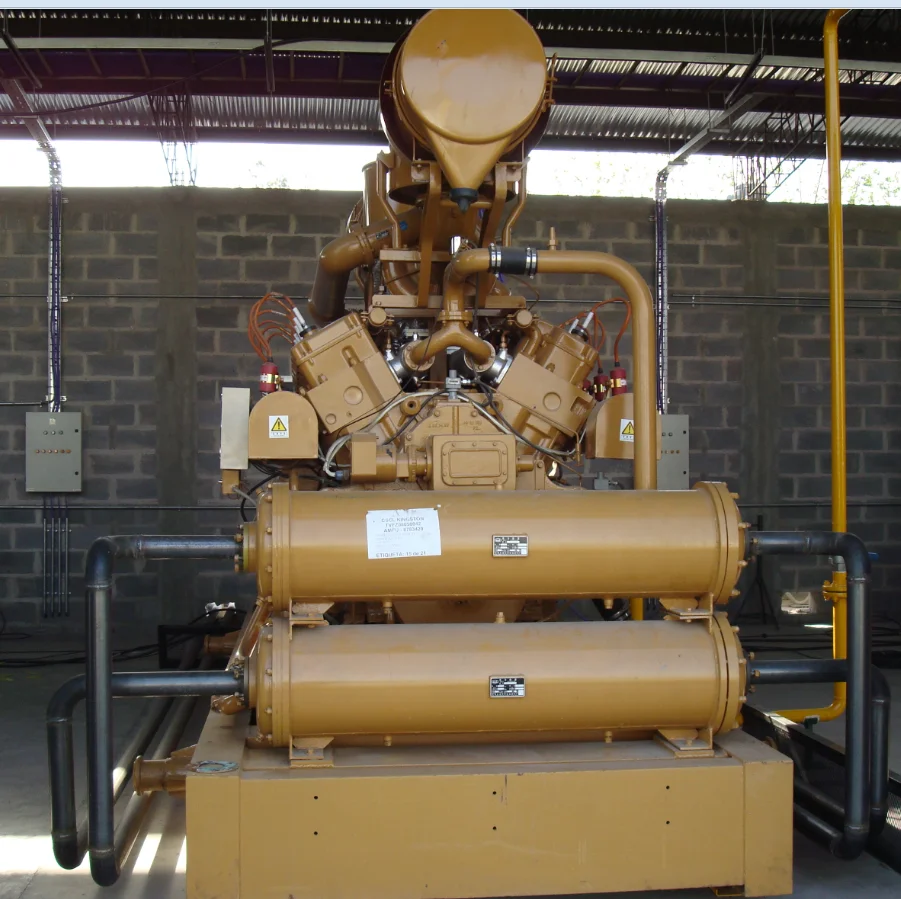

Application project :

 Our product has been used in worldwide and has proved it's quality.

Worksite requirements:

The worksite needs to meet following basic requirements:

a) ambient temperature between -45℃~45℃;

b) Relative humidity less than 95%(35℃);

c) Site elevation not higher than 2500m;

d) For outdoor installation of non-containerized genset, simple rain shelter is required.

Service:

We provide 18 months warranty from the starting date of the genset.

Workshop:

We adopt germany automatic assemble line
