River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality
River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality

River Sand Dredging Boat/Dredging Equipment/Dredging Barge with High Quality

Share on (62013564745):


Price:

Quantity:


Product Overview

Description


Product Description

Product Application

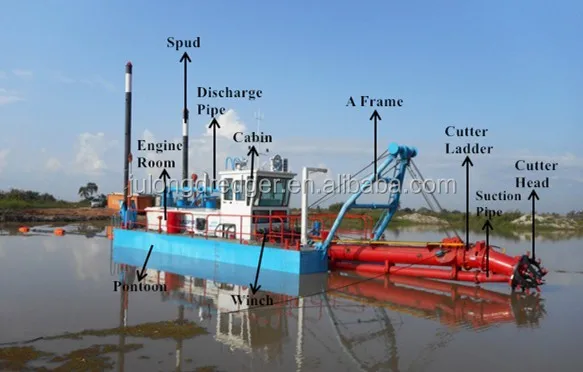

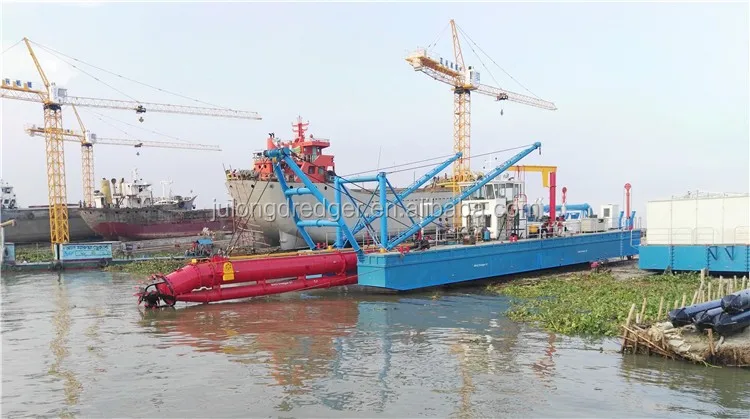

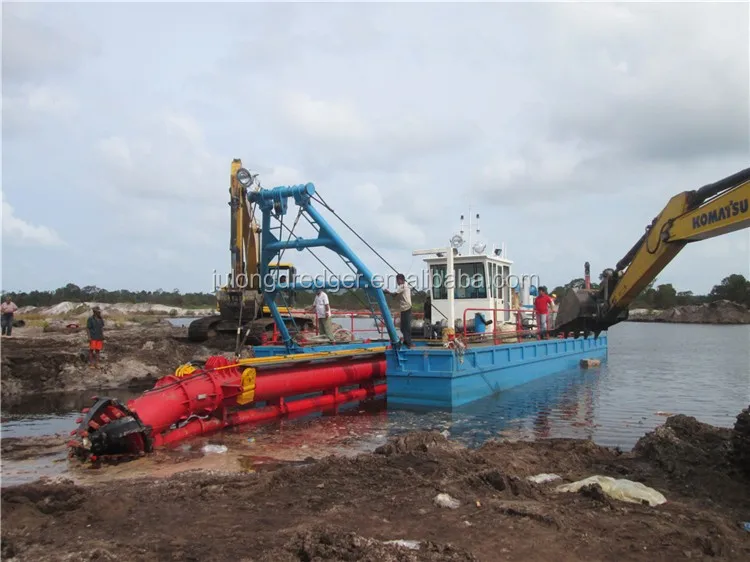

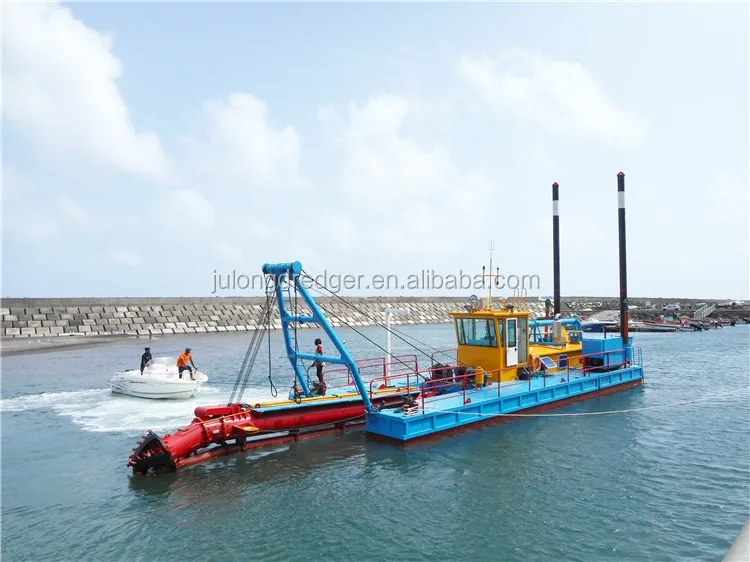

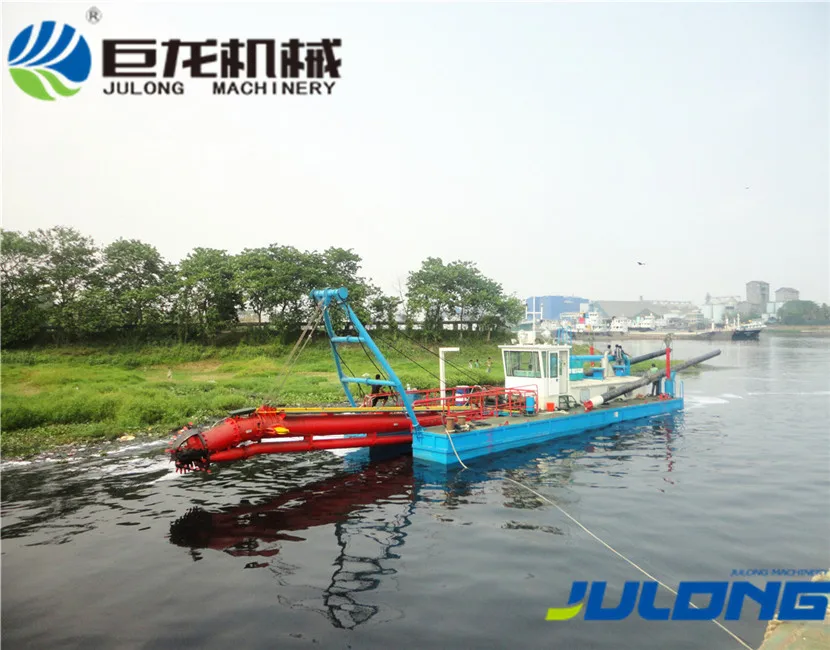

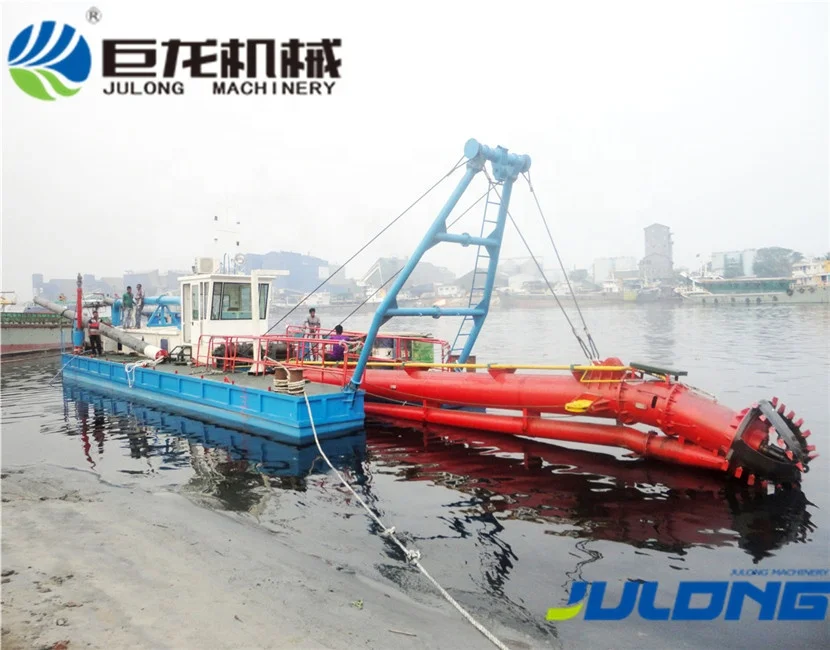

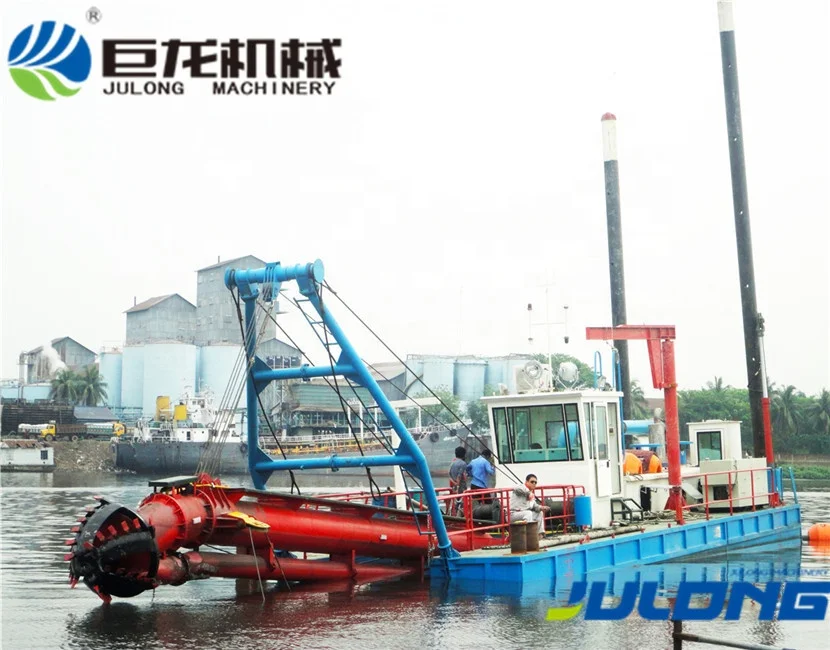

Cutter Suction Dredger is a widely used ship in the dredging works. It is usually used to dredge sand, mud, slurry, etc. Julong cutter suction dredger is perfectly suited for dredging sand, mud, gravel in the river or lake, pond and lagoon. The dredger can be always used in the following working fields:

Port Construction Maintenance

Navigation River Maintenance

Reservoir Dredging

Sand Mining Management Work

Beach Restoration
\t
Model
\t
JLCSD200
\t
JLCSD250
\t
JLCSD300
\t
JLCSD400
\t
JLCSD450
\t
JLCSD500
\t
JLCSD550
\t
Pump Capacity(m³/h)
\t
500
\t
800
\t
1200
\t
2200
\t
3000
\t
3500
\t
4500
\t
Max.Dredging Depth(m)
\t
8.0
\t
10.0
\t
10.0
\t
14.0
\t
15.0
\t
16.0
\t
18.0
\t
Total Length(m)
\t
21.0
\t
25.0
\t
27.0
\t
33.0
\t
38.0
\t
40.0
\t
44.0
\t
Hull Length(m)
\t
9.0
\t
10.0
\t
12.0
\t
19.0
\t
19.0
\t
20.0
\t
20.0
\t
Total Height(m)
\t
1.4
\t
1.6
\t
1.6
\t
1.8
\t
2.0
\t
2.0
\t
2.2
\t
Total Width(m)
\t
4.8
\t
5.2
\t
5.4
\t
6.4
\t
7.3
\t
7.8
\t
8.8
\t
Engine Power(kw)
\t
224
\t
336
\t
559
\t
746
\t
895
\t
1231
\t
1690
\t
Suction Pipe /Discharge Pipe Dia(mm)
\t
250/200
\t
300/250
\t
350/300
\t
400/400
\t
500/450
\t
600/500
\t
650/550

Main Features

1) High efficiency, good economic performance;

2) Strong construction, high security;

3) Full automatic operation, easy to work;

4) Modular construction, can be produced, shipped and assembled very quickly.

Detailed Images

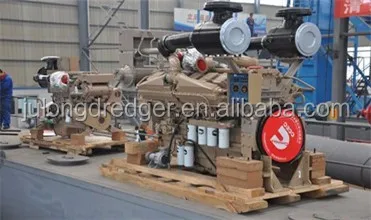

Main Engine


Brand: Cummins


Domestic famous engines, low fuel consumption, high economic benefits.

The engine brand can be selected by the customers' requirement or the budget.

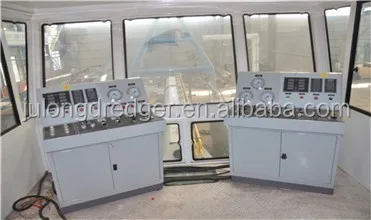

PLC Control System


Brand: Siemens


Julong dredger uses PLC control system imported originally from German. With advantaged PLC control system, Julong dredgers are easy for operation.

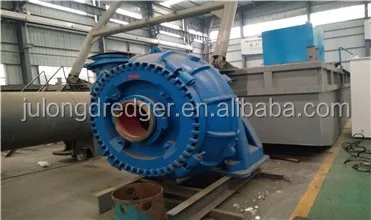

Zhijiazhuang Dredge Pump


Brand: Altas

Julong dredger adopts Shijiazhuang dredge pump with Australia technology, which has a long service life and strong durability.

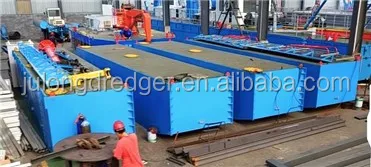

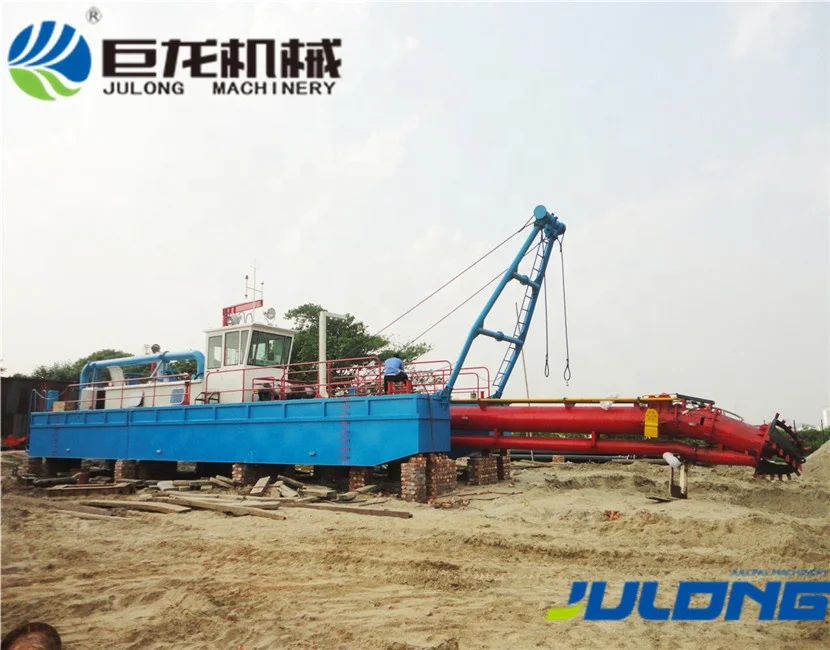

Modular Structure


Brand: JuLong

With this combined design, the dredger can be ensured to module structure and be transported and assembled easily.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Product testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

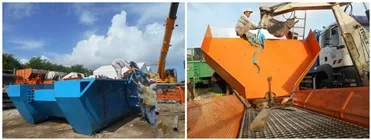

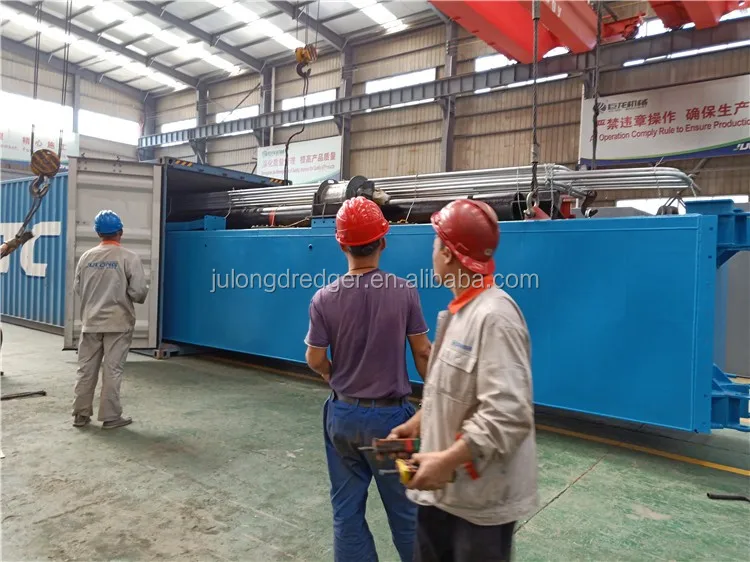

* Smaller size dredger will be transported by container, and engineers will go to job site to assembly, testing and training.

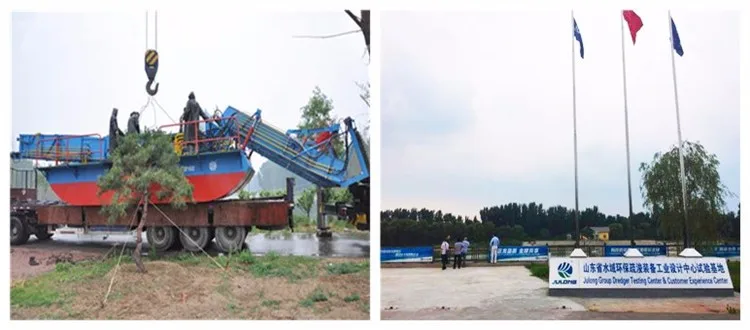

* Bigger size dredger with diapatchable constructure, will be transported by Trailer truck on land and by bulk cargo ship by sea.
Certifications
