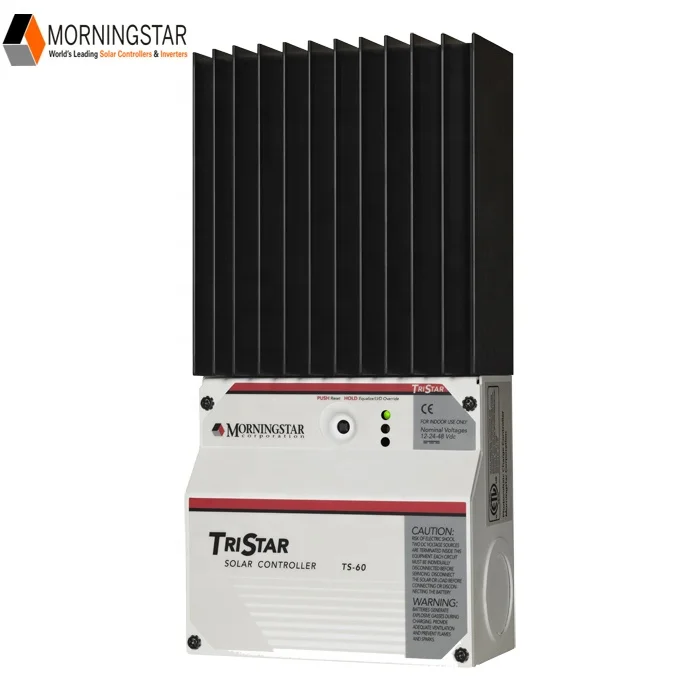

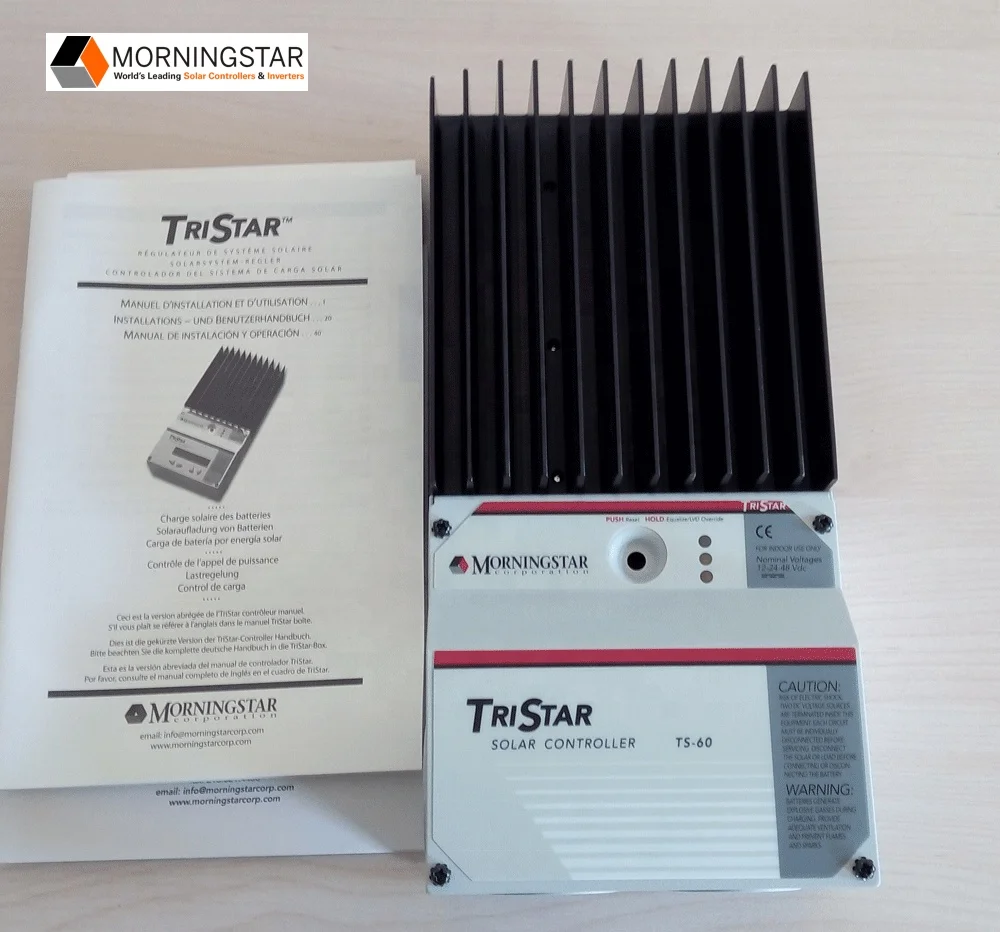

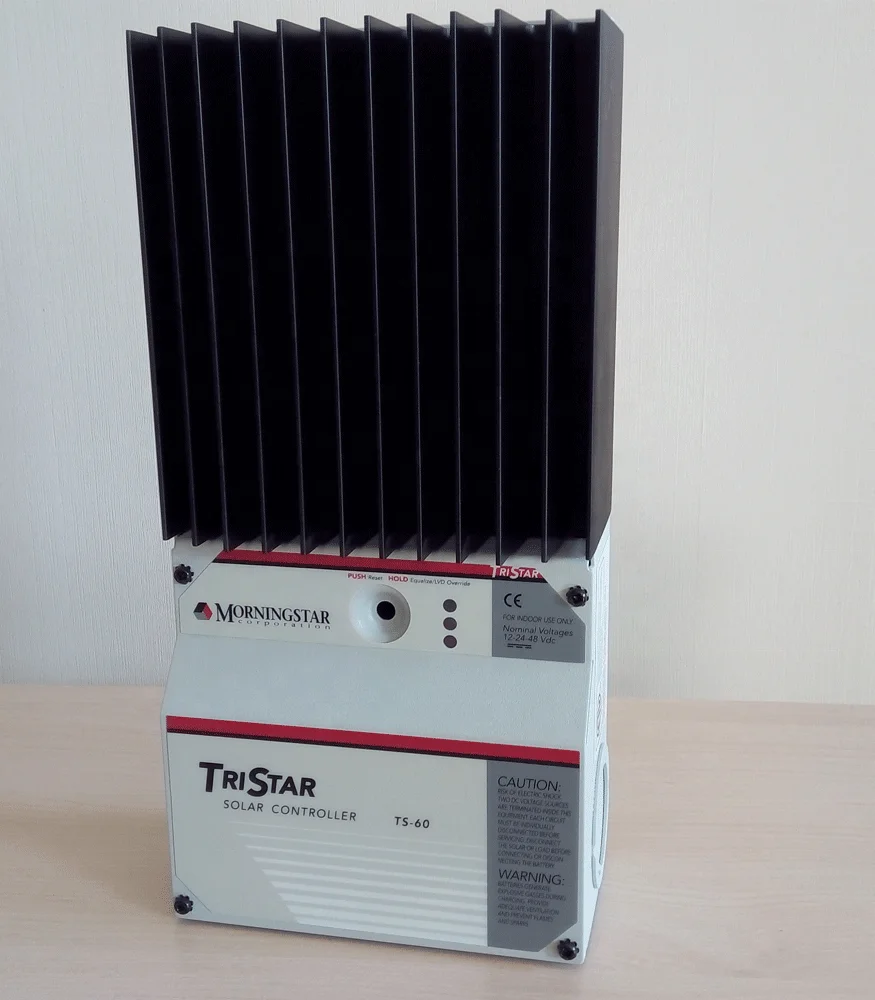

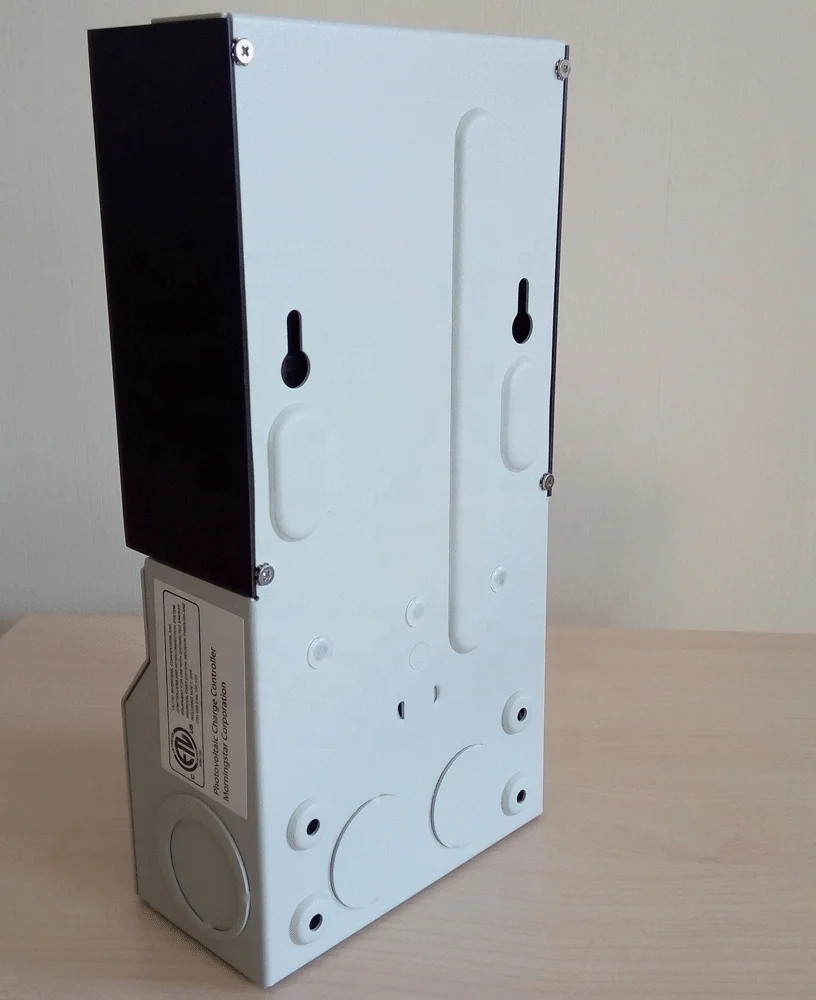

TriStar series controller is the most classic MorningStar solar charge controller, suitable for more than 2 kw solar power system.With many sets paralleling, thus the power is extended to 50 kw.
TriStar ,except for solar battery charging control, can be used for load control. In a large lighting system, TriStar can also be programmed into a street light controller.
TriStar can also be used for unloading control for blower, small hydropower.
Product Overviews
Technical Specification
Brand
Morningstar
Type
TriStar-60
Electrical
Rated solar, load
or diversion current
60A
System Voltage
12V, 24V or 48V
Accuracy
12/24V ≤0.1% ±50mV
48V ≤0.1% ±100mV
Minimum voltage to operate
9V
Maximum solar voltage (Voc)
125V
Self-consumption
Controller
<20mA
Meter
7.5mA
Mechanical
Dimensions
Height: 26.0cm/10.3 in Width: 12.7cm/5.0 in Depth: 7.1cm/2.8 in
Weight
1.6kg/3.5lb
Largest wire
35mm2/2 AWG

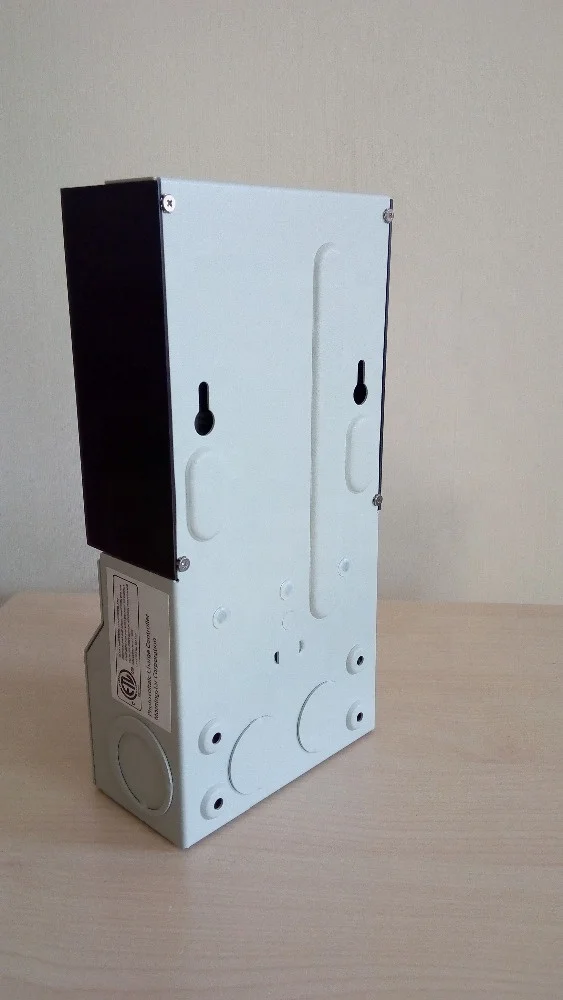

Conduit knockouts
Eccentric 2.5/3.2 cm (1.0/1.25 in)
Enclosure
Type 1, indoor rated
Environmental
Operating temperature
Controller –40°C to +60°C
Meter –40°C to +60°C
Storage temperature
–55°C to +85°C
Humidity
100% (non-condensing)
Tropicalization
Conformal coating on both sides
of all printed circuit boards
Certifications
CE
ETL Listed (UL 1741)
Cetl(CSA-C22.2 No.107.1-95)
TUV (IEC 62109-1)
Complies with U.S. National Electric Code
Manufactured in a Certified ISO 9001 Facility
MET Labs (EN 60335-1, EN60335-2-29)
Protection
Surge protection
High temperature protection
Backflow prevention
load short circuit protection
Over current protection
High voltage protection
Low voltage disconnect protection
Main features

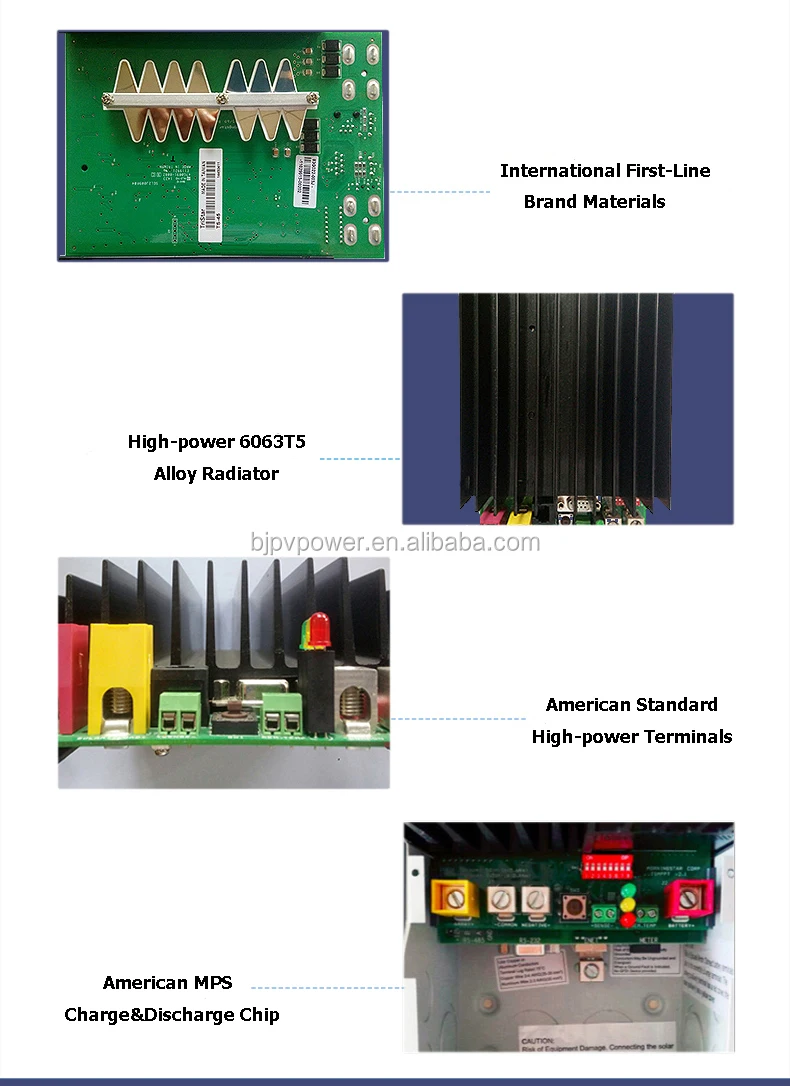

l Industrial product design and manufacturing:can be used in industrial environment.
l Large heat sinks and a conservative design: to guarantee the usein 45 ℃ environment temperature without derating power, and can work in full load condition;
l Famous international contract manufacturing: extremely high reliability, applicable to important occasions
l Four stage charging:fast charging,absorption,float charging,balance,etc.PWMadjustment, protection of storage batteryto the limit.

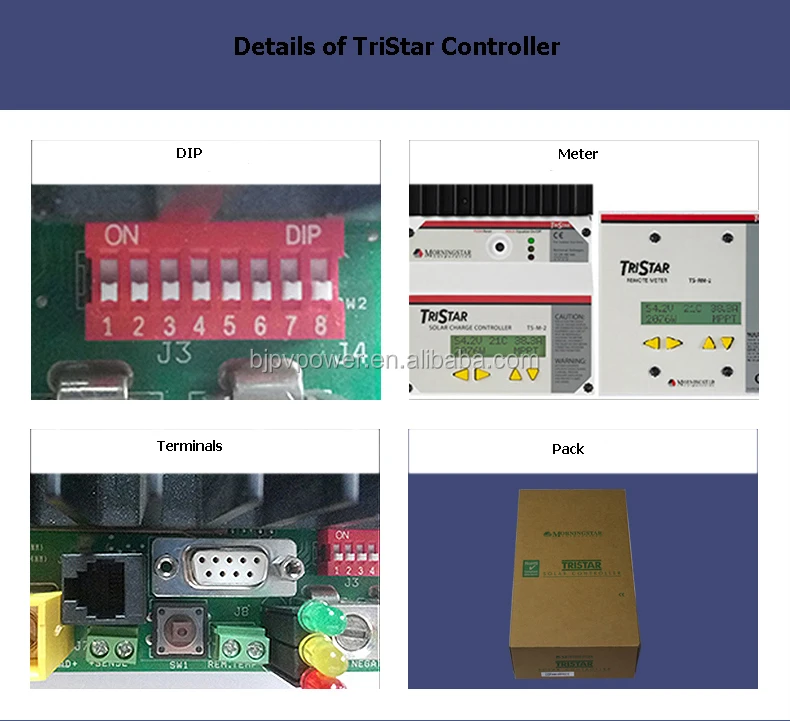

l Communication interface and optional accessories:Meter and RS232,convenient for user to watch running data or realize the remote control;
l Three LED display: can display abundant system, fault and alarm
l Low communication noise: DIP switch can set PWM mode or on-off mode for battery charging.
l Can be used in parallel: the biggest currentis up to 600 A or higher.
l Meter display:measurement Meterapproved byinternational organizations.
