Portable nano micro bubble hydro generator for aquaculture mixer system

Product Overview

Description

Portable nano micro bubble hydro generator for aquaculture mixer system

Product outline

1. Water flow rate:1T/Hr,2T/Hr,6T/Hr and 12T/Hr

2. Micro bubbles size 20~30µ for gas water mixing

3. Used with SS304 material mixing tank for impoving mixing efficiency

4. Liquid temperature: -15℃ ~ 120℃

5. Maximum ambient temperature: +40℃

6. Gas-liquid ratio 1:9 (Gas suction volume 8~10%)

7. 220V/380V are available, when you make order pls kindly note us the voltage you need, thanks



Features

1.It can suck water while sucking gas and pressurize and mix them inside it.Ultra

fine air bubble 20~30µ.It renders a good gas liquid solving effect.

2.It has stable performances, high efficiency and low noise level, and its gas liquid solving efficiencyis as high as twice that of the traditional mode.

3.When it is used in air suspension unit, air compressors, various mixers, high pressure air solving tanks and releasers may be saved and thus the weakness

of instable air supply and boiling of large air bubble which likely occur in traditional

working model will be eliminated.

4.When it is used in ozone water preparing equipment, many mixers and large

oxidation towers may be saved and thus the cost for equipment will be greatly

reduced. In addition,its gas liquid solving ratio may exceed 95%.

5.It is simple in structure and operation, easy in maintenance and durable and needs

less components. It has a good self suction capacity and a wide application range.



Application

1.Air suspension treating equipment,ozone water preparing equipment, and

biological treatment equipment.

2.Feeding of heating or cooling medium for various temperature adjusting devices.

3.Various filters:sucking or high pressure transferring low viscosity liquid from

underground tank, such as gasoline and various solvent.

4.Misting treatment of clear water,pure water,foods,chemical solution and waste

solution.

5.Strict applications (continuous running, abruot variation in hydraulic pressure):

such as small scale stream boiler,high building water supply,high pressure water

injection to high pressure tank,and suction from vacuum tank.

6.Sampling from river or tank,transfer foamable liquid,transfer liquid through long

and horizontal pipeline,where air pockets likely occur.



Product Technic Data

Item	20ZA-1SS	20ZA-1DS	25ZA-2SS	25ZA-2DS	40ZA-6SS	50ZA-12SS
Head of delivery	40M				50M
Flow rate	1T/Hr		2T/Hr		6T/Hr	12T/Hr
Water input size	0.75"		1"		1.5"	2"
Water output size	0.5"		0.75"		1.2"	1.5"
Power	0.55Kw		1.1Kw		3Kw	5.5Kw
Voltage	380V	220V	380V	220V	380V	380V
Speed	2900r/min
Size of Tank	φ200×320mm (3mm thickness)				φ273×720mm (3mm thickness)

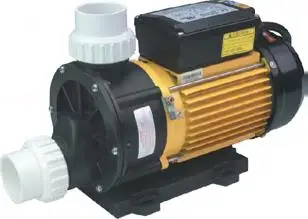

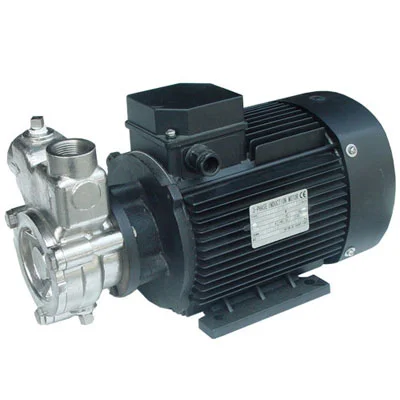

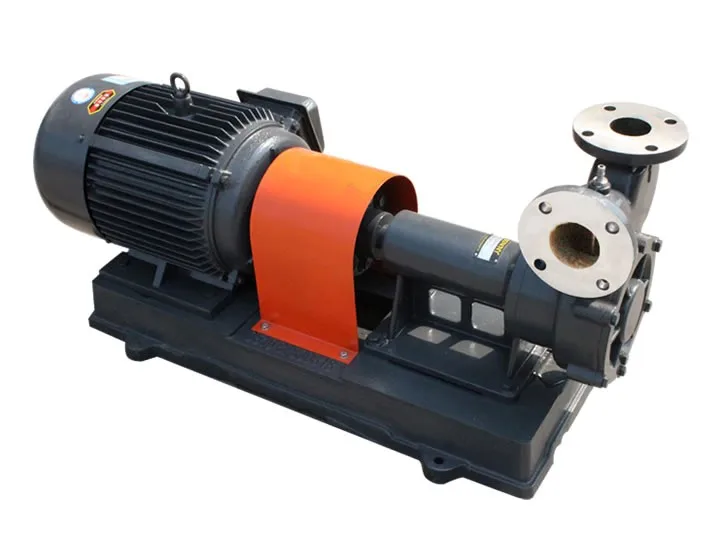

Product show for mixing pump

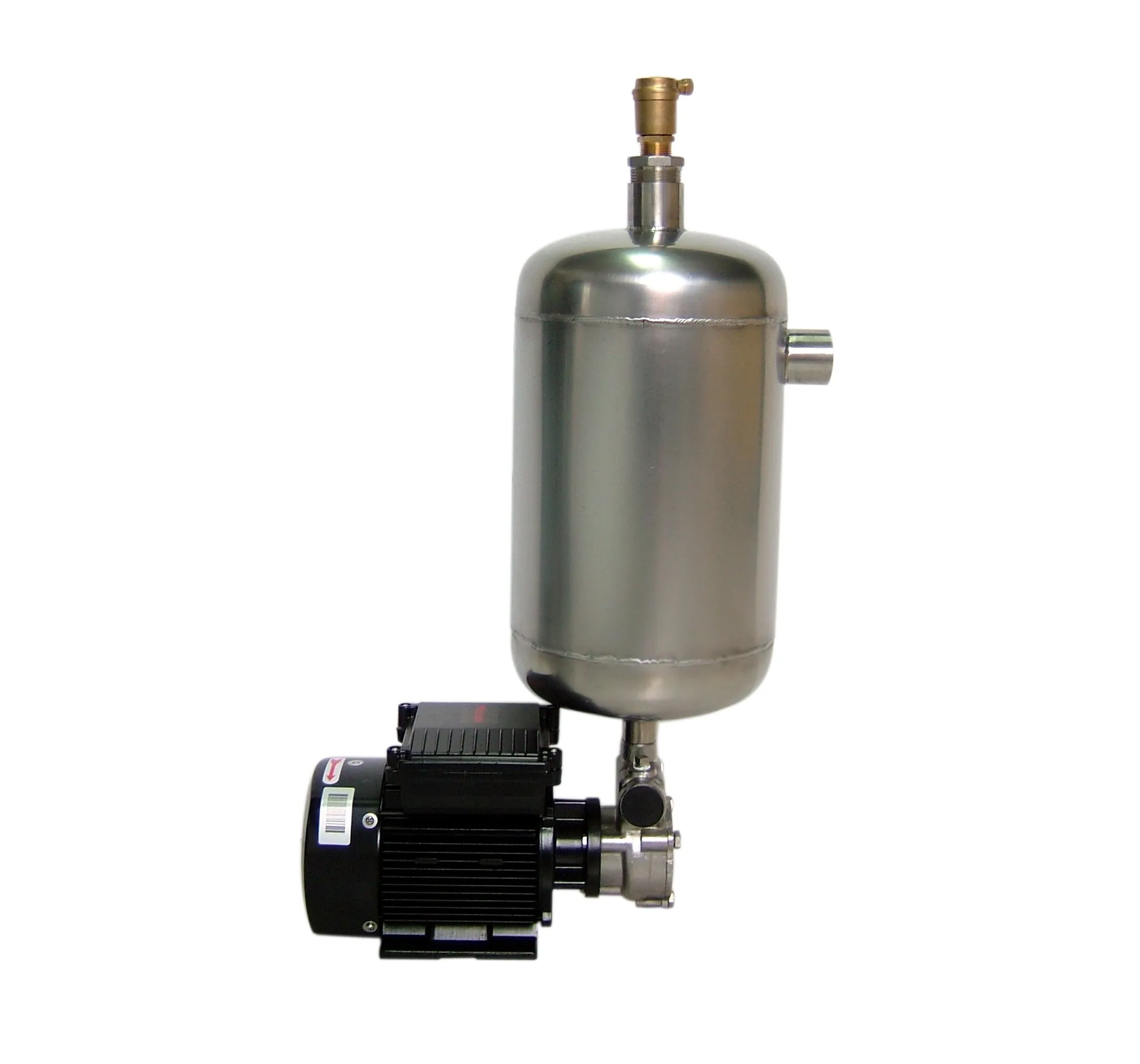

Use with mixing tank for impoving mixing efficiency



Other mixing equipment

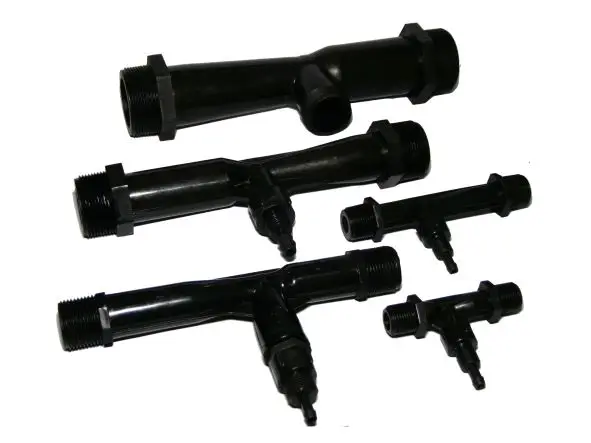

1.PVDF venturi injector with 1/5",1/2",3/4",1",1.5",2"

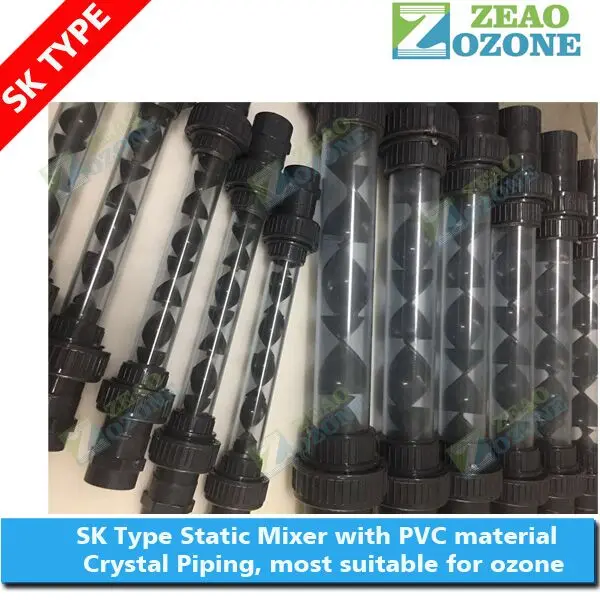

2.PVC material static mixer

3.Titanium powder air diffuser

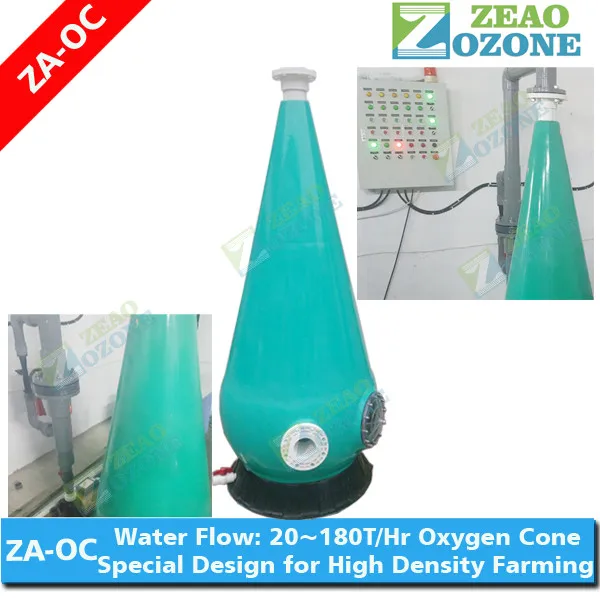

4.Oxygen cone for increasing dissolved oxygen in water

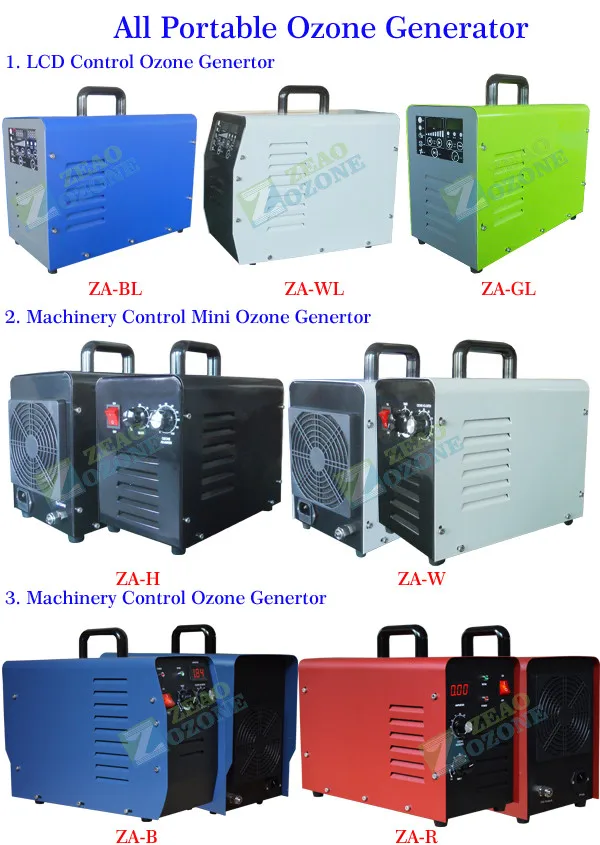

Ozone generator for your reference



Oxygen concentrator for your reference

Inspection before shipment



Team work



Trade terms

Payment method

Paypal,T/T,WU,etc



Packaging

1.Inner layer: plastic bag

2.Middle layer: EPE(Expand aple poly ephylene)

3.Outer Layer: carton/composite wooden cases



Prompt delivery

1.Shipping way:by sea,by air or by express(DHL,FedEx,UPS,TNT etc)

2.3-7 days for sample order;

3.10-30 days for mass production order.
