16 e1 to 4 port 100/1000M ethernet converter



The 16 e1 to 4 port 100/1000M ethernet converter device using reverse direction multiplexing technology to bundle for multiple E1 circuits to transmit the Ethernet data of 4Channel 100base-TX.It can realize 1~16 E1 channel to convert between Ethernet optical interface to make E1 channels interconnected with Ethernet optical interface. Using GFP encapsulation support the LCAS (link capacity adjustment scheme) and LAPS protocol. this device can support 1-16Channel E1 channel configuration can automatically detect the number of E1 and select the E1 available. It allows E1 lines transmission time 1channel/4channel/8channel/16channel Ethernet bandwidth is 1984Kbit/s7936Kbit/s15872 Kbit/s31744Kbit/s.



The device provides alarm function. The work is reliable stable and low power consumption high integration small size. Support Network management The main function of network management system is to fulfill the inquiry for local and remote devices and configuration management including inquiry of alarm status on E1 line Ethernet working status and loopback control etc..

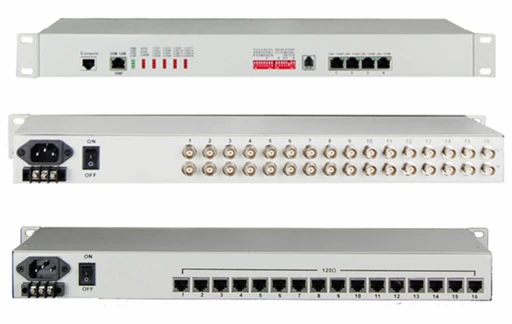

Photos:





Ø  Based on self -copyright  IC

Ø  Can realize monitor and control of remote equipment, OAM management data did not take up users’

      timeslot and save E1 bandwidth

Ø  Have the function of E1 interface loop back check, avoid the converter crashed because of interface loop  return;
Ø  Have indicator  when the device is power-off or E1 line is broken or lose signal;
Ø  Can set the E1 line that not to send the LINK signal to Ethernet interface while E1 line is broken;
Ø  The Ethernet interface supports jumbo frames (1916 Bytes);
Ø  4Channel 10M/100M Ethernet interface can isolate each other to realize communication independently;

Ø  Ethernet interface supports10M/100M, half/full duplex auto-Negotiation and AUTO-MDIX (crossed line and  straightly connected line self-adaptable );

Ø  Provide 2 clock types: E1 master clock and E1 line clock;

Ø  Have three Loop Back Mode: E1 interface Loop Back (ANA),Ethernet interface Loop Back(DIG),Command the remote Ethernet interface Loop Back(REM)

Ø  Have pseudo random code test function, easy the installation and maintenance;
Ø  Provide 2 impedances: 75 Ohm unbalance and 120 Ohm balance;
Ø  Have Ethernet monitor self-reset function, the equipment will not dead

Ø  Ethernet interface supports the counters of receiving and transmitting frame, receives wrong frame counters.  E1 interface supports the counters of receiving wrong frame;

Ø  Realize monitor of remote equipment temperature and voltage from local equipment;
Ø  Support SNMP Network Management;

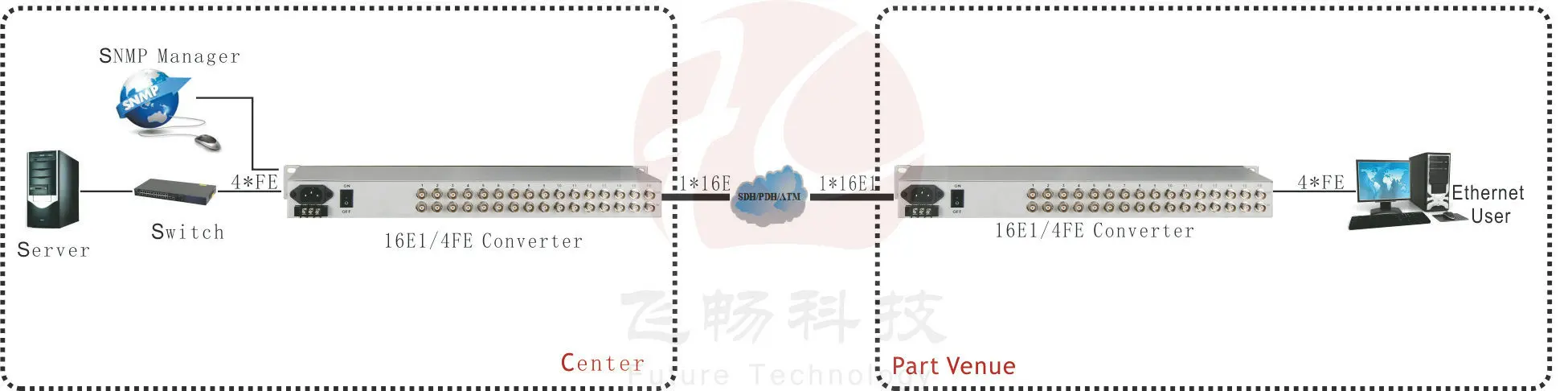

Ø  Can form the structure: Ethernet E1 Bridge(A)---E1 Optical Fiber Modem(B)---Ethernet Optical Fiber Modem (C)







u   Ethernet interface(100/100M)

    Interface rate:              10/100 Mbps half/full duplex auto-negotiation

    Interface Standard:      Compatible with IEEE 802.3 IEEE 802.1Q (VLAN)

   MAC Address Capability: 4096

    Connector:                  RJ45 support Auto-MDIX





u   Power

    Power supply: AC180V ~ 260V;DC –48V;DC +24V

    Power consumption: ≤10W

u  Dimension

    Product Size: Mini Type    216X140X31mm(WXDXH)

            Simple packaging:   274X193X84mm(WXDXH)

            Piece Weight :    mini 1KG

u  Working environment

    Working temperature: -10°C ~ 50°C
    Working Humidity:        5%~95 % (no condensation)

    Storage temperature:   -40°C ~ 80°C
    Storage Humidity:         5%~95 % (no condensation)
