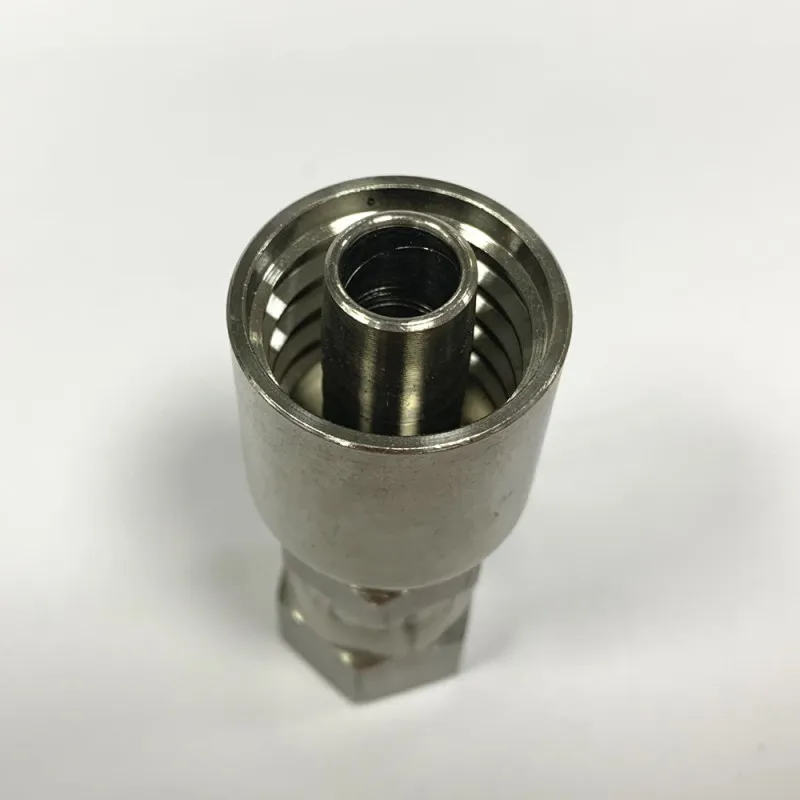

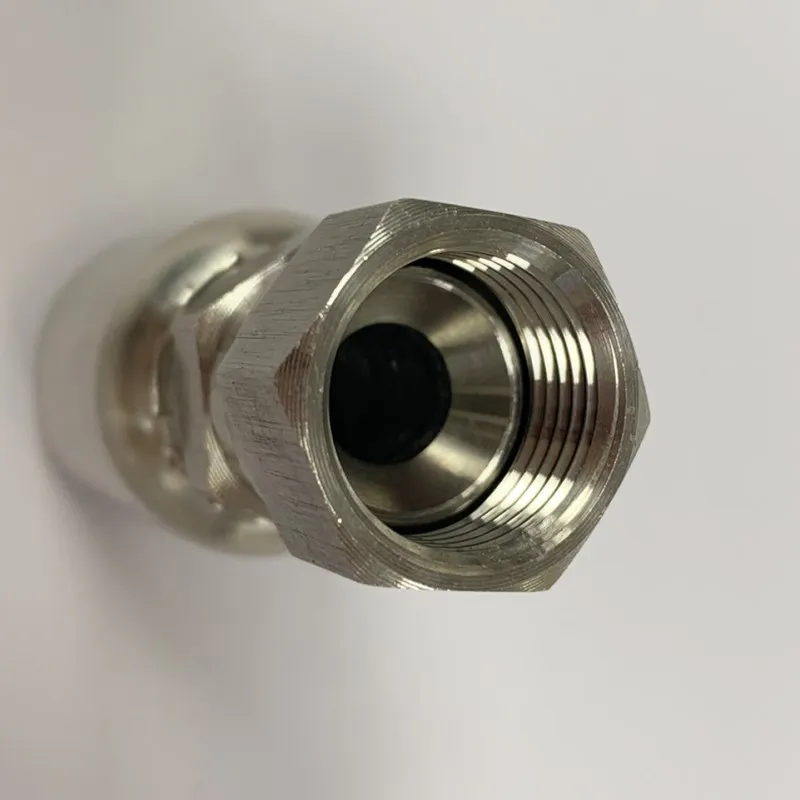

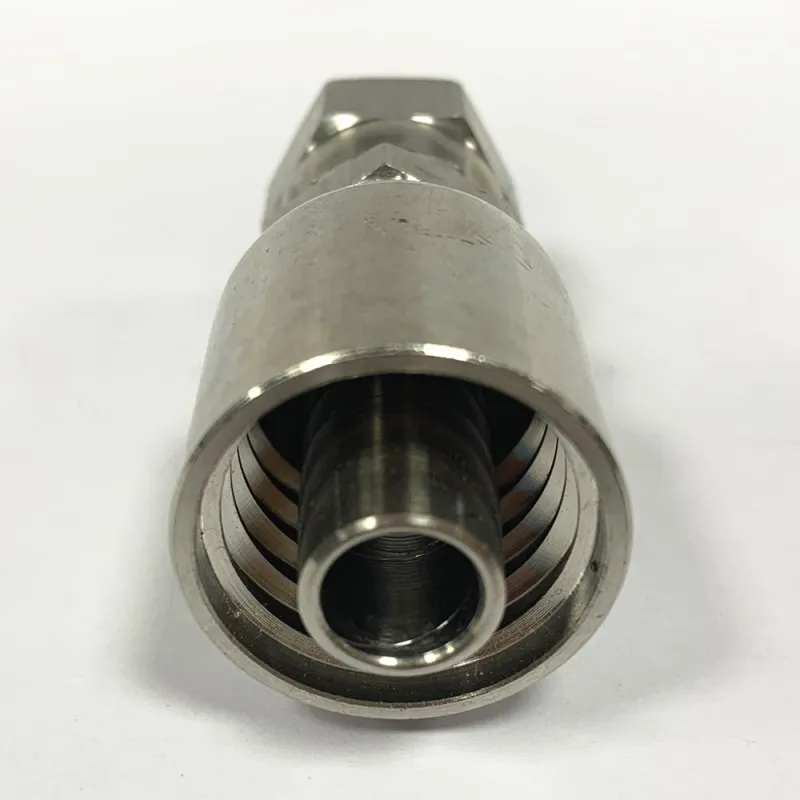

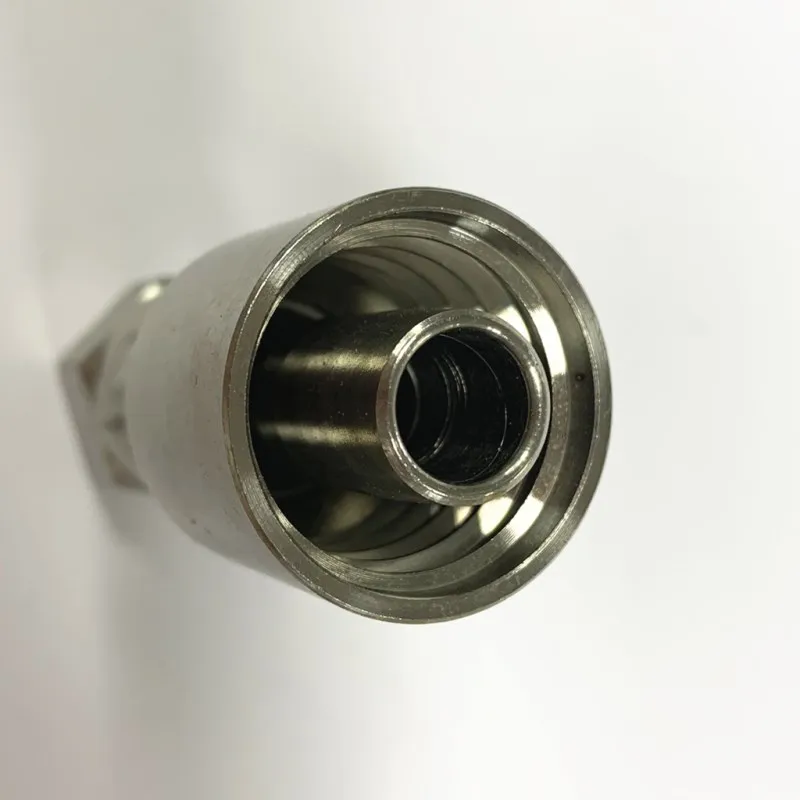

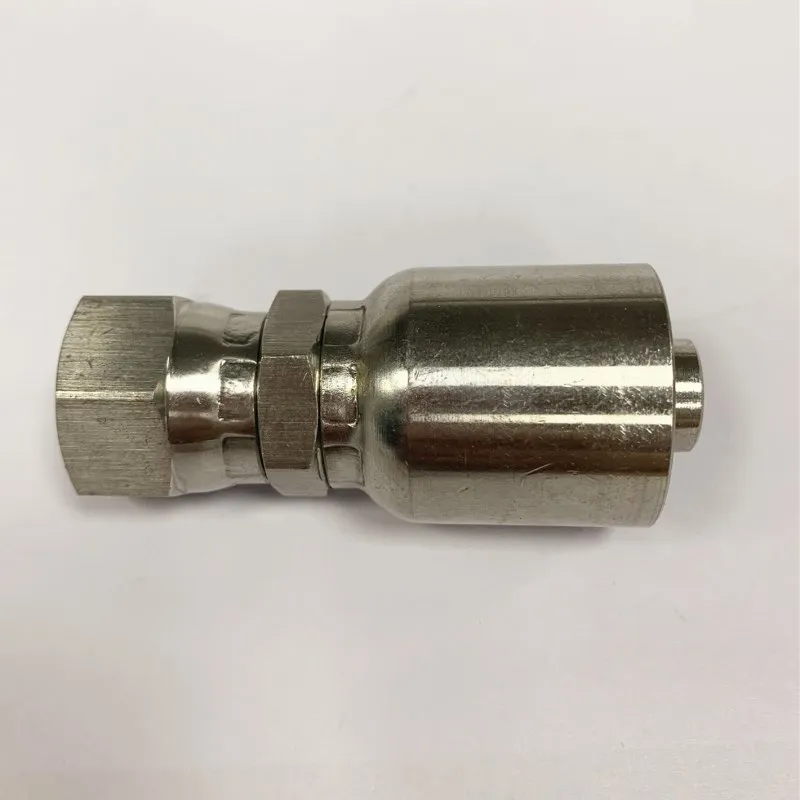

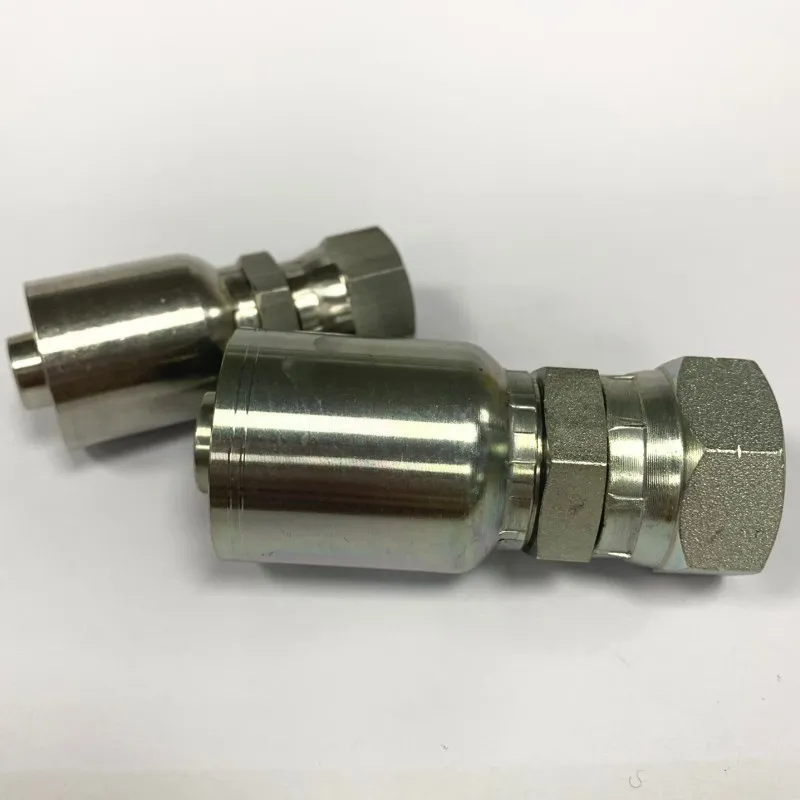

One piece jic hydraulic hose fittings straight one-piece fitting
Product Description
Features:
Material: carbon steel
Size: 3/8", 06-06
Thread: Jic female
Standard: Parker
Matched hose: 1SN/R1, 2SN/R2, R16, R17
Test: salt spray, impulse

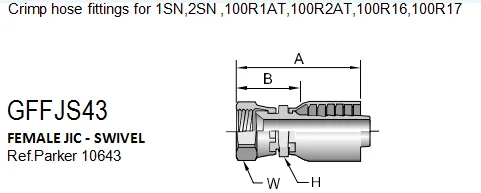

Specification:
Part No.
1- Hose Bore
2- Thread
W- HEX
Dimensions
Size
Inch
DN
A(mm)
B(mm)
H(mm)
GFFJS43-04-04
4
1/4"
6
7/16"-20
14.2
41
21
14.2
GFFJS43-04-05
4
1/4"
6
1/2"-20
14.2
42
22
14.2
GFFJS43-04-06
4
1/4"
6
9/16"-18
17.4
42
22
14.2
GFFJS43-05-05
5
5/16"
8
1/2"-20
14.2
44
22
17.4
GFFJS43-05-06
5
5/16"
8
9/16"-18
17.4
44
22
17.4
GFFJS43-06-06
6
3/8"
10
9/16"-18
17.4
50
23
17.4
GFFJS43-06-08
6
3/8"
10
3/4"-16
22.2
50
23
17.4
GFFJS43-06-10
6
3/8"
10
7/8"-14
25.4
50
23
22.2
Production Flow
Packaging
Company Information
Gemflex, supplying a wide range of products for industrial and hydraulic applications. We stock and manufacture the best quality products, our staff are trained to provide the best back-up to our customers. We believe that we offer an unbeatable combination of first class quality & service, rapid response, plus access to a diverse and ever growing product line.
We are committed to providing only the highest quality products at the most competitive price. With more than 10 years experience, we accommodate small or large quantities, according to your requirements.
Certifications
FAQ
Q1. What’s the delivery time of your products?
A: Normally, the delivery is about 30 ~60 days. It depends on the quantity you order, which country you are in and the shipping way that you choose.
Q2. What’s your popular thread?
A: Metric, JIC, SAE, ORFS, NPSM, BSPP, BSPT,NPT and etc.
Q3. What’s your transportation method?
A: The goods can be shipped by sea, air, land and express delivery. We accept deliver products according to your requirement.
