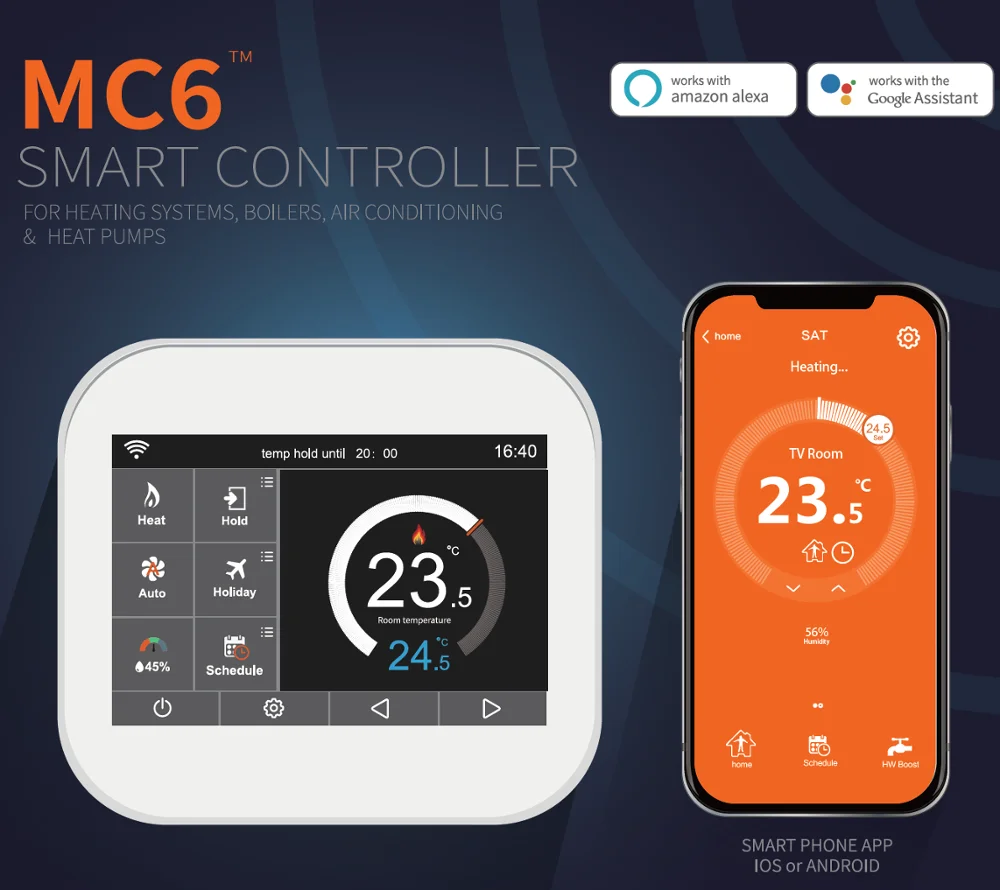

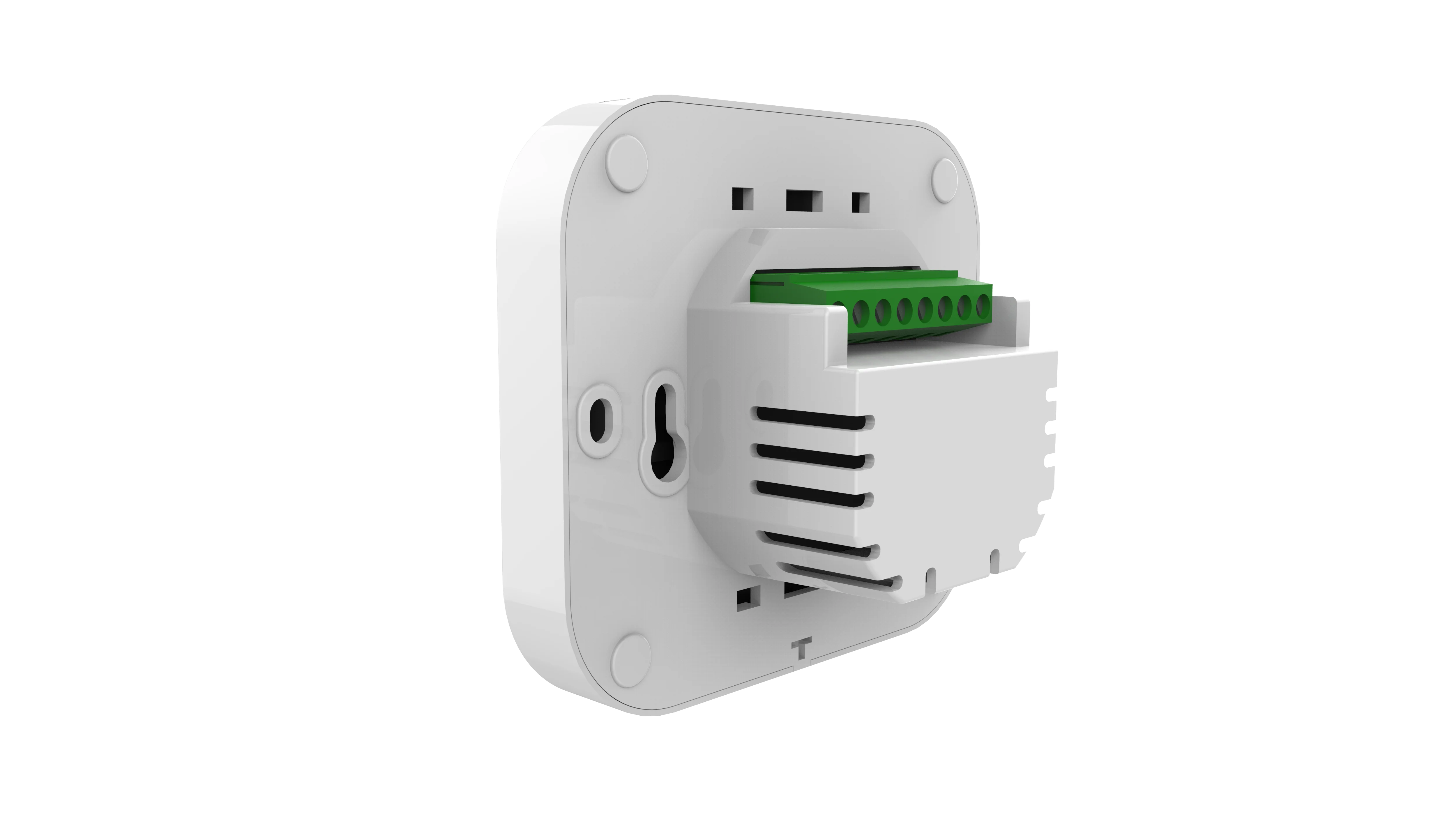

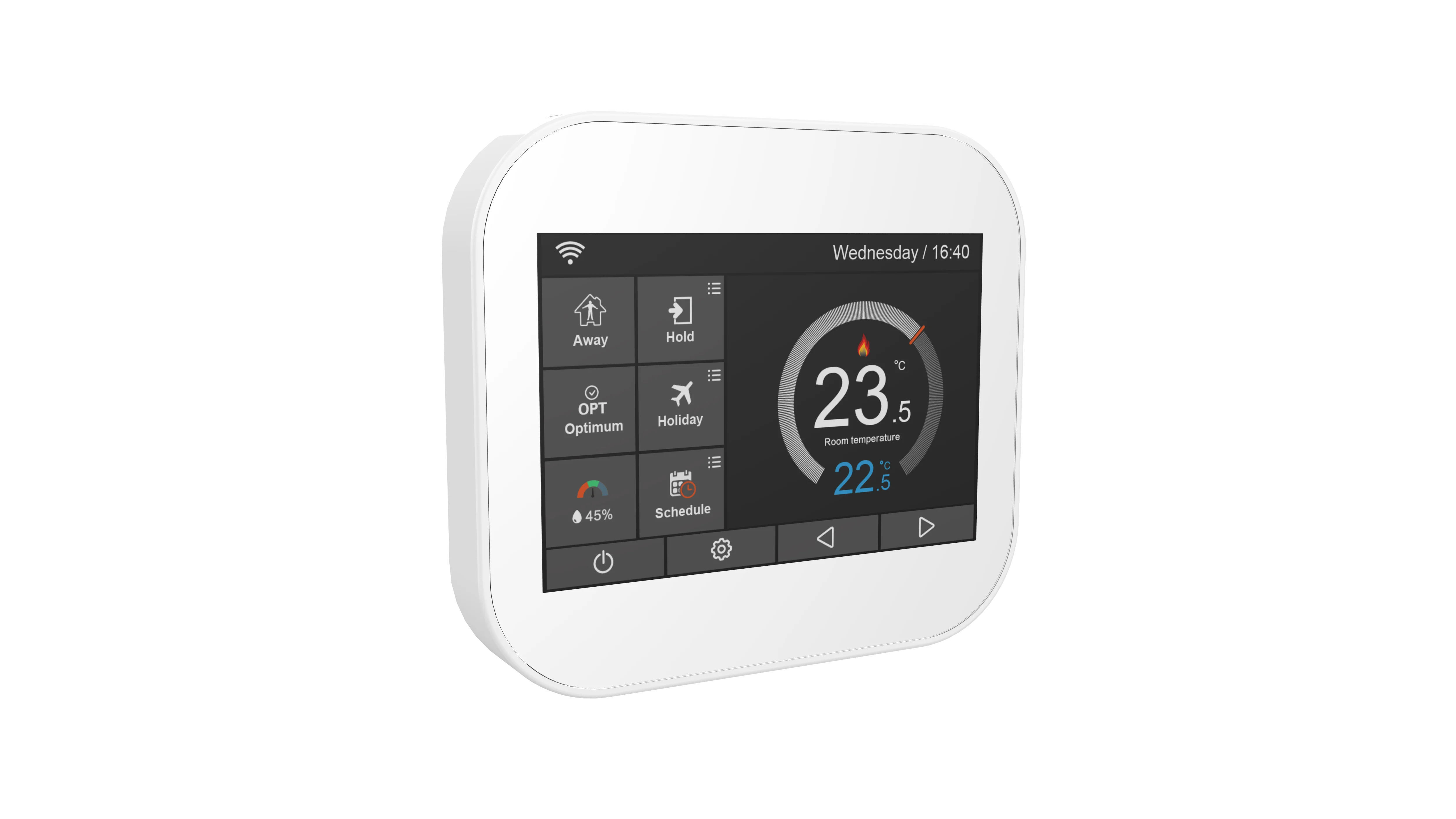

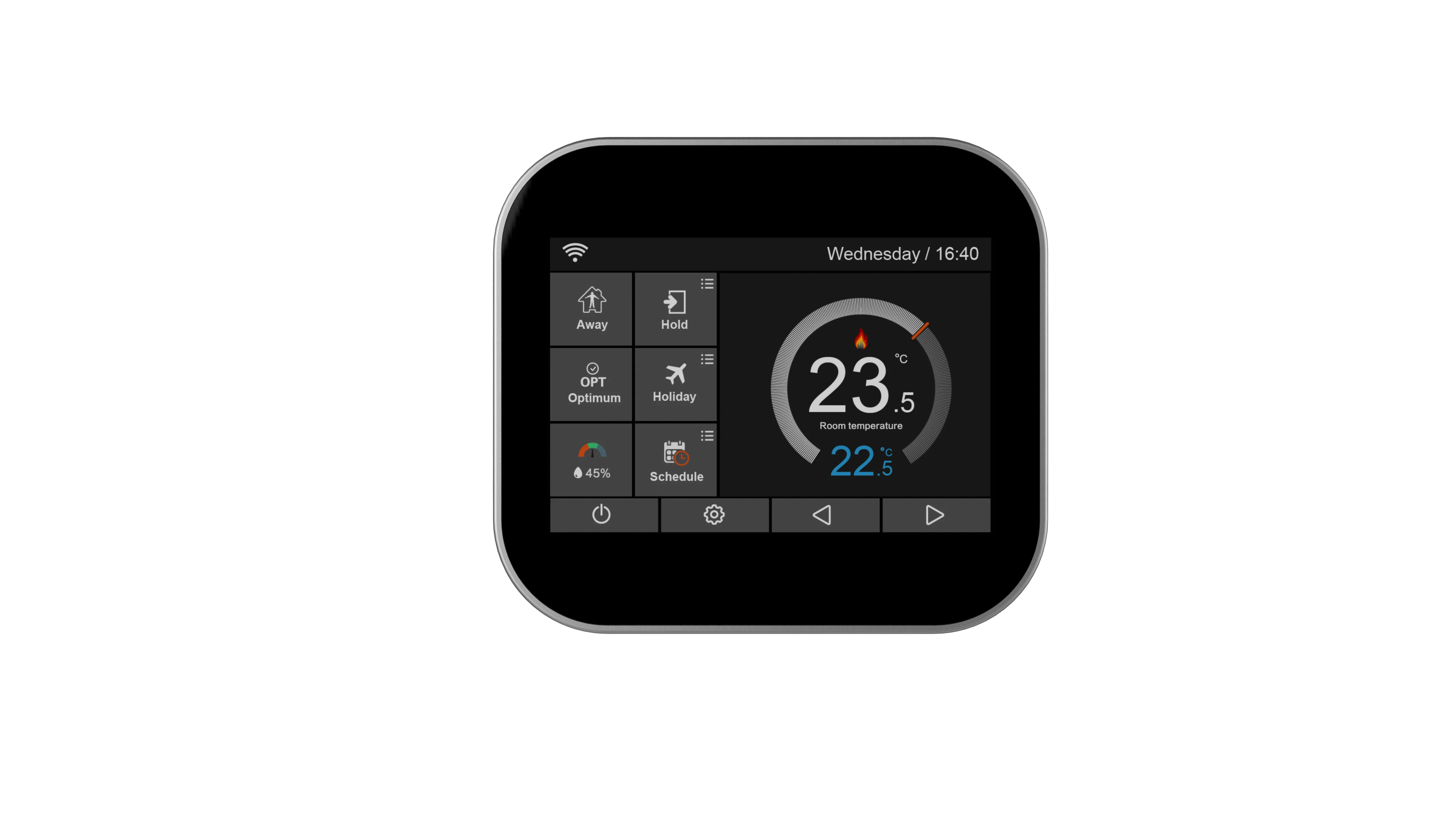

Wi Fi gas boiler programmable thermostat
- Category: >>>
- Supplier: Beijing Brade Controls Tech Co. Ltd.
Share on (62013724839):
Product Overview
Description
Product Description
Supply Voltage | 85-260Vac, 50/60Hz |
Setpoint Range | 5~35℃ |
Setting Unit | 1°F or 0.5℃ /step |
Display Accuracy | ± 1°F or 0.5℃ |
Display | 480*320 Colour LCD display |
Operation | Capacitive Touch screen |
Mode Setting | Heating, Cooling and Ventilating |
Fan Speed Adjust | High, Medium, Low and Automatic fan speed control |
Cycling Fan Control | Fan cycled running with thermostat |
Control Performance | ON/OFF control |
Specifications
Differential | 1 ℃/2°F |
Thermostat Output | SPST relay for underfloor heating models 2 SPST relay for hotwater heating models |
Switch current rating | Resistive: 3A/16A, Inductive: 1A |
Temperature Sensor | NTC Thermistor 100K |
Enclosure | Fire retardant PC ABS |
Minimum Operational Life | Thermostat contacts: 100,000 cycles |
Remote Controller(optional) | App Remote Control |
Backlight Function(optional) | Auto dim by ambiente detection |
Dimensions | 96 X 86 X 13.5mm (W×H×D) |
Hole Pitch | 60 mm |
Environmental requirements | Operating temperature range 0 ~ 45℃, Humidity range 5 ~ 95 %RH (non-condensing) |
Mounting | Embeded mounting, standard 86 × 86 mm junction box (hole pitch 60 mm) |
Wiring | Screw-in terminals, each terminal capable of accepting 16 AWG, 18 AWG, 1.5 mm2 or 2.5 mm2 wires |
Product Detail
- Unprecedented design, top grade, Fashion
- Multi Language:English ,Deutsch ,Czech ,Espanol,French,German,Italiano,Polish,Russian,Swedish,Croatian,Svenska
- Colour TFT LCD (480*320)
- Capacitive Touch Screen
- Concise icon shown on LCD
- Energy saving.
- Wireless module ( Optional)
- Save energy when It is in stands by model
- Keypad lock to avoid any mistake operations(Optional)
- Optimum Start
- WiFi enable+APP
- Modbus Connectivity (RS485 or TCP)
Main Function
Detect And Display Room Temp
Detect And Display Room Humidity
Hotwater Boost On/Off
Remote Sensor ( Optional)
Holiday Function
Away Function
Hold Temperature Function
Open Window Function
Clock ( Sync Time With Timer Zone )
Daylight Saving Time(DST)
C/F Temperature Display
Temperature Limitation
Timer On/Off ( Optional)

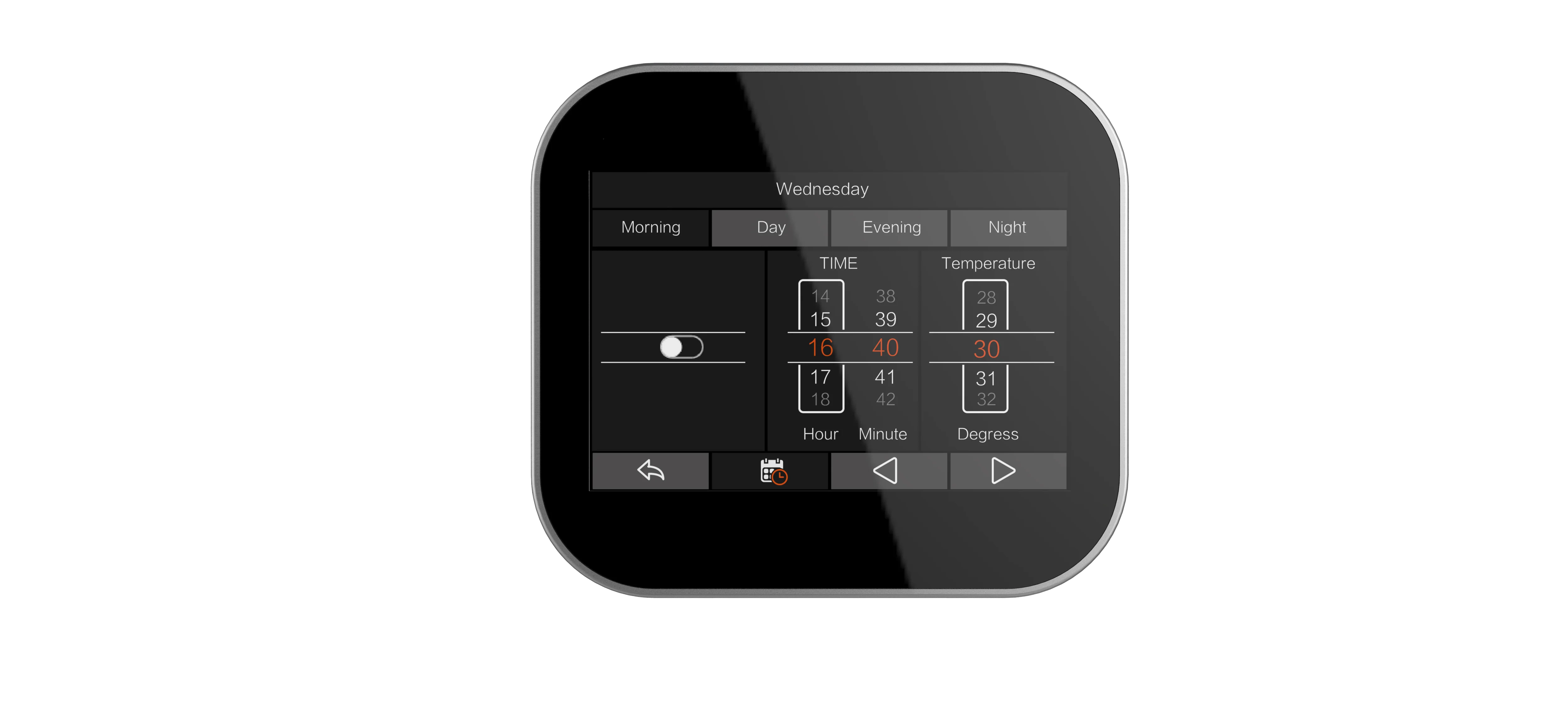

7 Days 4 Periods Programmable
Model Available For 85-260VAC Power Input
Temperature Calibration
Easy Installation

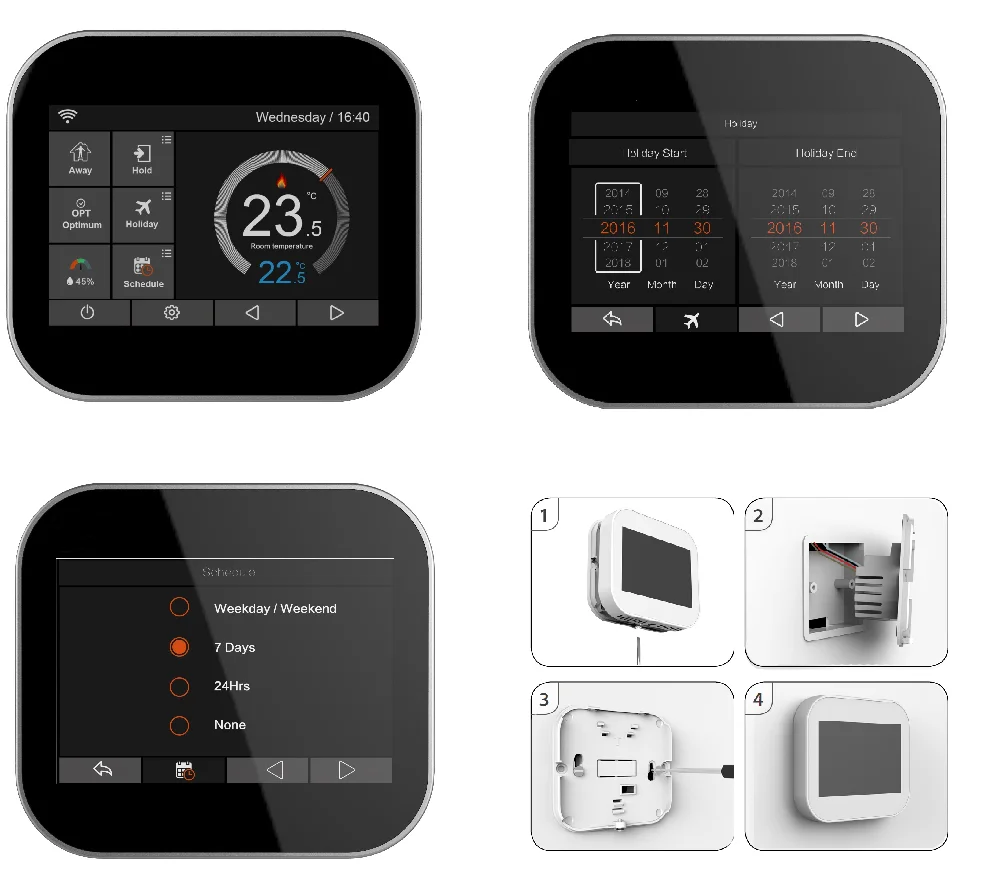

Product Display
OEM Customisation
1. Company Logo on Product
2. Company Logo in boot video
3. Branded Packaging
4. Branded Manual
5. Branded Terminal Label

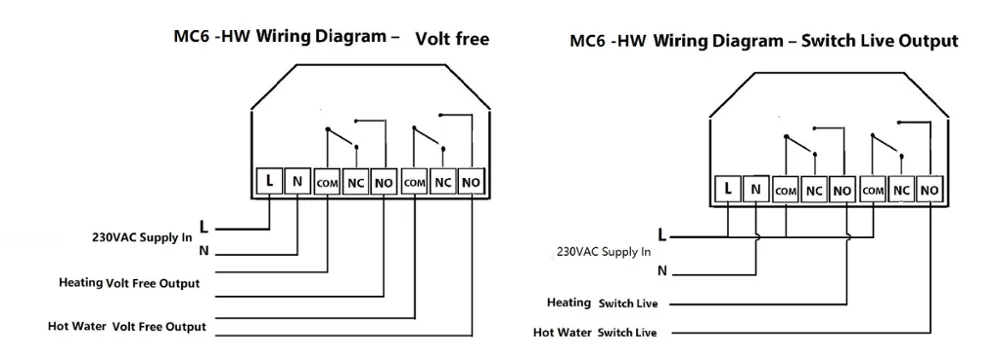

Wiring Diagram
