Mobile Adjustable Ramp System Portable Loading Ramp for Van

Product Overview

Description



Real Pictures







Product Highlights



• User-friendly, two-speed hand crank system.







• Adjustable support screws.







• All welded steel construction.







• Folding lips to meet height changes when loading.







• Two large rubber tires.







• Safety chains for security.







• Positive steel mesh.







• Low end access plates.





Features & Benefits

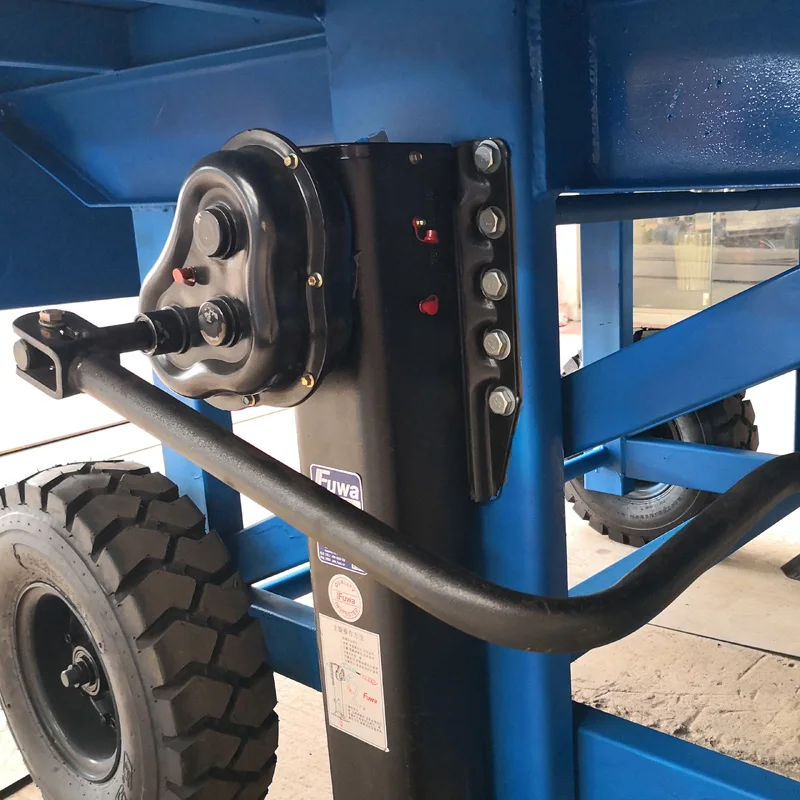

• User-friendly, two-speed hand crank system to adjust deck height

• Supported by heavy duty I-beams for superior strength

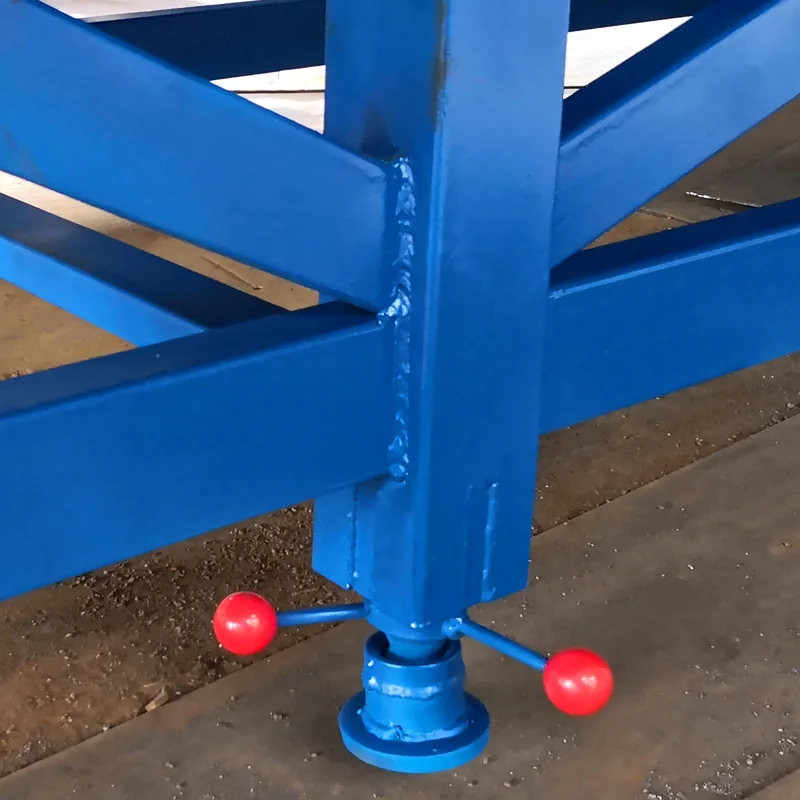

• Adjustable support screws for extra safety while loading process

• Positive steel mesh provide ability of non-slip

• All welded steel construction

• Solid rubber tires provide excellent traction

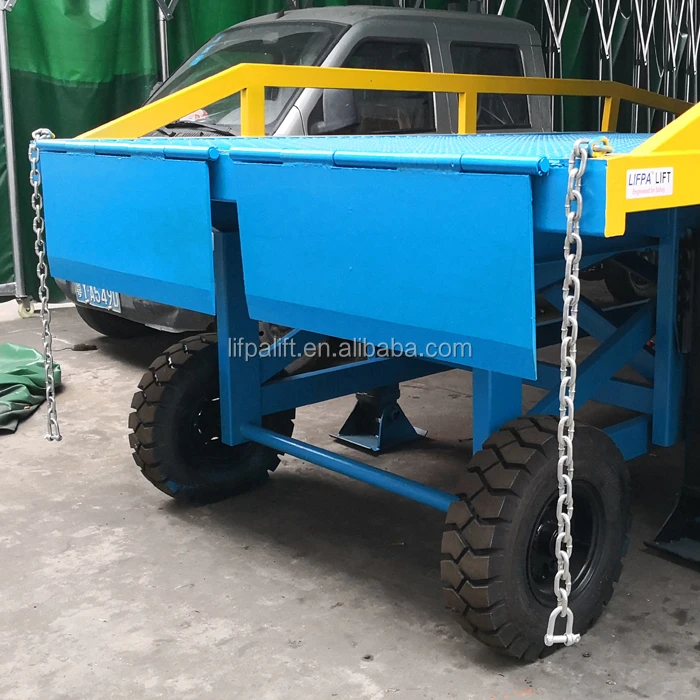

• Safety chains for secure ramp-to-trailer connection

• Folding front lips / end plates

• Anti-rust primer before painting for protection

• Custom size and specs available





Main Parameters

Model		RM-08-A	RM-10-A	RM-15-A
capacity	ton	8.0	10.0	15.0
raised height	mm	1650	1650	1650
lowered height	mm	1200	1200	1200
level length	mm	3000	3000	3000
ramp length	mm	6900	6900	6900
usable width	mm	2000	2000	2000
guardrail height	mm	280	280	280
overall width	mm	2200	2200	2200
grade - 55'' high	%	17	17	17
grade - 62'' high	%	19	19	19
net weight	kg	2300	2550	3050
