Zecre PH700A with 2.4 Inch LCD 12MP 1080P Full HD Night Vision Trail Camera Hunting Camera with 27 Pieces 940NM Infrared LEDs

Product Overview

Description

<<<<< Welcome to know more about Zecre>>>>>

Zecre PH700A with 2.4 Inch LCD 12MP  1080P  Full HD Night Vision Trail Camera Hunting Camera with 27 Pieces 940NM Infrared LEDs

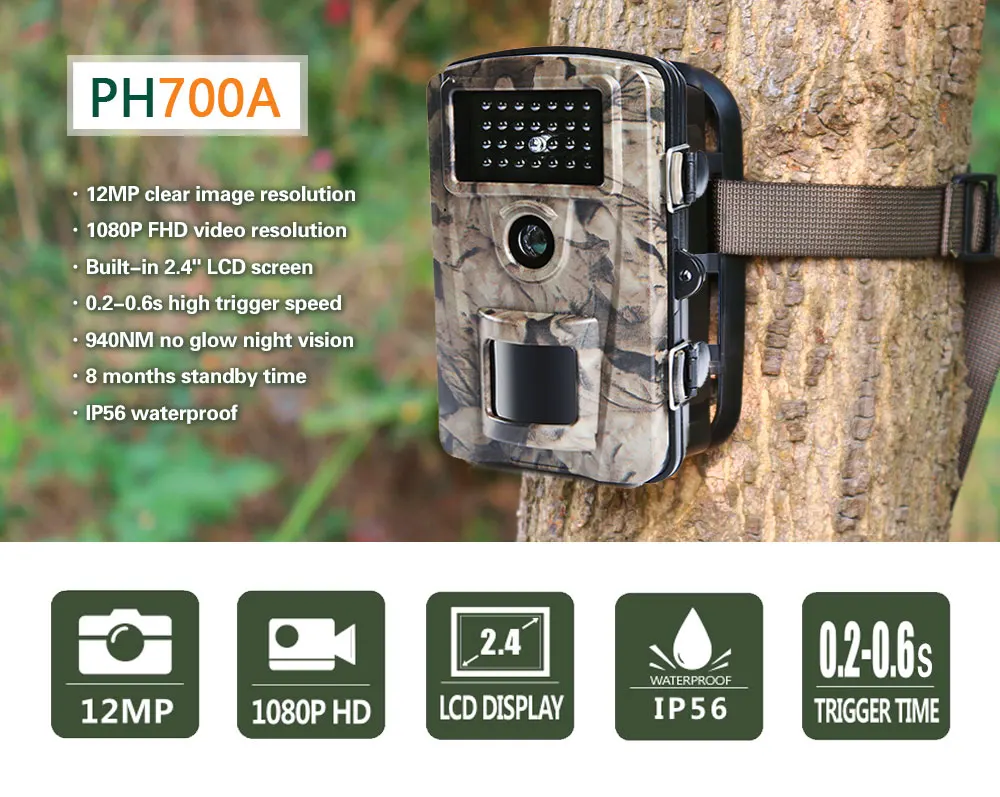

Key Features:

12MP photo resolution

1080P video resolution

2.4' LCD screen display

27 pieces 940NM IR LEDs

0.2 ~ 0.6 speed trigger time

8 months standby time

IP56 waterproof

Trail Camera Hunting Camera PH700A Specification:

Image sensor	1/3-inch 3MP (2592*1944) CMOS
photo resolution	12MP
	8MP
	5MP
	3MP
Video resolution	1080P: 1920x1080P
	720P: 1280x720P
	D1: 720x480P
	VGA: 640x480P
	QVGA: 320x240P
File format	JPG/AVI(H.264)
Lens	Focal Length=7.2mm, F/NO=2.8, View Angle=56°
TFT LCD Display Screen	2.31"TFT    480(RGB)*234DOT   16M
Interface	External : TV out (NTSC/PAL,Mini USB) ; Mini USB ; SD card holder (SD card up to 32G) ; 6V DC Power Jack
Photo series	1 photo
	2 photo in series
	3 photo in series
Quantity of IR LED	27 pieces, 940NM
Range of IR flash	25m/80ft
Triggering distance	25m/80ft
PIR sensing angle	90°
Triggering time	0.2 - 0.6  seconds
Trigger interval	5 seconds-60 minutes/programmable
Video length	1s- 60s , 1m-10 minutes/programmable
Mode	Photo/Video/Photo&Video
Photo stamp	Date&Time/Date/Off
Time-lapse	On/off/time-lapse programmable
Periodic shot	0 second - 24 hours
Device serial no	4 digits or 26 alphabets set by user
Built-in microphone/speaker	Yes
Auto-distinguish images	Color images in daytime/black and white night images
Automatic screen saver	in 2 minutes

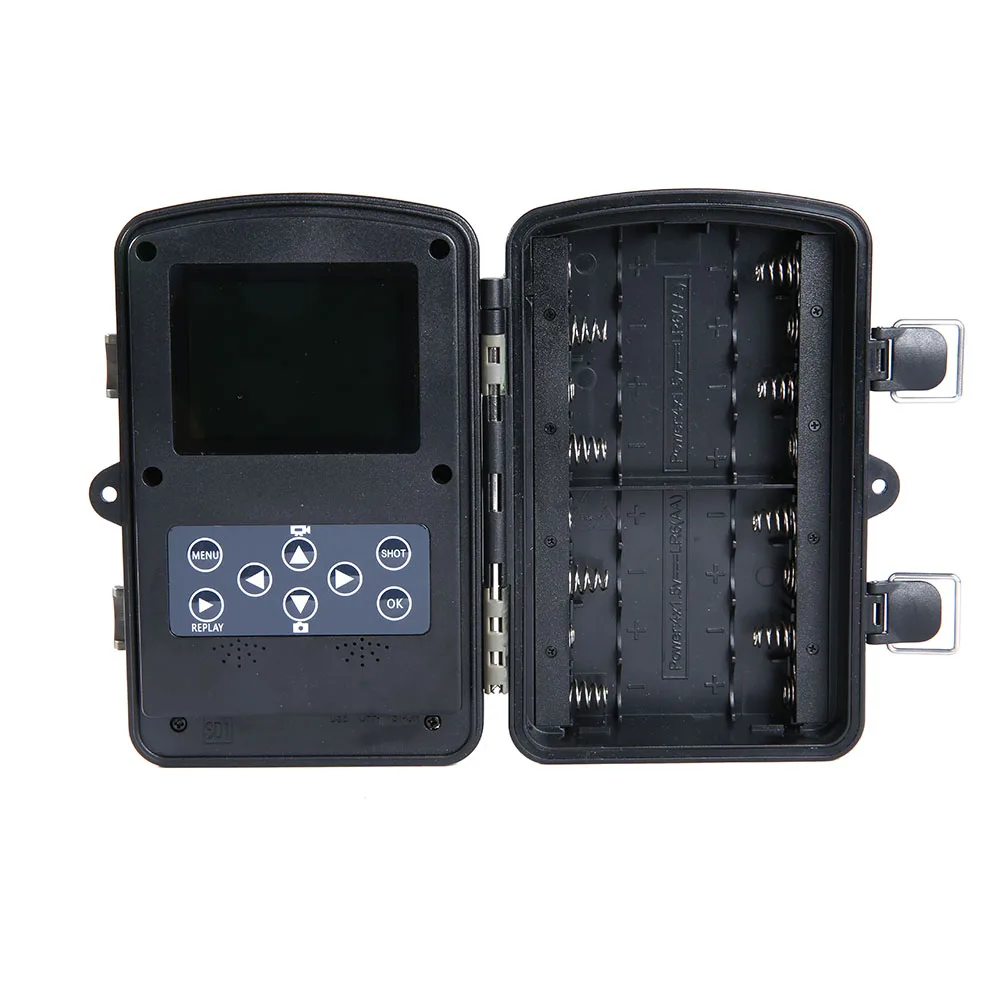

Power supply	4-8 pieces AA batteries/DC 6V -1.5A power adapter
Standby time	Approx 12 months
Lockable	Optional
Password protection	4-digit numbers
Waterproof standard	IP56
Operating temperature	-20 to 60°C
Operating humidity	5%-90%

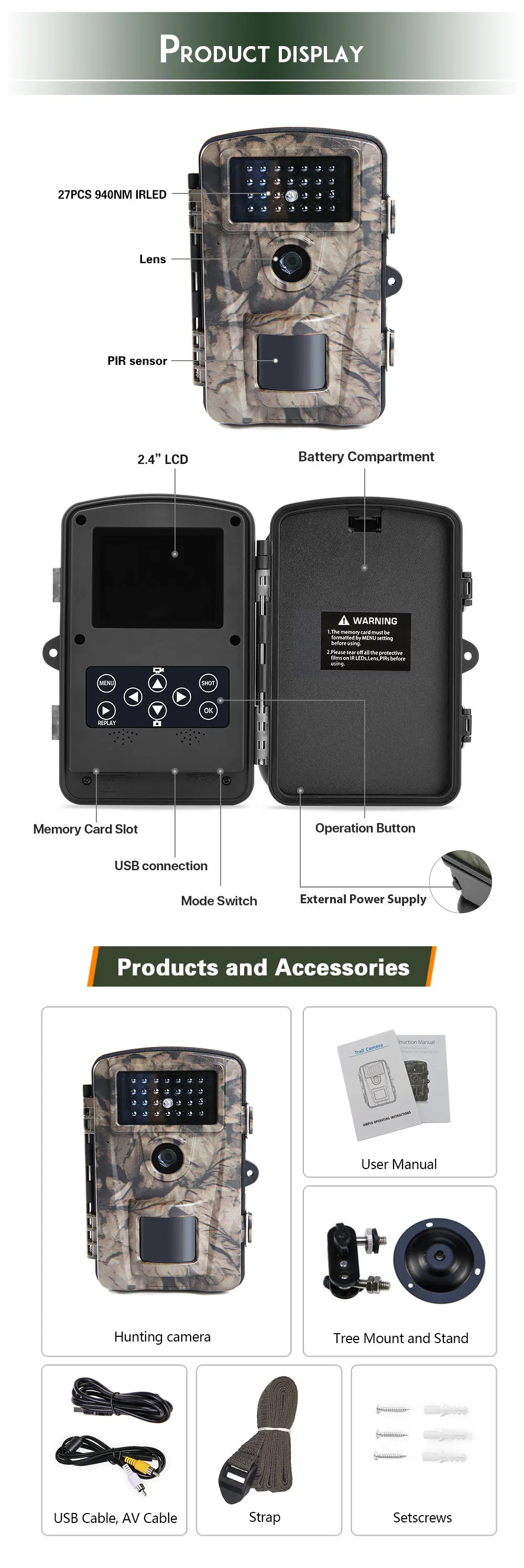

Accessory includes	Mini USB cable, Audio&Video cable , Iron bracket, Bandage, Setscrews, User manual
Camera dimension	136*98*76mm
Camera net weight	255G
Gift box size	180*122*104mm
Carton size and weight	20PCS/CTN, 37.5*31.8*43.5cm, 11.3KG
Certificate	CE, ROHS, FCC, WEEE



--------------------------------    FAQ    --------------------------------
Q: When I turn it on it starts counting down from 15 and then shuts off. Why?
A: Please complete all the setting in "TEST" mode and then change it to "ON" mode for working. The LCD screen will count down from 15s and then shuts off to save the power and enter into detecting condition, during recording, no any button can work, any setting or operations must be done in "TEST" mode.
Q: The camera makes some clicking sound when it's working.
A: When the camera detect a critical point of brightness and darkness, the IR CUT will try to switch, please move the lens to a brightness or darkness, it will stop switching and making clicking sound.
Q: How can I format my SD card?
A: Please Kindly format your SD card by going to "TEST" mode, click "MENU"-"Setting"-"Format memory card".
Q: The camera won't turn on.
A: Please check the battery if it was installed properly in a correct way, if you want to test the camera, make sure the switch is on the "TEST" mode (center). Also check the battery if it is in a power conditioned.
Q: The buttons are not working.
A: Please try to switch off again the camera and turn it on again. If the problem stays, try to Reset the camera to default factory settings.
Q: It said SD card is Error.
A: Upload the SD card. Please format the SD card at the first time of use, make sure it's unlocked. Also, make sure that the SD card is new and have enough storage available.
Q: The image is not clear.
A: Please make sure that you remove the screen film protector from the factory to obtain clear images. Clean the lens with soft and dry fabrics.
Q: I did not get any good capturing results./Too many useless images
A: Please check the sensitivity of your PIR sensors, as this function may responsible about capturing methods.
Q: I can't close the inner compartment.
A: Please make sure that the closing parts has no dirt or any small things blocking on it or it was not broken.
Q: Can't recognize by the computer.
A: Make sure that cable connector is working fine, no cuts and opening to avoid malfunctions.
Q: Photos do not capture subject of interest.
A: There are the result of placing the camera in an environment where there is motion associated with tree branches creating motion or an area where there is high heat in the foreground and any motion from wind. Setting a camera up over water is also a potential cause from this issue. To remedy this situation:
1.Try moving the camera to an area that does not have any of these issue.

2.If the camera continues to take images of no interest subject, try placing the camera in an inside environment and aiming at a location where there is no motion.

3.If the camera continues to show issues, please contact our customer service.
Q: Battery life is shorter than expected.
A: 1. Battery life will vary with operating temperature and the number of images take over time. Typically, the camera will be able to capture several thousand images before the battery die.
2. Check to make sure you have used new alkaline batteries.
3. Make sure that the power switch was turned to ON position, not in the TEST mode.
Q: Camera won't take images.
A: 1. Please make sure that the SD card is not full. If the card is full, the camera will stop taking images.
2. Check the batteries to make sure that they are new alkaline.
3. Make sure that the camera power switch is in the ON position, not in OFF or TEST modes.
4. If the SD card has its write protect switch in the lock position, the camera will not take images.
5. If you have used an SD card in another device before, you might try to format the card before using.
Q: Camera won't power up.
A: 1. Make sure that you have installed at least a full set of 4 batteries in correct position.
2. Make sure that the batteries are installed correctly, observing proper polarity.
3. After moving the switch from OFF to TEST or ON, make sure that the switch is correctly in position to ensure the proper mode.
4. Don't move the switch directly from ON to TEST, always move the switch all the way down to OFF first, then back to TEST.
Q: Date/Time Stamps not appearing on images.
A: Make sure that the time stamp parameter is set to "ON"
Q: PIR Sensor LED Flashes/Doesn't Flash.
A: 1. When the camera is in the TEST mode, a special LED on the front of the camera will flash when it senses motion. This is for setup purpose only and will help the user aim the camera.
2. During use, the LED will not flash when the camera takes an image. This is to help keep the camera hidden from game.
Q: Camera won't retain settings.
A: Make sure that you have been saving the changes to any parameter settings that you made while in Setup mode, by pressing OK after changing the setting.
Q: Moisture or Ants inside Camera.
A: 1. To ensure humidity or rain is kept out of the camera secure the DC in plug firmly in place.
2. Ants can be attracted by low level electronic vibrations, and enter through any gaps between the exterior and interior of the camera. Make sure the DC in plug is securely attached.
Q: I tried all the suggestion but it doesn't help at all
A: Please contact our after sales department by email or call.
