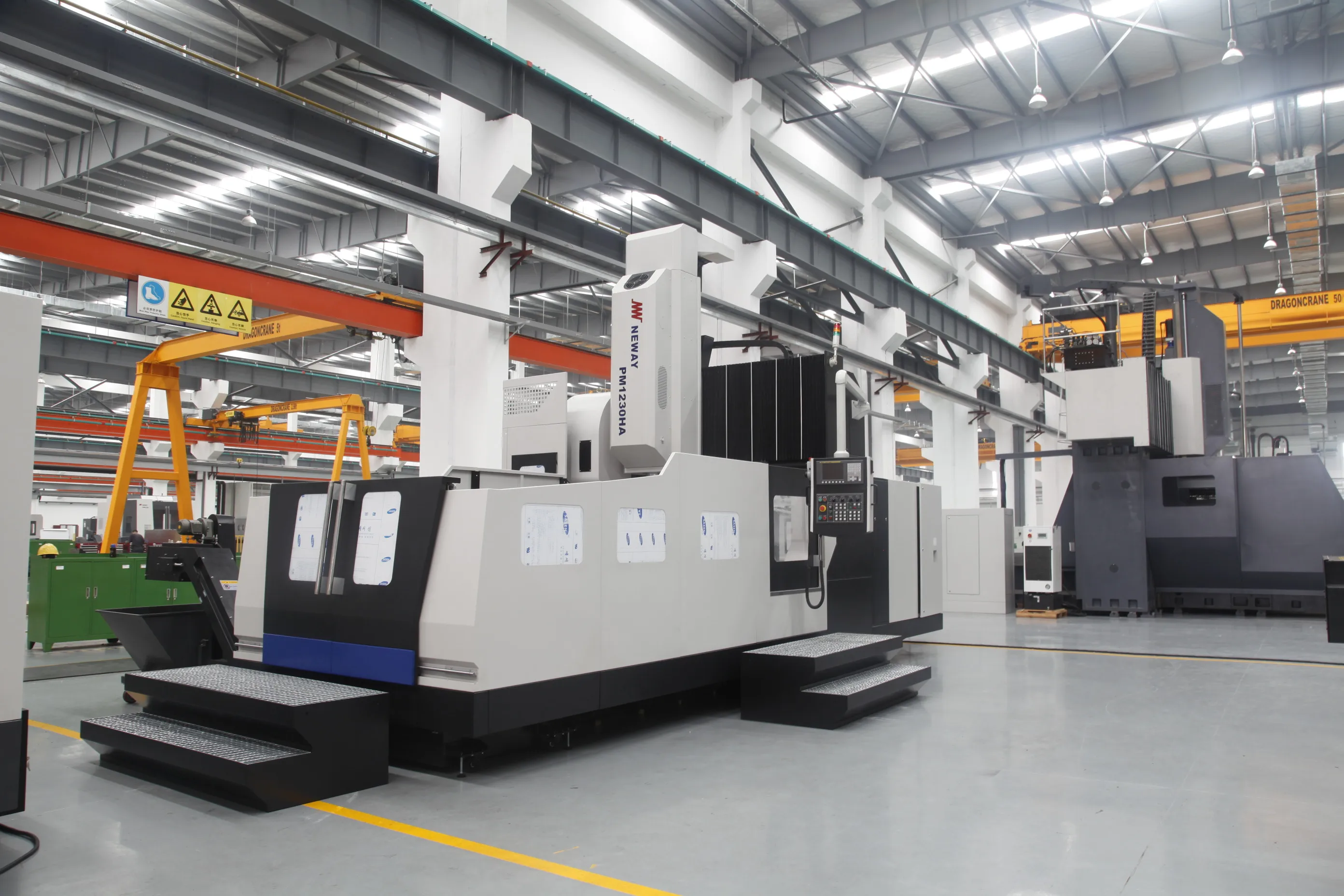

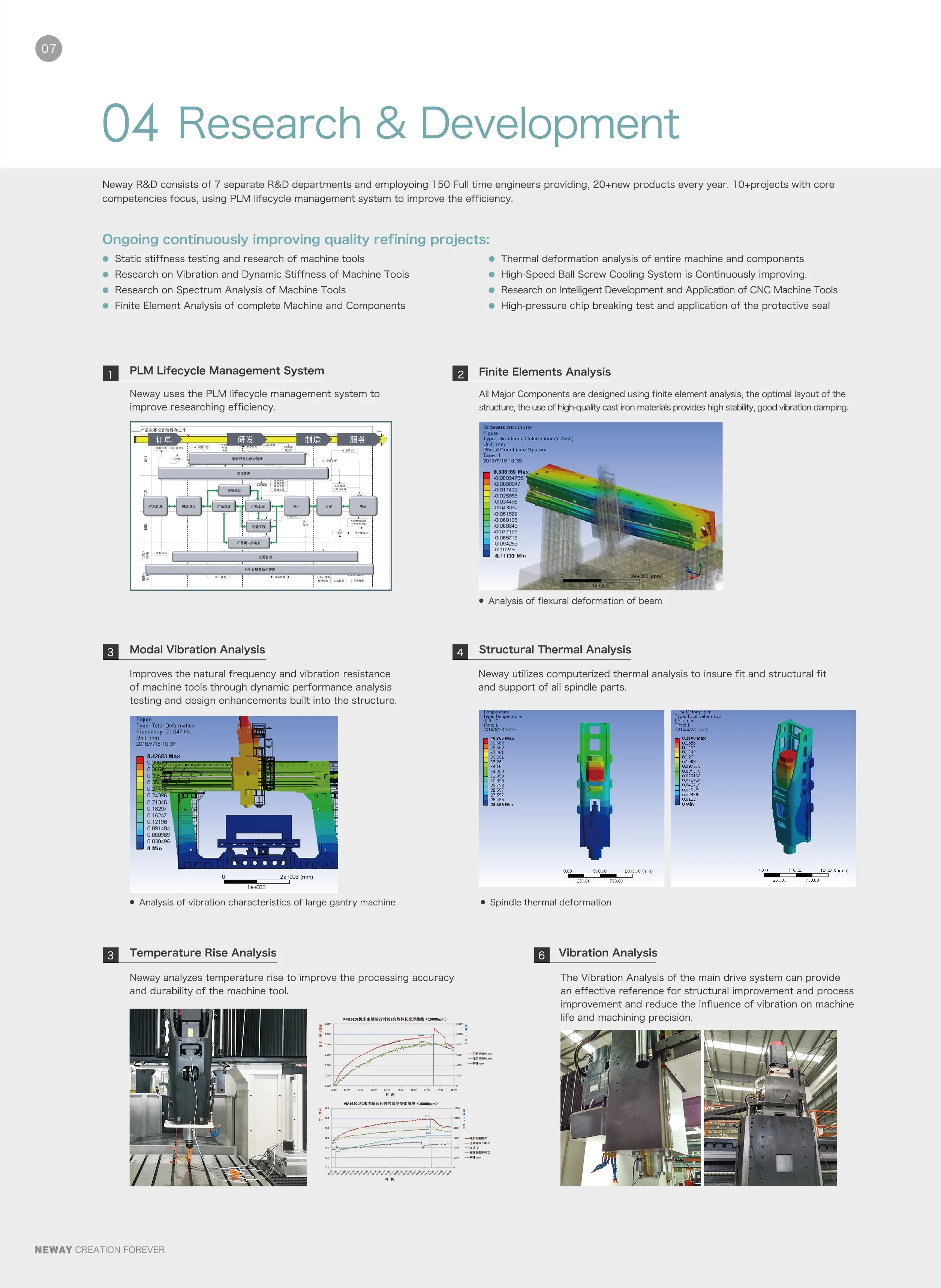

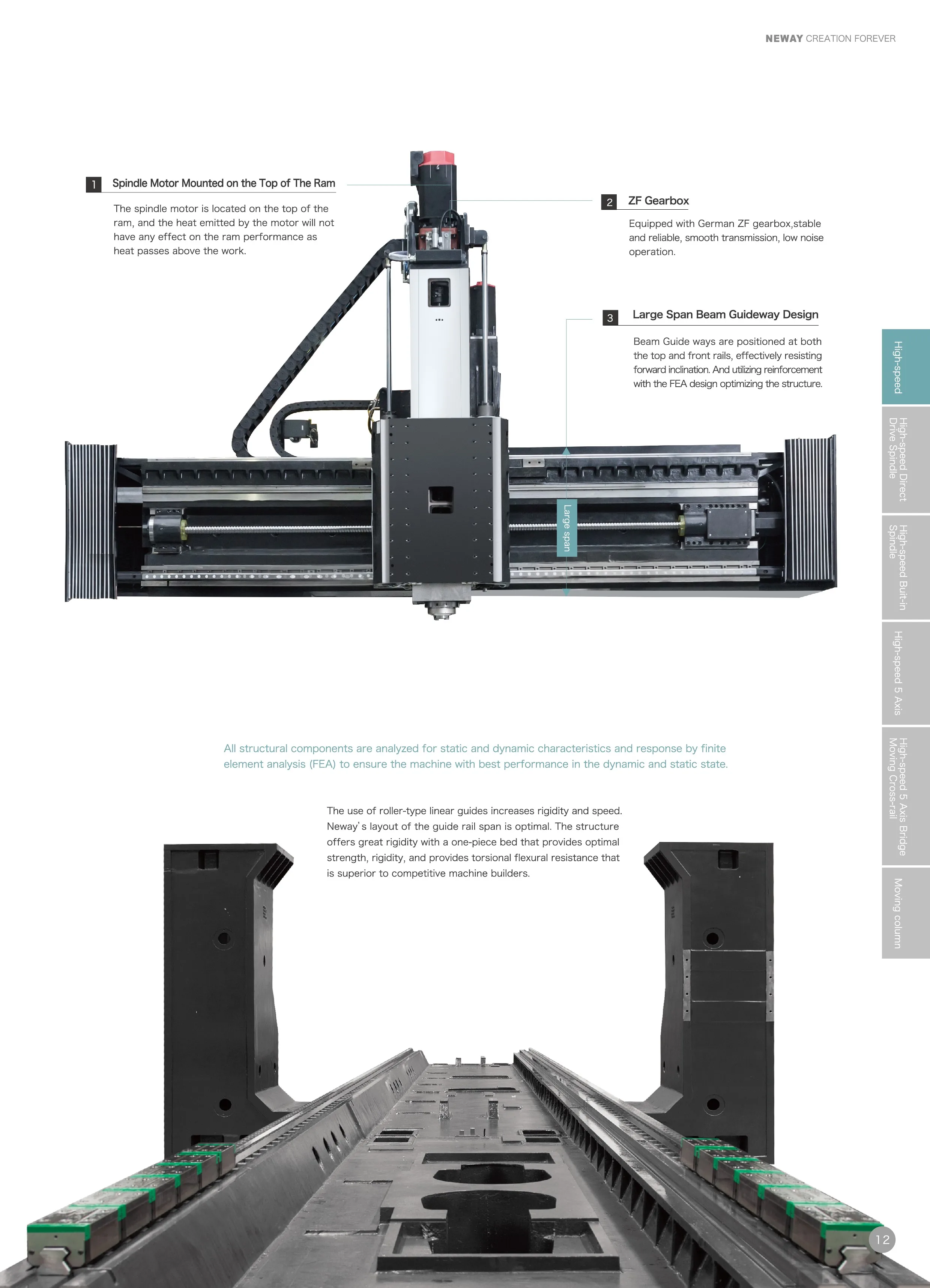

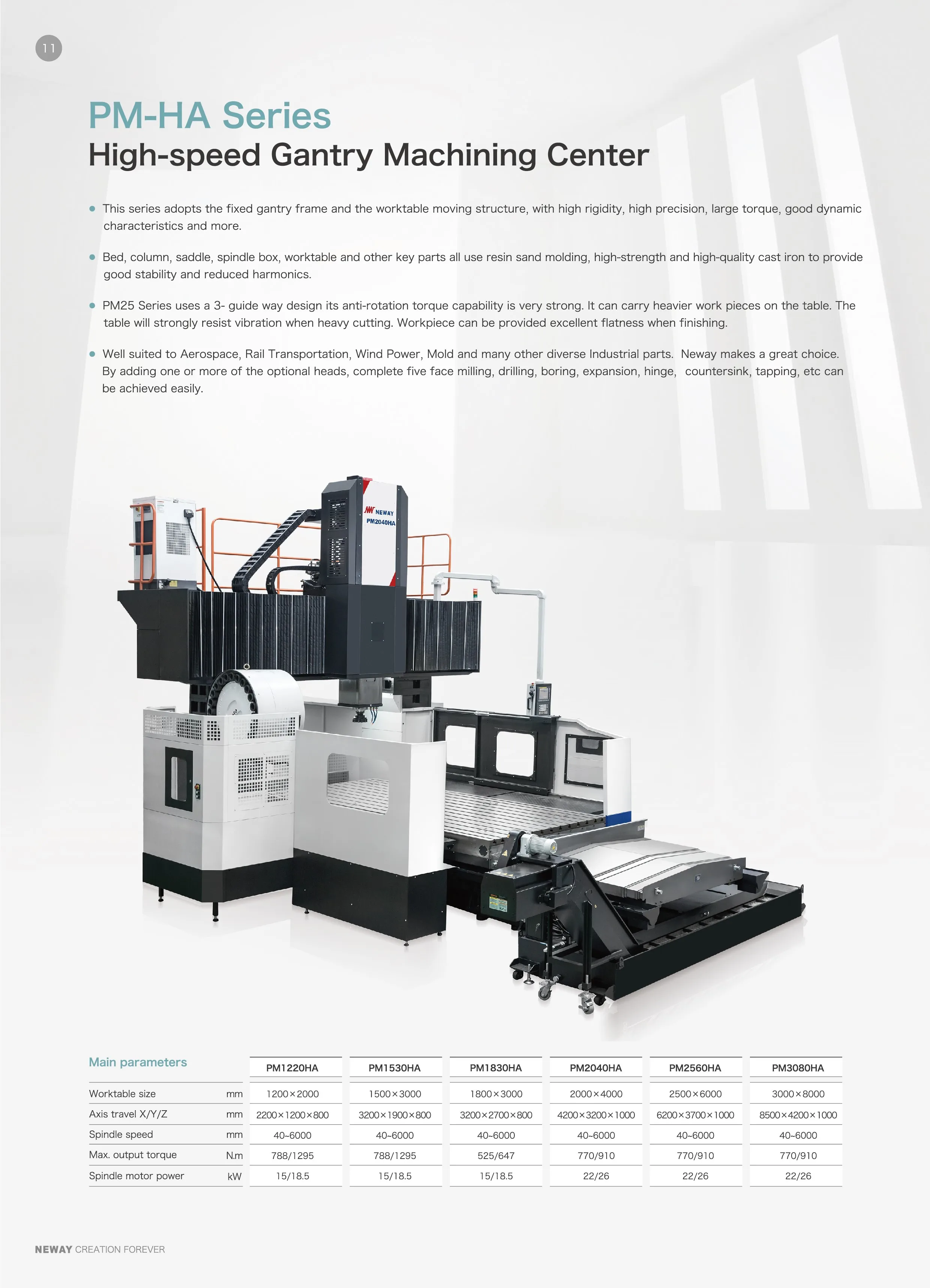

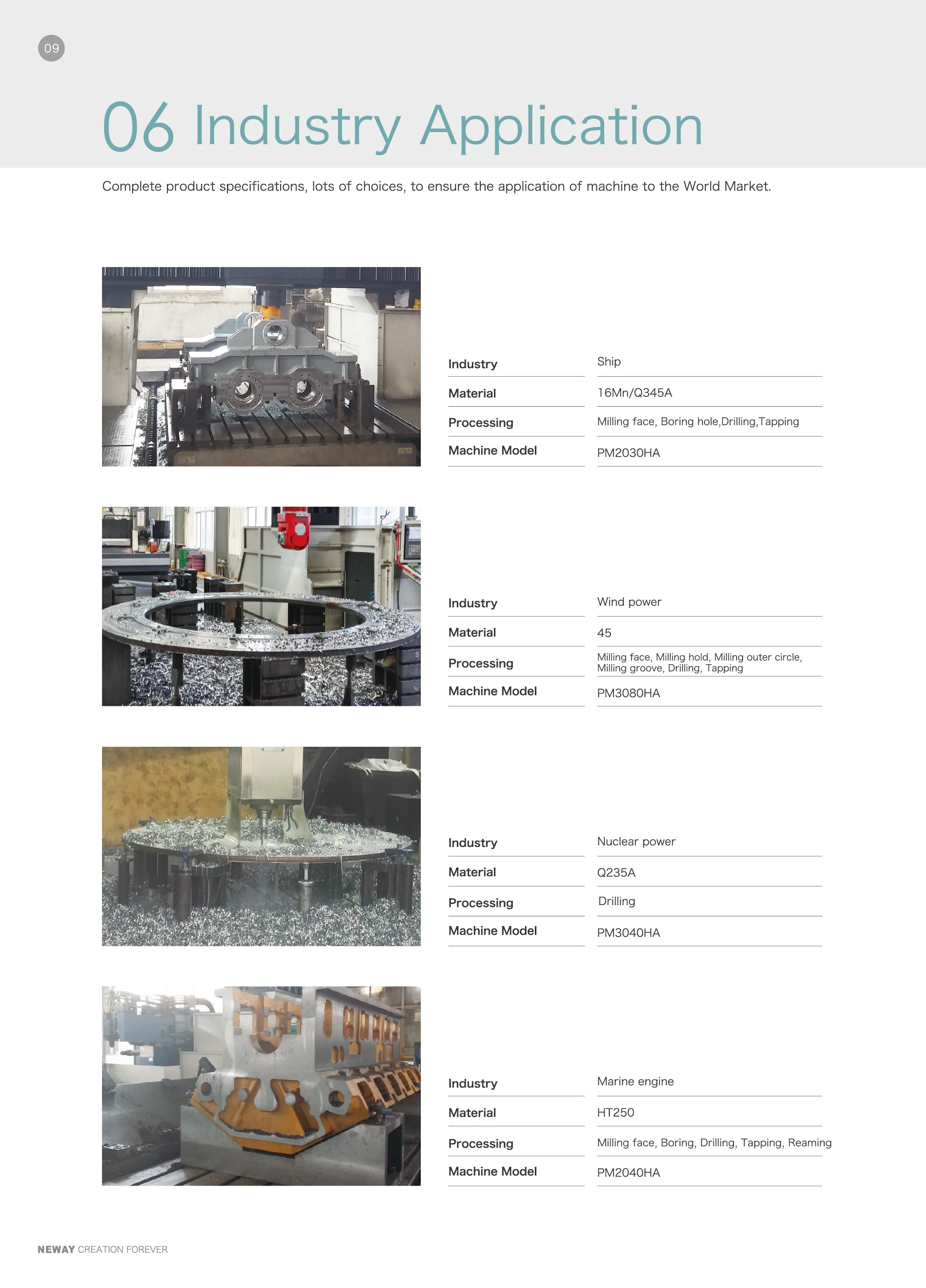

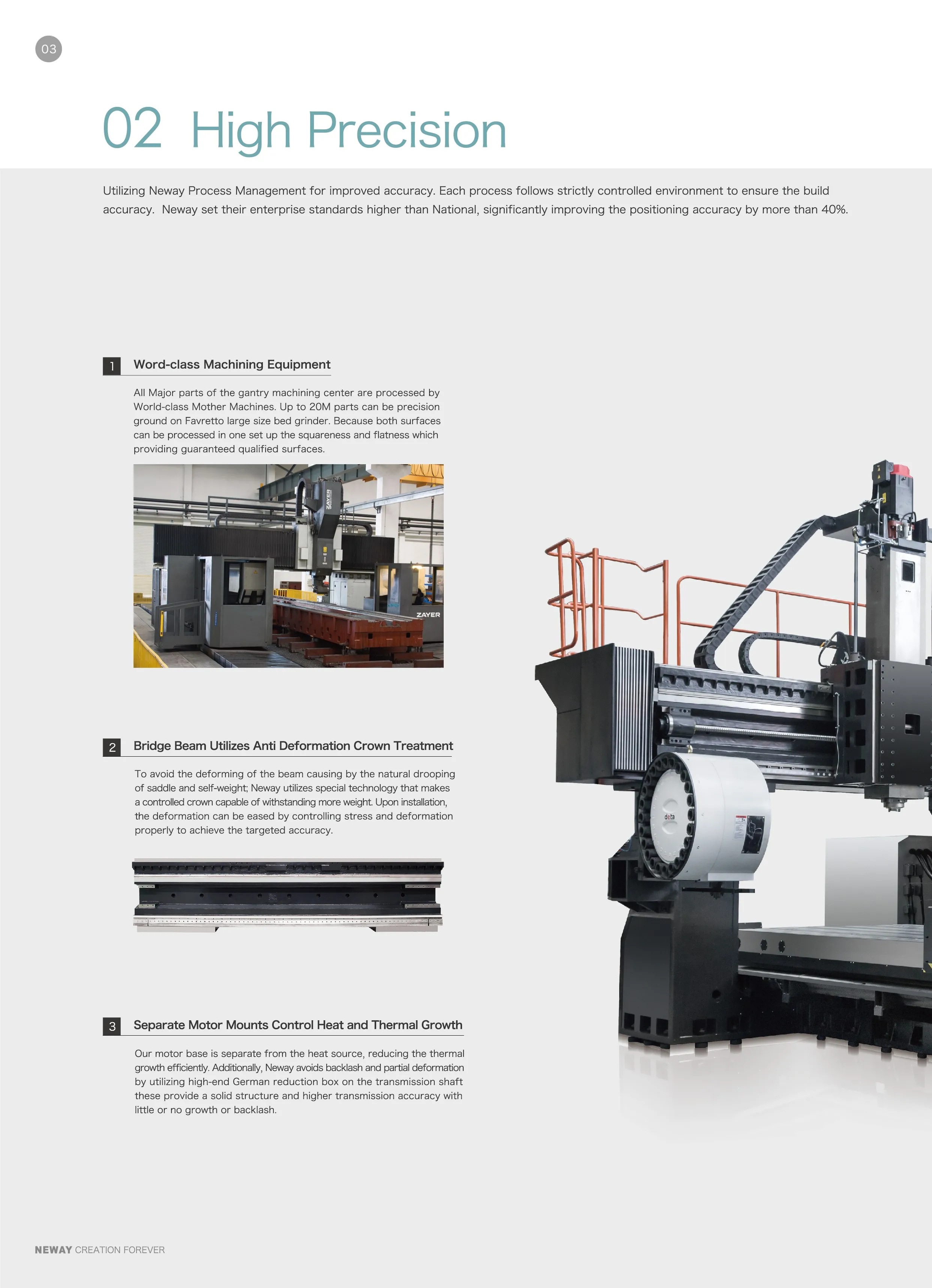

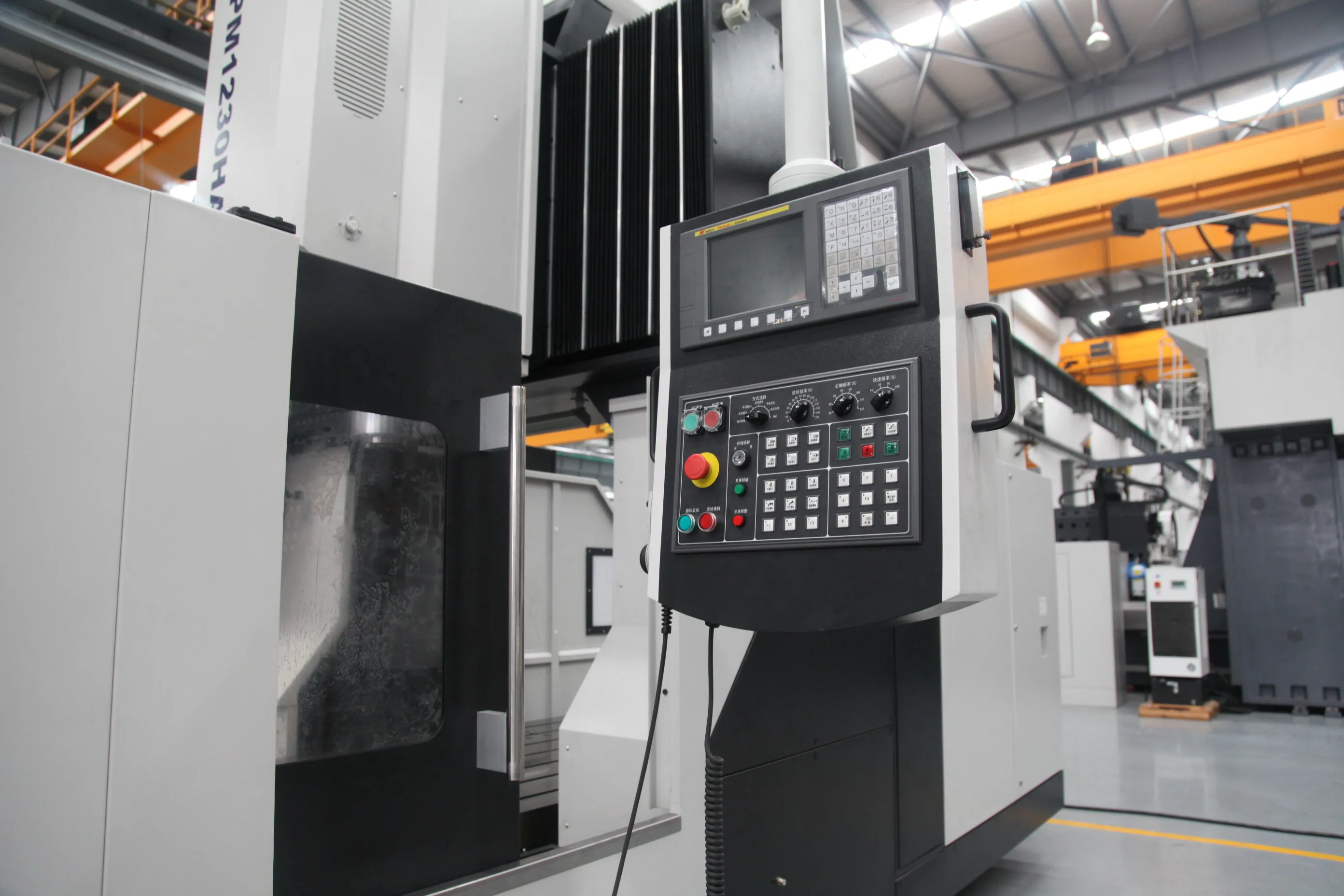

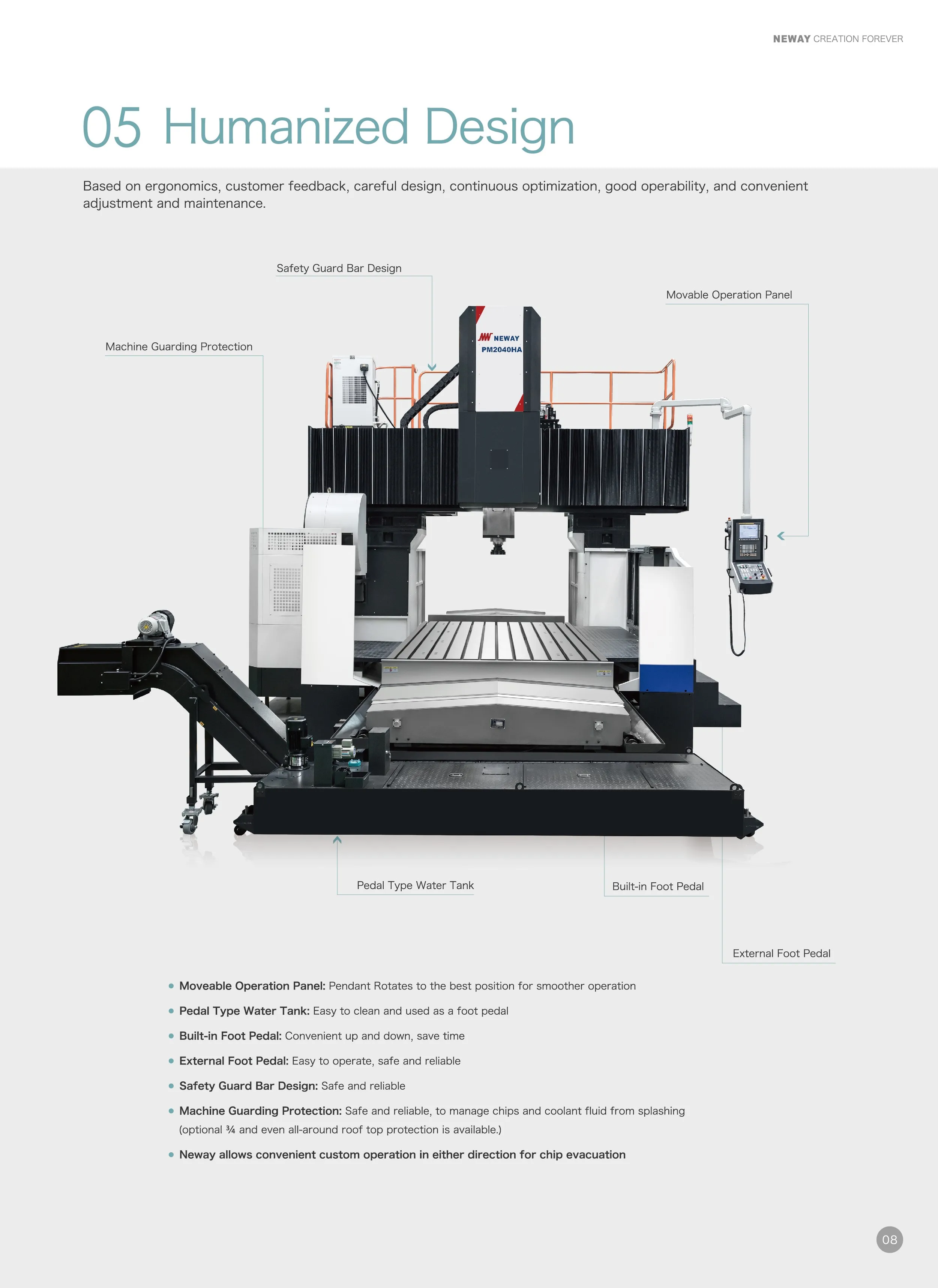

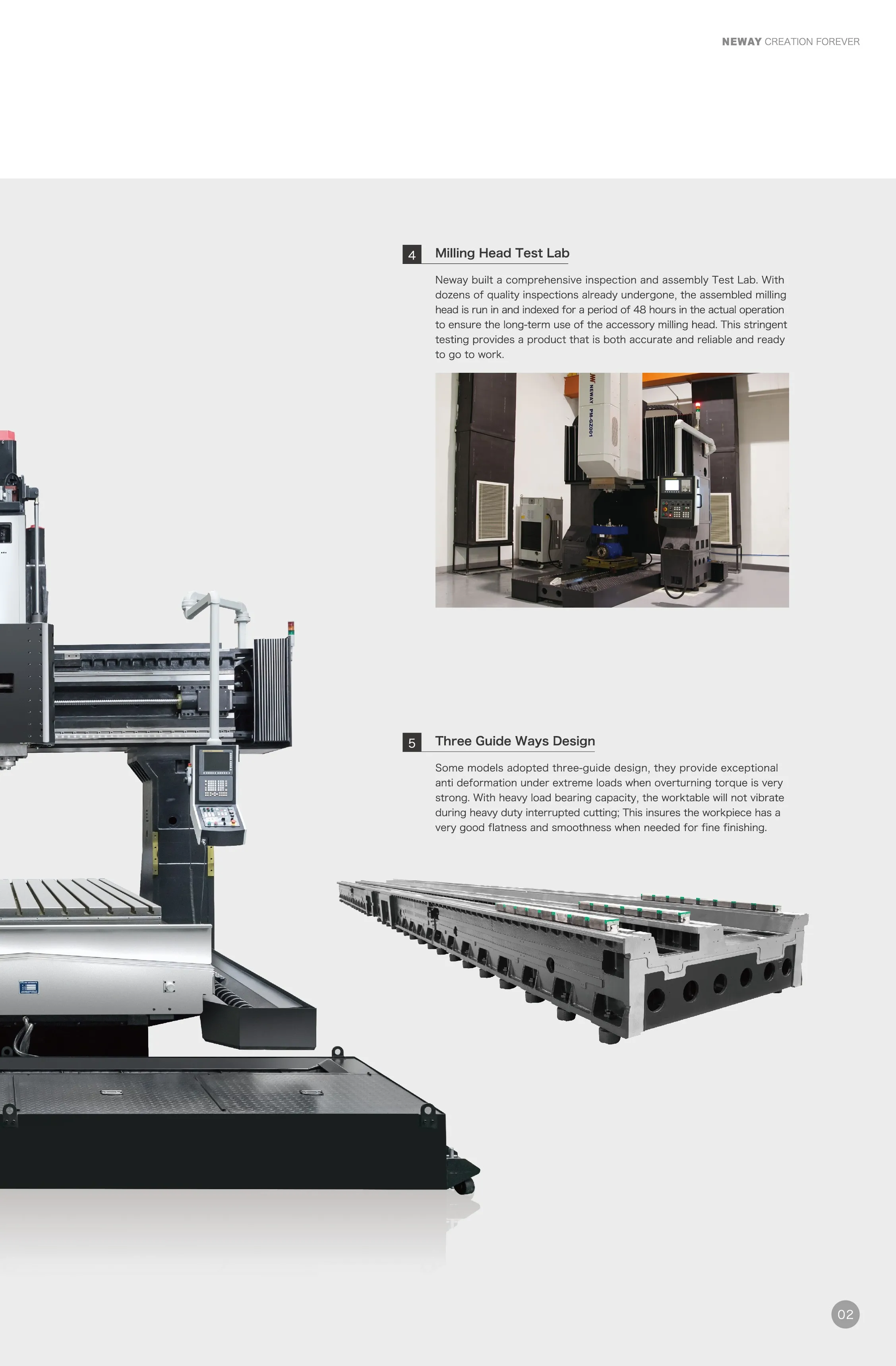

Neway CNC gantry milling machine machining center PM1230HA

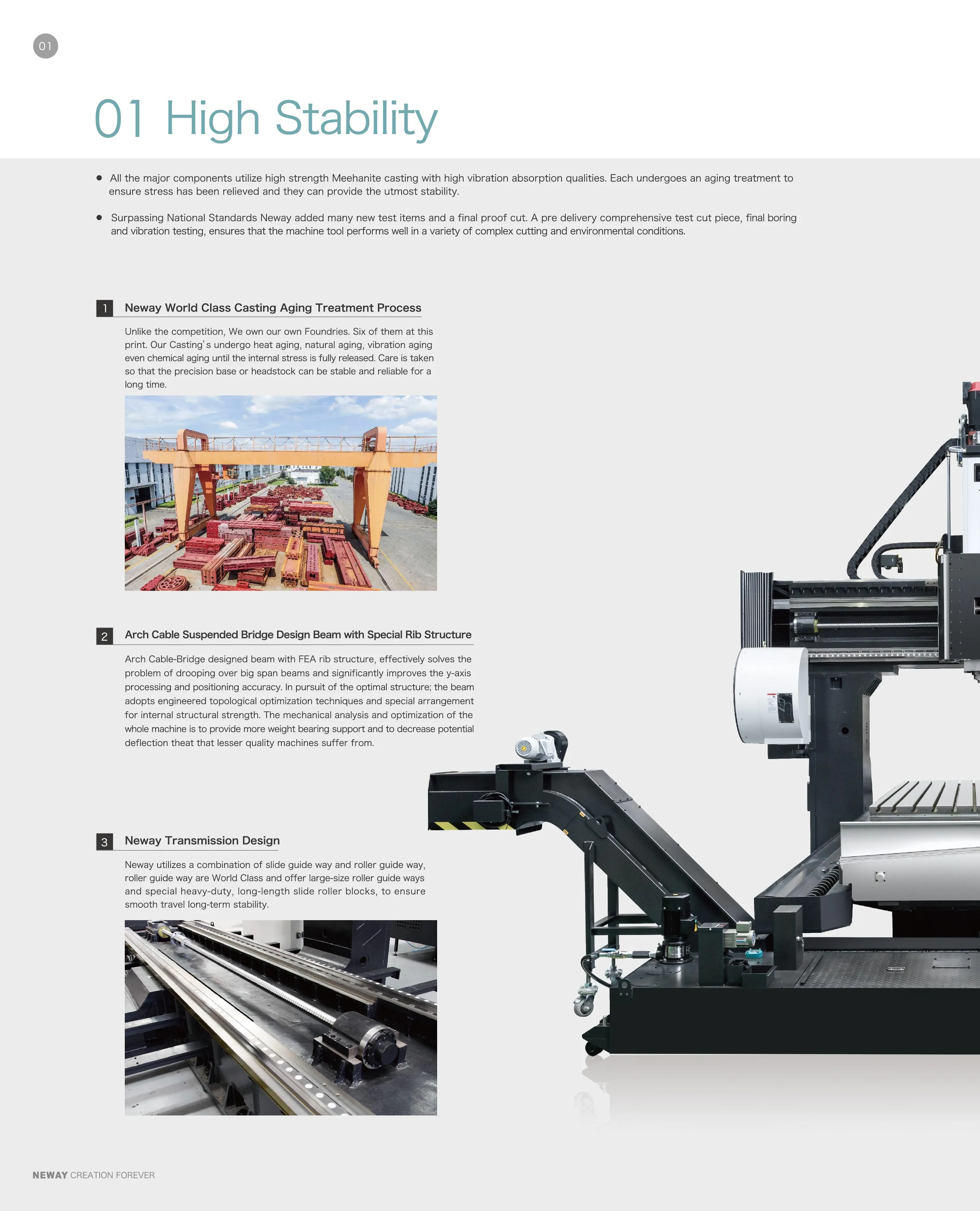

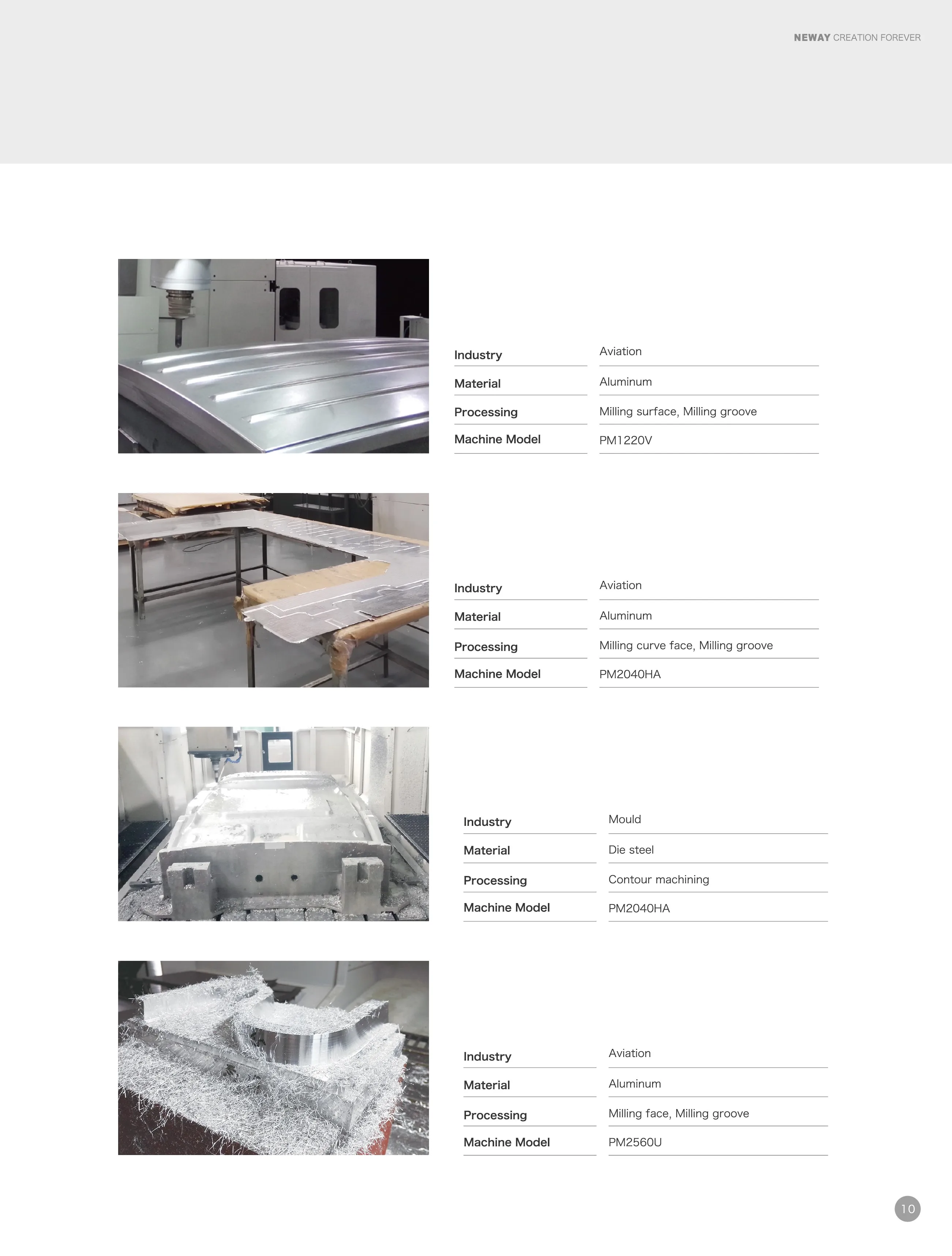

SPECIFICATIONS:

l   CAPACITY

Worktable travel (X axis)

3200mm (126”)

Saddle travel (Y axis)

1200mm (47.2”)

Spindle travel (Z axis)

       800mm (31.5”)

Distance from spindle nose to worktable

200—1000mm (7.9” to 39.4”)

Table height from floor

              830mm (32.7”)

Distance between columns

       1400mm (55.1”)

l   GUIDE WAY

X guide way span

640mm (25.1”)

Y guide way span

720mm (28.3”)

Z guide way span

450mm (17.7”)

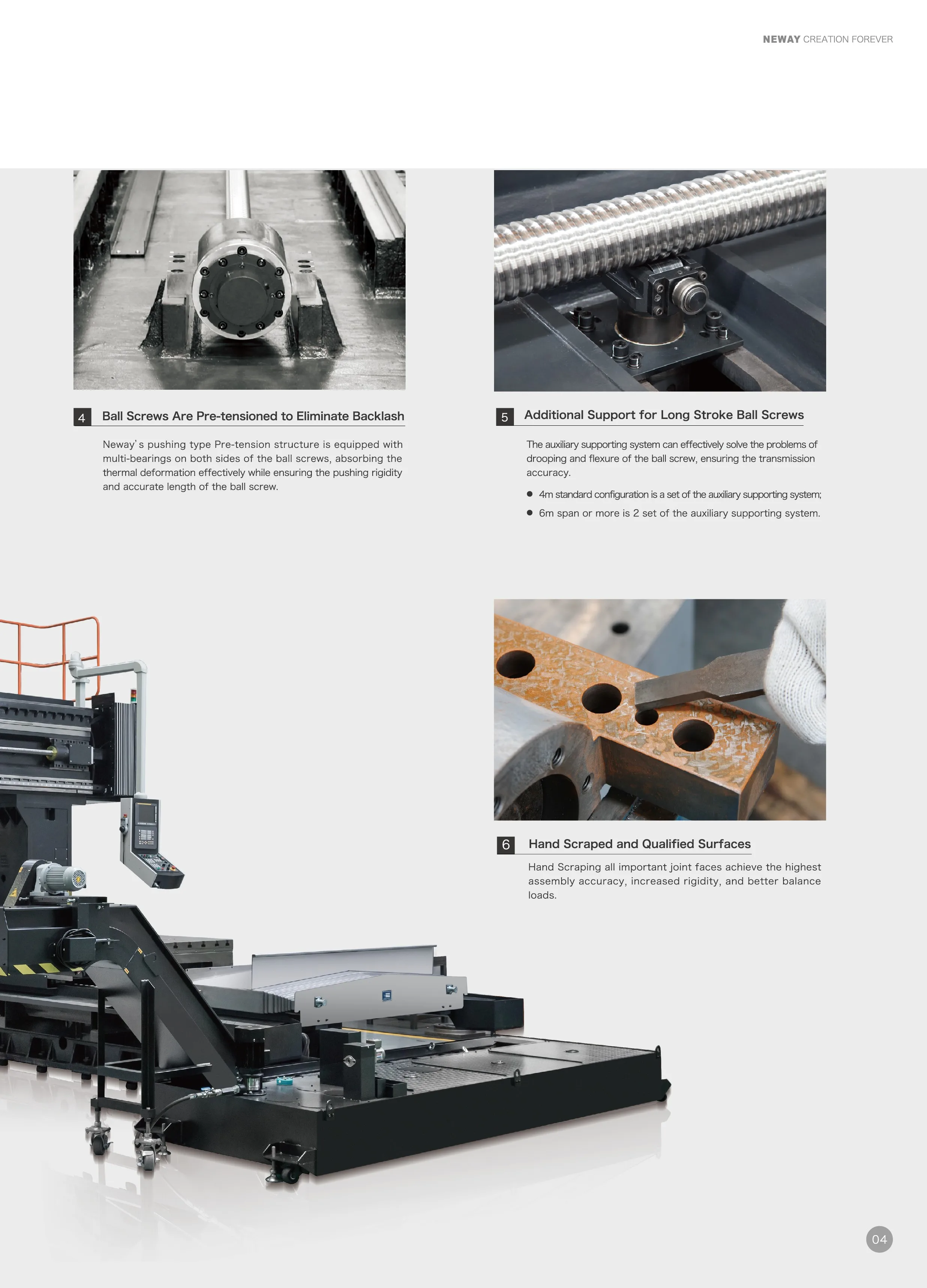

l   BALL SCREW

X ball screw

40x16mm (1.6”x0.6”)

Y ball screw

40x16mm (1.6”x0.6”)

Z ball screw

40x10mm (1.6”x0.4”)

l   DRIVING MOTOR

X motor and torque

3KW/36Nm

Y motor and torque

3KW/20Nm

Z motor and torque

3KW/27Nm

l   MOTION:

X axis rapid traverse rate

15 m/min (590 IPM)

Y Axis rapid traverse rate

24 m/min (945 IPM)

Z axis rapid traverse rate

       15 m/min (590 IPM)

Cutting feed rate

1 - 6,000 mm/min (.04 – 236 IPM)

Least command

       increment      0.001 mm (.0001")

Positioning accuracy

0.017/0.012/0.012mm

Repeatability       0.006 mm

0.012/0.008/0.008mm

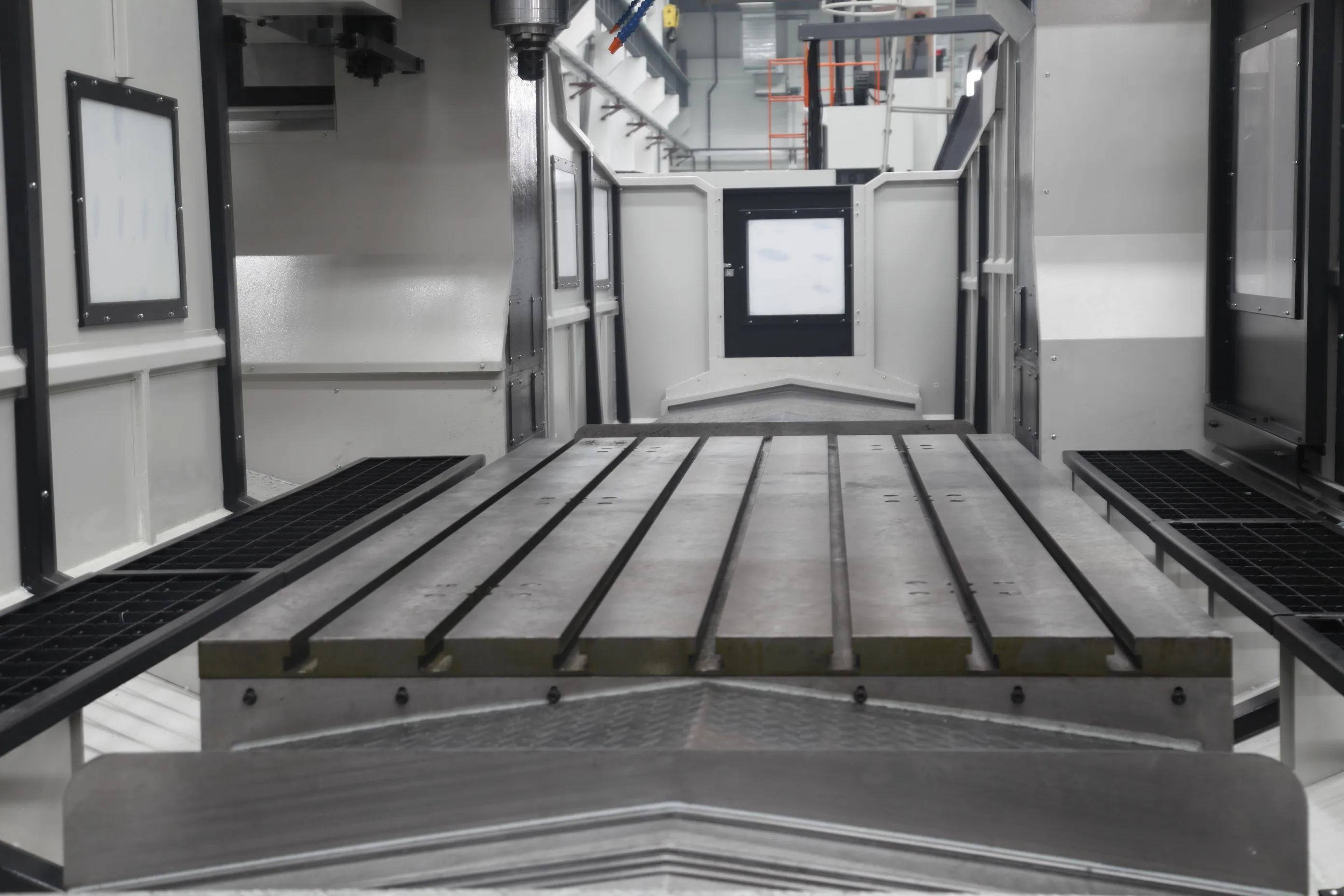

l   WORK TABLE:

Table size

1200X3000mm (47.2”X118”)

Max. table load

5500kg (12125lds)

T-slots (width X space X number)

22mmX160mmX7 (0.9”X6.3”X7)

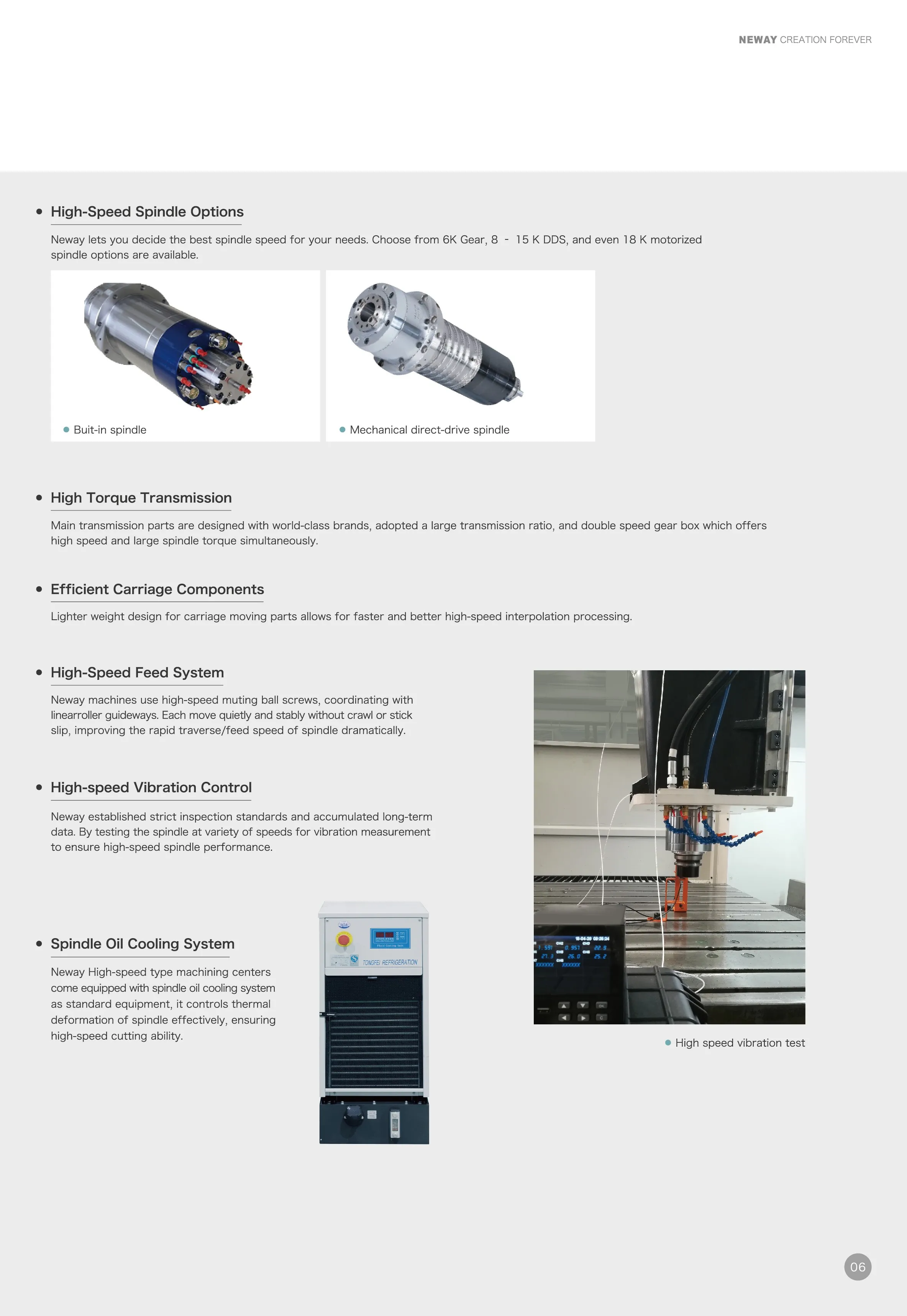

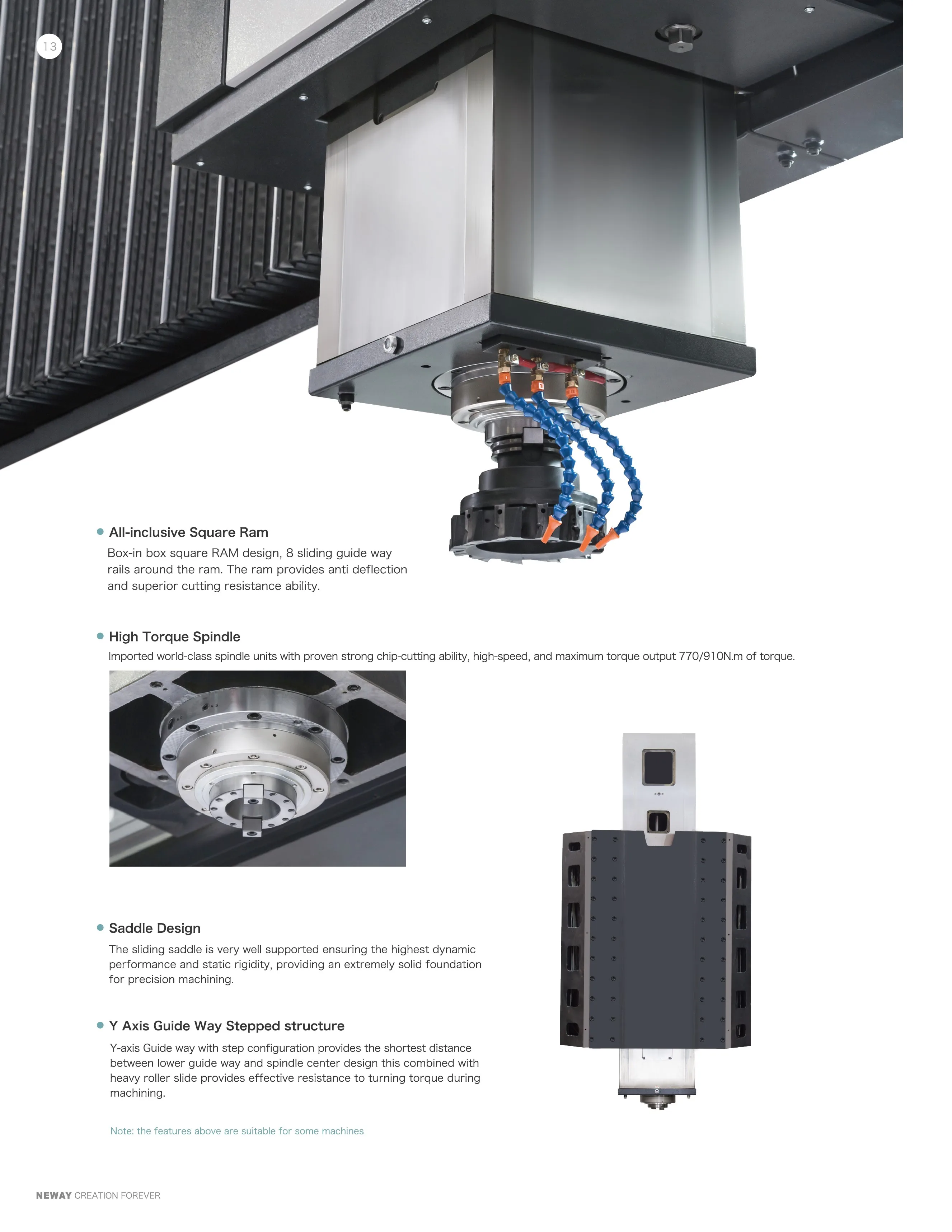

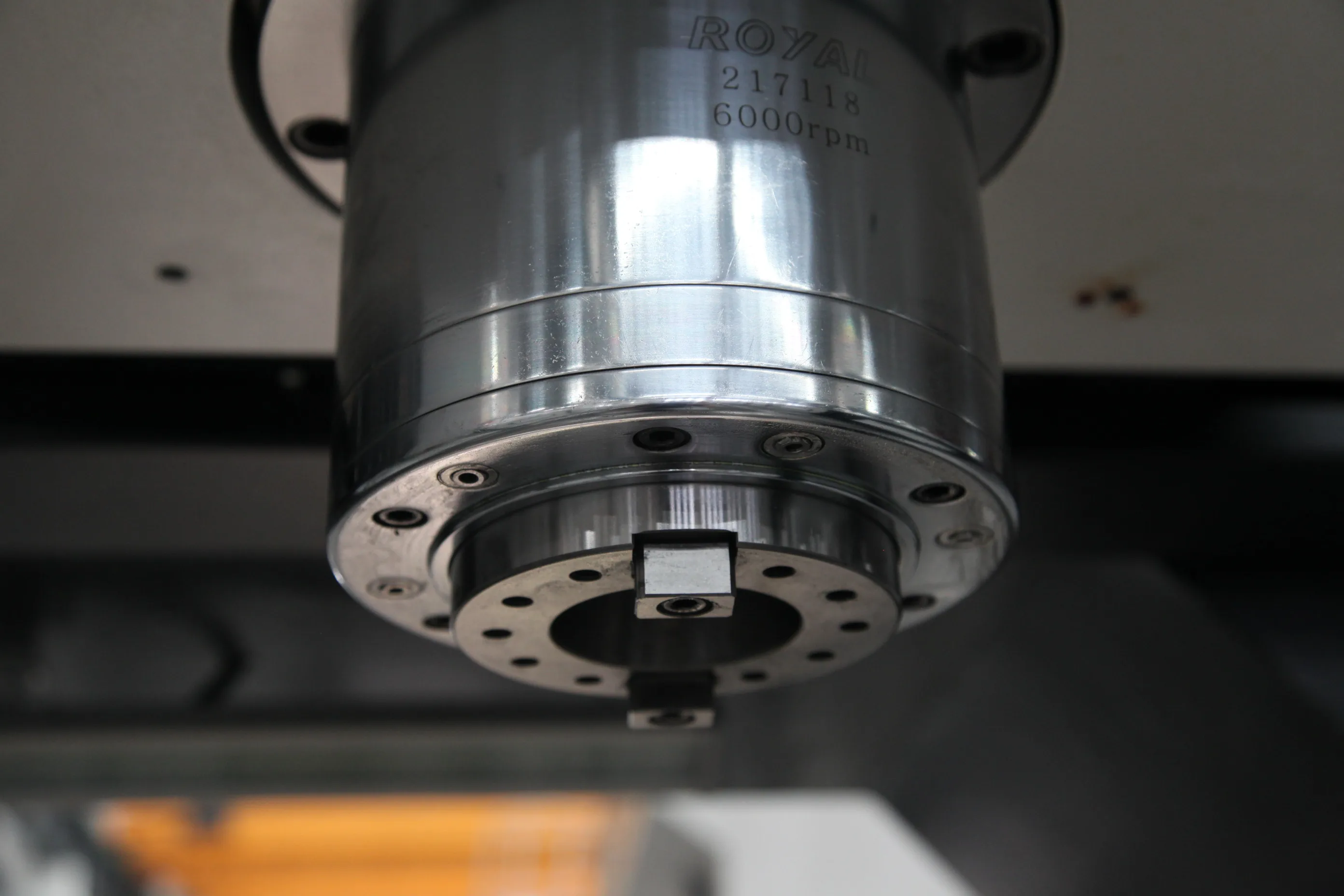

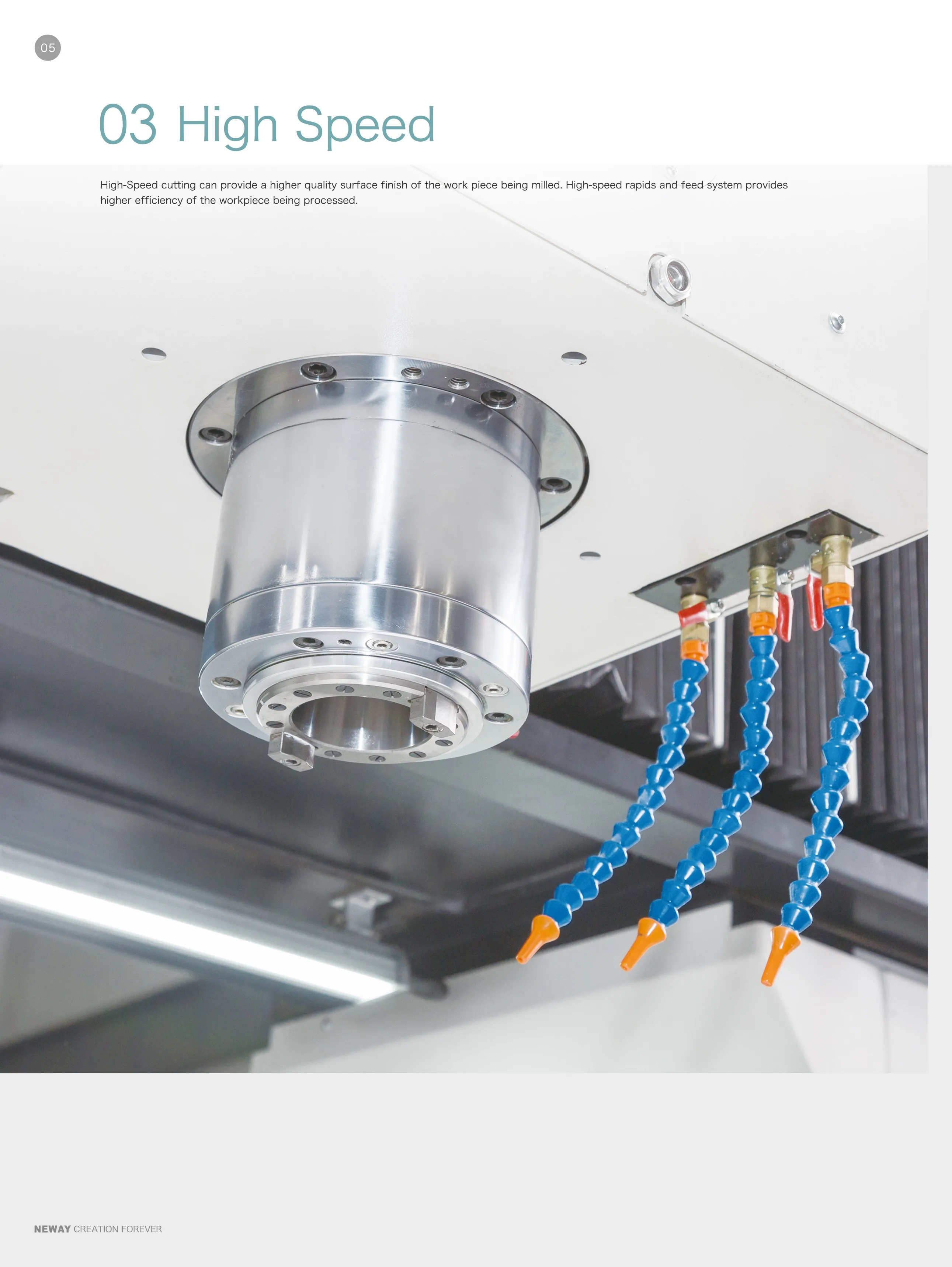

l   MAIN SPINDLE

Tool shank

       BT50 (or CAT50)

Pull stud

P50T-1 (MAS403)

Spindle speed

40-6000rpm

Max. output torque

788/1295 N.m (582 lb-ft / 956 lb-ft)

Spindle motor power

15/18.5kW (20/25HP)

Spindle box section

400mmX320mm (15.7”X12.6”)

Transmission

2-speed gearbox

Retention System

Beveled springs

Counter weight system

Hydraulic cylinder with nitrogen control

Spindle Orientation

       By sensor

l   AUTOMATIC TOOL MAGAZINE

Tool capacity

       24 tools

Tool shank

       BT50 (or CAT50)

Max. tool diameter

110mm (4.3”)

Max. tool length

350mm (13.8)

Max. tool weight

15kg (33lb)

Max. tool diameter (without adjacent tools)

       200mm (7.9”)

Tool change time (tool to tool)

2.5 seconds

Tool Selection

Random

Tool Access

Bi-directional

Min. Air Requirement

80psi

l   GENERAL

Machine gross weight

23000kg (50706 lb)

Floor space (L x W X H)

9600x5500x4500mm (378”X216”X177”)

l   UTILITY:

Power required

40 kVA
