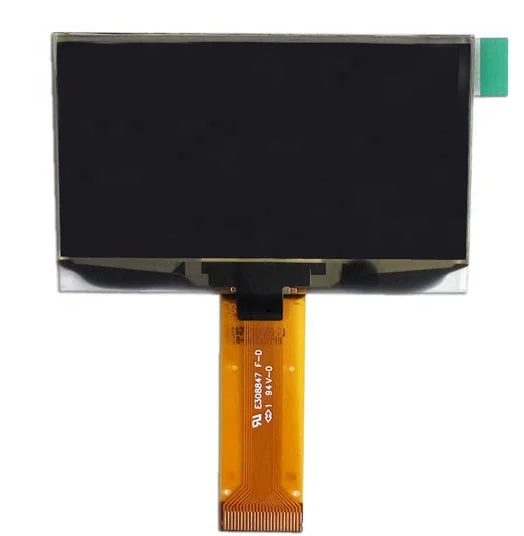

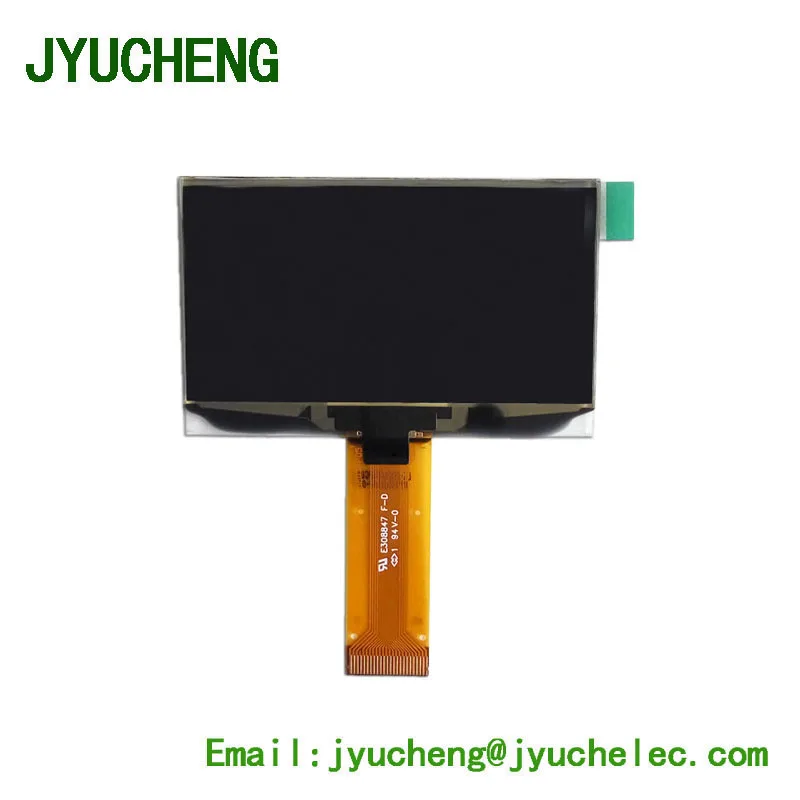

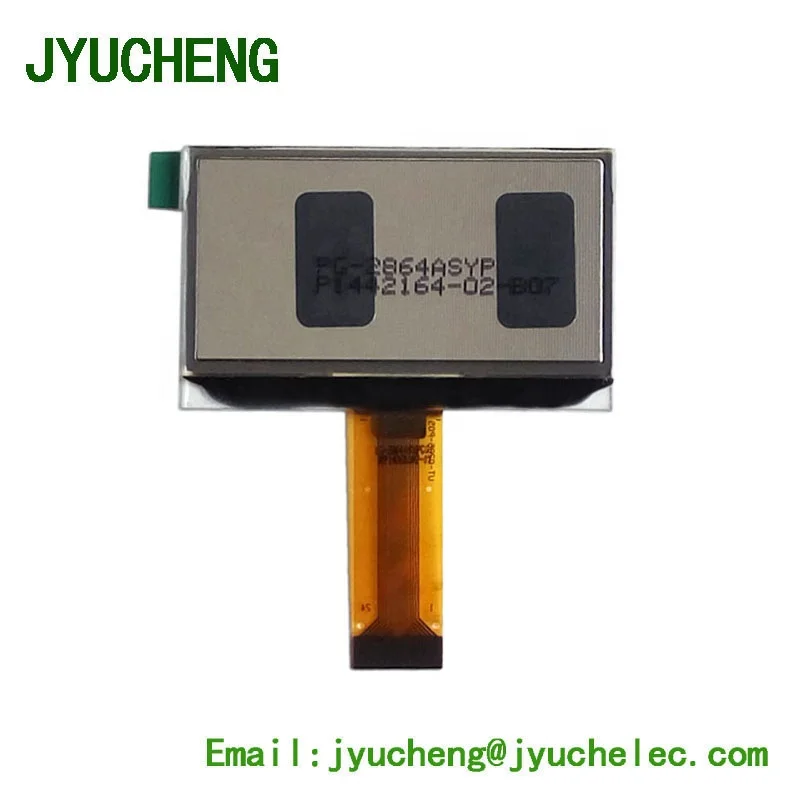

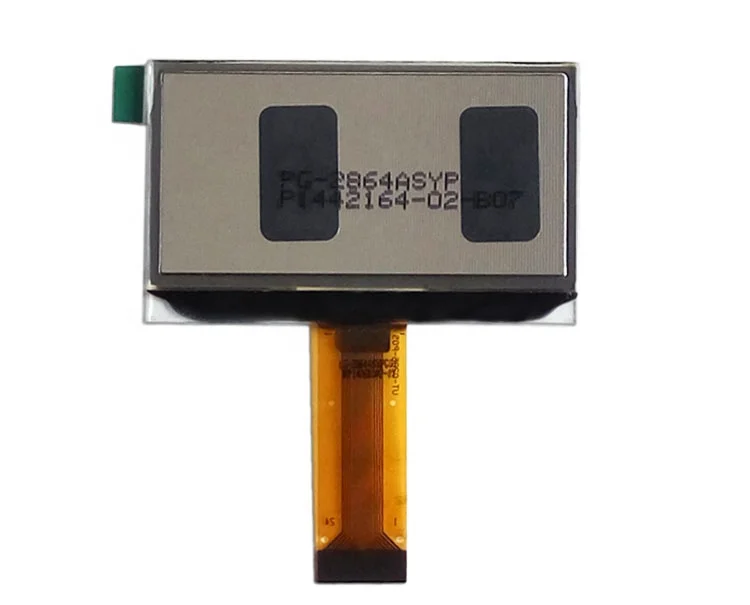

2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
- Category: >>>
- Supplier: Shenzhen Jiayucheng Technology Co. Limited
Share on (62013893087):
Product Overview
Description
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
24pins 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
24pins 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
24pins 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display Product Description
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
High Contrast Ratio(10000:1)
Free Viewing Angle
Fast Response Time (<= 10μs)
Thinner & Lighter & Durable
Wide Operation Temperature (-40~85℃)
No need of backlight, self emitting
Apply to most products from any area.
Trend of Displays
Leading the green vision
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
2.4-in
ch OLE
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display D display 128 *64 monochrome OLED display ultra-thin LCD OLED screen
Specification
| Diagonal Screen Size | 2.4" | |||
| Number of Pixels | 128×64 | |||
| Color Depth | Monochrome:(White/Yellow) | |||
| Module Construction | COG | |||
| Panel Size(mm) | 60.5×37.0×2.0 | |||
| Active Area (mm) | 55.01×27.49 | |||
| Pixel Pitch (mm) | 0.43×0.43 | |||
| Pixel Size (mm) | 0.40×0.40 | |||
| Weight (g) | TBD | |||
| Duty | 1/64 | |||
| Brightness(cd/m2) | 90 (Typ) @ 14V | |||
| Interface | Parallel,4-wire SPI,I2C | |||
| Assembly | Connector | |||
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
Payment
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
Payment term: T/T before shipment. SP 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display oled module
We accept payment via the Paypal /Western union/TT, you can choose as you like.SP 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display oled module
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
Shipment term: Ship via DHL, FEDEX, UPS, EMS express, depends on customer's requirement.2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
1.We will send the goods within 2 days after buyer's payment. 02.42 inch SSD1309 24pin 128 *64 monochrome OLED display
2.We will responsible for the China customs declaration and buyer should be responsible for th e destination customs declaration.2.42 inch SSD1309 24pin 128 *64 monochrome OLED display original 0.69 inch 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
3.Express shipping usually take 3-5working days to reach your end depends on the country de liver to. We will provide the track number to you when we send the products out. oled module2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
4.If any other shipping ways you preferred, please let us know and we will use your way if avail able. We will provide the track number to you also when we send the products out. oled module
5.Please double check the ADDRESS carefully when processing order. 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display oled module
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
SPI2.42 inch SSD1309 24pin 128 *64 monochrome OLED display 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
oled module2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
Warranty
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
1.Our side always double check all the products before delivery to make sure correct.oled module
2.All components we sell has 30 days return policy from the day of shipment, but if the damag e is man-made, we will be unable to change for you.0 IIC 2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
oled module
2.42 inch SSD1309 24pin 128 *64 monochrome OLED display
