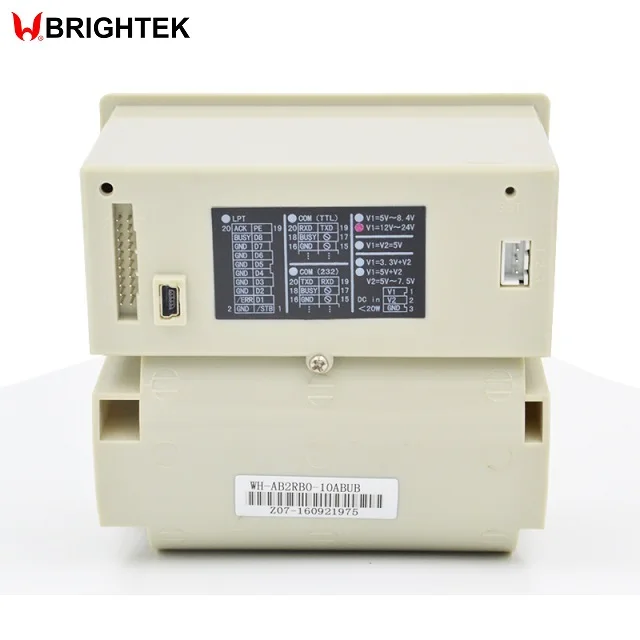

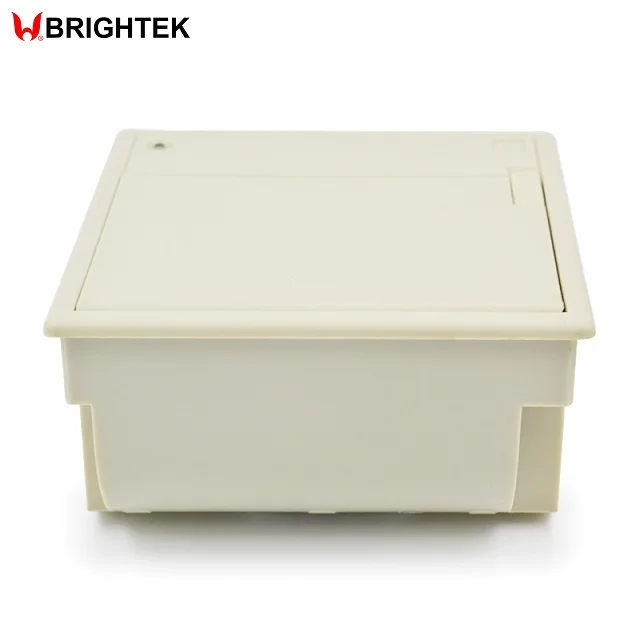

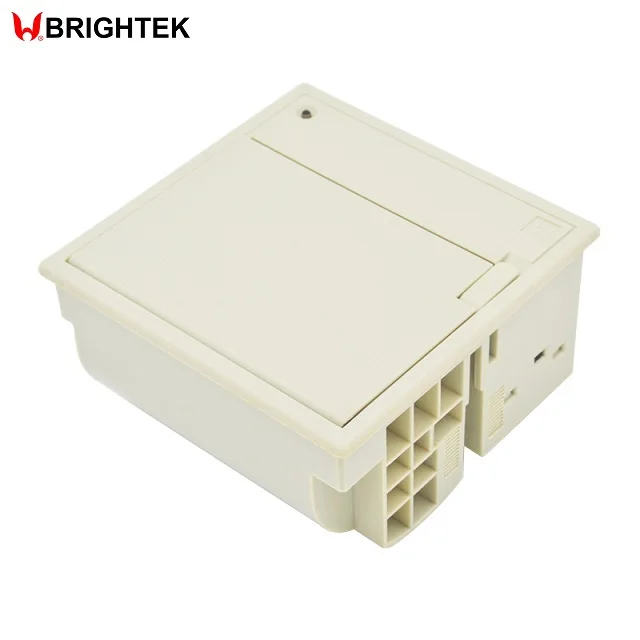

80mm Thermal Panel Printer for receipt printing with serial or USB interface (WH AB)

Product Overview

Description

Features:

• Stylish, delicate and elegant appearance


• Paper end sensors and self-motion memory printing function


• Very silent printing thru direct thermal printing method


• Abundant figure/ curves/ characters print function


• Add coordinate curve printing function


• Interface: Serial RS-232C/ TTL, Parallel / USB


• Easier paper loading




Specification:

Item	Specification
Printing method	Direct thermal line printing
Print out detection	Paper end sensors function
Paper loading way	Easy paper loading
Paper width	80mm
Print width	72mm
Resolution ration	576dots/line
Printing speed	60mm/s
Character	6*8dots,8*16dots,12*24dots
Chinese character library	GB2312 16*16dots,24*24dots
Outline dimension	106mm*106mm*57.3mm
Installation dimension	100mm*100mm
Paper supplied	Thermal roll papaer (80mm, 50mmø)
Interface	Serial RS-232, TTL, 485/ USB interface
Input power	DC 5V-8.5V, 3A/ 9V-24V,30W
Operating temperature	0℃ ~ 50℃
Storage temperature	- 20℃ ~ 60℃
Operating humidity	10% ~ 80%
Storage humidity	10% ~ 90%
