Motorized Rotary Switch
US $2.00-$60.00

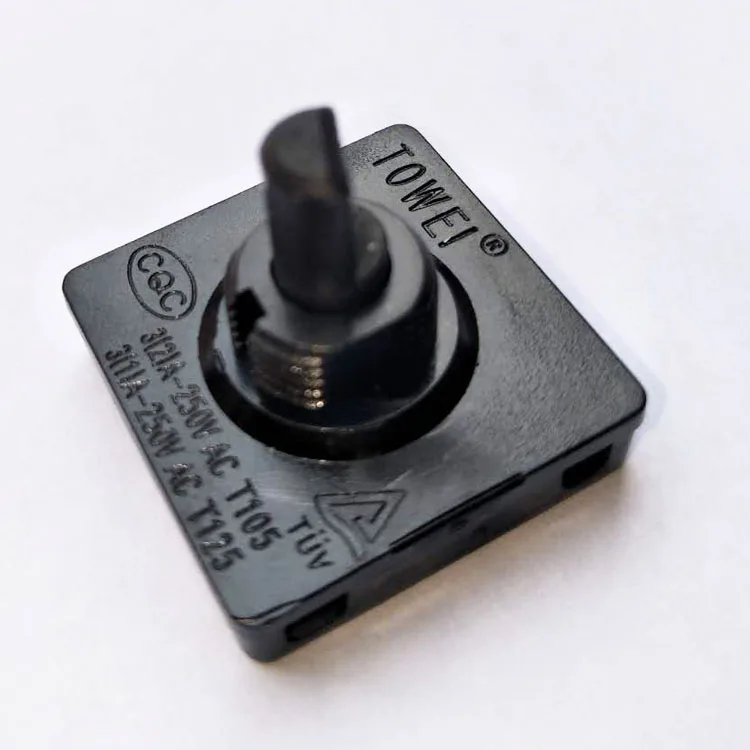

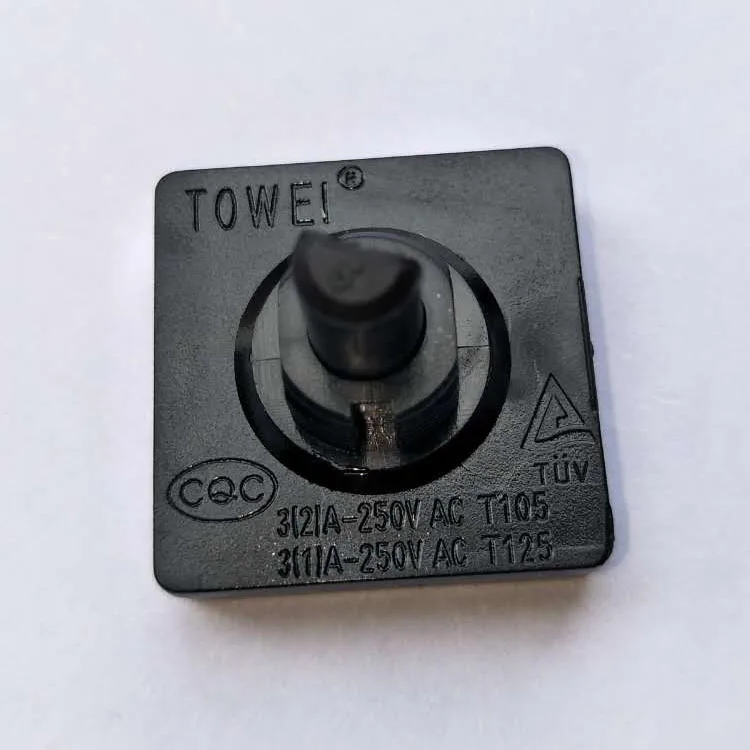

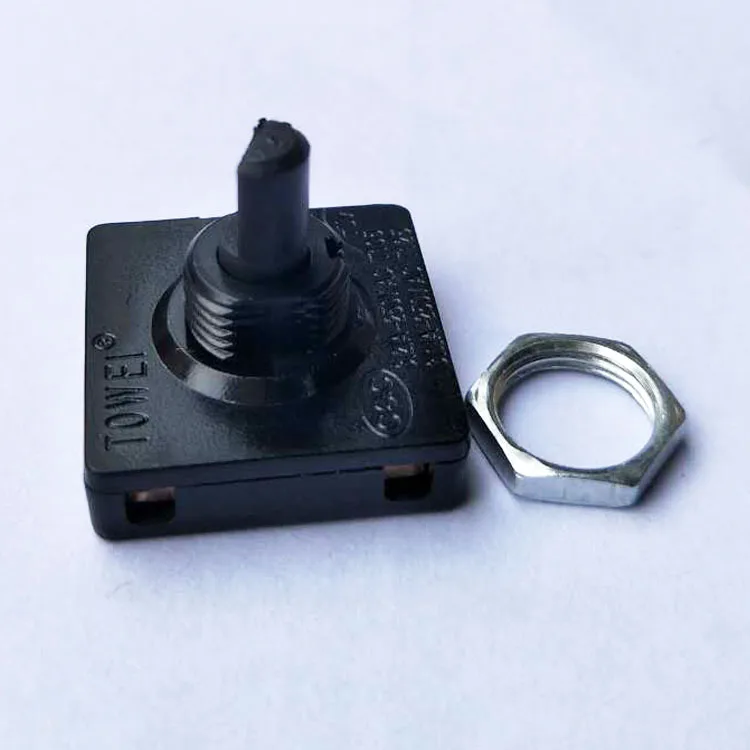

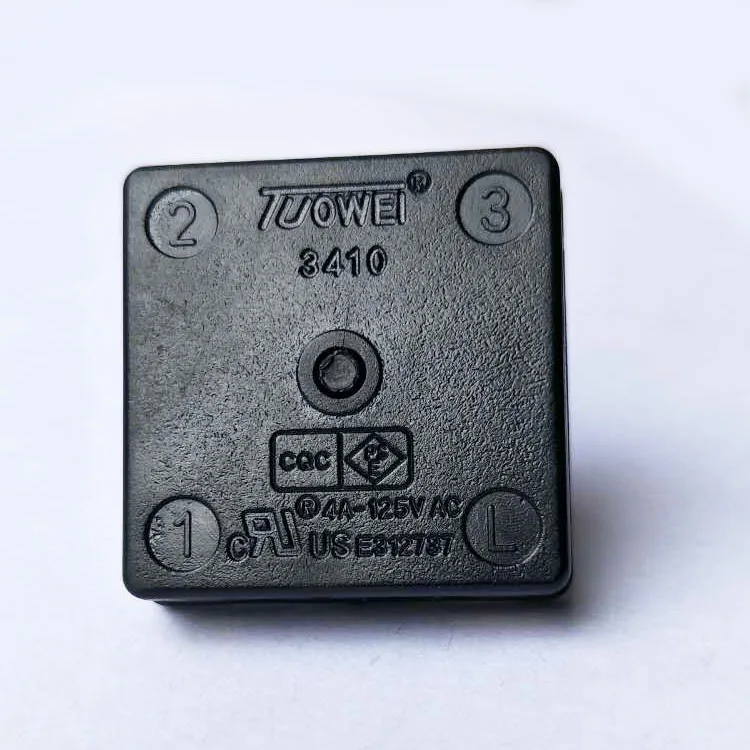

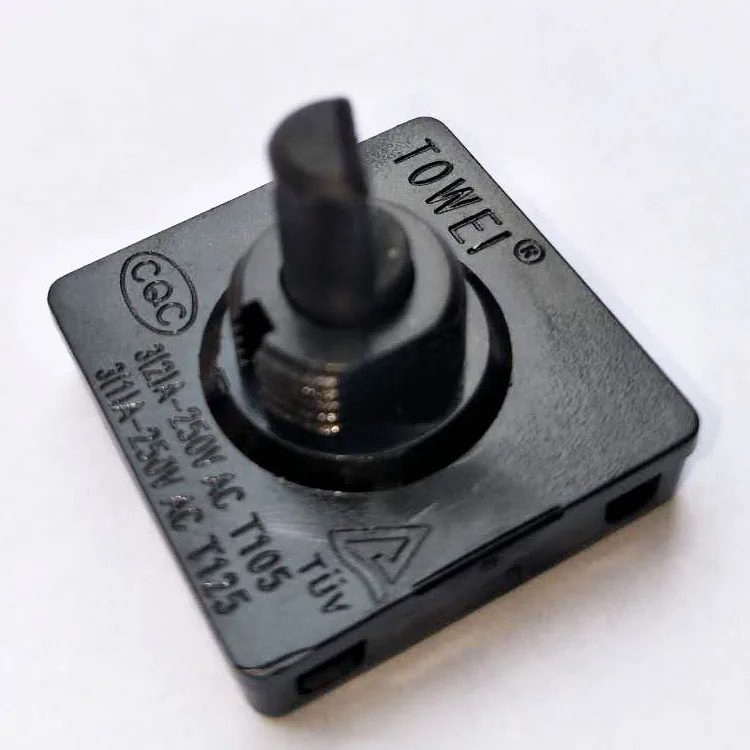

Tuowei Item No.:3410 42A 45 degree 4 position 3 speed electrical fan rotary selector switch
- Category: Rotary Switches >>>
- Supplier: Shenzhen Towei Electronics Co. Ltd.
Share on (62013939039):
Product Overview
Description
Product Description
Tuowei Item No.:3410-42A 45 degree 4 position 3 speed fan rotary selector switch Item No.:3410-42A
Technical Parameter | |
Electrical Rating | 4A ~120V.AC. 3(2)A~250V.AC. |
| Function | OFF, L-1, L-2, L-3 |
| Position | 4 |
Rotary angle | 45° |
HZ | 60/50 |
| Load | Res/ Mot |
| Temp(C) | 125°C |
| Pol/Thr | 1/ M |
| PP/Circuit | A/-- |
| Endur | 10K |
| SPCOA | 24-18AWG UL1015 |
Material: | |
| Cover: PC | |
| Insulating piece: PF Grade: SABIC | |
| Rotary: PA66 Flame rating: V-2 or V0 Temperature: 130°C Grade: Dupont | |
| Movable Contract: Copper | |
| Terminals: Brass | |
| Base: PC Flame rating: V-2 or V0 Temperature: 130°C Grade: SABIC | |
| Apply to: | |
Electric Heater, blower, humidifier, massage equipment, juicer, electric ovens, electric cookers, heaters and other home appliances . | |
B3410 series have many different function circuits as below:
| NO. | Position 1 | Position 2 | Position 3 | Position 4 | Position 5 |
1 | L-1 | L-2 | L-3 | ||
| 2 | OFF | L-1 | L-2 | L-3 | |
| 3 | OFF | L-1 | L-2 | L-3 | OFF |
| 4 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 5 | OFF | L-2 | L-1-2 | ||
| 6 | OFF | L-2 | L-1-2 | L-1-2-3 | |
| 7 | OFF | L-1 | L-1-2 | ||
| 8 | OFF | L-1-3 | L-1-2 | L-1-2-3 | |
| 13 | OFF | L-1 | L-2 | ||
| 15 | OFF | L-2 | L-3 | L-2-3 | |
| 16 | OFF | L-2 | L-1-2 | L-2-3 | L-3 |
| 24 | OFF | L-1 | L-2 | L-1-3 | L-2-3 |
| 28 | OFF | L-2 | L-2-3 | ||
| 29 | OFF | L-2 | L-1-2 | L-2-3 | L-1-2-3 |
| 47 | OFF | L-1-3 | L-1-2 | ||
| 67 | L-2 | L-3 |
