Germany Automatic 500L Beer Mash Tank Brewery Equipment
- Category: >>>
- Supplier: Jinan Qihui Beer Equipment Co. Ltd.
Share on (62013956687):
Product Overview
Description
Product Description
Product Description:
Brewhouse is various in combination of vessels, of course to achieve the same four steps mashing,lautering, boiling, whirlpool, by special brewing intentions of brewer including wort output, wort gravity,sparging water, brews in certain time, brewing method etc. Our Company accepts special design for these variations.
All of our vessels are made with the highest of standards and all pressure vessels are designed verified and certified in accordance with all of the latest Chinese High Level welding and pressure vessel standards. we usually provide the following types for customers to choose from
2 tanks 2 vessels type -Mash/Lauter tun, Kettle/Whirlpool tank.
2 tanks 3 vessels type - Mash/Kettle, Lauter tank(Upper)/Whirlpool tank(Bottom).
3 tanks 3 vessels type -Mash tun, Lauter tank, Kettle/Whirlpool tank.

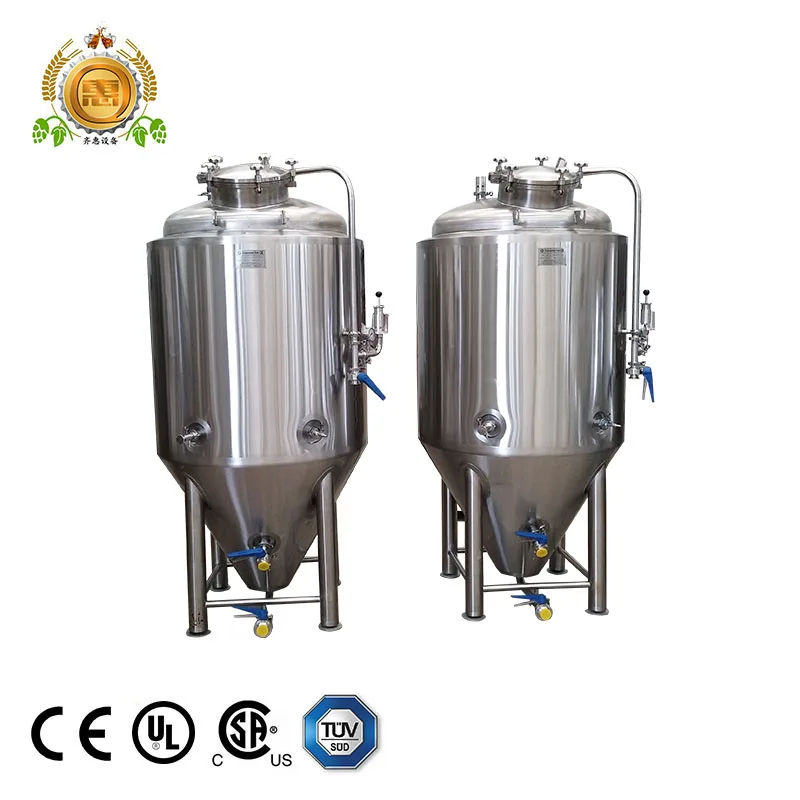

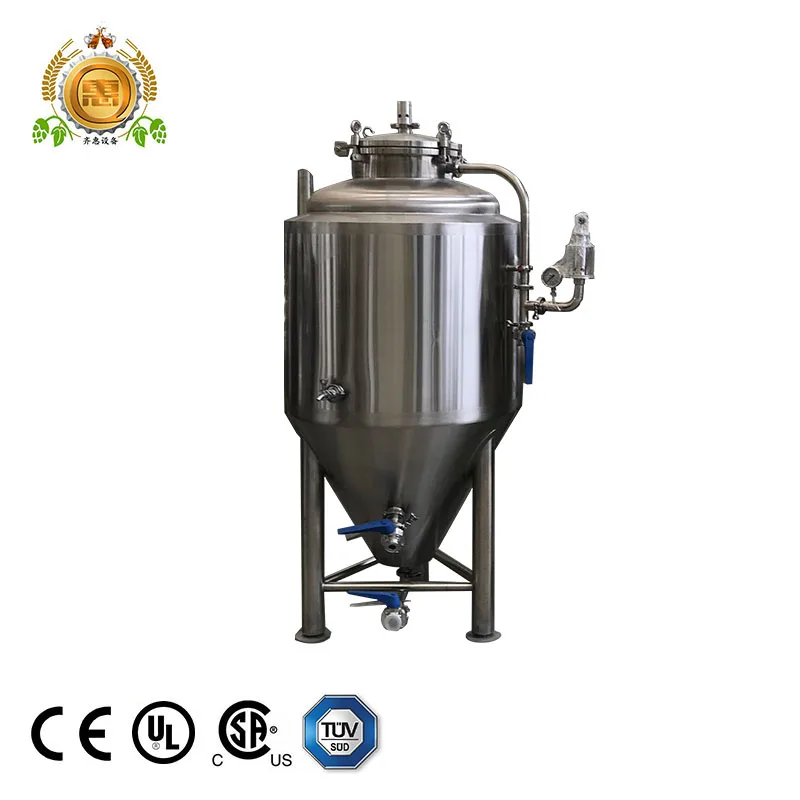

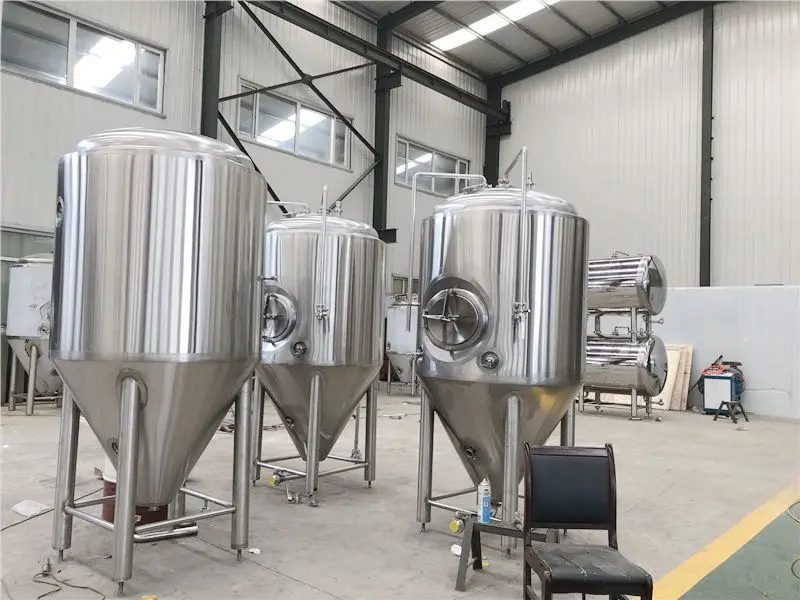

Application of beer fermenter
The fermenter is widely used in such industries as brewing, dairy product processing, etc..The conical fermenter is a beautifuldesigned product for the discriminating brewer. Its features
provide commercial brewery functionality at a consumer good price. It is easy to use and loaded
with standard features.

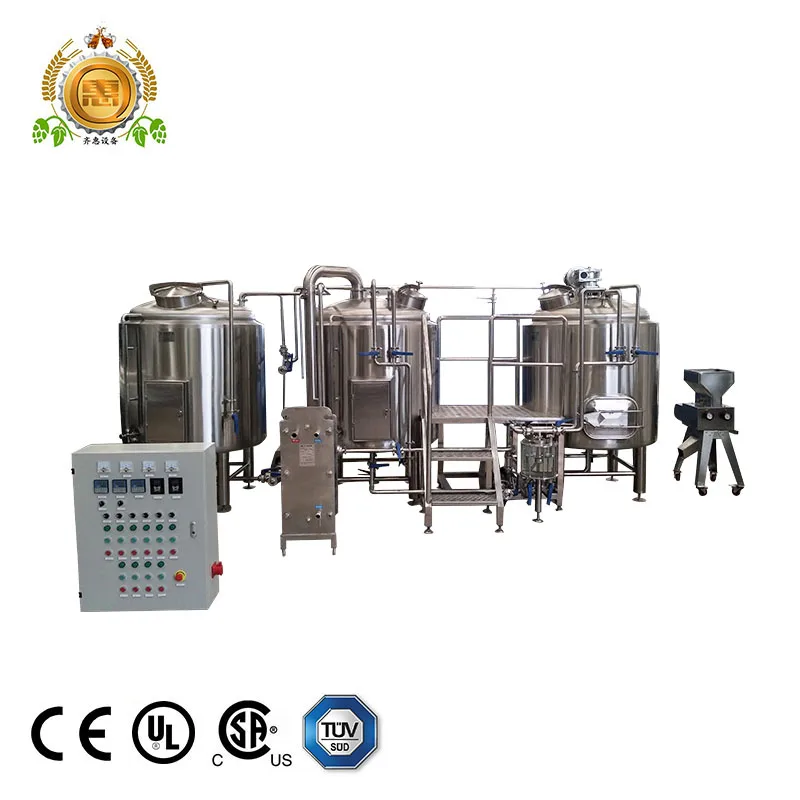

| 500L beer brewing equipment | |||
| Brewing System | Components | Capacity | Specification |
| Grinding System | Miller | 300KG/H | Double Roller,Noise<60db |
| Heating System | Boiler | 100KG/H | Electric,Gas,Oil,Coal Type/CE certification |
| Brewhouse System | Mash/Lauter tun | 1000L | Mashing Process:Decoction.Infusion.Multi-step infusion Heating source:Steam,Electric,Gas SUS304/Red copper |
| Brew Kettle/ Whirlpool Tank |
1000L | ||
| Hot Water Tank | 1500L | ||
| Heat exchanger | 10SQM | Stainless steel plate | |
| Fermentation System | Fermentation Tank | 1000L/2000L | Top manway/Side manway Drying hop port to brew IPA Dimple Plate Cooling jacket Carbonation port to fill CO2 |
| Yeast Adding Tank | 10L | SUS304 Stainless Steel | |
| Cooling System | Glycol Water tank | 3000l | Equiped with PU level indicator |
| Chiller | 10HP | UL/CE certified electric elements,Copeland compressor | |
| Pump | 3T | ||
| Cleaning System | Disinfection Tank | 100L | SUS304 full welded |
| Alkali Tank | 100L | ||
| Pump | 3T | ||
| Control System | Control Cabinet | Manual/PLC/ HMI |
Manual/Semi-automatic/Automatic |
| Optional | Auger System | ||
| Grain Case | |||
| Grist Hydrator | |||
| Piping flow panel for Brewhouse | |||
| Brewhouse Separate PLC Controller | |||
| Customized | |||
| Technical Parameter | Power: Voltage:Cusomized Floor space: |
||
Details :
Company information:
Jinan Qihui Beer Equipment Co., Ltd is a comprehensive enterprise integrating scientific research, production and sales. Our major product is Home Brewery System, Pilot Brewery System, Hotel Brewery system, Factory Craft Brewery System, Industrial Brewery System, Wine brewing system, Fruit brewing system, and Brewhouse, Fermenter, Brite Tank, Control System, Beer Filling Line. The company's founding team has 20 years of brewery equipment design technology and production experience, laying a solid foundation for the development of the company.
Our team:
FAQ:
1. Can you design the brewing equipment for our brewery?
We have a professional designer team to help our customer do design work.
2. About the production capacity:
The capacity is for per day prodcution,we can give you suggestions according to your daily production to equipped the fermentation tanks quantities and capacity.
3. Can your brewery system make both lager and ale?
