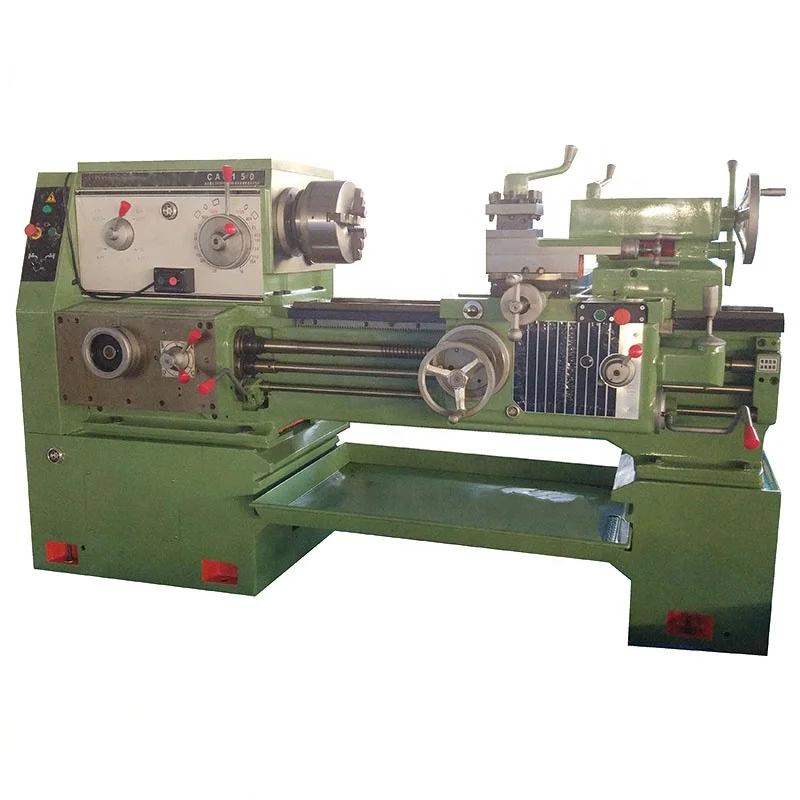

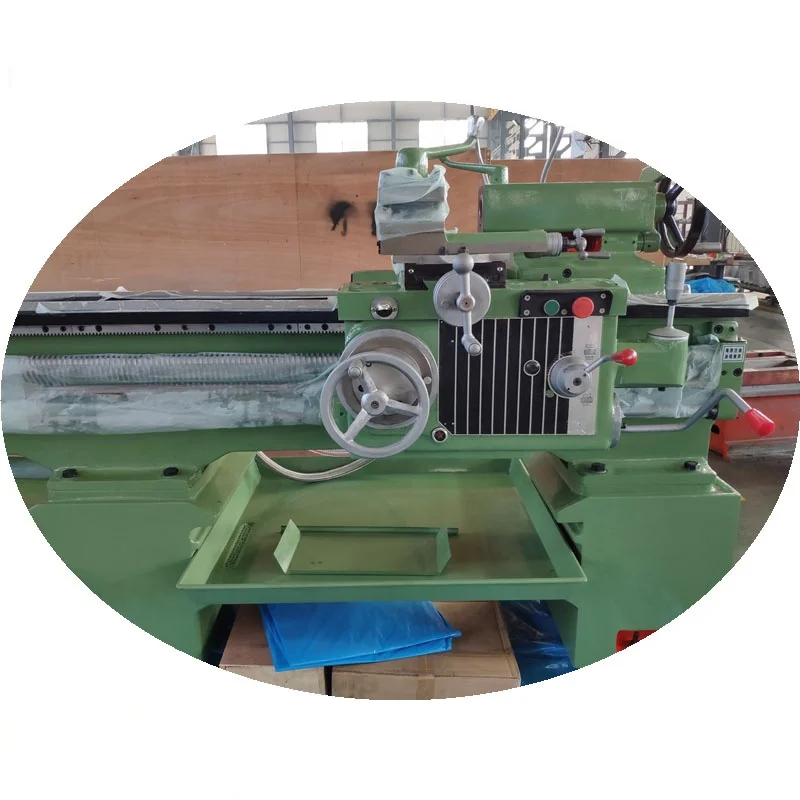

CA6161 Manual Common Engine Metal Lathe Machine
CA6161 Manual Common Engine Metal Lathe Machine
CA6161 Manual Common Engine Metal Lathe Machine
CA6161 Manual Common Engine Metal Lathe Machine
CA6161 Manual Common Engine Metal Lathe Machine

CA6161 Manual Common Engine Metal Lathe Machine

Share on (62013979397):


Price:$8,800.00 - $9,300.00

Quantity:


Product Overview

Description


Product Description

Main Feature
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular cone, inside and outside surface of revolved body. This machine is widely used in sanitary, valve, electrical appliance, instrument, automobile, motorcycle, bearings and so on.

Universal Lathe Manual Lathe Machine CA6161

\t
Item
\t
Unit
\t
CA6161
\t
1
\t
Max. swing over bed
\t
mm
\t
610
\t
2
\t
Max. swing over carriage
\t
mm
\t
370
\t
3
\t
Max. length of work piece
\t
mm
\t
750
\t
4
\t
Width of bed
\t
mm
\t
400
\t
5
\t
Section of turning tool
\t
mm
\t
25x25
\t
6
\t
Spindle speed
\t
rpm
\t
16-1400 (24 steps)
\t
7
\t
Hole through spindle
\t
mm
\t
52
\t
8
\t
Spindle head form
\t
\t
ISO(GB)C6
\t
9
\t
Spindle taper
\t
\t
MT6
\t
10
\t
NO. of feed
\t
\t
64 kinds
\t
11
\t
Range of metric threads
\t
\t
(1-192mm)44 kinds
\t
12
\t
Range of inch threads
\t
\t
(1-24tpi)21 kinds
\t
13
\t
Range of module threads
\t
\t
0.25-48(module 39 kinds)
\t
14
\t
Range of diametral pitc threads
\t
\t
1-96DP(37 kinds)
\t
15
\t
Max. tailstock spindle travel
\t
mm
\t
150
\t
16
\t
Tailstock spindle diameter
\t
mm
\t
75
\t
17
\t
Taper of tailstock spindle center hole
\t
\t
MT5
\t
18
\t
Main motor power
\t
kw
\t
7.5
\t
19
\t
Machine size
\t
mm
\t
2440x1140x1750
\t
20
\t
Weight
\t
kg
\t
2180

Standard configuration:
(1) 3-jaw chuck.
(2) Four station electric tool post.
(3) Manual tailstock.
(4) Cooling system.
(5) Lighten system.
(6) Automatic lubrication system.

Optional Configurations:
(1) φ320mm jaw chuck and chuck holder.
(2) Faceplate.
(3) The events leading.
(4) The center frame.
(5) With the knife.

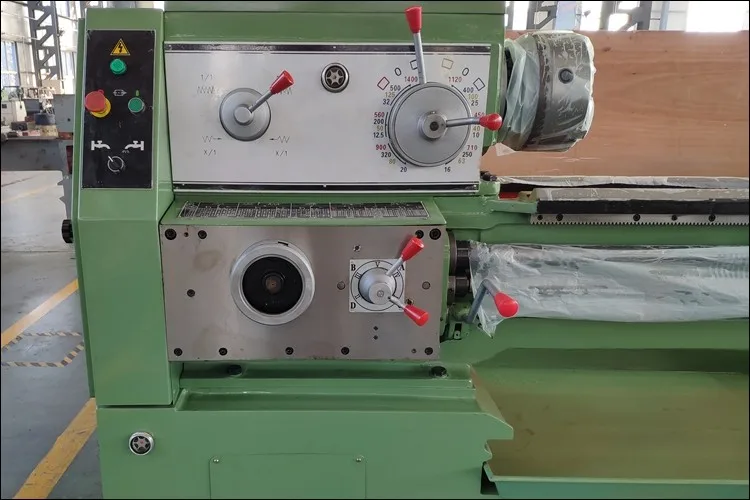

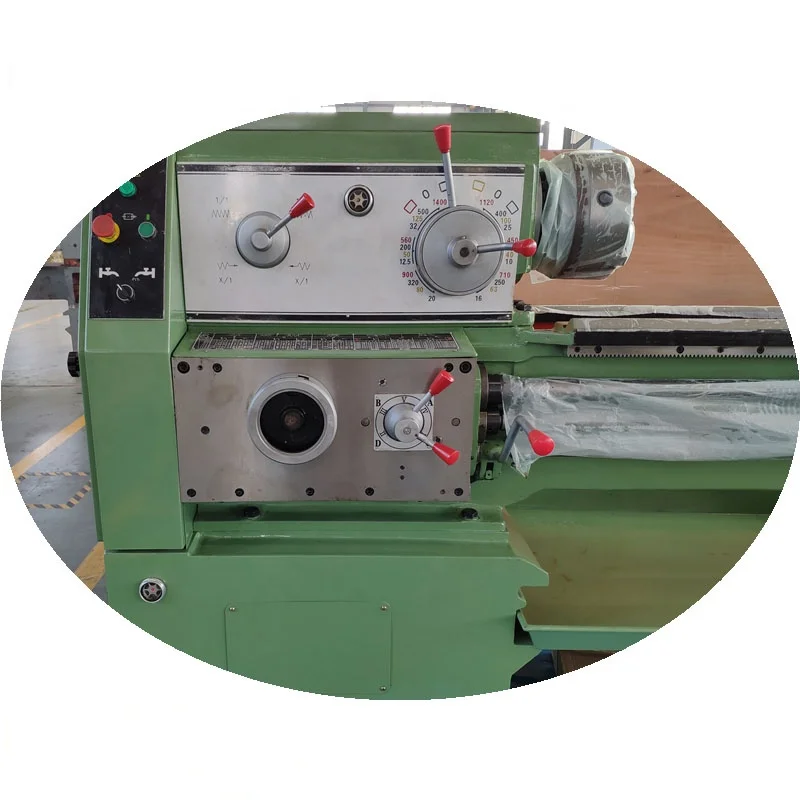

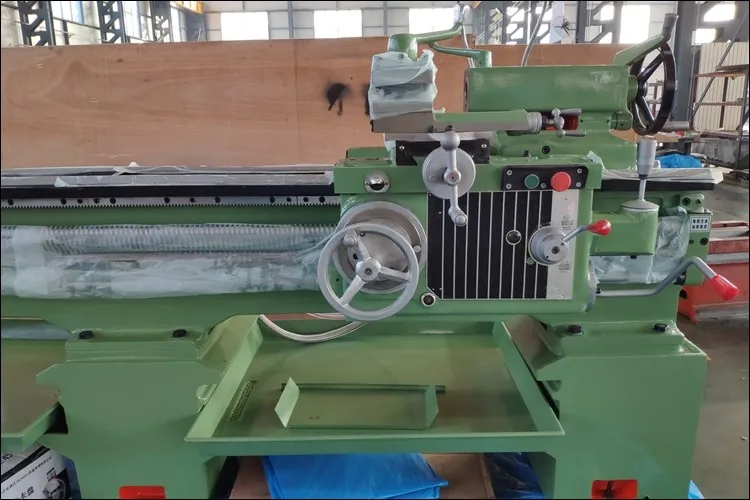

Detailed Images

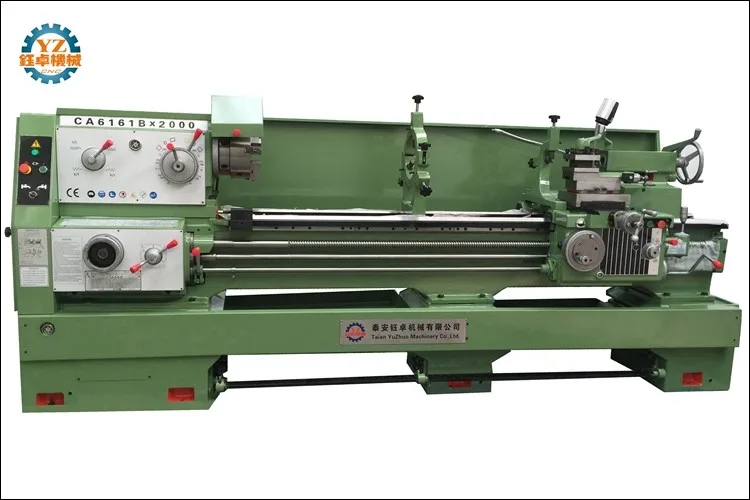

Universal Lathe Manual Lathe Machine CA6161

To Choose More Models

CNC Lathe Machine CK0640A

CNC Lathe Machine CK6140A

Wheel Repair CNC Lathe WRC22

Wheel Repair CNC Lathe WRC26

CNC Machining Center VMC450

CNC Machining Center VMC850

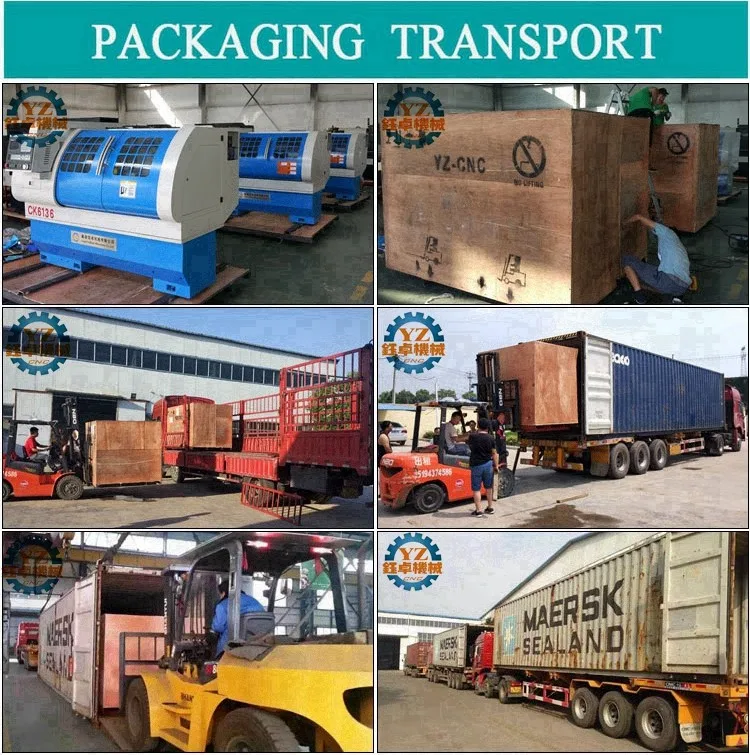

Packing & Delivery
Universal Lathe Manual Lathe Machine CA6161:

Packaging Size: 2500x1200x1900mm
Packaging Weight: 2300kg
Packaging Details: Standard export package, custom suffocating free.

Using iron base has good bearing capacity.

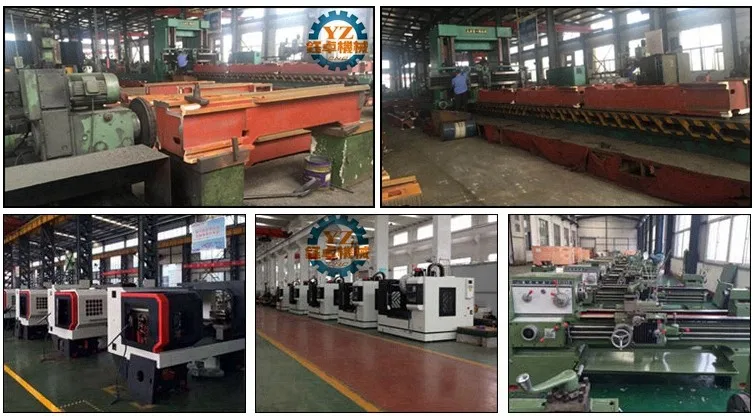

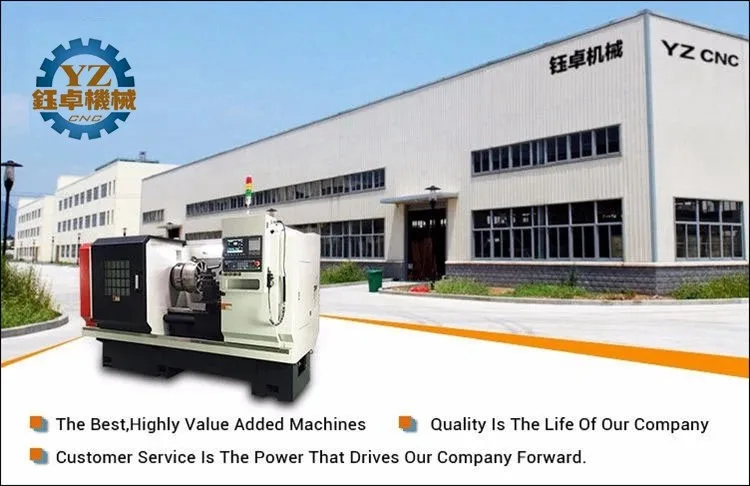

Our Company
Taian Taizhuo Machinery Manufacturing Co., Ltd. ( or "TZ CNC" for short) is a professional manufacturing enterprise engaged in the research, development, production, sale and service of CNC machines. Dedicated to strict quality control and thoughtful customer service, our experienced staff members are always available to discuss your requirements and ensure full customer satisfaction.

Our main products are Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center. All the above products have passed CE, SGS certificates.

Our Customers
Certifications

CE , SGS, Alibaba High-quality Supplier and Made-In-China Gold Supplier.

Our Service

Pre-Sales Service

1. Inquiry and consulting support.
2. Sample testing support.
3. View our Factory.

After-Sales Service

1. Training how to instal the machine, training how to use the machine.
2. Engineers are available to service machinery overseas.
3. Warranty is one year, we would offer the parts (quality problem) free of charge during this period.

Note: GSK, Servo driven, motor and transformer, warranty is 3 years.

FAQ

Q1. How can I choose the most suitable machines?
A: Please tell us your requirement of the machine, or you can also send us the products drawing, our engineer can help to choose the best model for you.

Q2. What's the main products of your company?
A: We specialized in many kinds of CNC machines, such as Wheel Repair CNC Lathe Machine, Vertical CNC Lathe Machine, Horizontal CNC Lathe Machine, Slant Bed CNC Lathe Machine, Universal Lathe Machine, Pipe Threading CNC Lathe Machine, CNC Milling Machine and CNC Vertical Machining center and so on.

Q3. Where is the factory located? How can I visit there?
A: Our factory is located in Tai'an City, Shandong Province, China. With very convenient transportation access, you can come by airplane or by high speed railway. And warmly welcome you to visit us.

Q4. What is the Trade Terms?
A: FOB, CFR and CIF all acceptable.

Q5. What's the Payment Terms ?
A: 30% T/T initial payment as deposit, 70% T/T balance payment before shipment.

Q6. What's the MOQ?
A: MOQ is 1 set.

Contact Us

If any interest about our cnc lathe machine, cnc milling machine or cnc machining center, please just contact us freely.
And we warmly welcome you to visit our factory at any time, thank you.
