Product Overview
Description

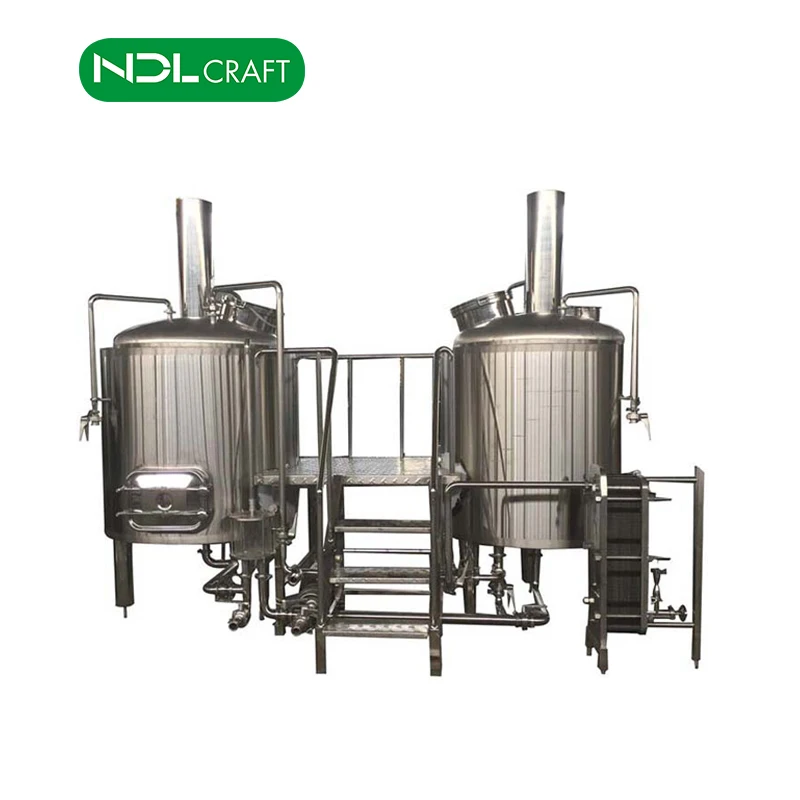

200 Litre Hotel Pub Brewery System Brewing Beer Equipment Manufacturer
Product Description
1. 200L Beer Brewing Equipment Configurations
Milling system | Malt miller | 150-200kg/h | 1pcs |
Brewhouse | Mash tun/ Lauter tank | Volume is 200L, with a false bottom, grant, raker with motor | 1pcs |
Kettle/Whirlpool tank | Volume is 200L, electric heating | 1pcs | |
HLT water tank | Volume is 400L, electric heating | 1pcs | |
Includes plate heat exchanger, wort pump, motors, hops filter, yeast adding tank, oxygen device, and pipelines | |||
Fermenting | Fermenters | Volume is 200L or 400L (double batches) | 6pcs |
BBT(option) | Volume is 200L or 400L (double batches) | 2pcs | |
Racking arm, spunding valve, pressure gauge, carbonation stone, sample valve | |||
Cooling system | Glycol tank | Volume 400L or 800L | 1pcs |
Cold water tank(option) | Volume 400L, cooled by glycol tank | 1pcs | |
Chiller | 3HP, Copeland | 1pcs | |
Cleaning | CIP | 50L two tanks, heated by electricity, with pump and trolley | 1pcs |
Controlling | Control cabinet | PLC touch screen or PID controller | 1pcs |

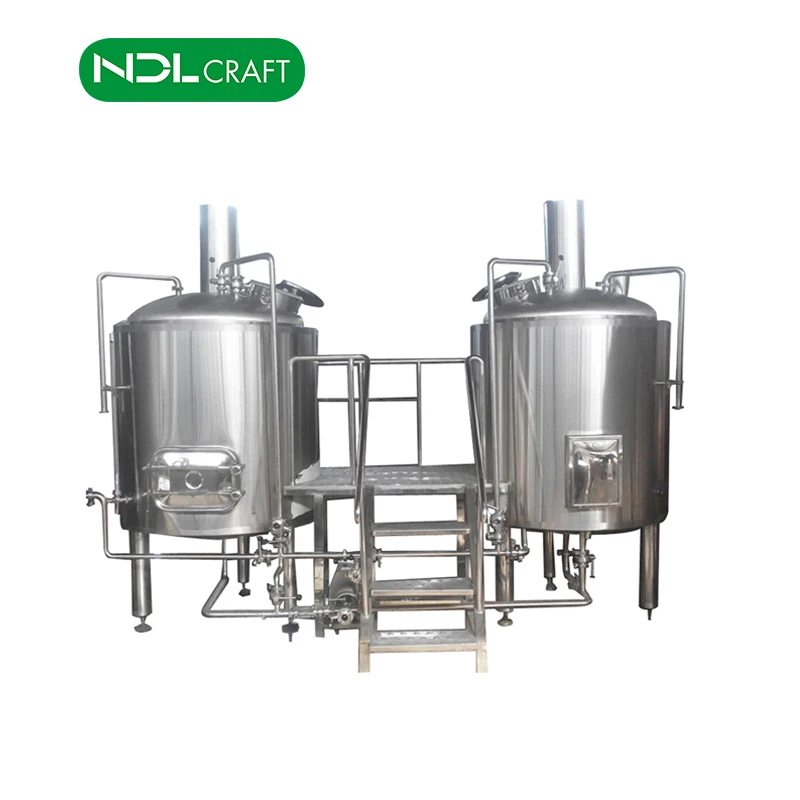

2. 200L Mashing System
3. 200L Fermentation System
1). A serial of the fermentation tanks
Fermentation tank series | Volume in US Gallon | Diameter | Height |
100l Fermentation tank | 26US Gallon | 640mm | 1500mm |
200l Fermentation Tank | 53US Gallon | 760mm | 1800mm |
300l Fermentation Tank | 79US Gallon | 860mm | 2000mm |
500l Fermentation Tank | 132US Gallon | 960mm | 2350mm |
1000l Fermentation Tank | 264US Gallon | 1260mm | 2650mm |
2000l Fermentation Tank | 528US Gallon | 1560mm | 3150mm |
3000l Fermentation Tank | 793US Gallon | 1800mm | 3550mm |
5000l Fermentation Tank | 1321US Gallon | 2000mm | 4450mm |
10000 Fermentation Tank | 2642US Gallon | 2200mm | 6100mm |
2). Specifications of 200L fermentation tanks:
Item | Introduction | |
01 | Volume | 200L |
02 | Dimension | 760*1800mm |
03 | Material | Stainless steel 304 |
04 | Insulation | Polyurethane, TH: 80mm |
05 | Fermentation tank | Glycol jacket: Dimpled jacket on the cone and side Or single wall with jacketed, or single-layer fermentor. |
06 | Head | Double or single dish head on the top |
07 | Accessories |

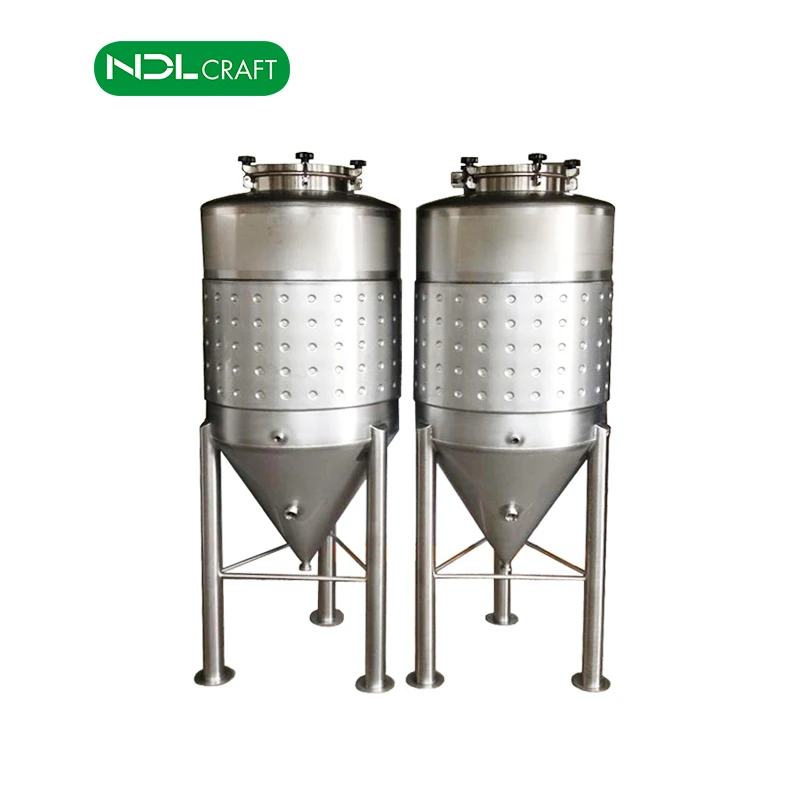

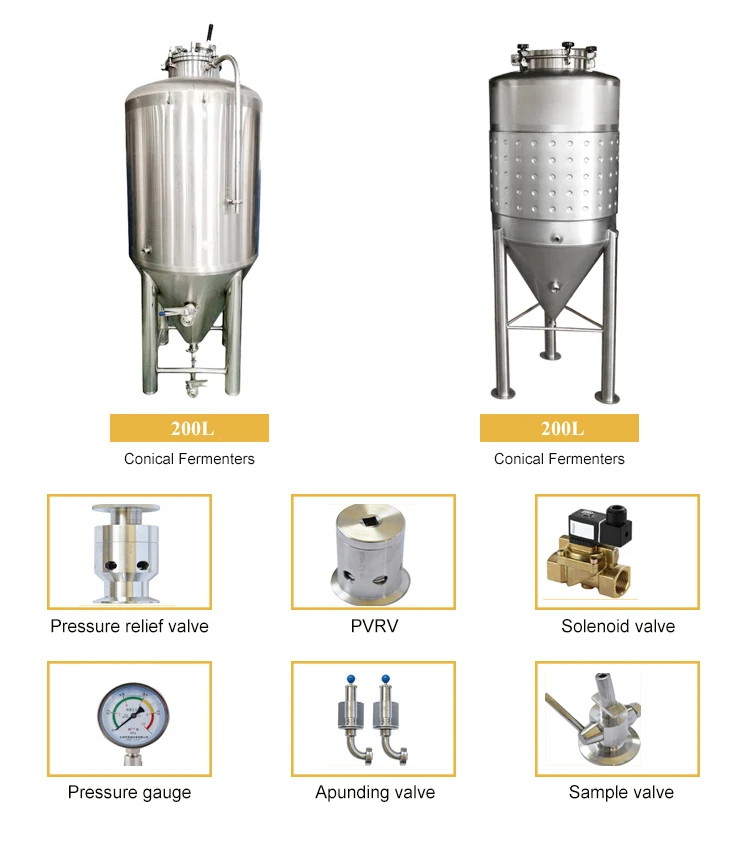

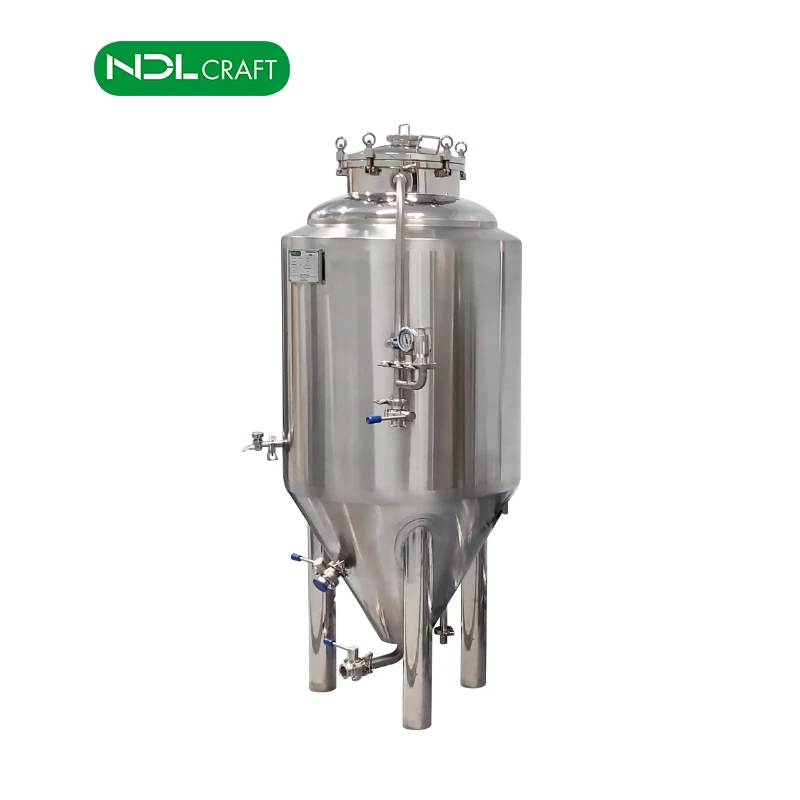

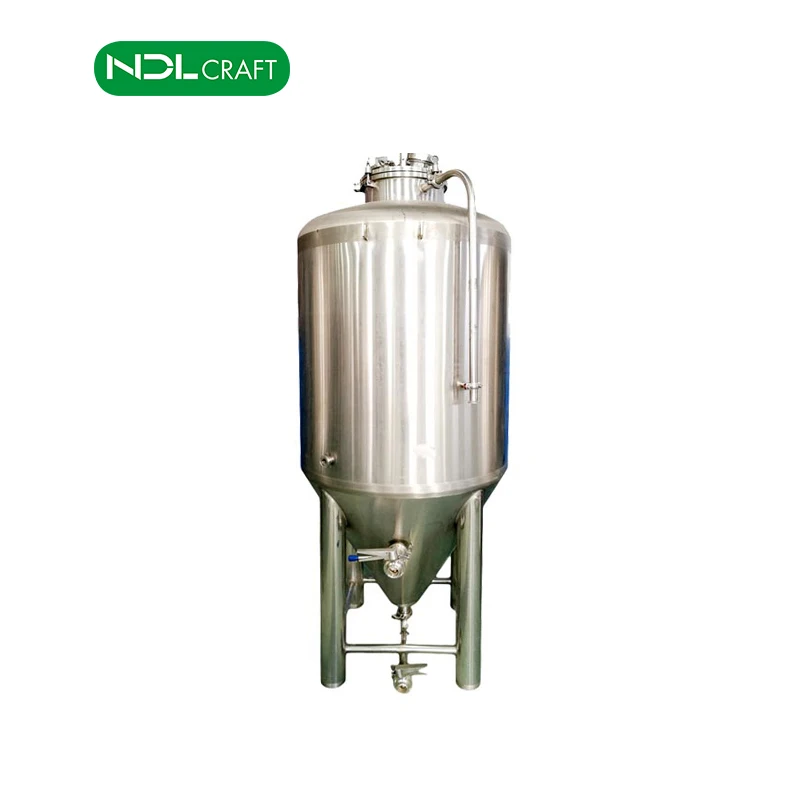

3). Details of 200L Fermentation Tanks:

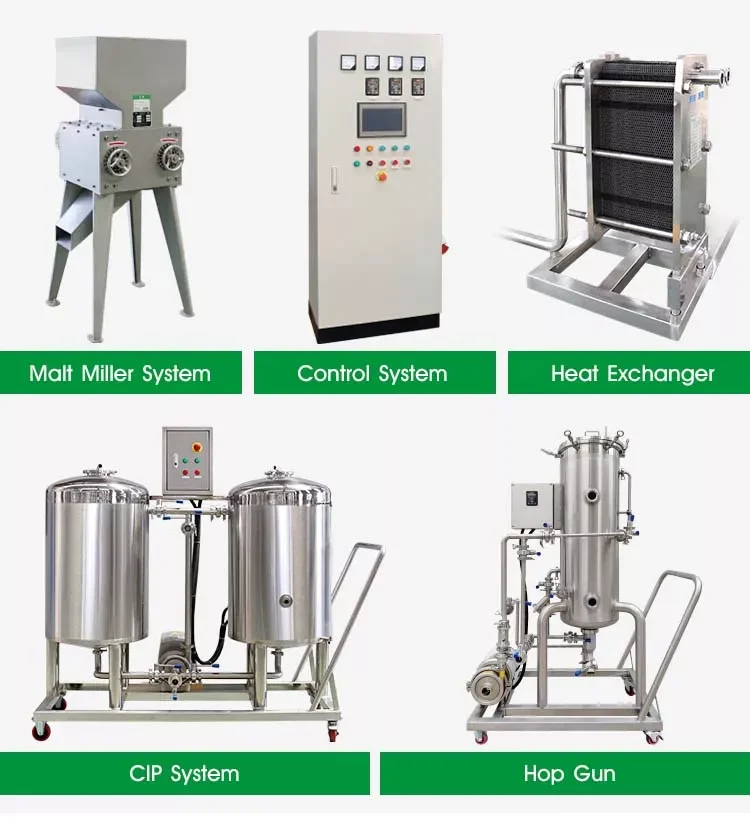

4. Auxiliary Equipment for 200L Beer Brewing Equipment
Company Information
NDL Craft, founded in 2011, is a brewing equipment manufacturer and brewing technology engineering company that provides many kinds of customized tanks and turnkey projects throughout the world. The company attaches great importance to the research and development of core technology. On the basis of maintaining the manufacturing cost of China, the company can design according to CE PED standards and ASME design codes and institutes production and quality control methods according to both European and American quality standards.
Certifications
NDL CRAFT has passed quality audits for internationally recognized certifications; ISO9001, 2000 International Quality Management System Certification,
ISO14001 Environmental Certification,
ISO18001 Occupational Health and Safety System Certification,
DI, and DII Pressure Vessel Certification.
We have also been recognized at a national level as a scientific and technological innovation enterprise with 15 patented technologies granted in China.
