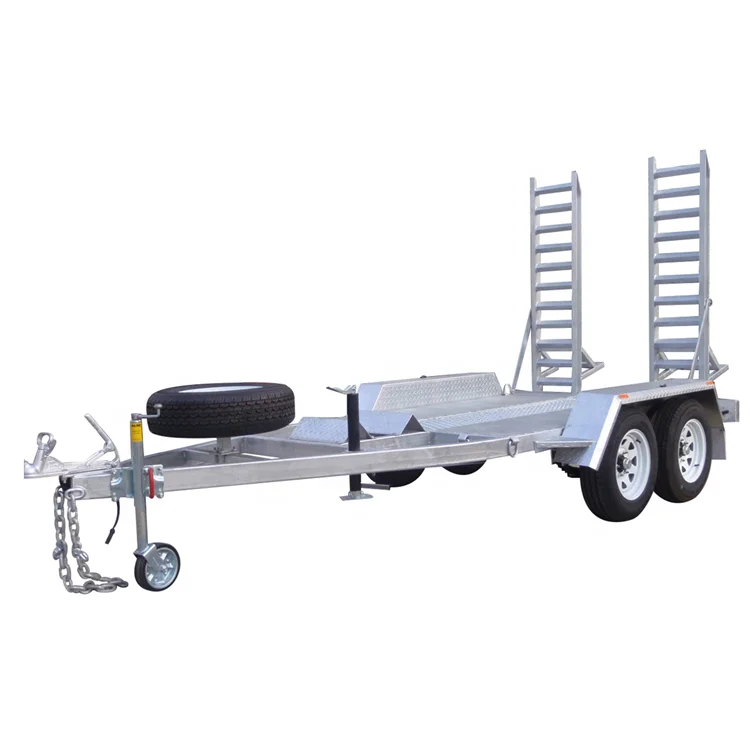

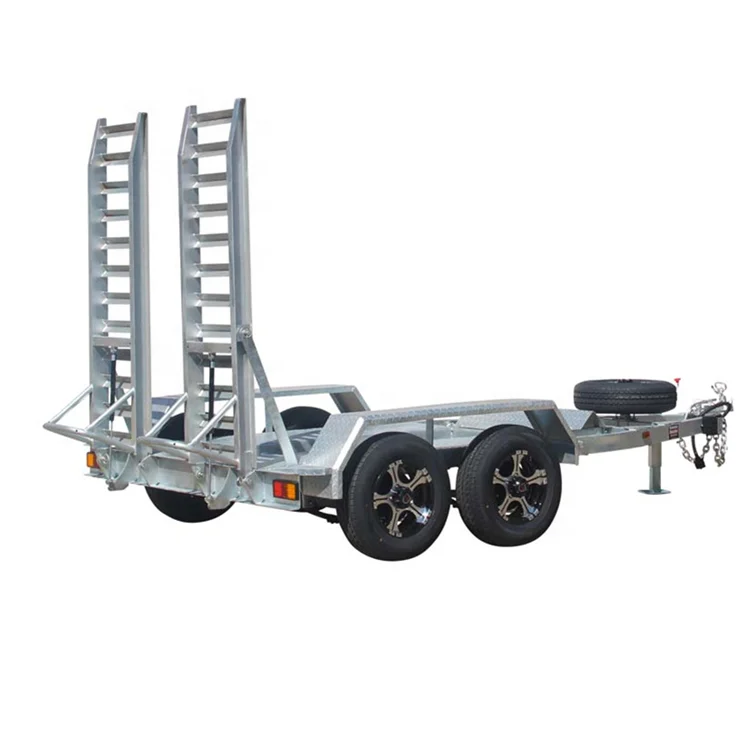

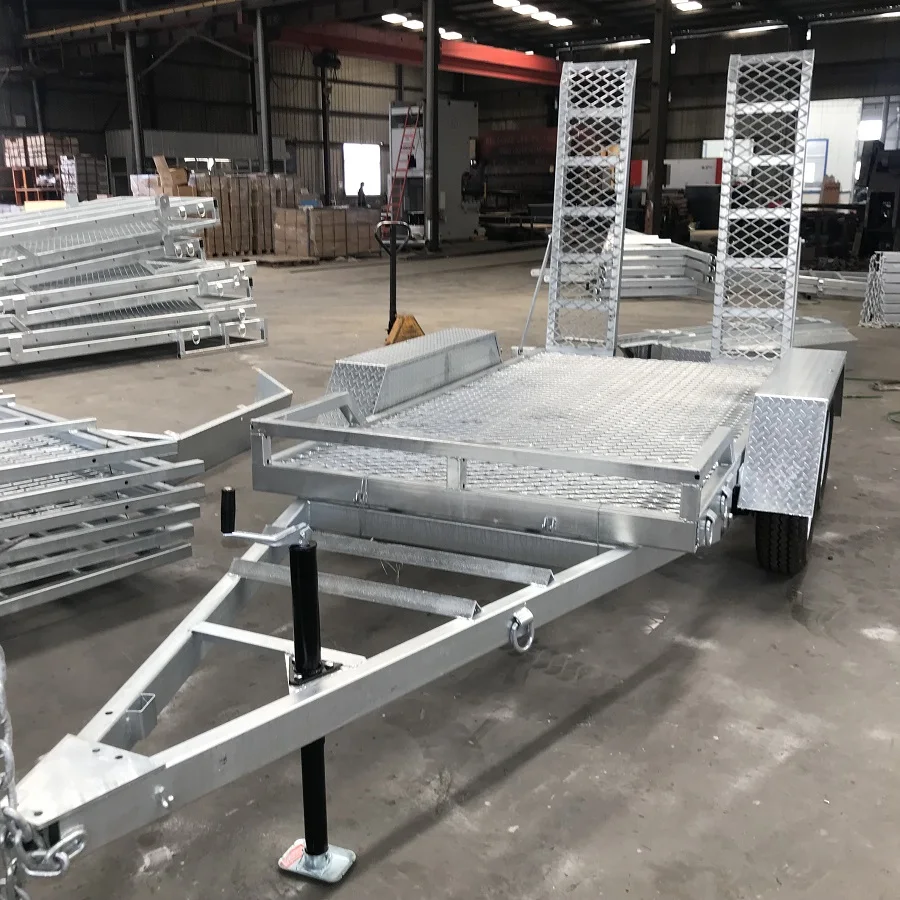

10x6 Plant Trailer, Mini Excavator/ loader Trailer Galvanised 2T GVM
| 2000kg Gross Vehicle Mass (2.8T GVM Optional Extra). Deck is 1220mmW x 2440mmL with extended drawbar for bucket mount. Reinforced spring hangers with middle gussets. Two 100x50x3mm middle chassis beams running length ways. |
Detail Specification of Trailers
Drawbar | 100mmx50mmx3mm.1800mm long with 2 Pcs 10mm safety chain with AS4177-25 Stamp |
Chassis | 100mmx50mmx3mm chassis frame.50mm angle cross bar |
Flooring | 2.5 mm checker plate. |
Side Rail | Without side rail. front rail only |
Mudguard/step | 2.5mm checker plate mudguard weld with step foot together |
Coupler | AU standard disc brake coupler |
Jockey wheel | Top wind jack |
Wheel | 185/70R 14Ctyre with white paint rim |
Axle | 40mm solid disc braked axle (one braked. one lazy axle) |
Light | Led light sets with wire and 7pin plug |
Spring | 60x6mmx6leafs rocker roller spring |

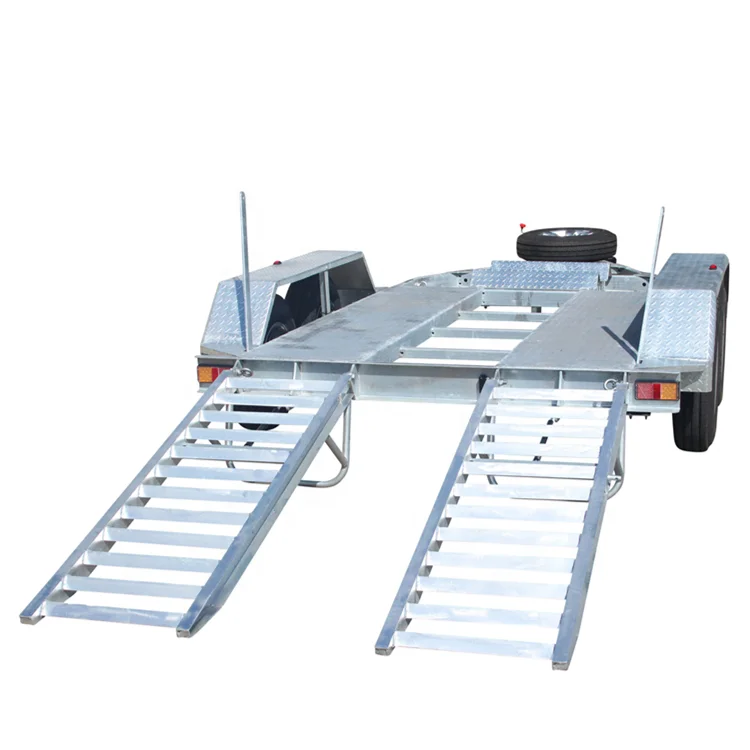

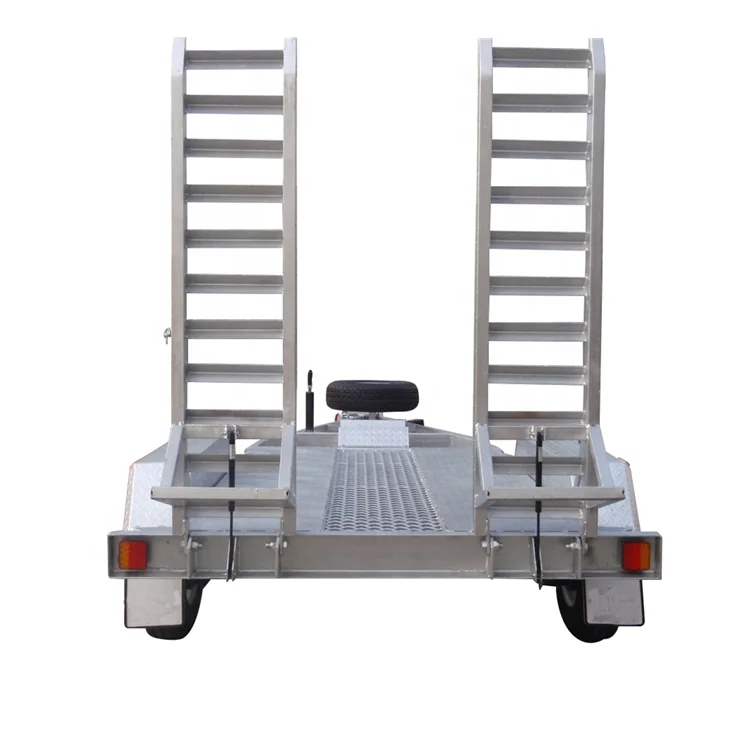

Ramp | 1700mm long stand up mesh ramp |
Winch | Option. hand winch sets/electric winch sets |
Surface treatment | Hot dip Galvanized |
Trailer ATM | 2000KGS |
