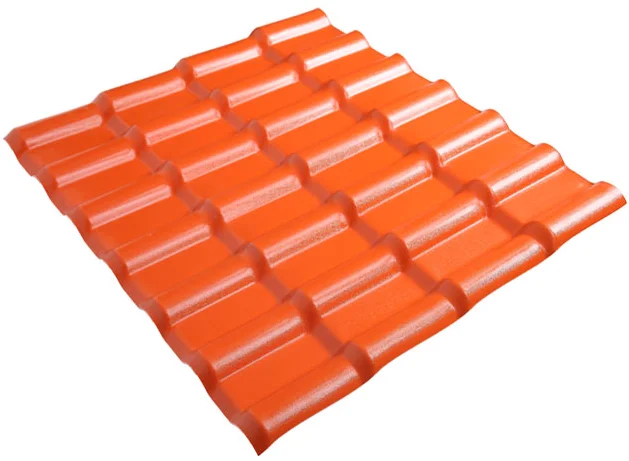

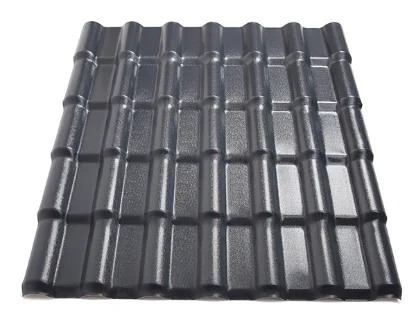

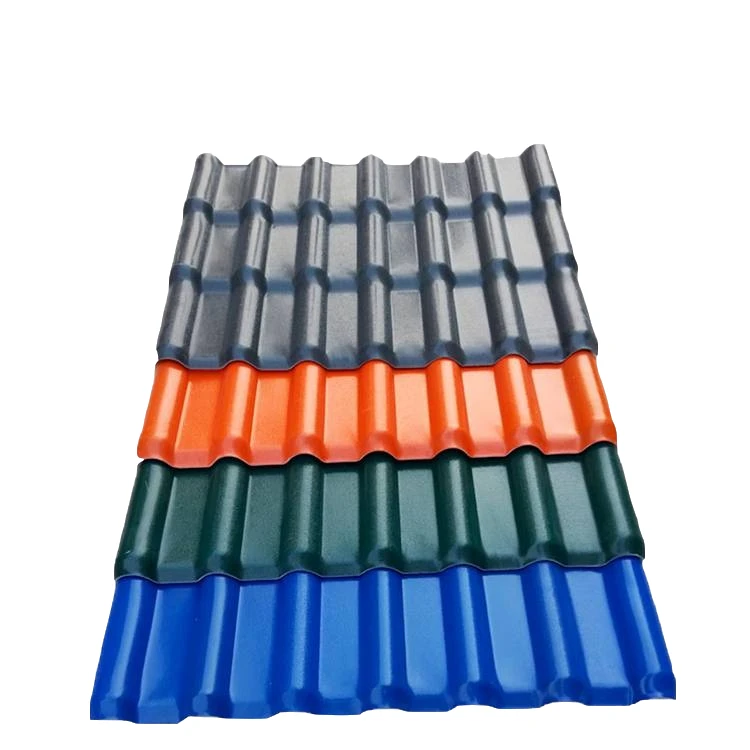

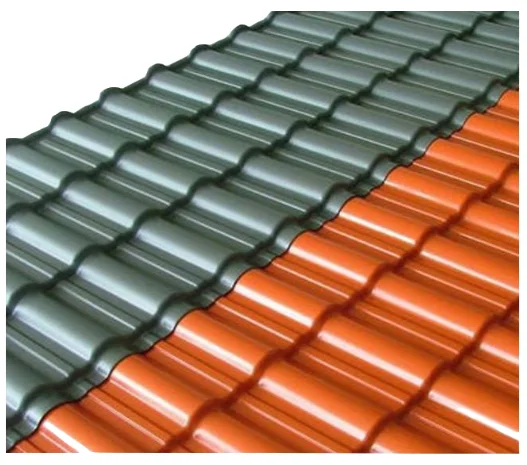

soundproof fiberglass plastic roof tile prices in india market
- Category: >>>
- Supplier: Foshan Yuehao Building Materials Technology Co. Ltd.
Share on (62014063377):
Product Overview
Description
Product Description
| Place of Origin | CN;GUA |
| Type | Bent Tiles |
| Brand Name | YH |
| Model Number | YHPVC001 |
| Thickness | 2.4-3.0mm |
| Length | Customized |
| Wave spacing | 160mm |
| Wave height | 30mm |
| Width | 1050mm |

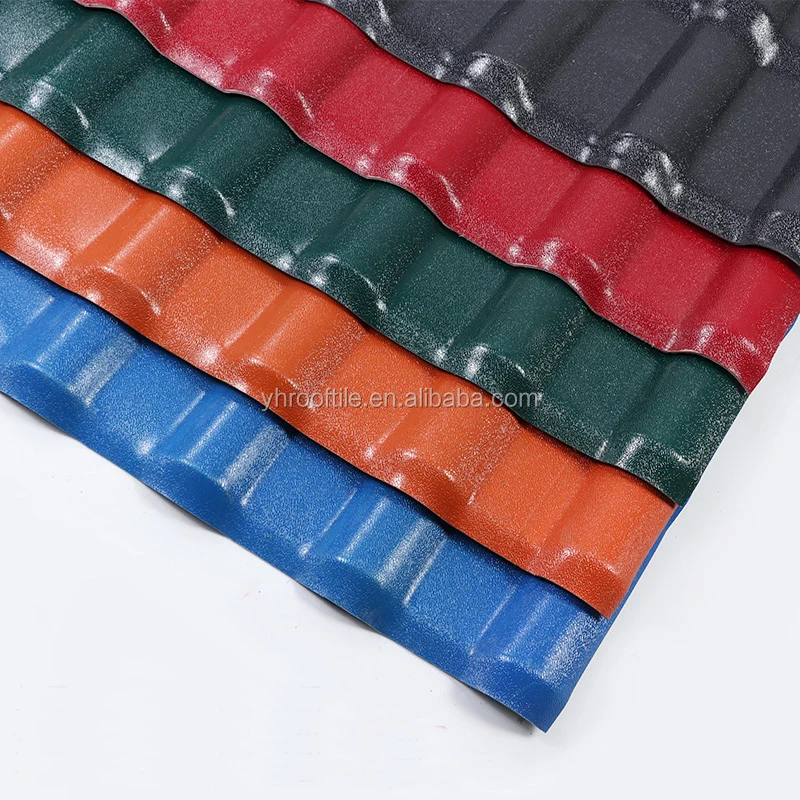

| Color | Customized |
| Certificate | SGS,ISO,FQM,MA,AL |
| Name | ASA coated Synthetic Resin roof tile |
| Application | Workshops/Warehouse/Farm product market |
| Warranty | 30 Years |
Plastic roofing (PVC ROOF & ASA ROOF) provide a clean, quick and economical installation with high resistance to fractures, weather elements, extreme temperature ranges and many contaminants. These roofing materials provide high strength against breaking and tearing, and resists excessive elongation and sheet deformation during installation.
Advantages of pvc wall panel
1.save cost
2. Loading bearing: It can load 150 kg per square meter evenly;
3. Light weight: 5-6.0kg/square meter;
4. Water resistance: 100%;
5. Fire resistance: Self-extinguish off fire;
6. Anti corrosion;
7. Impact resistance and low temperature resistance;
8. Sound and heat insulation;
9. Small Thermal expansivity;
10. Environmental frendly and energy conservation;
11. light weight,easy to install
3 layer Heat Insulated UPVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.
First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;
Second layer:the middle layer is a special foam structure with heat and sound insulation performances.
Third layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.

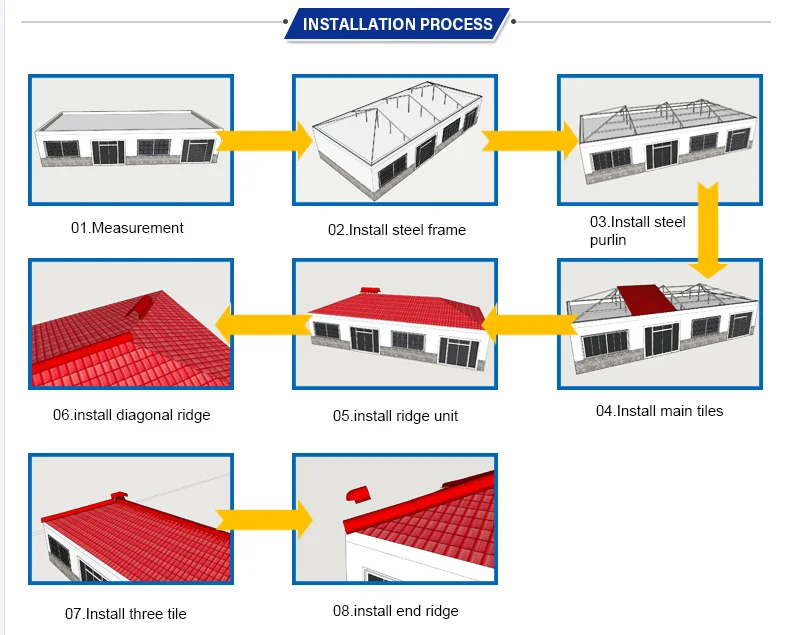

Install
Installation
•The Purlin can choose square tube (60*40*3mm) or C-type steel (100*50*20*3mm) or anticorrosive wood square(60*40mm) |
| • Purlin spacing 660mm,installed bottom-up |
• The main tile should be installed in reverse direction according to local wind direction, with transverse overlap of a tile wave and longitudinal overlap of at least a pitch.In addition , |
| the lower part of the overlap mount should be supported by a purlin |
| •While installing the main ridge tile, installation should be carried out after a section of the first |
ridge tile is truncated to prevent water seepage from the overlap of the tiles due to large gap |
•Main ridge tile and tilted ridge tile should be sawed to level state at the overlap location and the Tee is installed after installing the main ridge tile and tilted ridge tile.The slope angle should be considered while installing the ridge tile to avoid water leakage due to too low gradient. |
•The fixed parts are special parts.Pre-drilling should be carried out before fixing ,the bore should be 2mm bigger than the screw diameter |
| •It is suggested to use 6.3mm diameter tapping screw |
Packaging and shipping
1. Pallet packaging :length of PVC roof sheet less than 2190mm, should use pallet packaging, easy to load and upload.
2. PE Bags Packaging: length of PVC roof sheet more than 2190mm, should use PE bags, 3-5 PCS/bag.
3. Max container loading : 3500 square meters for 20'GP ; 4300 square meters for 40'GP
1. Pallet packaging :length of PVC roof sheet less than 2190mm, should use pallet packaging, easy to load and upload.
2. PE Bags Packaging: length of PVC roof sheet more than 2190mm, should use PE bags, 3-5 PCS/bag.
3. Max container loading : 3500 square meters for 20'GP ; 4300 square meters for 40'GP
Q:1, What is your MOQ?
A:1 meter. We perform excellent service for any customer no matter what the quantity is.
Q:2, What is your delivery date?
A:Normally 1 day, we have large stock in warehouse, generally we can deliver goods ithin one day except the super large quantity.
Q:3, How about your design service?
A:We have 3 after sale service teams including the design service.
Q:4, What is the address of your factory?
A:We are located at A Area,Lubao Industry Park,Sanshui District,Foshan,GD.China,528139
Q:5, What is your main products?
A:Various synthetic resin roof tiles, ASA PVC wallpanels, hollow corrugated sheet, trapezoid tile and partition wall board, and its relative accessory parts.
