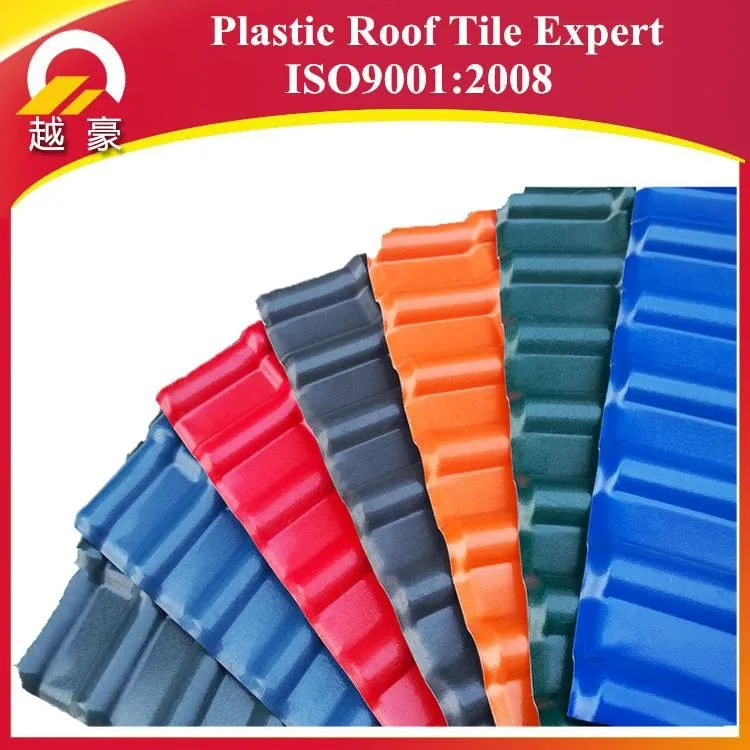

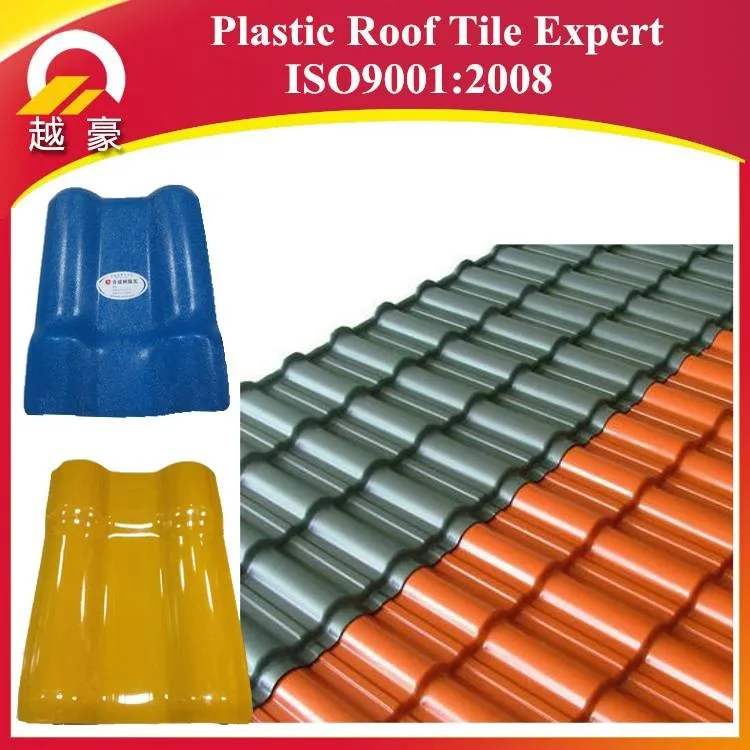

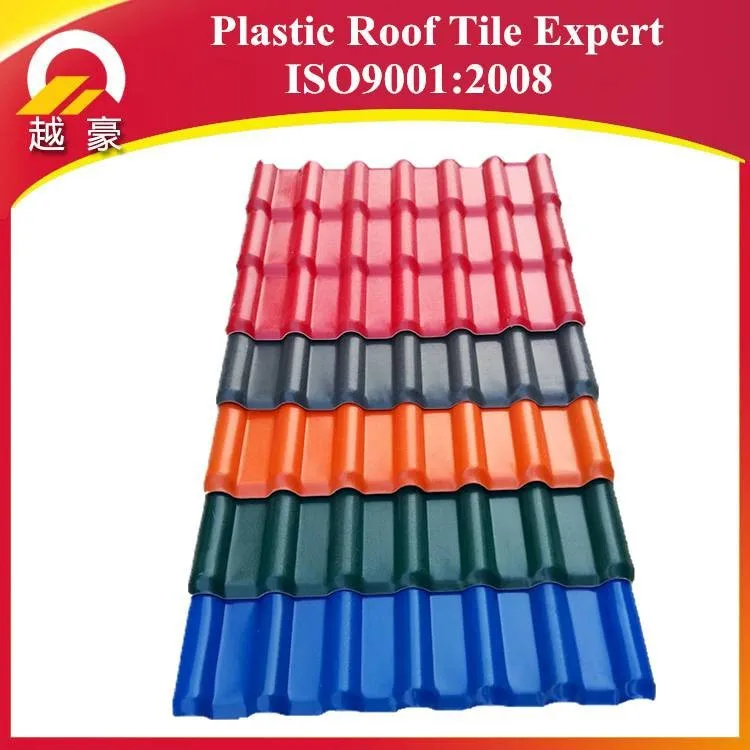

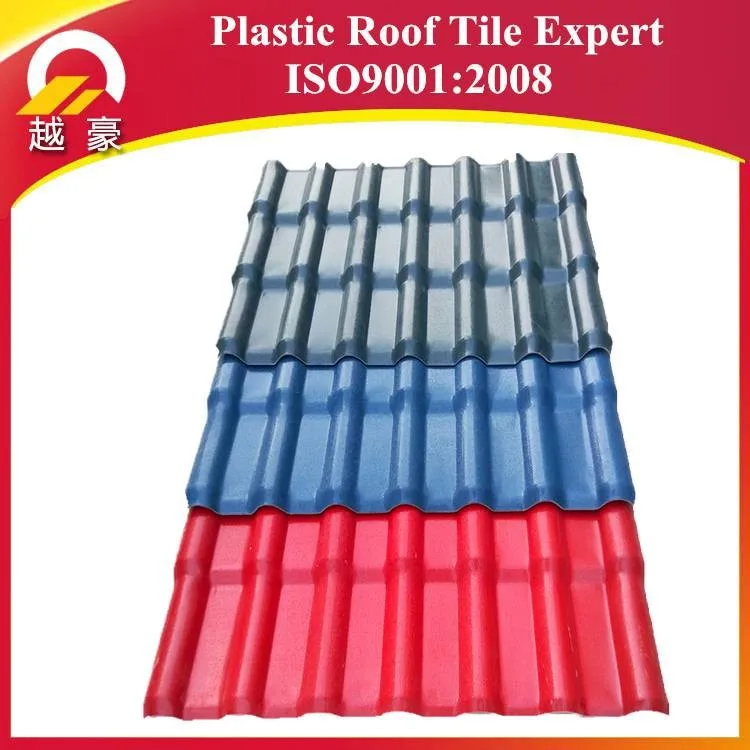

Synthetic resin roofing sheet /pvc plastic roof sheet /roofing tiles for houses
- Category: >>>
- Supplier: Foshan Yuehao Building Materials Technology Co. Ltd.
Share on (62014070510):
Product Overview
Description
Product Description:
Used color-coated PVC plate, by roll cold-formed into a variety of wave pressure plate. It is suitable for roof, walls and interior and exterior decoration on industrial, civil buildings, warehouse, special construction and large span steel structure housing. With characteristic of lightweight , high strength, convenient construction, shockproof, fireproof, rain, long life, maintenance-free etc., now is been widely used.
Characteristic:
(1) Attractive and beautiful appearance, rich colors be chosen, combination flexible, can be expressed in different architectural styles.
(2) Lightweight(6~10kg/m2) and high strength(yield strength250~550MPa), with excellent features of waterproof, shockproof.
(3)Convenient construction and installation, reduce installation, transportation workload, shorten the construction period.
(4)Raw material PVC sheet is part of green building material, recyclable.

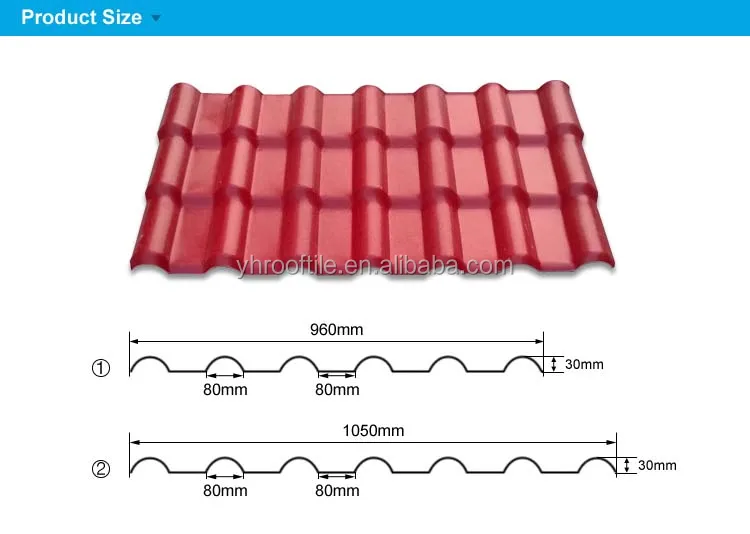

Technical Data:
| Width | 1050mm |
| Weight | 4-6.1±0.1kg/square meter |
| Thickness | 2.0-3.0mm |
| Length | customized |
| Minimum slope | 12° |
| purlin Space | 700mm for thickness of 2.0mm 800mm for thickness of 2.5 or 3.0mm |
| Overlap | one corrugated |
| popular color | Terra Cotta, Red, Light red, Green, Blue, Grey, Black, Orange etc. |

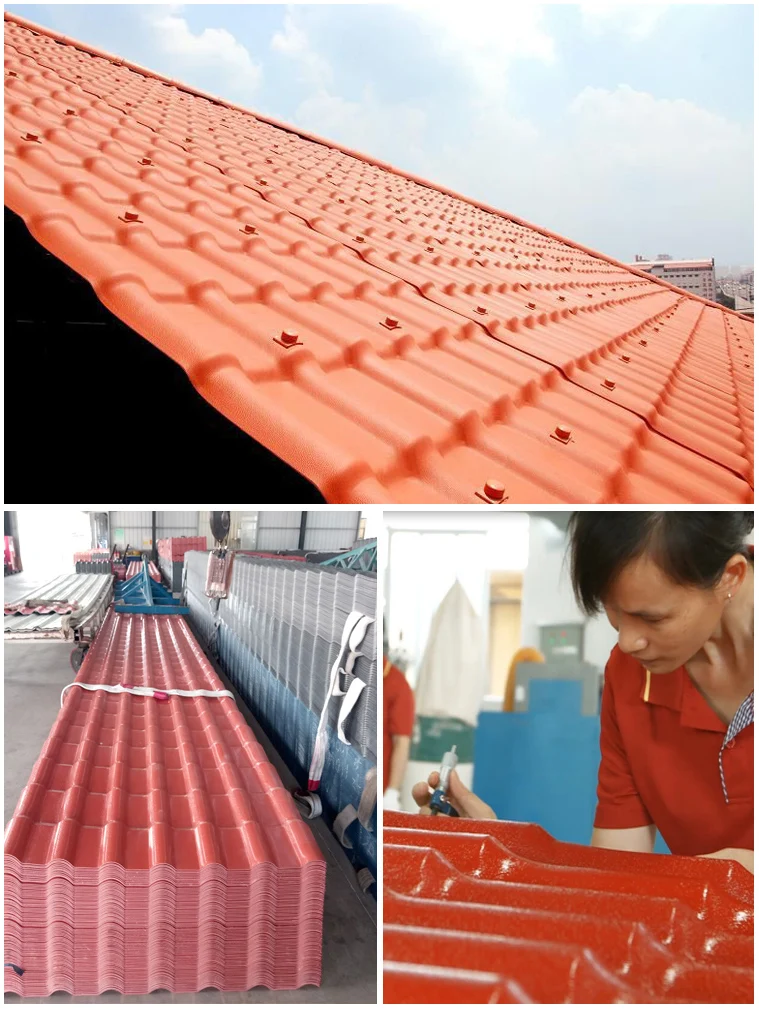

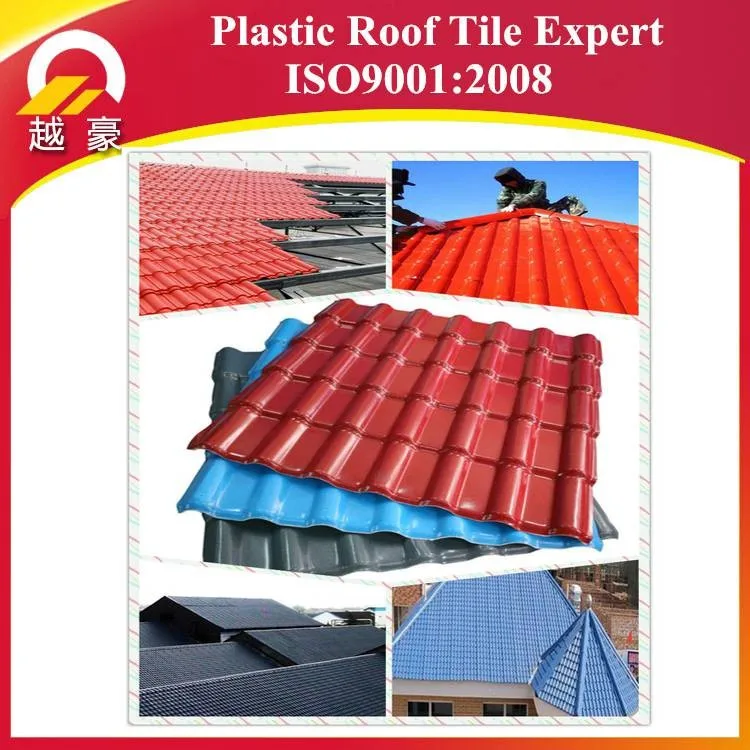

Application
Production Process

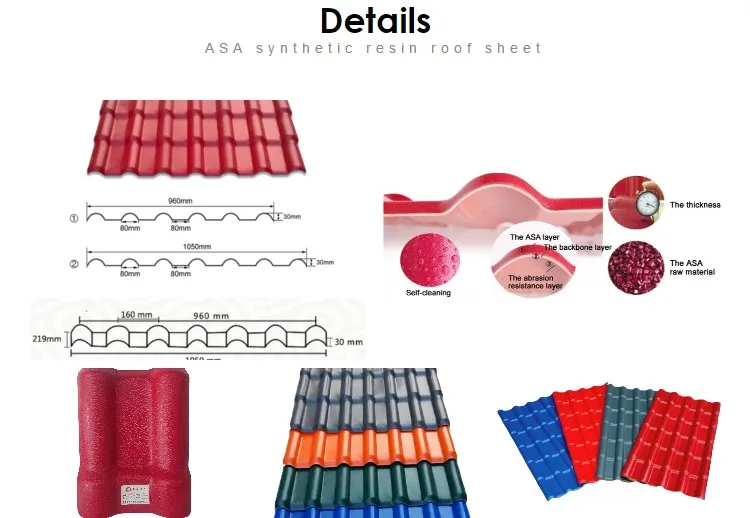

3 layer Heat Insulated UPVC Roof Sheet is manufactured based on 3 layer co-extrusion technology by one-time processing. It is an ideal building material for construction projects with heat insulation requirement. The following is a list of the distinct features of each layer material.
First layer:weather resistant resin is selected as the top layer material to block the solar ultraviolet radiation and reduce the coefficient of heat conductivity. It provides our UPVC roofing material with great durability and chemical corrosion resistance;
Second layer:the middle layer is a special foam structure with heat and sound insulation performances.
Third layer:the bottom layer of our heat insulated UPVC roof sheet adopts modified PVC material to offer optimum strength and rigidity.
Install
Cautions:
*Mind the sharp edge of the sheets in case of any injury.
*Please use a fine -toothed saw to cut the sheet.
*Do not fix screw sets too tight because the sheets will expand with heat and contract with cold. Otherwise, noise might occur when the sheet shrink due to low temperature.
*Screw sets must be fixed at the peak position of the sheets to avoid any leakage.
*The sheets must be installed starting from the opposite direction of local wind direction.
*Can drill hole with hand drill or power drill. When drilling, the sheet should be supported in the bottom side to prevent swaying, and the hole diameter should be 2.0mm bigger than screw.
Our Company
Foshan Yue Hao Building Materials Technology Co.,Ltd have almost 20years solid factory experies,with latest equipment and technology,all our products have passed the evaluation of ISO9001 Quality System Certification.Besides, the Yuehao ASA tile has gained the title of Famous Brand in Guangdong Province. With the high quality and proffessional production/service team,we are the authorized supplier of roofing tiles for many successful projects in China, Mid East,South America etc.. Located in Sanshui Lubao Industrial Park, We sincerely welcome you to visit us!
FAQ
Q1.What is your main products?
Various asa pvc roof tile, asa pvc roof sheet, asa synthetic resin roof tiles, ASA PVC wallpanels,
hollow corrugated sheet and relative accessory parts.
Q2.What color can you produce?
Red,brick red,dark red,blue,green,grey etc, same as our color sample. If you need special color, please provide sample.
Q3.What is the temperature limited of the environment that your roof tile can be used?
From Minus 45 degree to 80 degree.
Q4.Certificates of your roof tile
ISO 9001:2008(company), SGS,FQM,MA,AL
Q5.How long is your delivery time?
Lead time since receipt of 30% T/T deposit payment: 3-7days.Samples will be prepared within 2 days.
Q6.What's your MOQ?
Generally speaking the MOQ is 1000sqms,but we can also provide you samples for quality inspection.
Q7.Do you charge for the samples?
According to our company policy, we just send free samples to customers while customers bear the freightage.
