JMKE 50mm 12V 24V Brushed PMDC50s DC Motor 2000 3000 4000RPM
- Category: >>>
- Supplier: Tianjin Motorong Technology Co. Ltd.
Share on (62014087530):
Product Overview
Description
JMKE 50mm 12V 24V Brushed PMDC50s DC Motor 2000 3000 4000RPM
Product Description
Micro gear motor with low noise and high torque
Solidly constructed and ready to install in numerous applications.
Motor | Voltage | No-lode | Lode | Weight | |||
DC | Current(A) | Speed (r/min) | Torque (gf.cm) | Current(A) | Speed(r/min) (r/min) | (g) | |
PMDC-50S | 12V | 0.36 | 2000 | 540 | 1.2 | 1600 | 570 |
PMDC-50S | 12V | 0.42 | 3000 | 620 | 1.8 | 2400 | 570 |
PMDC-50S | 24V | 0.34 | 3000 | 750 | 1.3 | 2400 | 570 |
PMDC-50S | 24V | 0.37 | 4000 | 1000 | 1.9 | 3200 | 570 |
Application:
Typical applications include factory automation machinery, labeling machinery, machine tools, material handling machinery, packaging machinery, printing machinery, robotics, x-y tables, textile machinery, applications which require smooth operation or applications which have medium to high reflected load inertias.

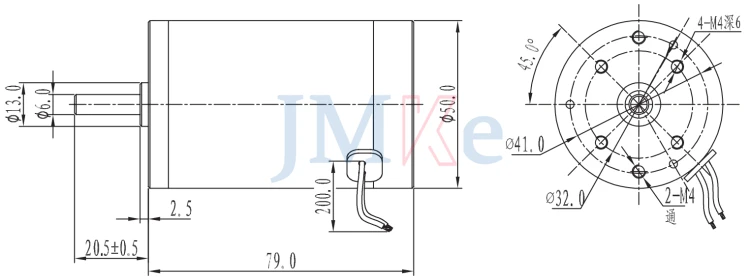

Drawing
Φ= 50mm
Installation Dimension:M4, Φ41mm
Central Output Shaft, Length=20mm
Total length=99mm
SPEED ADJUSTABLE - The speed can be adjusted by dc motor speed controller.
If you need a lower or higher speed motor, please choose the right rpm to meet your needs. This motor is reversible so that you can switch positive and negative.
Datils
How to get quotation
Please offer below information
Voltage | Current | Diameter of motor | Brushed/Brushless | Torque | Output Speed |
(V) | (Am) | (mm) |
| (N.m) | (r/min) |
Production Flow
 |  |  |  |
| GA25R-370 | GB37R-520 | PMDC80SF | PMDC38S |
FAQ
Q:What kind of motors you can provide?
A: We currently produce Brushed Dc Motors, Brushed Dc gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors and Ac Motors etc. Check above specifications or email us to recommend motors based on your specification.
Q:Can you send me a price list?
A: All of our motors are customized based on different requirements like lifetime, noise, voltage, and shaft etc. Price also varies according to annual quantity. If you send detailed requirements and annual quantity, you can get quick quotation.
Q:What's the lead period for regular order?
A: About 30 days if no stock. Period can be shorter or longer based on different model and quantity. Regular modes normally have stock.
Q:Is it possible to have customized service if we pay sample cost.
A: Yes. According to your request for the voltage, speed, torque and shaft size/shape, we quote you. It’s better to share the detailed like annual quantity, target price etc.
Q: What's the MOQ? Can I just order few quantities?
A:Welcome to order for personal use or replacement. It’s no problem to send by international express delivery if regular mode has available stock.If MOQ, price and other terms are acceptable, we'd love to provide customized samples for your testing before official order.
Q: What's your payment term?
A:100% payment if quantity under 100pcs. Above 100pcs, 40% as deposit and 60% paid before shipment.
Q: How can I trust you to make sure my money is safe?
A: Order in trade assurance of Alibaba would be a good chose for you.
