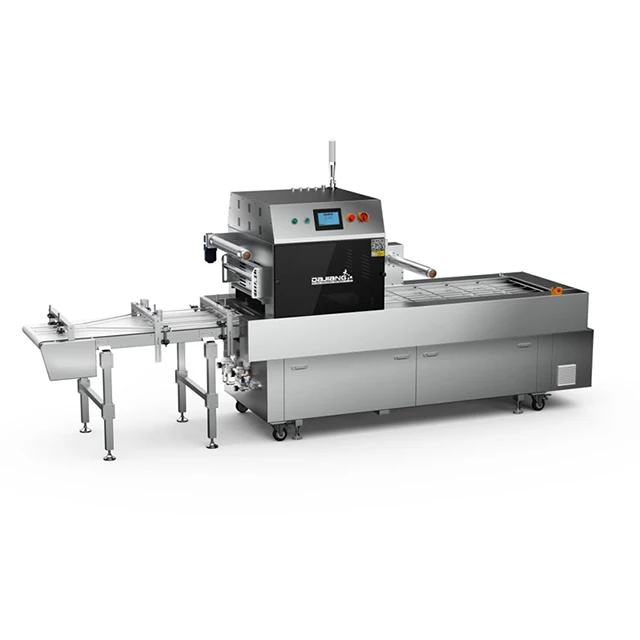

DL-410KA tray sealing machine is a kind of tray food sealer that launched by Dajiang Machinery Equipment Co., Ltd. for food packed by tray. The equipment has a high degree of automation with high packing speed and good sealing effect. The microcomputer programmable controller and man-machine interface touch-screen control system are used in the machine. The parameter setting is intuitive and precise, and the operating is stable and reliable. According to the characteristics of the packing material, the parameters only need to be set for time to complete all of the packing operations uninterruptedly. The operation is simple and convenient. Double startup safety switch is adopted to guarantee operator safety. The whole automatic packing process may be completed by just one touch of the start switch. Machine adopt easily replaceable sealing mould, client could replace the different sizes and shape mould according to their requirement.
Technology Specification
Model
DL-410K
Max Diameter Of Film(mm)
260
Max Tray Dimension(mm)
495 x 280 x 80
Working Pressure(mpa)
0.6-0.8
Max Width Of Film(mm)
560
Consume Power(kw)
2
Packaging Speed (times/min)
6-8
N. Weight(kg)
600
Technical Characters

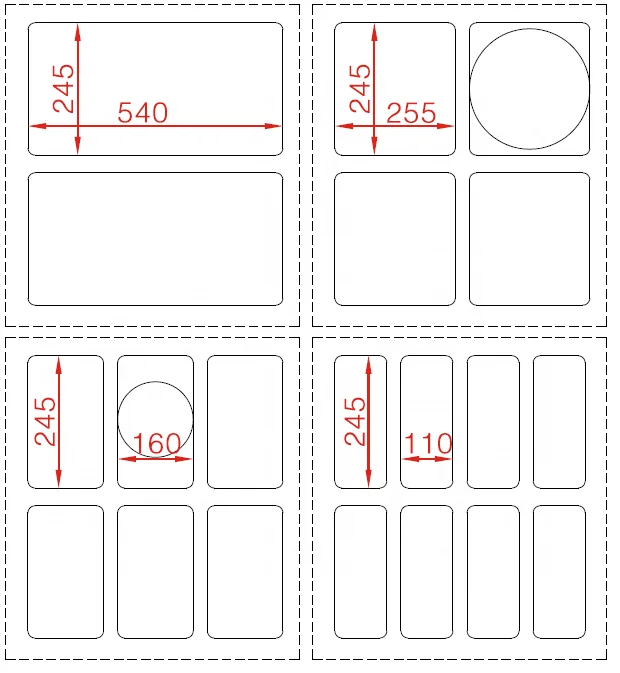

1. Control System: OMRON PLC programmable control system. The data setting and motion control are more accurate, the performance is more reliable, the operation is more easy and simple and more humanized. 2. Pneumatic System: SMC pneumatic elements. The quality of the equipment is stable and reliable, and the service life is long, and avoids frequent equipment failures and even suspension of work and other quality accident caused by component quality. 3. Main Structure Material: Machine main structure material adopt food grade 304 stainless steel, which is safety and sanitation, easily for cleaning. 4. Easily replaceable of sealing mould: Different size of the trays are available according to clients packing requirement. 5. Work status indication: the machine has an operating program status and failure real-time display function to monitor the equipment to ensure the normal operation of the machine. 6. Packing executive system: The totally enclosed packing executive system is isolated from the operator to completely eliminate the potential safety hazard in the packing process. 7. Automatic conveying system: special stainless steel conveying system is adopted. It s safe, healthy, reliable and more convenient to clean. 8. Emergency stop switch: The machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs to guarantee the safety of equipment and personnel. 9. Heavy duty casters: Universal caster wheels with brake function are mounted at the bottom of the equipment for user to move and fix the machine.
Advantage of Product
Control System
OMRON PLC programmable control system. The data setting and motion control are more accurate, the performance is more reliable, the operation is more easy and simple and more humanized.
Pneumatic System
SMC pneumatic elements. The quality of the equipment is stable and reliable, and the service life is long, and avoids frequent equipment failures and even suspension of work and other quality accident caused by component quality.
Vacuum System

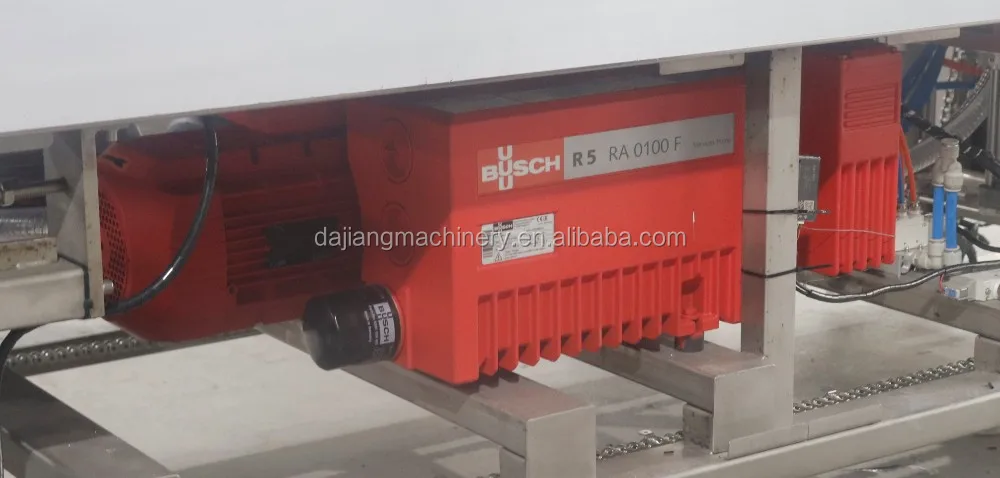

Germany BUSCH vacuum pump (high oxgen vacuum pump), the quality of the machine is reliable, high vacuum degree and long service life.
Vacuum System
The Germany WITT gas mixer is adopted for real-time gas mixing. The gas mixing accuracy is higher than ± 1%. The quality of food packing of each box is guaranteed to be always consistent, and the quality and preservation period of the packed food are controlled effectively.
Emergency stop switch
The machine is equipped with an emergency stop switch which can be pressed in case of abnormal condition to terminate all ongoing work programs to guarantee the safety of equipment and personnel.
Heavy duty casters
Universal caster wheels with brake function are mounted at the bottom of the equipment for user to move and fix the machine
Safty start button
The security measures of the machine only can be started by simultaneous operation of both hands which effectively prevents security incidents caused by malfunction of the operator.
Certifications
Cooperative Brand
Our Company
Since our founding in 1994, DAJIANG has served the processing and packaging equipment needs of thousands of companies worldwide.
To date, we have developed various vacuum packaging machines and MAP tray sealing machines designed for factories ranging from small-shop to large-scale production.
Regardless of the specifications of the cast parts and modules, our machinery allows for manufacturing standardization. This allows the parts produced to be applied to a wide range of machinery. We continually work to improve precision, lower maintenance requirements, and increase the machines' working life.
