Анероидный Сфигмоманометр BP метр

Product Overview

Description

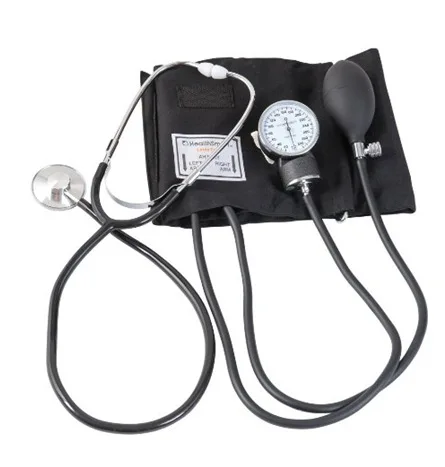

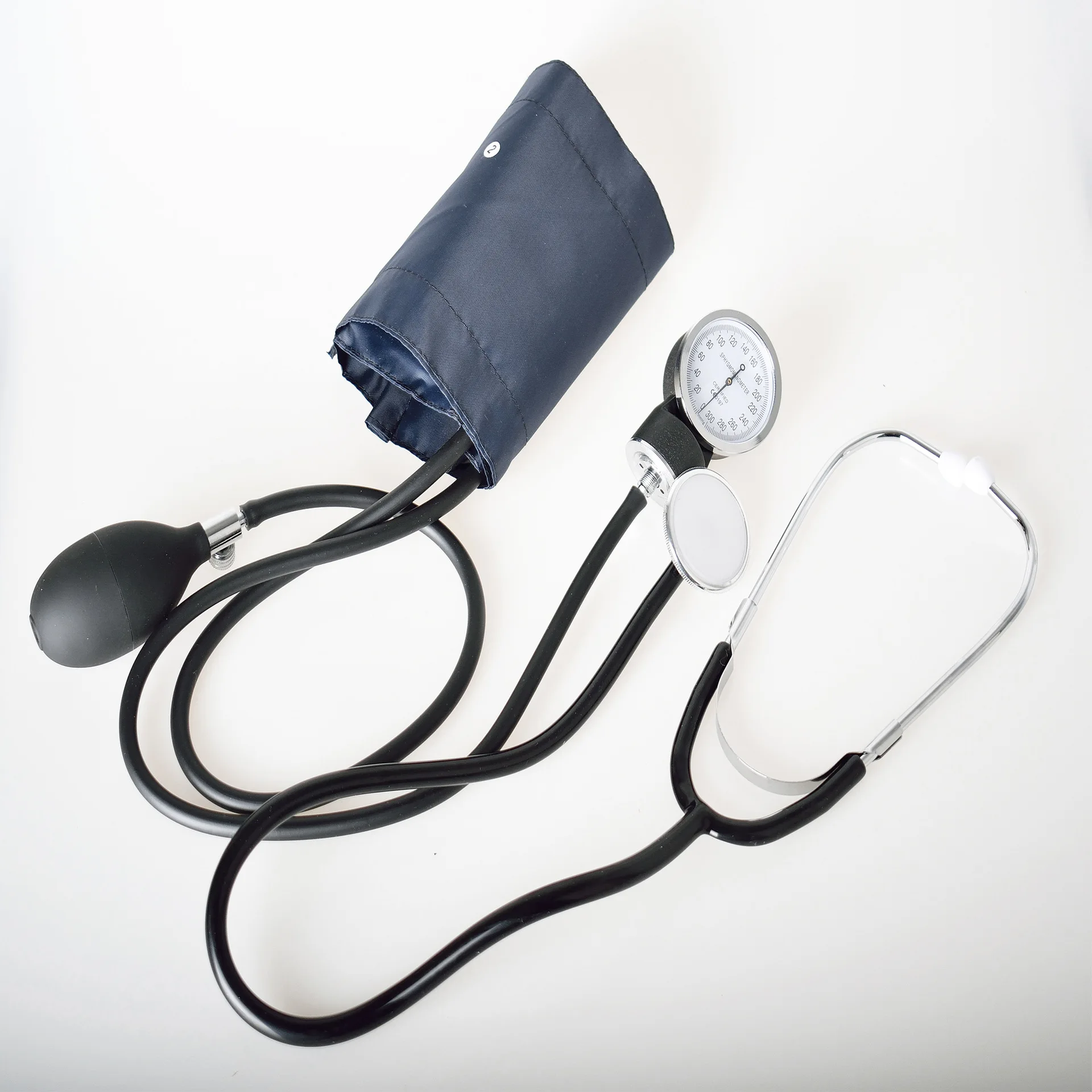

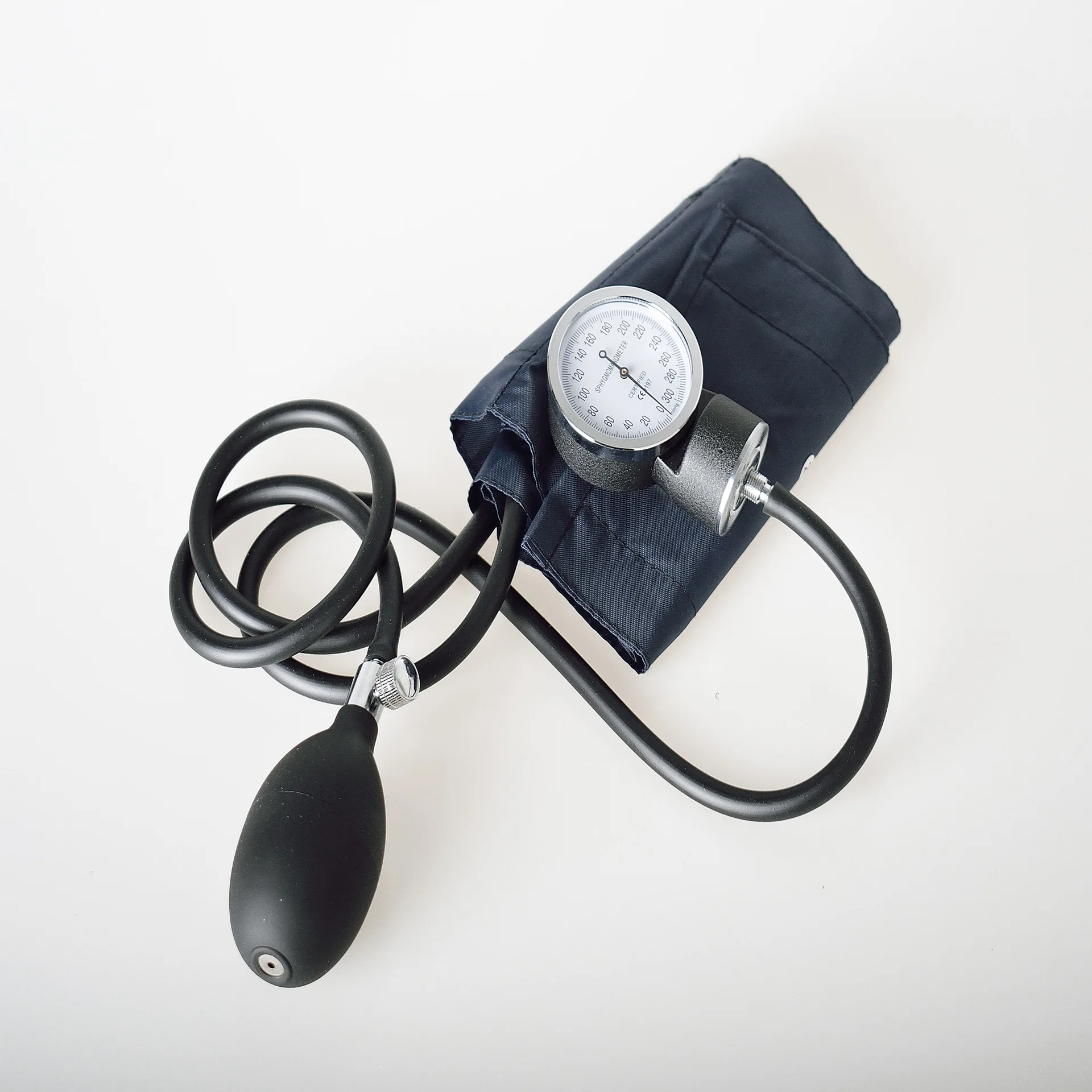

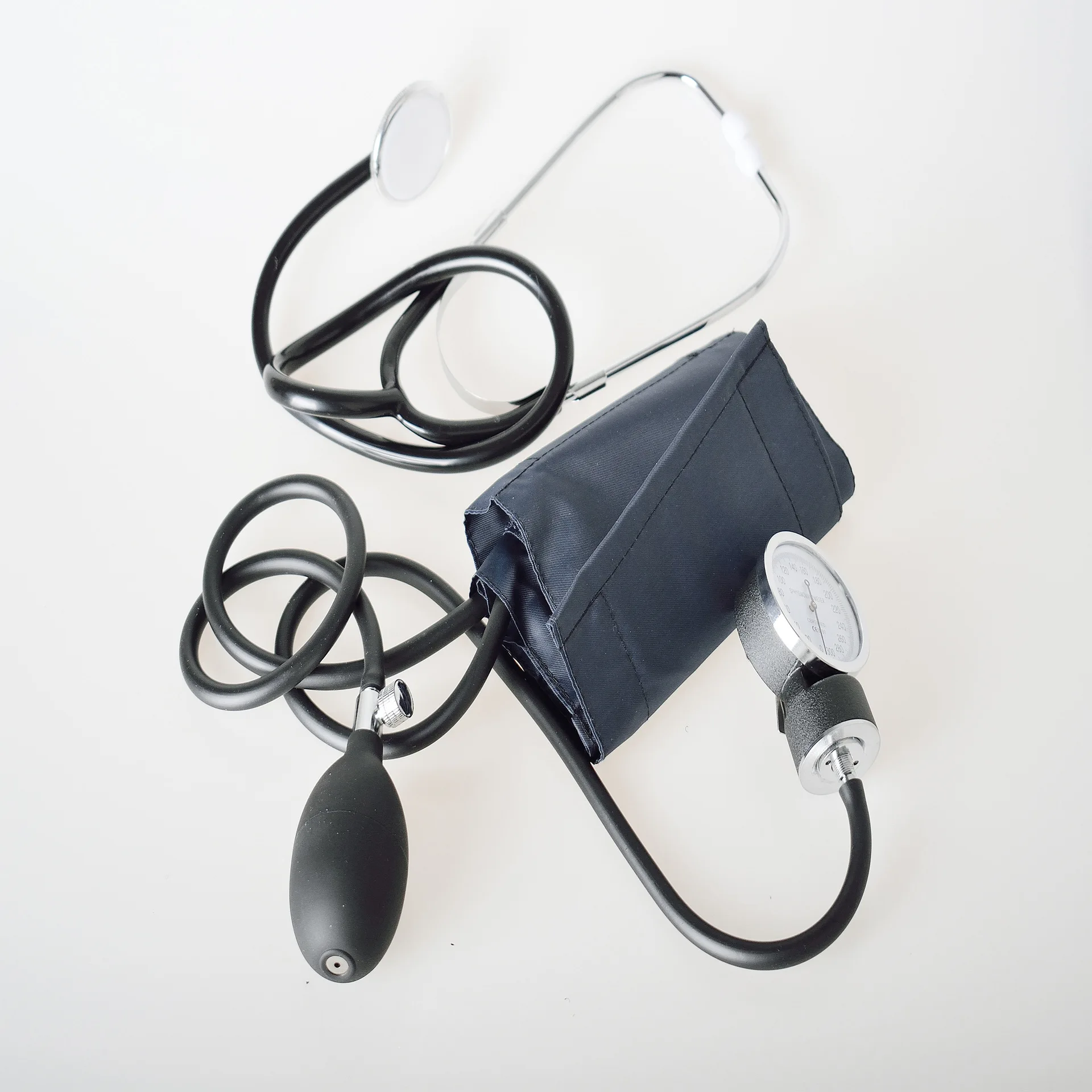

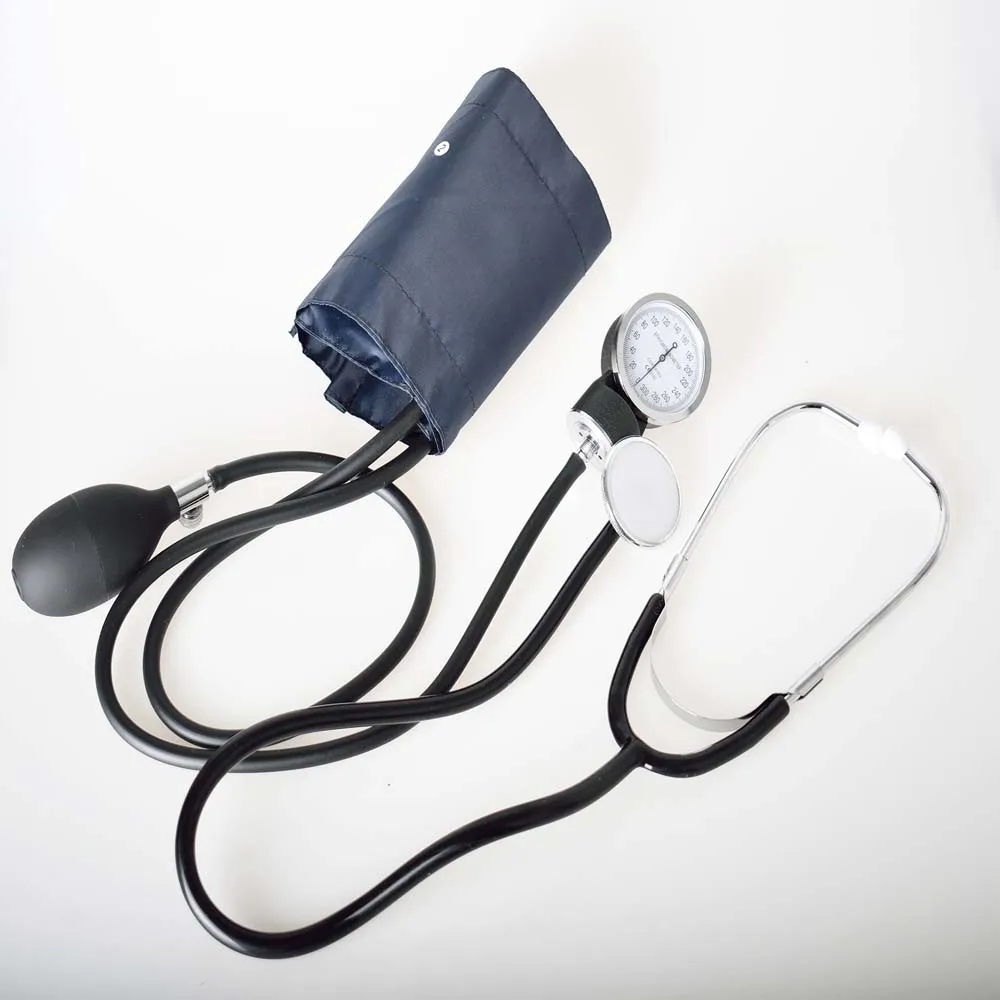

Manual Aneroid Sphygmomanometer BP Meter



Model: YT

Certificate: CE

Strap: nylon, 48x14 or 51x14 cm

Ball, bag: PVC

Measuring range: 0-300mmHg

Accuracy: +/-3 mmHg (0.4kPa)

Other: ordinary air valve

Stethoscope: single stethoscope

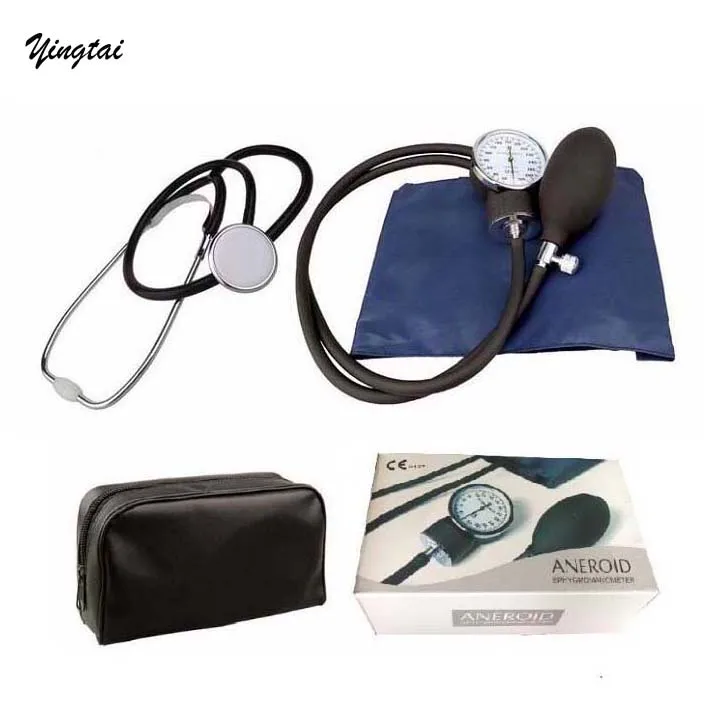

Individual packaging: artificial leather bag, color box

Product size: 195x210x70 mm

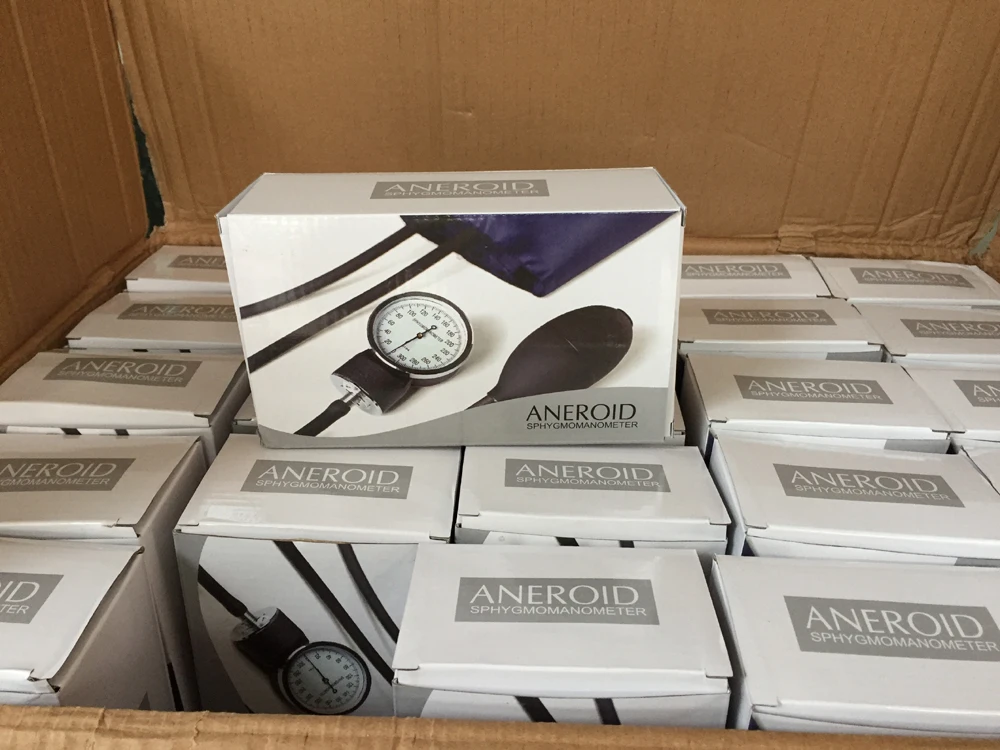

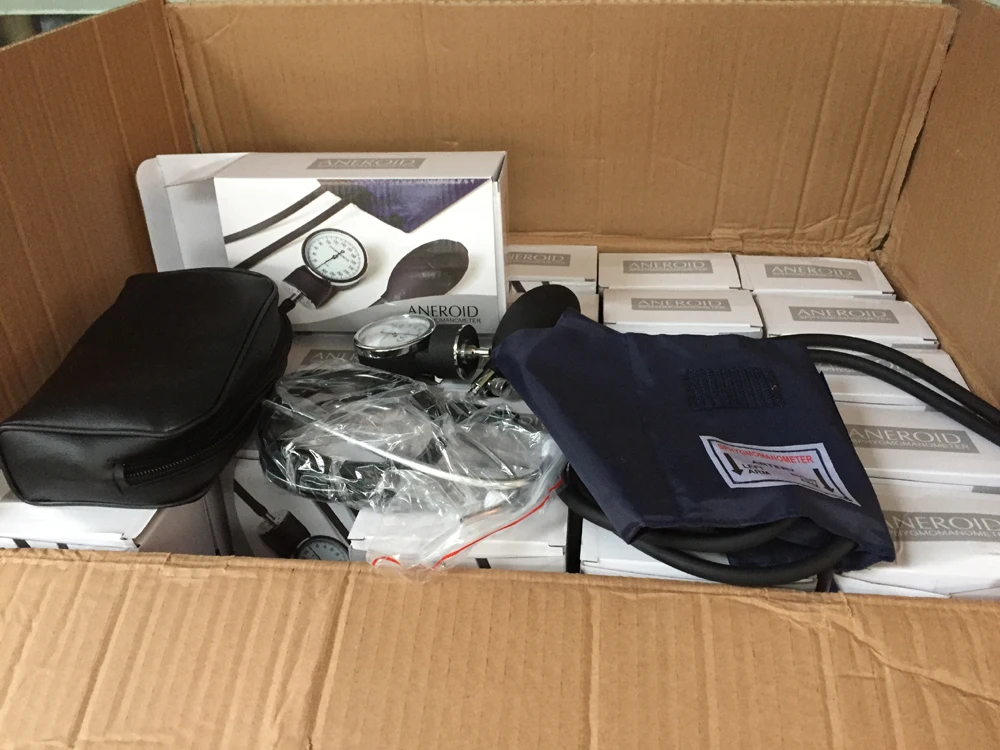

Packing:

1 pc/color box, box size: 7.5x11x7 cm, weight 403 gram( with box)

50 pc/ctn, carton size 55x37x37 cm, G.W. 20.5 kgs





Description:

1. product description:

Easy to operate, accurate measurement data, all metal manufacturing, durable. The sphygmomanometer is a model designed for home users by a medical device manufacturer that produces a desktop sphygmomanometer. It is small and convenient to carry, and has high measurement accuracy. Its method of use and accuracy during measurement are all used by the doctors in the hospital. Consistent.

2. working principle:

The arm is inflated to compress the measurement site to block the current, and then the gas in the arm band is discharged to make the blood flow again. The blood pressure measurement is judged based on the blood flow sound or the vibration of the blood vessel arm when the blood flows again.

3. Measurement range:

0-300mmHg (0-40kPa)

4. the basic error:

GB error ±3.75mmHg, factory error ±2mmHg

5. configuration:

5.1: Head: Material: Aluminum alloy, zinc alloy Default aluminum alloy Color: black, blue, gray or customer specified

5.2: Inner capsule: Material: latex, default PVC color: black or customer specified

5.3: Pressure ball: Material: Latex, default PVC color: black or customer specified

5.4: Intake valve: Material: zinc alloy, copper, plastic Default: zinc alloy plating treatment

5.5 tail valve: copper or plastic default: copper plating treatment

5.6: Package: human leather bag can be printed LOGO default ordinary printing

5.7 strap: A, color: armband color customer default is black B, size: optional size is divided (large adult, adult, teenager, child, baby default is adult C, material: nylon, cotton, PU default Nylon D, printing: printable LOGO E, strap with hoop

5.8: Listening head: Specifications: ordinary single listening, ordinary double listening material: aluminum alloy, zinc alloy surface treatment: aluminum alloy zinc oxide alloy plating default: aluminum alloy ordinary single listening

5.9: Y tube (stethoscope tube): A, material: PVC B, color: customer specified default black

5.10: ear hook: A, material: aluminum alloy, copper, stainless steel B, surface treatment: aluminum alloy, copper plating treatment, stainless steel primary color

5.11: Packing: 1pcs into the box color box packaging customer specified printing default neutral packaging

6, product features:

The blood pressure meter is a diagnostic instrument for measuring blood pressure in the human body. It has the characteristics of small size, light weight and the same effect as the mercury sphygmomanometer. It adopts the design of mercury free, measures blood pressure, is safe and reliable, and is widely used for home users.

7, measuring blood pressure should pay attention to:

Blood pressure should be measured in a quiet environment. Because the blood pressure of the human body is changing all day, it should be chosen to measure at the same time every day. The person being tested should be quiet in a relaxed state, preferably not talking and activities. It is advisable to wear loose clothes.



8. how to operate:



8.1. Before the blood pressure meter is activated, check it first. The normal use of the blood pressure meter usually refers to the “0” position. After the pressure, the reaction is flexible and can still return to the “0” position.

8.2. Ask the person to be seated at the table and put the left arm on the table to maintain a comfortable posture.

8.3. Adjust the arm and be at the same height as the heart. If the height is not enough, add a cushion under the arm.

8.4. Flatten the arm band so that the middle part of the belt is facing the radial artery. The lower edge of the arm band is 2 to 3 cm on the elbow. The upper arm should not be too tight or too loose. Generally, two fingers should be inserted under the sleeve. It is appropriate to avoid affecting correctness.

8.5. Insert the stethoscope's head into the arm band and place it on the elbow's radial artery.

8.6. Slowly inflate the arm band with the latex ball, and pay attention to the monitoring. When the pulsation of the radial artery disappears, the pressure is increased by 2.5 kPa-4 kPa (20 mmHg-30 mmHg) to stop pumping.

8.7. After the pressure is stopped, the air in the arm band is slowly released at a rate of 0.3 kPa to 0.6 kPa (2 mmHg to 4 mmHg) per second, and the sphygmomanometer pointer is gradually lowered.

8.8. The pressure value indicated by the hands when the first beating sound heard by the stethoscope during the descent is the systolic pressure.

8.9. When the beating tone is turned into a murmur after gradually increasing, the tone suddenly becomes boring and gradually disappears. When the sound is not heard, it is diastolic pressure.

* When measuring blood pressure, it should be repeated 2 to 3 times, and the average reading will be taken as the blood pressure value.

*The back of the blood pressure meter case is equipped with a metal hook, which can be hung on the arm band to make the reading more convenient.

*The blood pressure watch arm is equipped with a Velcro strap, which is convenient.
