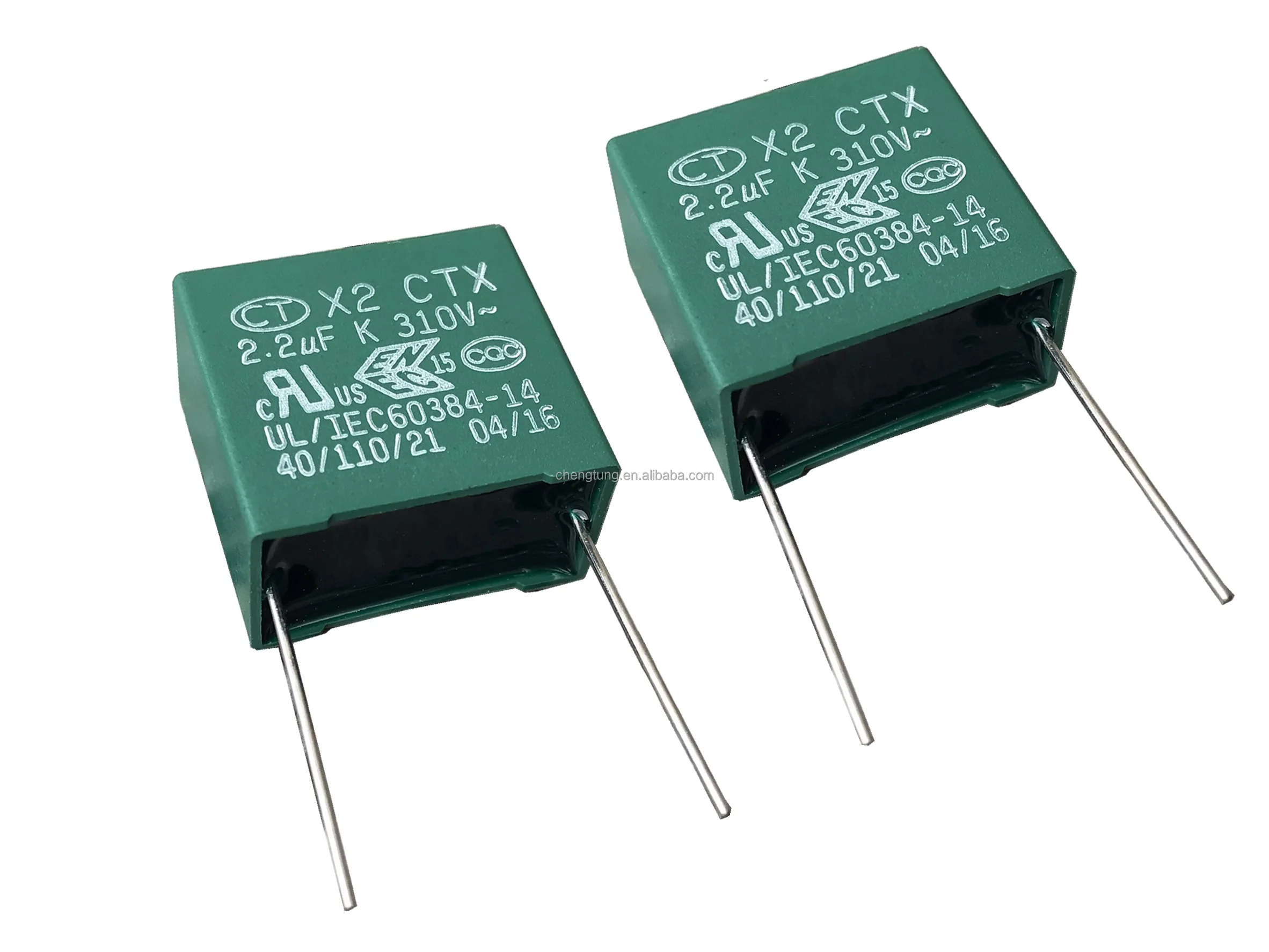

Металлизированная полипропиленовая пленка X2 конденсатор

TYPE: X1/X2 CLASS (330/350/380VAC)

FEATURES

 APPLICATIONS

• Provides interference suppression, all safety approval


• Overvoltage stress withstanding


• Self-healing properties


• Active and passive flame retardant


• High voltage, applicable to the lighting and lamp

• Ideal for use in line bypass, antenna coupling, across-the-line and spark killer circuits.


• Available for EMI filter.


• Switching power supply applications.


• Business machines appliances, such as: typewriters,  adding machines, computer displays and monitors.


• Household appliances, such as: mixers, fans, coffee grinders,audio and TV circuits.


• Thyristor and triac appliances, such as: dimmers.

SPECIFICATIONS

  Dielectric

  Polypropylene film

  Electrodes

  Vacuum evaporated metal

  Coating

  Encapsulated in flame retardant

 (UL94V-0) plastic case and epoxy resin end seal.

  Leads

  Radial leads of tinned wire

  Climatic Catalogue

  40 / 110 / 21

  Capacitance and Class

 0.0047uF ~ 1.0uF (X1 class)

 0.0047uF ~ 10uF (X2 class)

  Capacitance Tolerance

  J = ± 5%  K = ±10%  M = ± 20%

 Dissipation Factor (Tangent of Loss)

 <=0.1% at 1KHz and 20℃

<=0.3% at 10KHz and 20℃

  Voltage Proof

 T-T 1634V.DC 60 Sec. or 2100V.DC 1 Sec.

 T-C 2260V.AC 50/60Hz 60 Sec.

  Insulation Resistance

 C<=0.33uF  IR>=30,000MΩ

 C>0.33uF  IR>=10,000MΩ / uF
