Product Overview
Description
BRIEF INTRODUCTION

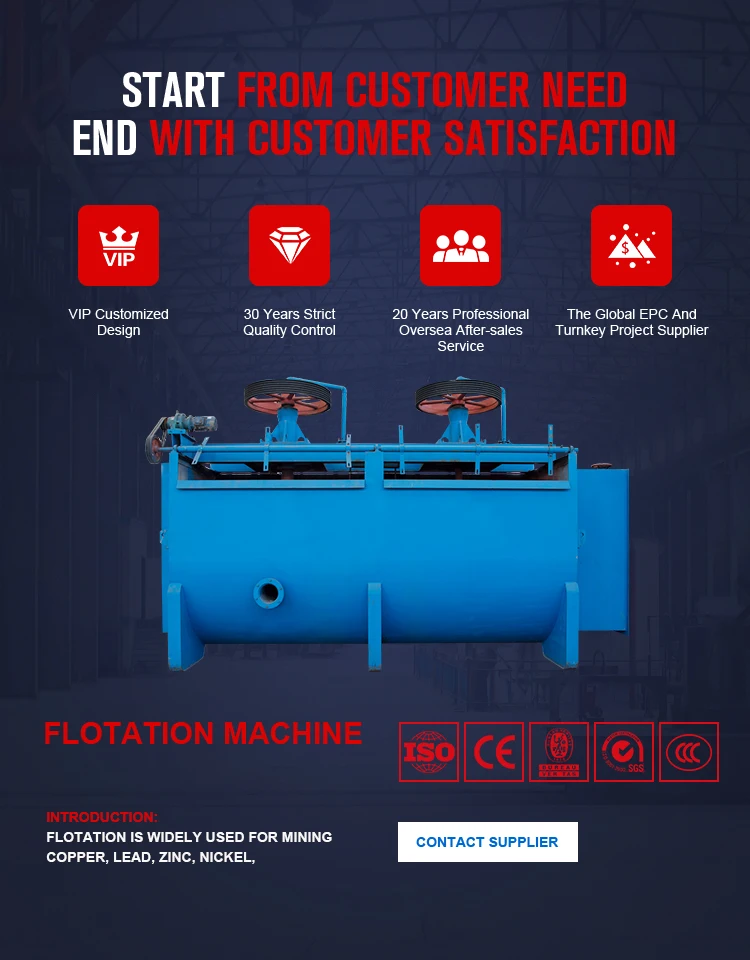

Flotation machine applies to separation of non-ferrous metal, ferrous metal, noble metal, non-metallic mine, chemical material. And flotation machine can be used in roughing, scavenging, selection or reverse flotation.During the flotation process, pulp will be mixed with drug firstly and agitated. Then target ore grains will selectively attach to bubbles, float onto the surface of pulp, which will be scraped out and collected. And the rest materials will be left there. Thus, the separation is accomplished.
PRODUCT PARAMETERS
Type | Model | Volume | Capacity | Main shaft | Scraper | Cell size | Weight of | ||
Power | Rotate speed | RotateSpeed | Power | ||||||
(m³) | (m³/min) | (kw) | (r/min) | (r/min) | (kw) | (mm) | (kg) | ||

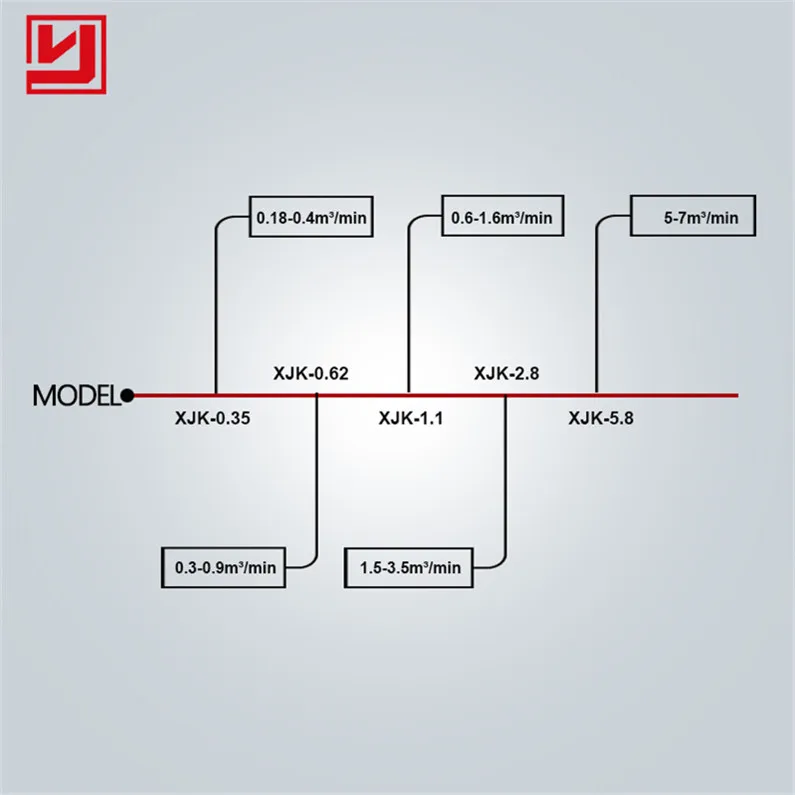

XJK flotation | XJK-0.35 | 0.35 | 0.18-0.4 | 1.5 | 483 | 25 | 1.1 | 700×700×700 | 460 |
XJK-0.62 | 0.62 | 0.3-0.9 | 3.0 | 400 | 25 | 1.1 | 900×820×850 | 980 | |
XJK-1.1 | 1.1 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1000 | 1390 | |
XJK-2.8 | 2.8 | 1.5-3.5 | 11 | 280 | 25 | 1.1 | 1750×1600×1100 | 2430 | |
XJK-5.8 | 5.8 | 5-7 | 22 | 240 | 25 | 1.5 | 2200×2200×1200 | 3533 | |
SF flotation | SF-0.37 | 0.37 | 0.2-0.4 | 1.5 | 386 | 25 | 1.1 | 700×700×750 | 468 |
SF-0.7 | 0.7 | 0.3-0.9 | 3 | 400 | 25 | 1.1 | 900×820×950 | 990 | |
SF-1.2 | 1.2 | 0.6-1.6 | 5.5 | 330 | 25 | 1.1 | 1100×1100×1100 | 1873 | |
SF-2.8 | 2.8 | 1.5-3.5 | 11 | 268 | 25 | 1.1 | 1750×1600×1150 | 2538 | |
SF-4 | 4 | 2-4 | 15 | 220 | 25 | 1.5 | 1850×2050×1200 | 2838 | |
SF-8 | 8 | 4-8 | 30 | 191 | 25 | 1.5 | 2200×2900×1400 | 4129 | |
SF-10 | 10 | 5-10 | 30 | 191 | 25 | 1.5 | 2200×2900×1700 | 4486 | |
SF-20 | 20 | 5-20 | 30×2 | 191 | 25 | 1.5 | 2850×3800×2000 | 9828 | |
FAQ
Q1: Why choose YuHong machinery?
A1: 1. Up-to-date design, CAD calculation and simulation;
2. ISO,BV,SGS,CE quapty control manufacturing;
3. Over 30 years experience, export to over 50 countries;
4. Highest standard to suit operators' use;
5. World class quality at affordable price.
Remarks: The price will depend on different models. Reply message ,you will get 5% discount price.
CONTACT SUPPLIER
Q2: What are the requirements for flotation machine material?
A2: Our Yuhong has a high standard on choosing material of flotation machine.
1.Using very high grade steel plate (i.e. Q235, Q345) on structuring part;
2. Using wear-resistant steel (i.e. ZG35, ZGMn13, 65Mn, 35CrMo, ZG60Si2CrA) on quick-wear parts;
3. The motor, reducer, bearing, belt, bolts are Chinese top 5 brands;
4. Metallurgy performance must be considered during designing, cutting, bending, fitting&welding.
CONTACT SUPPLIER
Q3: What information do we need to provide you the reasonable model and best quotation?
A3: 1. What is the raw material?
2. What is the capacity per hour or per day?
CONTACT SUPPLIER
HENAN YUHONG HEAVY MACHINERY CO., LTD.
Henan Yuhong Heavy Machinery Co.,LTD is a joint-stock mining machinery manufacturing enterprise integrated in scientific research,prodcution and marketing.our main products include five series ,they are the Crushing equipment ,Beneficiation equipment,Grinding Powder equipment ,Drying equipment ,Kilning equipment.YUHONG GROUP set off from "the customer for this " angle ,put self's whole heart to be that the customer provides the valuable service pattern,the effort using up 100% satisfies different customer product need.
