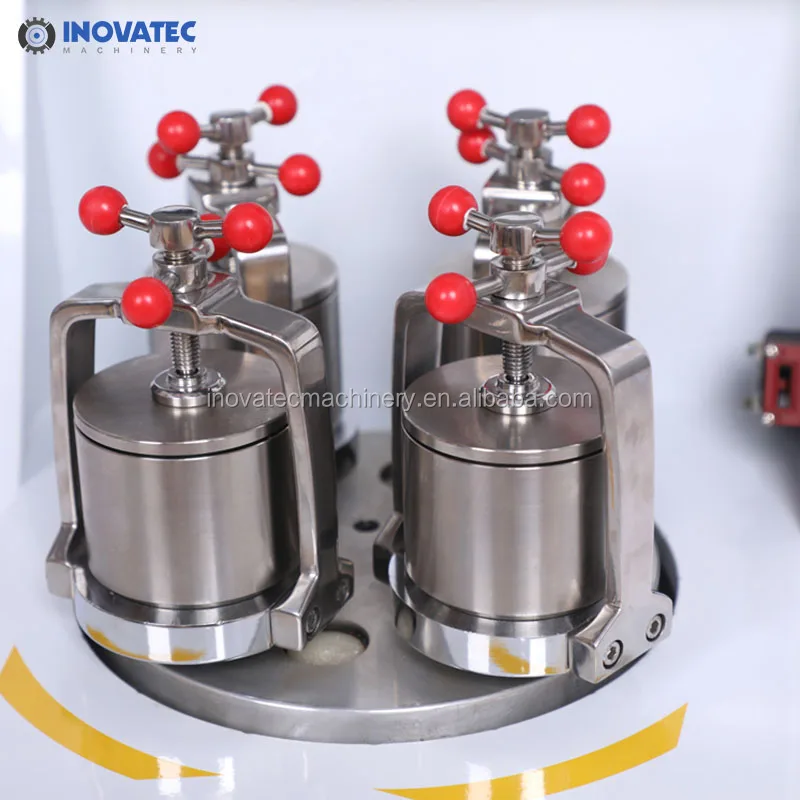

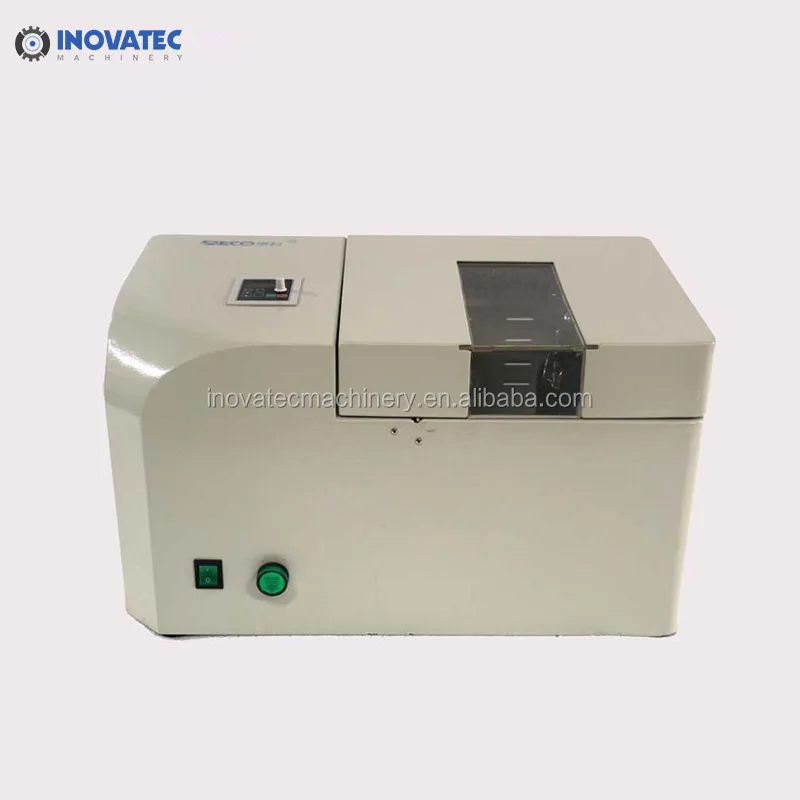

Inovatec wet/dry grinding lab planetary ball mill 2L
- Category: >>>
- Supplier: Huzhou Inovatec Machinery Co. Ltd.
Share on (62014174722):
Product Overview
Description
Product Details & Optionals
Planetary Ball Mill Product Description:
YNW Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production. It can mill the materials from 3~10mm maximum into 0.1µm minimum powder, This model owns small volume, high efficiency, low noise and functional features, Widely applied in industries of chemical, medical, mineral, metallurgy,environmental protection etc.
1.Stable revolving speed of the gear transmission ensures the consistency and repeatability of the experiment.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.

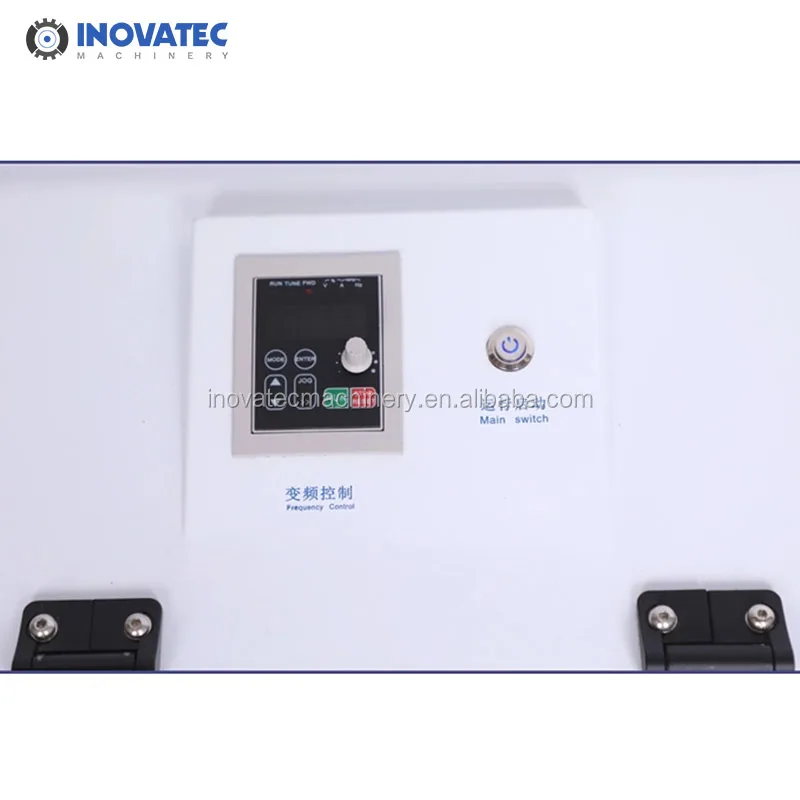

4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental
result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any
operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve
efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety,
lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
2. Planetary movement principle owns high speed, large energy, high efficiency, small granularity.
3. Four powder samples from different sizes and different materials can be produced at one time.
4. The machine is controlled by frequency converter, you may choose ideal rotating speed according to expected experimental
result. The converter is equipped with device of under voltage and over-current to protect the motor.
5. The planetary ball mill has functions of timing power off, self-timing forward and reversal rotating. You may choose freely any
operation modes of one-way direction, alternation, succession, time setting according to experimental needs, so as to improve
efficiency of grinding.
6. Technical features of Ball Mill: Low center of gravity, stable performance, compact structure, easy operation, reliable safety,
lower noise, small loss.
7. Safety switch is installed on the machine to prevent safety accident if the safety cover is opened while machine is running.
Model | YNW-1 | YNW-2 | YNW-3 | YNW-5 | YNW-10 | YNW-15 | ||||||
Jar Volume(L) | 1 | 2 | 3 | 5 | 10 | 15 | ||||||
Sample Capacity per time (L) | 0.3L | 0.7L | 1L | 1.7L | 3.3L | 5L | ||||||
Power (W) | 400 | 400 | 400 | 400 | 750 | 750 | ||||||
Rated Voltage(V) | 220 | 220 | 220 | 220 | 220 | 220 | ||||||
Maximum Load (KG) | 8 | 10 | 20 | 35 | 50 | 80 | ||||||
Speed Mode | Frequency Conversion Speed Regulation | |||||||||||
Rotarion Speed (r/min) | 60-570 | 60-570 | 60-570 | 60-570 | 60-570 | 60-570 | ||||||
Size(mm) | 730*415*260 | 730*415*260 | 730*415*260 | 730*415*260 | 840*435*270 | 840*435*270 | ||||||
Station Space (mm) | 260 | 260 | 260 | 260 | 340 | 340 | ||||||
Roller Distance(mm) | 120 | 120 | 120 | 120 | 140 | 140 | ||||||
Tank Material | Ceramic, Stainless steel, Corundum, Polyurethane, Nylon, PTFE, etc. | |||||||||||
Medium Ball | Alumina, Zirconia, Agate, Hardened steel, Stainless steel, etc. | |||||||||||
Remark: Loading rate of ball mill can not exceed 70% of the effective volume of grinding cylinder. | ||||||||||||

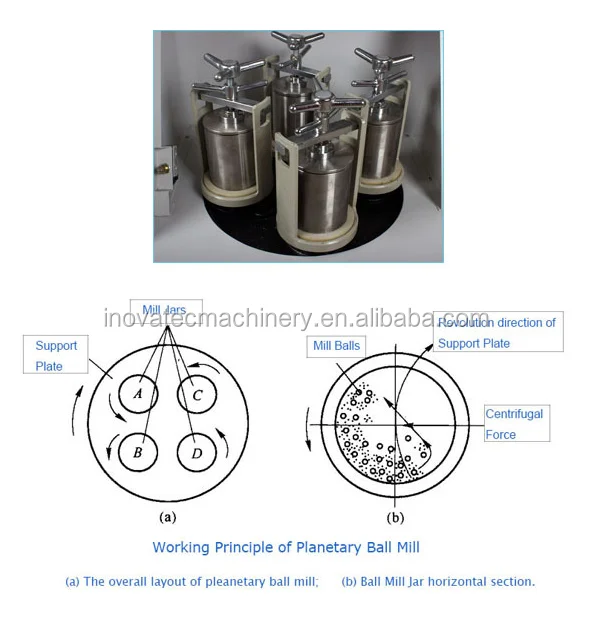

Planetary Ball Mill working principal
The planetary Ball Mill has four ball grinding tanks installed on one turntable. When the turntable rotates, the tank axis makes planetary movements, the balls and samples inside the tanks are impacted strongly in high speed movement, and samples are eventually ground into powder. It has 3 types of mill methods: dry mill, wet mill and vacuum mill. Two or four grinding tanks can work together.
Drive Mode | Gear drive |
Operation Mode | Two or four grinding tanks working together |
Max Load Capacity | Less than 2/3 of total volume of grinding jars |
Feed Size of Materials | Soft and crispy material≤10mm,Other materials≤3mm |
Output Granule | Minimum 0.1µm |
Rotational Speed Ratio | 1/2 |
Max.Continuous Operating Time | 72 Hours |

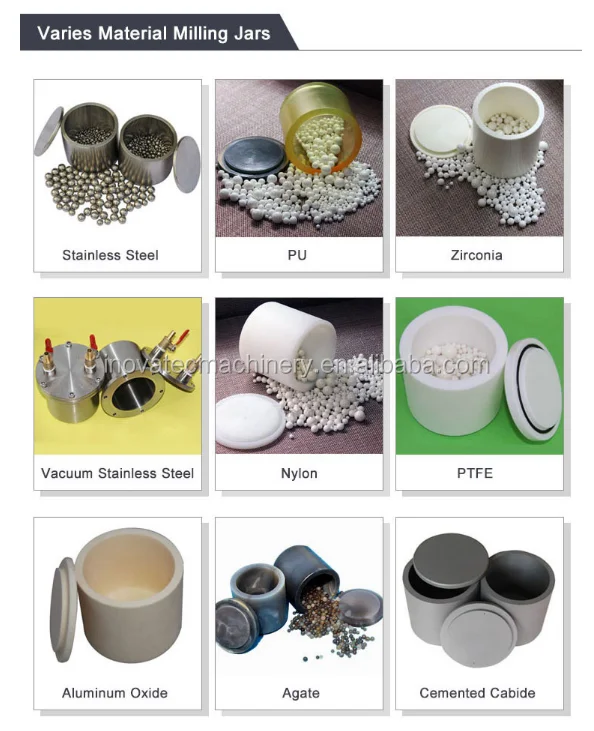

Various of Jar mill materials
We provides all kinds of mill jars,Stainless Steel Jar, Zirconia Jar, Corundum Jar,Alumina Jar, Nylon Jar, PU Jar,Tungsten Jar and PTFE Jar etc.Further, we also provide Stainless Steel Balls, Zirconia Balls, Alumina Balls, PU Balls, Tungsten Balls accordingly.Normally, Mill Jars and balls of the same material are used. In principle, the mill jars material must be harder than the material to be ground.
Product Application
service team & exhibition
Production process
Certifications
Cooperation partner
Payment and Shipment
FAQ
Q: How is Inovatec machinery brand?
Inovatec Machinery is famous Top 3 brand mass finishing equipment and consumables manufacturer of China, has:
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
- 25 years: vibratory finishing machines and tumbling media manufacturer experience.
- 20000 square meters factory
-2 year warranty
Q: What Certifications do you have?
ISO9001, CE, certifications etc. 100% quality check, and testing before shipment.
Q: What is Inovatec Machinery equipment warranty?
2 year warranty for all Inovatec Machinery equipment
Lifetime maintenance will be provided after the 2 year warranty period expires.
Lifetime maintenance will be provided after the 2 year warranty period expires.
Q: How you guarantee tumbling media quality?
We make quality tracking from raw material until quality check before shipment. We keep record of quality test including wearing and cutting.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
For bulk and OEM order, we follow your testing methods and keep track of wearing and cutting. If the quality does not meet the standard, we will not make the shipment.
Q: What is your Payment method?
Accept payment via T/T (Bank transfer), Western Union, Money Gram, and PayPal;
Accept L/C at sight (bulk order).
Accept L/C at sight (bulk order).
Q: What is your Minimum order amount?
For machine minimum order is 1 PCS. For tumbling media minimum order is 1000kg or 2000 lbs as one pallet.
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
You can ship less amount of media if ship with the machine.
Sample order is allowed to ship less amount of tumbling media
Q: What is your way of packaging?
Fermentation wooden pallets for media, 1000kg per pallet, 25kg/plastic bag
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Customize packaging and logo printing is available for discuss
Wooden box for equipment and compound
Q: How long is your production time?
15 working days for sample order;
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
20-25 working days for bulk order.
Emergency order can be fulfilled in a week
Q: What is the Shipping Way?
20-30 days by sea to your nearest seaport
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
2-5 days by air to your nearest airport
3-5 days by express to your doorstep
Q: What is the nearest Port:?
Shanghai, Ningbo and Yiwu are the closest port.
