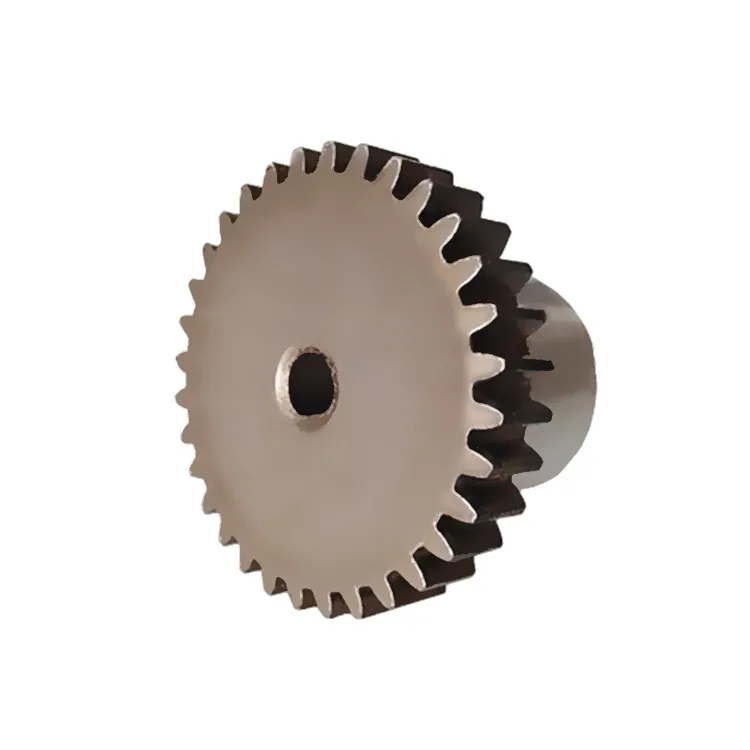

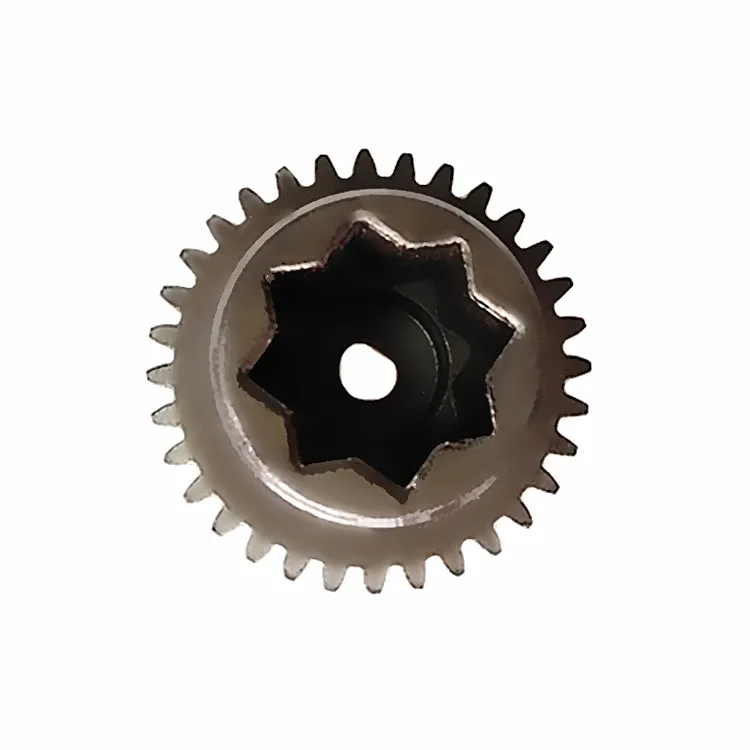

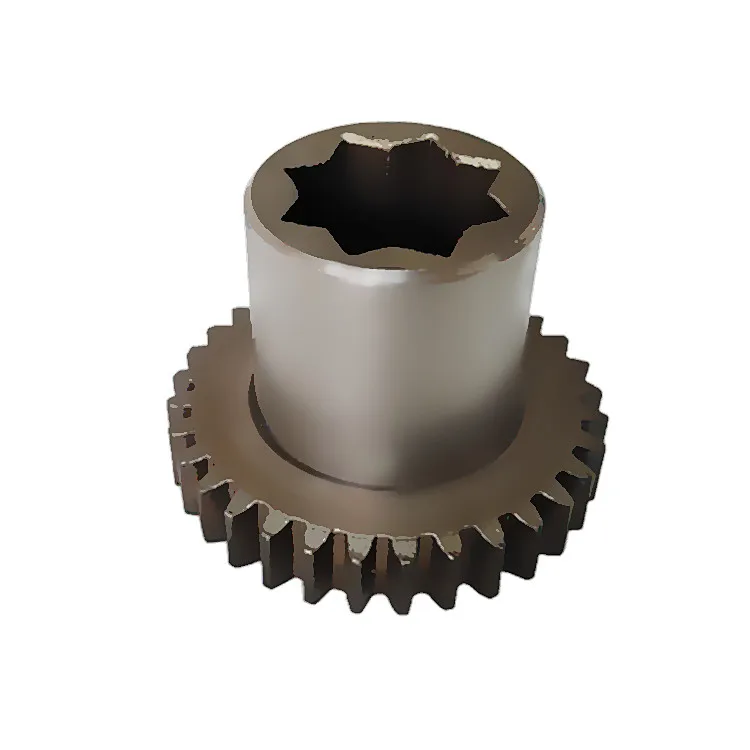

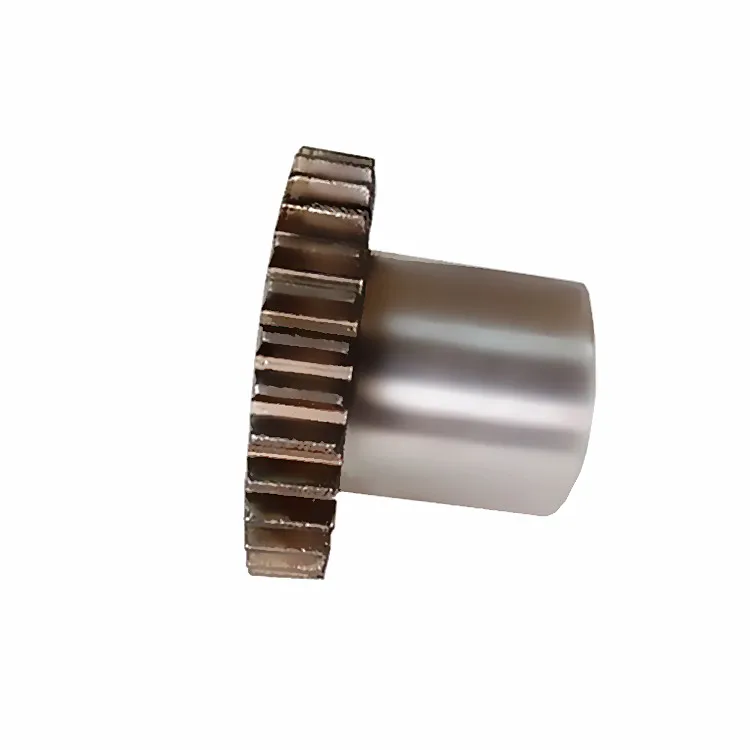

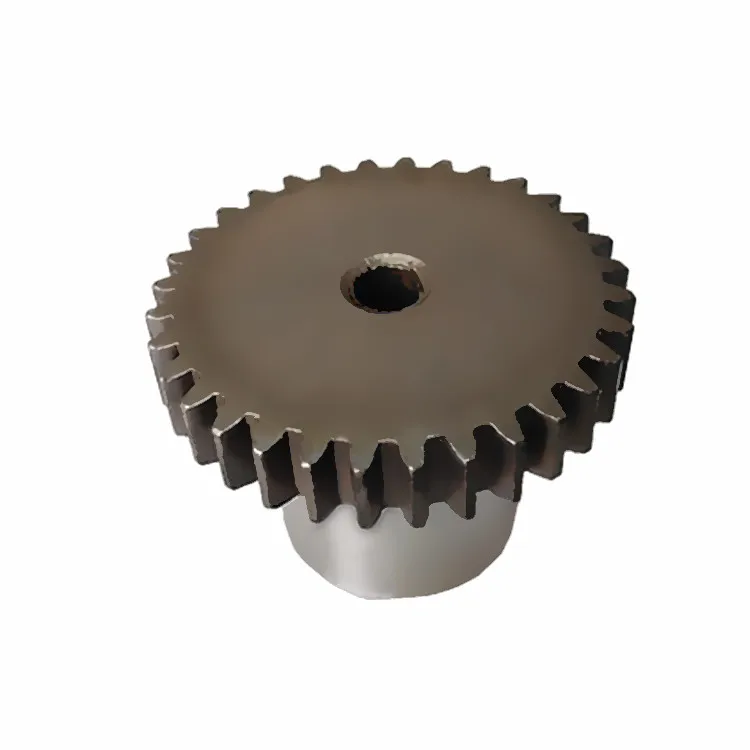

32 tooth powder metallurgy spur shaft gear with octagonal star bore shaft
- Category: >>>
- Supplier: Xiamen Austar Powder Metallurgy Co. Ltd.
Share on (62014226980):
Product Overview
Description
Product Description
| Material | Copper Powder ;Iron Powder |
| Certificate | ISO9001:2008 |
| Tolerance | ± 0.02-0.1mm, |
| Density Range | 6-7.2/cm3(Fe) |
| Surface Treatment | Blacken,Dacromet Plated ,Polishing,Sand Blasting,Electroplating,Oil immersion |
| Heat Treatment | Ordinary Quenching,Carburizing, Ritriding, High Frequency Quenching |
| Application | Sport Equipment,Home Appliances,Transmission Parts,Vehicle,etc |
| Performance | High Precision,High Wear Resistance,Low Noise,Smooth And Steady,Cheap |
| Processing Technic | Powder Metallurgy Sinter |
| Process | Mixing-Mechanical Forming-Hydraulic Molding-Sinter-Detection Strength And Hardness-Auxiliary Machining And Surface Treatment -Packing And Shipping |
teeth number | 32 teeth |
modulus | 1.25 M |
tip diameter | 42.3 mm |
| root diameter | 36.68 mm |
| pitch diameter | 40 mm |
D hole inner diameter | 6 mm |
D hole heigh | 5.5 mm |
gear thickness | 8.1 mm |
shaft outer diameter | 24.9 mm |
flange height | 6.3 mm |
| tip diameter of octagonal internal hole | 29.6 mm |
root diameter of octagonal internal hole | 15.5 mm |
total height | 30.3 mm |
| Weight | 106.08 g |
| Material | iron,steel |
