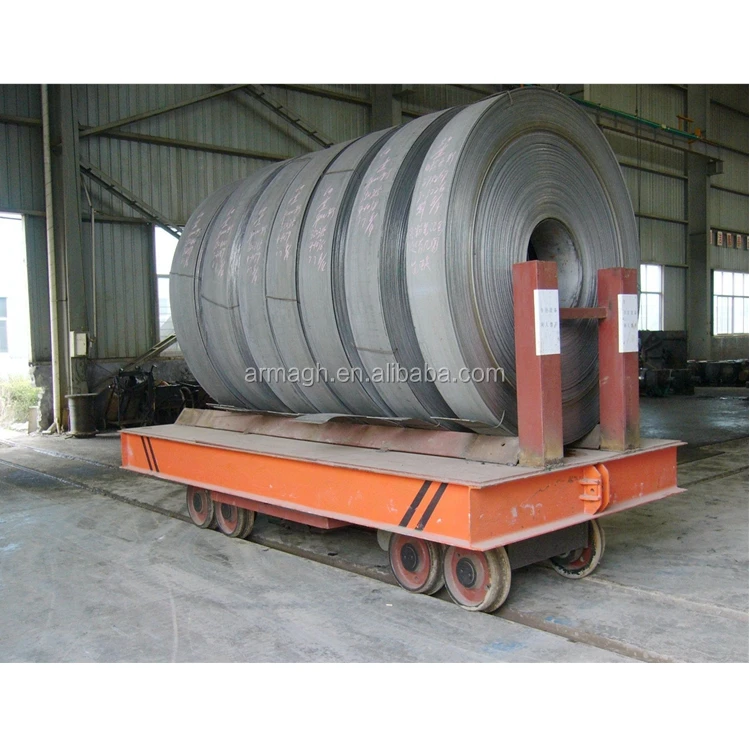

electric rail cart platform cable drum power rail coil transfer cart

Product Overview

Description

Product Description

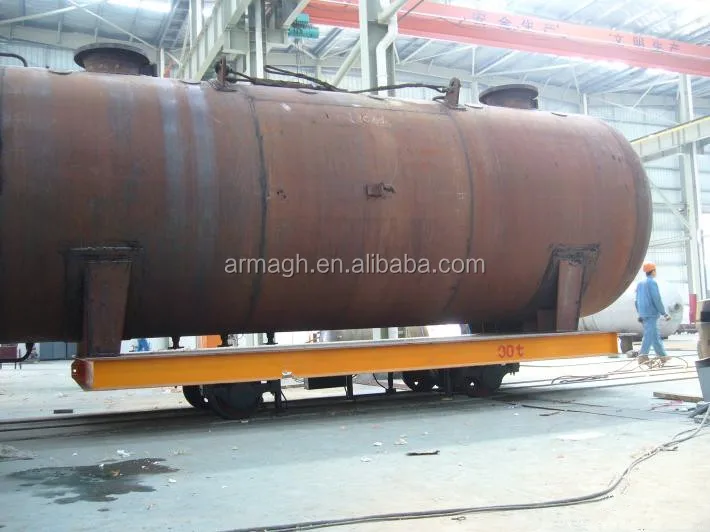

Flat Electric Transfer cart, also known as electric flat car, electric flat car, trolley car, crossover car, electric rail car, ground climbing car, etc., is a kind of in-plant electric rail transport vehicles, first of all, it is a rail-type transport vehicles, the need to lay tracks on the ground, track is generally i-shaped surface contact rail;Secondly, it is an electrically driven vehicle that runs automatically under the drive of motor reducer. Thirdly, it is a flat car with a flat surface and no hatchcover. Under special circumstances, it can be non-flat but no hatchcover.This kind of vehicle has simple structure, convenient use, large carrying capacity, not dirty not to hit, easy maintenance, long service life, etc, because of its convenience, husky, economic, practical, easy to clean, and many other advantages, become the enterprise internal and factory and factory of choice for short distance between the fixed point often carry heavy transport.

tApplication

The series flat electric transfer cart can be suitable to be used in the bad environment, such as, high-temperature and anti-explosion condition. Compared with the KPX series, the using is not linited; Compared with KPD series, it is not so strict limitation for the construction of the railway. The load capacity is not limited and if the running distance is more than 50m, a cable arranger should be installed to arrange the cables, the runnimg distance of KPJ series can reach to 200m.

transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart

Andvantages of flat electric transfer car

• High temperature and explosion proof;


• The Dragged cable powered flat bed trailer for material transfer With simple structure and low price;


• The hydraulic can be installed on the flat carts;


• The Dragged cable powered flat bed trailer's using time is not limited;


• The flat bed trailer for material transfer has no strict requirement on the rail’s construction;


• Running on the straight railways or on the ‘S’ and arc-shaped railways.

transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart

Technical date&type of flat electric transfer car

Model		KPT-2T	KPT-5T	KPT-10T	KPT-16T	KPT-20T	KPT-50T	KPT-100T	KPT-150T
Rated load (T)		2	5	10	16	20	50	100	150
Table size	length(L)	2000	3500	3600	4000	4000	5500	6500	10000
	Width(W)	1500	2000	2000	2000	2200	2500	2800	3000
	Height(H)	450	450	500	500	550	650	850	1200
Wheel Base (mm)		1200	2500	2600	2800	2800	4200	4900	7000
Rail Inner Gauge (mm)		1200	1435	1435	1435	1435	1435	2000	2000
Wheel Diameter(mm)		Φ270	Φ300	Φ300	Φ350	Φ350	Φ500	Φ600	Φ600
Wheel Quantity		4	4	4	4	4	4	4	8
Ground Clearance (mm)		50	50	50	50	50	50	75	75
Running speed (min)		0-25	0-25	0-25	0-20	0-20	0-20	0-20	0-18
Motor Power (Kw)		0.8	1.5	1.5	2.2	2.5	5.5	11	15
Max Wheel Load (KN)		14.4	25.8	42.6	64.5	77.7	174	343.8	265.2
Reference Weight (t)		2.3	3.3	3.8	5	5.5	7.6	13.9	26
Recommended Rail Model		P15	P18	P18	P24	P24	P43	QU100	QU100



transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart transfer cart
