Arc gear pump for transferring oil, gasoil
- Category: >>>
- Supplier: Yongjia Sanjiang Petroleum Machinery Factory
Share on (62014332644):
Product Overview
Description
Product Description
| Size | 3 INCH |
| Working pressure | 0-0.5Mpa |
| Flow | 1000L/min |
| Rotating speed | 960r/min |
| Power | 11Kw |
| Head | 60m |
| Suction | 7m |
| Medium | Diesel, Gasoline, Kerosene |
Usage

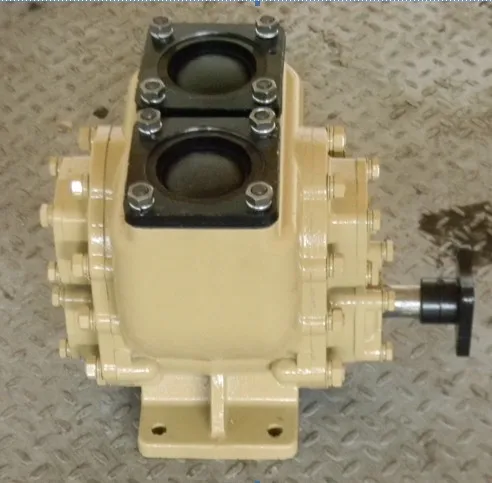

YOJE YCBH-80A Pump is used for transporting gasoline, diesel, kerosene and other light oil etc.
It is made of aluminum low-pressure casting. Mechanical seal on the main shaft improves sealing performance, built-in overflow hole prevent excessive pressure.
It is not only be used for loading and unloading for oil depot, but also for motor refueling vehicles and tank trucks. Pump rotation is left or right.
Features
1. Vane type structure,built-in relief valve,stable performance, high reliability.
2. Light weight,compact and easy to install.
3. Body: Aluminum alloy low pressure casting.
4. Low noise, high flow, long service life.
5. Simple and convenient maintenance and replacement, mechanical seal.
Our Company
Zhejiang Yongjie Petrochemical Equipment Co.,Ltd , ( Yongjia Sanjiang Petroleum Machinery Factory )
is the professional manufacturer in producing tank truck parts, such as manhole cover, bottom emergency valve, API valve, vapor valve, optic sensor, ball valve, filters, acr gear pumps and petrol station equipment.
We were established since 1985(more than 30 years experience in this line) and now located at Binhai Industrial Zone with 18000sqm. Our brand "YOJE" is labeled as "Top quality" and enjoy a great fame, we cooperate with SINOPEC, CNPC, TOTAL, SHELL, BP and so on.
Drawing
